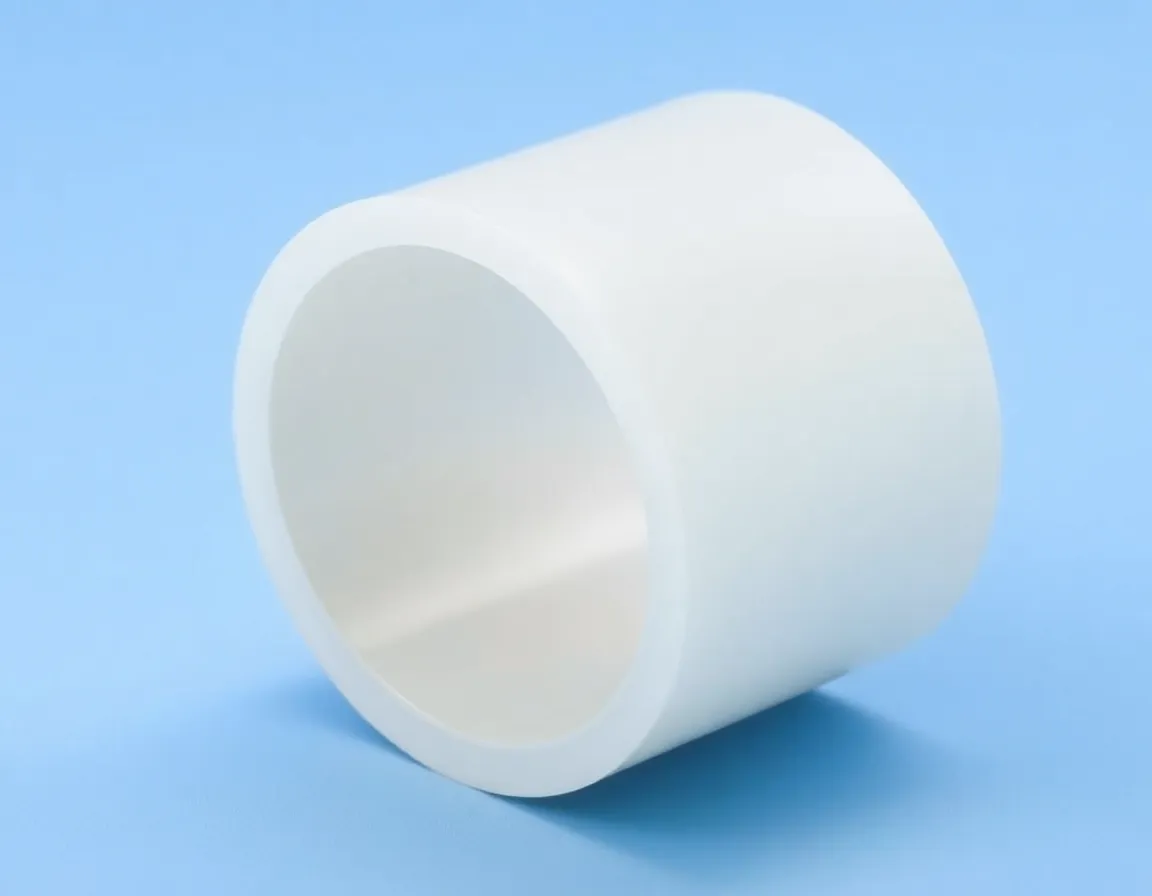

Precision PTFE CNC Machining for Your Critical Components

PTFE CNC machining is a specialized manufacturing process that uses computer-controlled (CNC) machines to precisely cut, mill, and shape solid PTFE (Polytetrafluoroethylene) material, commonly known by the brand name Teflon®. It is used to create high-performance components with complex geometries that are difficult or impossible to produce through molding. Typical applications include seals, gaskets, bushings, insulators, and custom parts for industries like semiconductor manufacturing, aerospace, pharmaceuticals, and food processing. The process is ideal for producing prototypes, low-to-medium volume production runs, and parts requiring extremely tight tolerances from this unique, chemically inert polymer.

The process begins with a solid block, rod, or sheet of PTFE being securely clamped onto the CNC machine's bed. A computer program (G-code), generated from a 3D CAD model, directs the machine's cutting tools. Due to PTFE's soft and gummy nature, specialized tooling with sharp, high-positive rake angles and high cutting speeds are used to achieve a clean cut without deforming the material. The CNC machine precisely removes material through milling, turning, or drilling operations to create the final part. Coolants are often not required, but compressed air is used to clear chips. Post-machining, parts may undergo secondary operations like cleaning or quality inspection to ensure they meet all dimensional and surface finish specifications.

CNC machining offers several distinct advantages for fabricating PTFE components. First, it provides exceptional dimensional accuracy and repeatability, crucial for parts like seals and insulators. Second, it allows for incredible design freedom, enabling complex shapes, intricate features, and tight tolerances that are unachievable with molding. Third, it is perfect for prototyping and short runs without the high cost of custom molds. Furthermore, CNC machining produces parts with excellent surface finishes directly from the machine. Most importantly, it preserves the inherent properties of PTFE, such as its supreme chemical resistance, very low coefficient of friction, high-temperature stability (up to 260°C/500°F), and excellent dielectric properties, ensuring the final part performs as required in demanding environments.

A primary concern is PTFE's softness and tendency to deform under clamping pressure or during cutting, which can affect tolerances. Machinists address this by using specialized, sharp tooling, proper fixturing with low clamping force, and optimized feed and speed rates. Another challenge is material creep (cold flow) under sustained load; designers must account for this in the part geometry. PTFE also has a high thermal expansion rate, so temperature control during machining and in the final application is considered. Chip formation can be stringy, requiring effective chip evacuation. Experienced CNC shops mitigate these issues through proven techniques, ensuring the final part meets specifications. Choosing a machine shop with specific expertise in plastics and PTFE is critical to overcoming these challenges successfully.

The cost and lead time for custom PTFE CNC machining depend on several key factors. Part complexity is the biggest driver; intricate designs with tight tolerances and thin walls require more machining time and specialized setups, increasing cost. The quantity of parts also affects price, as higher volumes reduce the per-part cost by amortizing programming and setup time. The type and grade of PTFE (e.g., virgin, glass-filled, carbon-filled) influence material costs. Secondary operations like deburring, cleaning, or additional quality checks add time and cost. Finally, the machine shop's capacity and your project's urgency impact lead time. To get the best value, provide a detailed CAD drawing, specify tolerances clearly, and discuss your application needs with the manufacturer for an accurate quote.
