Introduction to Machined Plastic Components

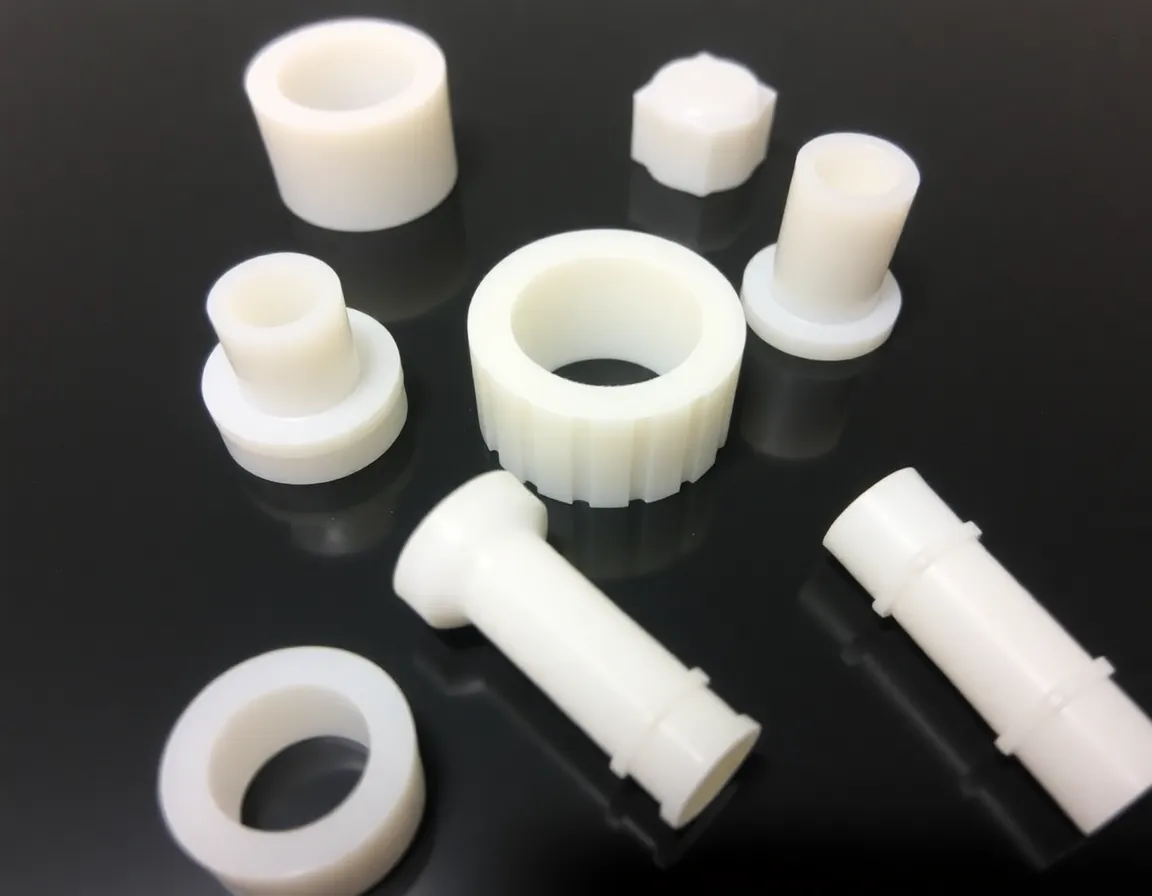

In the modern industrial landscape, the demand for high-performance, lightweight, and corrosion-resistant parts has driven a significant shift from traditional metal components to engineered plastic alternatives. Machined plastic componentsare parts created by removing material from a solid plastic block or rod using precision cutting tools, such as CNC mills, lathes, and routers. Unlike injection molding or 3D printing, machining offers unparalleled dimensional accuracy, superior surface finish, and the ability to produce complex geometries without the need for expensive tooling. This process is essential for industries ranging from aerospace and medical devices to food processing and semiconductor manufacturing, where reliability and precision are non-negotiable.
Plastic machining leverages the unique properties of advanced polymers—such as chemical resistance, electrical insulation, low friction, and high strength-to-weight ratios—to solve engineering challenges that metals cannot address. This article provides a comprehensive exploration of machined plastic components, covering the fundamental processes, material selection, key benefits, diverse applications, and best practices for achieving optimal results.
Understanding the Machining Process for Plastics
Machining plastics is a subtractive manufacturing technique that begins with a solid blank of thermoplastic or thermoset material. The process is highly automated, often using Computer Numerical Control (CNC) machinery to execute precise movements based on a digital 3D model. The core stages include design, material preparation, cutting, and finishing.
CNC Milling and Turning
CNC millinguses rotating multi-point cutting tools to remove material from a stationary workpiece. This is ideal for creating flat surfaces, slots, pockets, and intricate 3D contours. For cylindrical parts,CNC turning(using a lathe) rotates the plastic blank while a stationary cutting tool shapes it, producing rods, bushings, and threaded components. Both methods rely on precise toolpath programming to avoid common issues like melting, chipping, or warping, which are specific to plastic materials.
Key Differences from Metal Machining
Plastics behave differently from metals under cutting forces. They have lower thermal conductivity, meaning heat generated during cutting does not dissipate quickly, leading to localized melting or gumming. Additionally, plastics are more elastic and can deform under clamping pressure. Therefore, machinists must use:
- Sharp, polished cutting tools to reduce friction and heat buildup.
- High spindle speeds with moderate feed ratesto create clean chips rather than smearing the material.
- Coolant or compressed airto manage temperature and evacuate chips effectively.
- Light clamping forcesto prevent distortion of the workpiece.
Secondary Operations
After primary machining, components often undergo secondary processes such as deburring (removing sharp edges), polishing (for optical clarity), or tapping (for internal threads). Some applications also require annealing—a controlled heating and cooling cycle—to relieve internal stresses that can cause cracking or dimensional changes over time.
Material Selection: Choosing the Right Plastic
The performance of a machined plastic component is heavily dependent on the base material. Engineers select polymers based on mechanical, thermal, chemical, and electrical requirements. Below are the most commonly used plastics for precision machining.
High-Performance Engineering Plastics
PEEK (Polyether Ether Ketone)is a premium thermoplastic known for exceptional strength, continuous service temperature up to 260°C, and resistance to harsh chemicals. It is used in aerospace brackets, medical implants, and semiconductor wafer handling equipment.PTFE (Polytetrafluoroethylene), or Teflon, offers the lowest coefficient of friction and outstanding chemical inertness, making it ideal for seals, gaskets, and non-stick surfaces.Acetal (POM)provides excellent dimensional stability, low moisture absorption, and high stiffness, commonly used for gears, bearings, and pump components.
Cost-Effective and General-Purpose Options
Nylon (PA6/PA66)is tough, wear-resistant, and easy to machine, though it absorbs moisture which can alter dimensions. It is widely used for bushings, rollers, and guide rails.Polycarbonate (PC)offers high impact resistance and optical transparency, suitable for machine guards, lenses, and electrical enclosures.UHMWPE (Ultra-High Molecular Weight Polyethylene)is extremely abrasion-resistant and self-lubricating, perfect for conveyor components and food processing parts.
Specialty Materials for Unique Environments
For applications requiring flame retardancy, PVC (Polyvinyl Chloride)is a common choice.PVDF (Polyvinylidene Fluoride)excels in ultrapure water systems due to its low extractables.Torlon (PAI)maintains strength at very high temperatures and is used in automotive transmission components. The table of material properties is critical: machinists must consider not only the final use but also how the material responds to cutting, such as its tendency to string or chip.
Key Benefits of Machined Plastic Components
Choosing machined plastics over metals or other manufacturing methods offers distinct advantages that translate into better product performance and lower lifecycle costs.
Weight Reduction and Inertia Control
Plastics are significantly lighter than aluminum or steel—often 50% to 80% less dense. In applications like aerospace, robotics, and high-speed automation, reducing mass lowers energy consumption and reduces rotational inertia, allowing for faster acceleration and deceleration. This weight savings does not compromise strengthwhen using reinforced grades like glass-filled PEEK or carbon-filled Nylon.
Corrosion and Chemical Resistance
Unlike metals, plastics do not rust, oxidize, or corrode when exposed to moisture, acids, bases, or solvents. This makes them indispensable in chemical processing, marine environments, and medical sterilization equipment. PTFE and PVDFare particularly valued for their ability to withstand aggressive chemicals without degradation.
Electrical and Thermal Insulation
Most plastics are natural electrical insulators, preventing short circuits and signal interference in electronic assemblies. Materials like BakeliteandFR4 (glass epoxy)are machined into insulators, standoffs, and circuit board components. Additionally, plastics have low thermal conductivity, making them excellent for handles, knobs, and housings that must remain cool to the touch.
Design Flexibility and Rapid Prototyping
Machining allows for quick iteration without the lead time and cost of injection molding dies. Engineers can test multiple design variations in days, using the same material that will be used in production. Tight tolerances of +/- 0.001 inchesare achievable, and complex features like undercuts, thin walls, and sharp internal corners are possible without mold constraints.
Low Friction and Self-Lubrication
Many plastics, such as Acetal, Nylon, and UHMWPE, have inherent lubricity. This eliminates the need for external oils or greases in bearing and sliding applications, reducing maintenance and contamination risks. In food processing and cleanroom environments, this is a critical advantage.
Common Applications Across Industries
Machined plastic components are found in virtually every sector where precision, durability, and material-specific properties are required.
Medical and Healthcare
In the medical field, machined plastics are used for surgical instruments, prosthetics, and diagnostic equipment. PEEKis machined into spinal implants and dental abutments due to its biocompatibility and radiolucency (it does not interfere with X-rays).Ultem (PEI)is used for sterilization trays and surgical handles because it can withstand repeated autoclaving. The ability to produce custom, patient-specific parts with smooth surfaces that resist bacterial adhesion is invaluable.
Aerospace and Defense
Aircraft interiors, satellite components, and drone parts benefit from the weight savings and flame resistance of machined plastics. Torlonis machined into bushings for landing gear and engine controls.PEEKreplaces metal in brackets and cable clamps, reducing fuel consumption. The materials also exhibit excellent fatigue resistance and dimensional stability across extreme temperature ranges.
Electronics and Semiconductor
In semiconductor fabrication, machined PTFEandPEEKcomponents are used for wafer handling, chemical delivery systems, and vacuum chamber parts. Their high purity and low outgassing prevent contamination of sensitive wafers.Static-dissipative plasticslike conductive Acetal are machined into test sockets and handling trays to protect electronic components from electrostatic discharge.
Food Processing and Packaging
FDA-approved materials like UHMWPEandAcetalare machined into conveyor chain guides, cutting boards, and scraper blades. These components are non-toxic, easy to clean, and resistant to food acids. Their self-lubricating nature eliminates the need for grease that could contaminate products.
Automotive and Industrial Machinery
Machined plastic gears, pulleys, and wear strips reduce noise and vibration compared to metal counterparts. Nylonis used for timing belt pulleys and cable guides, whileAcetalis machined into fuel system components and pump impellers. The low coefficient of friction extends the life of moving parts and reduces energy losses.
Best Practices for Designing and Machining Plastic Parts
To fully leverage the advantages of machined plastic components, engineers and machinists must adhere to specific design and process guidelines.
Design Considerations
- Avoid sharp internal corners: Plastics are notch-sensitive. Use generous radii (at least 0.02 inches) to reduce stress concentration and prevent cracking.
- Maintain uniform wall thickness:Variations in thickness can cause differential cooling and warping. If unavoidable, add gradual transitions.
- Incorporate draft angles:While not always necessary for machining, a slight taper (1-3 degrees) on deep pockets aids tool access and chip evacuation.
- Specify realistic tolerances:Plastics expand and contract with temperature and humidity. For critical dimensions, consider the material’s coefficient of thermal expansion and moisture absorption rate.
Machining Parameters
Successful plastic machining requires careful control of cutting variables. Use high spindle speeds (10,000-20,000 RPM)combined withlow feed ratesto produce fine chips. Employsingle-flute or two-flute end millswith a positive rake angle to shear material cleanly. For deep holes, use a peck drilling cycle to clear chips and prevent heat buildup.Always use coolant—either a water-miscible mist or compressed air—to keep the cutting zone below the material’s melting point.
Quality Assurance and Inspection
After machining, parts should be inspected for dimensional accuracy using coordinate measuring machines (CMM) or precision gauges. Visual inspection under magnification helps identify micro-cracks or burrs. For critical applications, non-destructive testinglike ultrasonic inspection can detect internal voids. It is also good practice to allow machined parts to “rest” for 24 hours at room temperature to stabilize before final measurement, especially for stress-relieved materials like Nylon.
Future Trends in Machined Plastic Components
The field of plastic machining is evolving with advances in material science and automation. Composite plasticsreinforced with carbon fiber, glass, or aramid are becoming more machinable, offering metal-like stiffness at a fraction of the weight.Hybrid manufacturingthat combines 3D printing of near-net shapes with final CNC machining is reducing waste and lead times. Additionally, the development ofbio-based and recyclable plasticsis enabling sustainable machining solutions for environmentally conscious industries. As CNC technology becomes more accessible, smaller businesses can now produce custom machined plastic components in-house, accelerating innovation from prototype to production.
In conclusion, machined plastic components represent a critical intersection of material science and precision engineering. Their ability to deliver high performance, customization, and cost efficiency makes them indispensable across a wide spectrum of modern industries. By understanding the nuances of material selection, machining processes, and design best practices, engineers can unlock the full potential of these versatile components, driving progress in technology, medicine, and manufacturing.
