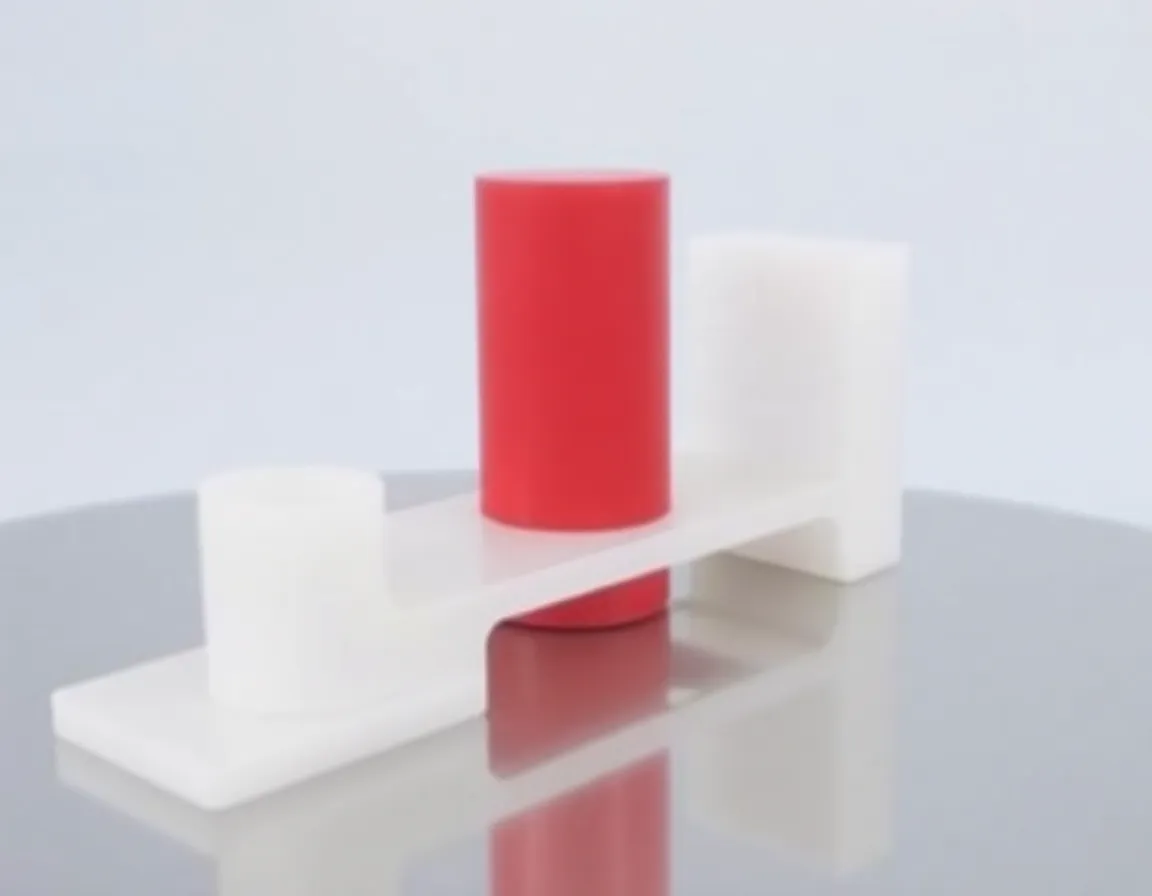

Introduction to ABS CNC Machining
Acrylonitrile Butadiene Styrene (ABS) is one of the most widely used thermoplastic polymers in the manufacturing industry, and when combined with Computer Numerical Control (CNC) machining, it becomes a powerhouse for producing durable, high-precision parts. ABS CNC machining refers to the subtractive manufacturing process where a solid block of ABS plastic is precisely carved, milled, or turned into a finished component using automated machine tools controlled by computer software. This process is distinct from 3D printing or injection molding, offering unique advantages for prototyping and low-to-medium volume production. The material itself is known for its excellent impact resistance, toughness, and machinability, making it a favorite across industries from automotive to consumer electronics.
Understanding ABS CNC machining requires a look at both the material properties and the machining dynamics. ABS is an amorphous polymer, meaning it lacks a crystalline structure, which gives it good dimensional stability and a predictable shrinkage rate during cooling. However, its low melting point (around 105°C) and tendency to soften under heat present specific challenges for CNC machining. Machinists must carefully control cutting speeds, feed rates, and coolant usage to prevent melting, warping, or poor surface finishes. When executed correctly, ABS CNC machining yields components with tight tolerances, smooth surfaces, and excellent mechanical properties.
How ABS CNC Machining Works
Material Preparation and Fixturing
The process begins with selecting the appropriate ABS grade. Standard ABS is available in sheets, rods, or custom blocks, often in natural (cream/white) or black colors. The material is first cut to rough dimensions slightly larger than the final part. Fixturing is critical—ABS is relatively soft and can deform under clamping pressure. Machinists typically use vacuum tables, soft jaws, or custom fixtures to hold the workpiece securely without distortion. Because ABS can absorb moisture from the air, pre-drying at 80-90°C for 2-4 hours is recommended to prevent bubbles or steam pockets during machining.
Tool Selection and Cutting Parameters
Choosing the right cutting tools is essential for ABS CNC machining. High-speed steel (HSS) or carbide end mills with sharp cutting edges are preferred. The number of flutes matters: two-flute or three-flute end millsare ideal because they provide efficient chip evacuation and reduce heat buildup. For finishing passes, ball nose or bull nose end mills help achieve smoother surfaces. Recommended cutting parameters include:
- Spindle speed: 8,000–15,000 RPM for most operations
- Feed rate:0.002–0.006 inches per tooth (depending on tool diameter)
- Depth of cut:0.02–0.08 inches for roughing; 0.005–0.02 inches for finishing
- Coolant:Compressed air or mist coolant (avoid flood coolant to prevent thermal shock)
These parameters must be adjusted based on the specific machine and part geometry. Climb milling is generally recommendedfor ABS because it produces a better surface finish and reduces heat generation compared to conventional milling.
Machining Process Steps
The CNC program is generated from a 3D CAD model using CAM software. The process typically involves three stages: roughing, semi-finishing, and finishing. During roughing, large amounts of material are removed quickly using stepover values of 40-60% of tool diameter. Semi-finishing leaves 0.02-0.04 inches of stock for the finishing pass. Finishing uses light cuts (0.005-0.01 inches) at higher speeds to achieve the final surface quality. For parts with sharp internal corners, a smaller tool may be required for the final pass. Throughout the process, chip evacuation is crucial—ABS chips can be stringy and may wrap around the tool, causing heat buildup. Using compressed air or a vacuum system helps keep the cutting zone clear.
Key Benefits of ABS CNC Machining
Superior Mechanical Properties
ABS is renowned for its balance of strength, toughness, and rigidity. CNC-machined ABS parts exhibit excellent impact resistance—they can absorb sudden forces without cracking, making them ideal for protective housings and structural components. The material also has good tensile strength (typically 30-50 MPa) and flexural modulus (2.0-2.5 GPa), providing reliable performance under load. Unlike 3D-printed ABS, which can have layer adhesion weaknesses, CNC-machined parts are isotropic, meaning their mechanical properties are uniform in all directions.
High Dimensional Accuracy and Surface Finish
One of the primary advantages of CNC machining over other manufacturing methods is precision. ABS CNC machining can achieve tolerances of ±0.005 inches (0.127 mm)standard, and with careful setup, tolerances as tight as ±0.002 inches (0.05 mm) are possible. The surface finish is typically smooth, with Ra values between 0.4 and 1.6 micrometers from the machine. For aesthetic or functional requirements, post-processing like sanding, vapor smoothing, or painting can further improve the surface. This level of precision is difficult to achieve with injection molding for small runs and impossible with most 3D printing technologies.
Cost-Effectiveness for Low to Medium Volumes
For production quantities of 1 to 1,000 parts, ABS CNC machining is often the most economical choice. Unlike injection molding, which requires expensive molds costing thousands of dollars, CNC machining only requires material and machine time. No tooling investmentmeans lower upfront costs, making it perfect for prototyping, custom parts, and bridge production. Additionally, design changes can be implemented instantly by modifying the CAM program—no need to retool or scrap expensive molds. This agility is invaluable in product development cycles.
Versatility in Design and Geometry
CNC machining can produce complex geometries that would be difficult or impossible with other methods. Features like undercuts, threads, slots, and precise holes are readily achievable. ABS can also be machined into large parts (up to several feet in dimension) that would be impractical for 3D printing. The material bonds well with adhesives and solvents, allowing for assembly of multi-component structures. Furthermore, ABS is easily post-processed—it can be glued, painted, plated, or even welded ultrasonically, expanding its application range.
Common Applications of ABS CNC Machining
Automotive Components
The automotive industry uses ABS CNC machining for interior trim parts, dashboard components, console panels, and under-the-hood covers. ABS’s resistance to automotive fluids (oil, gasoline, coolant) and its ability to withstand temperature variations make it suitable for functional prototypes and custom parts. Machined ABS is also used for jigs and fixturesin assembly lines because it is lightweight yet durable, reducing operator fatigue.
Consumer Electronics Housings
ABS is a standard material for electronic enclosures due to its electrical insulation properties and impact resistance. CNC machining allows for precise cutouts for buttons, displays, connectors, and ventilation slots. Products like remote controls, medical device casings, power tool housings, and audio equipment often start as CNC-machined ABS prototypes before moving to injection molding. The ability to produce cosmetic-grade surfacesdirectly from the machine reduces post-processing time.
Medical and Laboratory Equipment
ABS is FDA-compliant for certain food contact applications and is used in non-sterile medical devices. CNC-machined ABS parts appear in diagnostic equipment housings, laboratory instrument frames, and surgical tool handles. The material can be sterilized using ethylene oxide or gamma radiation (though it may yellow). Its chemical resistanceto mild acids and bases makes it suitable for lab environments where occasional chemical exposure occurs.
Prototyping and Product Development
Perhaps the most common application is rapid prototyping. Engineers use ABS CNC machining to create functional prototypes that closely resemble final injection-molded parts. These prototypes are used for form, fit, and function testingbefore committing to mass production. The material’s machinability allows for quick iterations—design changes can be tested within days. Additionally, CNC-machined ABS is often used for master patterns in silicone mold making or investment casting.
Best Practices for ABS CNC Machining
Managing Heat and Chip Control
The single biggest challenge in ABS CNC machining is heat management. ABS has a low thermal conductivity and a glass transition temperature around 105°C. If cutting temperatures exceed this, the material softens and may gum up the tool. To mitigate this, use sharp tools(replace them at the first sign of dullness), apply compressed air or mist coolant, and avoid dwell marks where the tool stays in one spot. Chip control is equally important—long, stringy chips can wrap around the cutter and cause heat buildup. Using chip breakers in the CAM program or reducing stepover can produce shorter, manageable chips.
Surface Finish Optimization
For a high-quality surface finish, consider these techniques:
- Use climb milling for the final pass to reduce tool marks
- Apply a light finish pass (0.005-0.010 inches) at high RPM and low feed rate
- Use a bull nose end millwith a small corner radius to avoid sharp scallops
- For internal corners, use a tool with a radius matching the corner (avoid sharp internal corners)
- After machining, vapor smoothing with acetone can produce a glossy, injection-molded look
Avoiding Common Defects
Several defects can occur during ABS CNC machining. Burr formationis common on edges—use deburring tools or chamfer passes to remove them.White stress markscan appear near machined edges due to material stress; these can be minimized by using sharp tools and reducing feed rates.Warpagemay occur in thin-walled parts—design with adequate wall thickness (minimum 0.060 inches recommended) and use balanced machining strategies to avoid uneven material removal. If parts show dimensional drift, check for thermal expansion or machine calibration issues.
Post-Processing and Finishing Options
ABS parts from CNC machining often require additional finishing. Common post-processing steps include:
- Sanding: Use 220-400 grit sandpaper to remove tool marks, then 600-1000 grit for a smooth finish
- Vapor smoothing:Expose the part to acetone vapor in a controlled chamber (30-60 seconds) for a glossy, sealed surface
- Painting:Apply primer first (ABS-specific primer recommended), then paint with acrylic or polyurethane paints
- Threaded inserts:Heat-set brass inserts can be installed for stronger threaded connections
- Adhesive bonding:Use cyanoacrylate (super glue), epoxy, or solvent cement (MEK or acetone) for joining parts
Conclusion: The Future of ABS CNC Machining
ABS CNC machining remains a cornerstone of modern manufacturing, offering a unique combination of material performance, precision, and cost efficiency. While additive manufacturing continues to grow, CNC machining of ABS holds distinct advantages for parts requiring isotropic strength, tight tolerances, and superior surface finishes. Advances in toolpath algorithms, high-speed spindles, and adaptive machining strategies are making the process faster and more reliable. For engineers and product designers, understanding the nuances of ABS CNC machining—from heat management to post-processing—is essential for leveraging this technology effectively. Whether for a single prototype or a production run of hundreds, ABS CNC machining delivers consistent, high-quality results that bridge the gap between concept and reality.
