Introduction: The Evolution of Precision Manufacturing
In the modern era of manufacturing, the demand for components with intricate geometries, tight tolerances, and superior surface finishes has never been higher. Traditional 3-axis machining, while effective for simple prismatic parts, often falls short when faced with complex undercuts, deep cavities, and freeform surfaces. This is where precision 5-axis CNC machining emerges as a transformative technology. By adding two rotational axes to the standard X, Y, and Z linear movements, 5-axis machines can approach a workpiece from virtually any angle. This capability unlocks the production of parts that were previously impossible to machine, reduces setup times, and dramatically improves accuracy. This article provides a comprehensive exploration of precision 5-axis CNC machining, covering its core principles, operational mechanics, key benefits, diverse applications, and best practices for implementation.

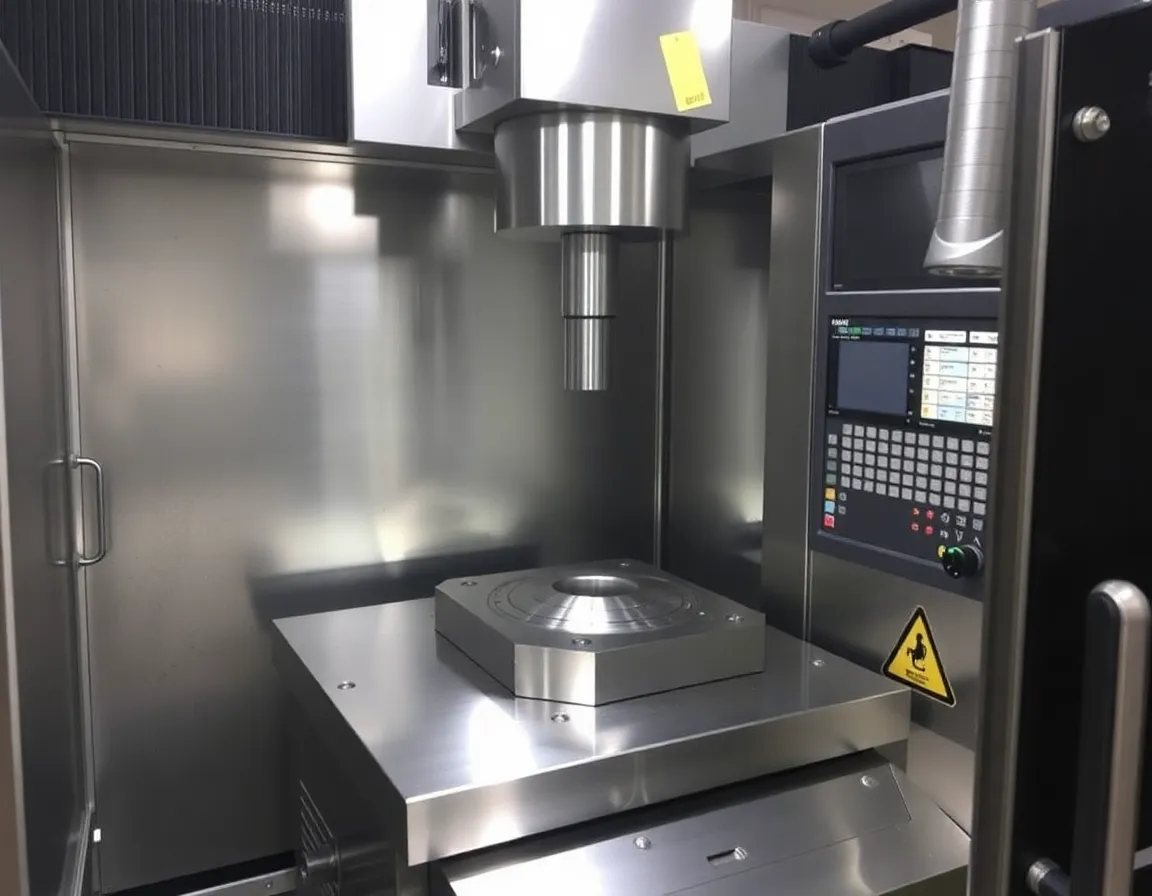

What is Precision 5-Axis CNC Machining?
At its most fundamental level, precision 5-axis CNC machining refers to the use of computer numerical control (CNC) machines that can move a cutting tool or a workpiece along five different axes simultaneously. Unlike a standard 3-axis machine that moves only in the linear X (left-right), Y (front-back), and Z (up-down) directions, a 5-axis machine adds two rotational axes. These additional axes are typically designated as the A-axis (rotation around the X-axis), B-axis (rotation around the Y-axis), and C-axis (rotation around the Z-axis). Most 5-axis machines utilize a combination of two of these three rotational axes.
The true power of 5-axis machining lies in its ability to maintain a constant, optimal orientation of the cutting tool relative to the workpiece surface. This is known as simultaneous 5-axis machining or “5-axis contouring.” Instead of repositioning the part manually between operations, the machine rotates the table and/or the spindle head in real-time as it cuts. This continuous, synchronized motion allows the tool to follow complex curves and angles without interference, producing highly complex parts in a single setup. There are two primary machine configurations:
- Trunnion Table Machines: The workpiece is mounted on a table that rotates around the A-axis (tilting) and the C-axis (rotating). This is a common and cost-effective design, ideal for smaller and medium-sized parts.
- Swivel Head Machines: The cutting spindle head rotates (typically around the B and C axes) while the workpiece remains stationary on the table. This configuration is often preferred for very large, heavy parts that are difficult to move.
- Hybrid Designs: Some machines combine a tilting table with a swiveling head, offering maximum flexibility for complex multi-sided machining.
How Precision 5-Axis Machining Works
The Role of Advanced CAM Software
The physical movement of a 5-axis machine is only half the story. The intelligence behind the motion is provided by Computer-Aided Manufacturing (CAM) software. Creating toolpaths for 5-axis machining is exponentially more complex than for 3-axis. The CAM software must calculate the exact position of the tool tip in 3D space while simultaneously managing the two rotational axes to avoid collisions, maintain optimal chip load, and achieve the desired surface finish. Modern CAM systems use sophisticated algorithms, such as “tool axis interpolation,” to generate smooth, collision-free paths that maximize efficiency and precision.
Kinematics and Machine Stiffness
Precision in 5-axis machining is heavily dependent on the machine’s kinematic structure and overall stiffness. The addition of rotary axes introduces potential sources of error, such as backlash, angular positioning inaccuracies, and thermal deformation. High-precision 5-axis machines are built with rigid cast iron or polymer granite bases, linear guideways, and high-torque direct-drive motors for the rotary axes. These features minimize vibration and deflection, ensuring that the tool’s position is accurate to within microns. Furthermore, modern controllers use volumetric compensation—a calibration technique that maps and corrects for geometric errors across the entire working envelope—to achieve repeatable sub-micron tolerances.
Key Benefits of Precision 5-Axis CNC Machining
The investment in precision 5-axis technology yields substantial advantages over conventional machining methods. These benefits extend beyond just the ability to cut complex shapes.
1. Unmatched Geometric Complexity
This is the most obvious benefit. 5-axis machining can produce parts with deep cavities, steep sidewalls, complex undercuts, and organic, sculpted surfaces that are impossible to achieve with 3-axis or even 4-axis machines. This is critical for industries like aerospace, medical devices, and automotive, where aerodynamic or ergonomic forms are mandatory. Components such as turbine blades, hip implants, and intake manifolds are classic examples of parts that rely entirely on 5-axis technology.
2. Reduced Setup Times and Higher Accuracy
In traditional 3-axis machining, a complex part might require multiple setups on different machines or fixtures. Each time a part is moved and re-clamped, alignment errors are introduced, compromising overall accuracy. With 5-axis machining, the part can be machined on five sides in a single setup. This eliminates cumulative errors, reduces the risk of human error during re-fixturing, and drastically shortens the total production time. For high-mix, low-volume production, this reduction in setup time translates directly into faster lead times and lower costs.
3. Superior Surface Finishes and Tool Life
By continuously tilting the tool or workpiece, 5-axis machining allows the cutter to maintain a constant, optimal chip load and a favorable lead angle. This prevents the tool’s center line from rubbing against the material—a common cause of poor finish and tool wear in 3-axis contouring. The result is a significantly smoother surface finish, often eliminating the need for secondary polishing or grinding. Additionally, because the tool engages the material more efficiently, cutting forces are distributed evenly, extending tool life and reducing the frequency of tool changes.
4. Shorter Lead Times and Lower Costs
While the initial cost of a 5-axis machine is higher, the overall cost per part can be significantly lower. The combination of reduced setups, faster cycle times (due to optimized toolpaths and the ability to use shorter, more rigid tools), and minimal rework leads to greater throughput. For complex parts, the total manufacturing cost can be 20-40% lower than using multiple 3-axis operations. This makes precision 5-axis machining a highly cost-effective solution for both prototyping and production.
Applications Across Key Industries
The versatility of precision 5-axis CNC machining has made it indispensable across a wide spectrum of high-tech industries.
Aerospace and Defense
This sector is arguably the largest driver of 5-axis technology. Components like jet engine turbine blades, impellers, structural airframe parts, and landing gear components require complex geometries, high strength-to-weight ratios, and flawless surface integrity. 5-axis machining allows manufacturers to create these parts from solid billets of titanium, Inconel, and aluminum alloys with minimal waste and exceptional precision.
Medical and Dental
Medical implants and surgical instruments demand the highest levels of biocompatibility and precision. 5-axis machining is used to produce custom knee and hip replacements, spinal implants, bone screws, and complex surgical tools from materials like titanium, stainless steel, and PEEK. In dental applications, it enables the precise fabrication of crowns, bridges, and implant abutments from zirconia and other ceramics.
Automotive and Motorsports
From prototype engine blocks and cylinder heads to complex intake manifolds and suspension components, the automotive industry relies on 5-axis machining for high-performance parts. Motorsport teams use it to create lightweight, aerodynamic components like gearbox casings and brake calipers. It is also critical for producing molds and dies for injection molding and die casting of production vehicle parts.
Energy and Oil & Gas
Components for turbines, compressors, and drilling equipment often feature complex internal channels and tight tolerances. 5-axis machining is essential for manufacturing impellers, valves, and pump housings from hard-to-machine alloys like stainless steel and Hastelloy, ensuring reliability in extreme environments.
Best Practices for Precision 5-Axis Machining
Successfully implementing precision 5-axis machining requires more than just purchasing the right machine. Adherence to best practices in programming, tooling, and workholding is critical.
Tool Selection and Holders
Use short, rigid tool holders to minimize deflection and vibration. High-quality collet chucks or hydraulic chucks are preferred over standard ER collets for better runout control. Select cutting tools (end mills, ball nose cutters, lollipop cutters) with appropriate coatings (e.g., AlTiN, TiAlN) for the specific material being machined. For complex 3D surfaces, ball nose end mills are the standard choice.
Workholding Strategies
Invest in modular workholding systems that allow for quick and repeatable clamping. For 5-axis work, vacuum chucks, magnetic chucks, and custom-designed soft jaws are common. The workholding must provide secure clamping while leaving as much of the part accessible as possible. Always simulate the full machining cycle in CAM software to ensure the tool does not collide with the fixture.
Simulation and Collision Avoidance
Never run a 5-axis program directly on the machine without first simulating it. Use the CAM software’s machine simulation module to check for collisions between the tool, tool holder, spindle head, workpiece, and fixturing. This is non-negotiable, as a high-speed collision in a 5-axis machine can cause catastrophic damage. Additionally, simulate the post-processor output to ensure the G-code is correct for your specific machine controller.
Probing and In-Process Inspection
Use on-machine probing to automatically locate the workpiece, set tool lengths, and verify critical features after roughing. This reduces setup time and ensures that the part is correctly positioned before finishing passes. In-process inspection allows for adaptive machining, where the program can adjust based on actual material conditions, compensating for any thermal growth or tool wear.
Conclusion: The Future of Complex Manufacturing
Precision 5-axis CNC machining has fundamentally redefined what is possible in modern manufacturing. It is no longer a niche technology reserved for the highest-budget aerospace programs; it has become a standard tool for any manufacturer seeking to produce complex, high-quality parts efficiently. By enabling single-setup machining of intricate geometries, reducing lead times, and improving surface finishes, 5-axis technology unlocks new levels of design freedom and production efficiency. As CAM software becomes more intuitive and machine costs continue to decrease, the adoption of precision 5-axis machining will only accelerate. For engineers and manufacturers looking to stay competitive, mastering this technology is not just an option—it is a strategic imperative. The ability to unlock complex parts with unmatched precision is the key to innovation in the 21st century.
