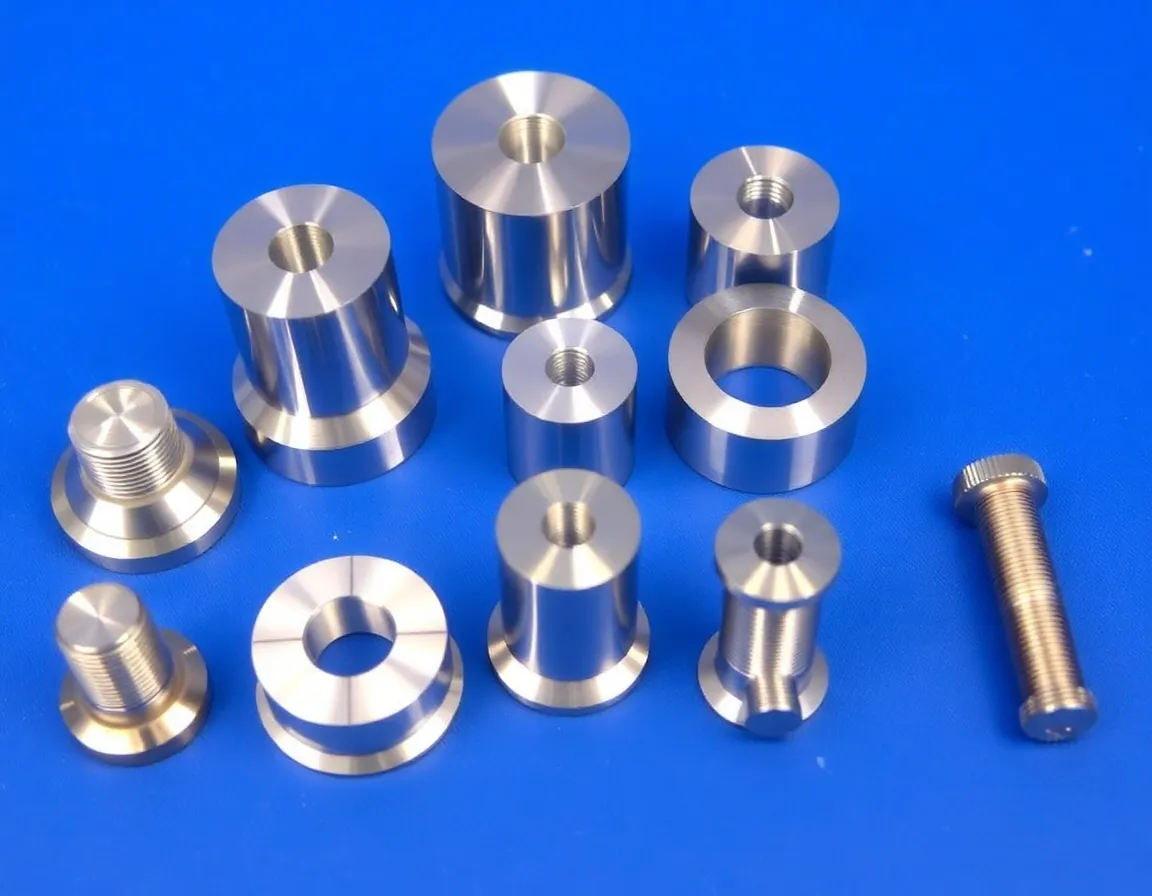

Precision 5 Axis Titanium Machining – Superior Quality Parts

5 axis titanium machining is a specialized CNC (Computer Numerical Control) process that uses a cutting tool that moves simultaneously across five different axes to shape titanium components. Unlike traditional 3-axis machining, which only moves the tool in X, Y, and Z linear directions, 5 axis machining adds two rotational axes (typically A and B). This allows the tool to approach the titanium workpiece from virtually any angle without requiring multiple setups. The key difference for titanium is that this multi-directional capability is critical because titanium is a notoriously difficult material to machine—it generates intense heat, work-hardens quickly, and is prone to chatter. With 5 axis technology, the tool can maintain an optimal cutting angle and shorter tool engagement, reducing heat buildup and extending tool life. This results in higher precision, better surface finishes, and the ability to create complex geometries (like aerospace impellers or medical implants) that would be impossible or extremely time-consuming with 3 or 4 axis machines.

5 axis titanium machining works by dynamically orienting the cutting tool and/or the titanium workpiece to maintain optimal cutting conditions throughout the entire process. The machine's computer-controlled motion keeps the tool engaged with the material at a consistent chip load and a favorable lead angle. This is crucial for titanium because its low thermal conductivity means heat stays in the cutting zone. By using simultaneous 5 axis movement, the tool can 'peel' away material in a continuous, sweeping motion rather than plunging or stopping, which reduces thermal spikes and work-hardening. High-pressure coolant systems are also integrated to flush away chips and cool the cutting edge. Additionally, the machine typically uses specialized carbide or PCD (polycrystalline diamond) tooling with advanced coatings to withstand titanium's abrasiveness. The CAM (Computer-Aided Manufacturing) software strategically plans toolpaths to minimize vibration and deflection, ensuring tight tolerances (often within ±0.005 mm) even on complex, thin-walled titanium parts.

The primary benefits of 5 axis titanium machining are dramatically improved accuracy, reduced lead times, and superior part complexity. Because the machine can access the part from any angle in a single setup, it eliminates the errors that accumulate when repositioning the workpiece across multiple machines or fixtures. For titanium, this is a game-changer as it reduces the risk of damaging delicate features during re-clamping. Additionally, 5 axis machining allows for shorter, more rigid cutting tools to be used, which reduces vibration (chatter) and extends tool life—a major cost factor when machining titanium. The process also enables the creation of organic, freeform shapes like turbine blades, orthopedic implants, and complex molds with undercuts that would require multiple operations or even assembly otherwise. Finally, by cutting cycle times up to 30-50% compared to 3 axis methods (due to fewer stops and faster material removal), manufacturers can deliver high-quality titanium parts faster, which is critical for industries like aerospace and medical device production.

Yes, there are several common concerns. The most significant is cost: 5 axis CNC machines are a major capital investment (often $200,000 to $1 million+), and the specialized tooling, CAM software, and skilled programmers needed for titanium machining further increase expenses. Additionally, titanium's hardness means slower cutting speeds (typically 30-60 SFM) and shorter tool life compared to aluminum, leading to higher per-part costs. Surface finish can also be a concern if the machine lacks rigidity or if toolpaths are not optimized—titanium can produce a 'smearing' effect or built-up edge if parameters are wrong. However, modern 5 axis machines with high-torque spindles and vibration-dampening frames largely mitigate these issues. Another limitation is part size: while 5 axis machines can handle large parts, the rotational axes may restrict the work envelope. Finally, programming complexity is a hurdle—5 axis CAM requires advanced post-processing and simulation to avoid collisions. Despite these concerns, the precision and efficiency gains often outweigh the initial hurdles for critical applications.

Pricing for 5 axis titanium machining varies widely based on part complexity, tolerances, and quantity, but expect a premium over standard machining. For example, a simple titanium bracket might cost $50-$150 per part for a small batch, while a complex aerospace impeller could run $500 to several thousand dollars each. The process typically begins with a design review and DFM (Design for Manufacturability) analysis to optimize the part for 5 axis capabilities. Then, a CAM programmer creates toolpaths, often using simulation to verify no collisions. Setup involves fixturing the titanium billet (often using custom soft jaws or vacuum chucks) and selecting appropriate tooling. Machining itself can take hours per part due to titanium's slow material removal rates. Post-machining, parts may undergo stress relieving, deburring, and inspection with CMM (Coordinate Measuring Machine) or 3D scanning. Lead times range from 2-6 weeks for prototypes to 8-12 weeks for production runs, depending on machine availability. Always request a quote with a detailed breakdown of setup, material, and programming costs.
