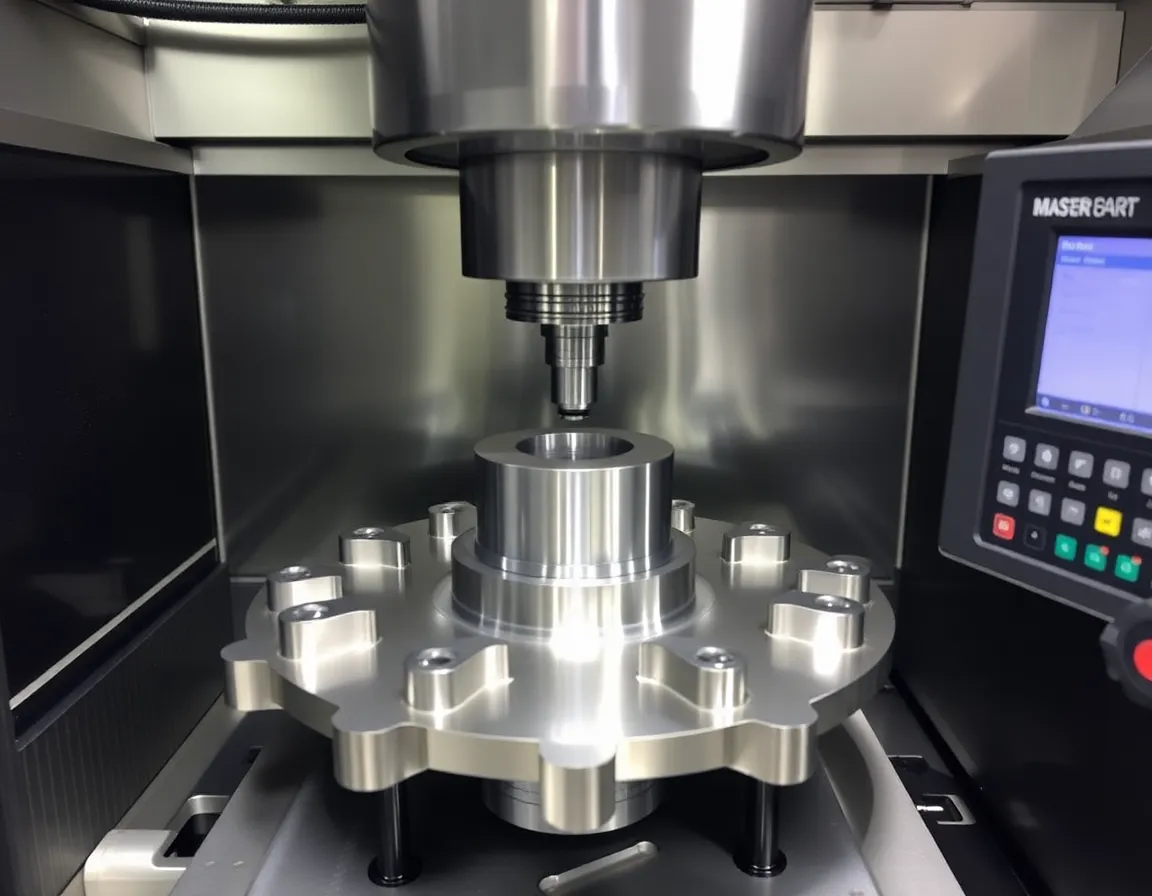

Master Complex Parts with Continuous 5 Axis Machining

Continuous 5 axis machining is an advanced CNC manufacturing process where the cutting tool and the workpiece can move dynamically along five different axes simultaneously. Unlike 3-axis machining, which moves in linear X, Y, and Z directions, a 5-axis machine adds two rotational axes (typically A and B). This allows the tool to approach the workpiece from virtually any direction in a single, fluid setup. The 'continuous' aspect means these movements happen in a coordinated, uninterrupted motion, enabling the creation of highly complex, organic geometries—like aerospace components, impellers, or medical implants—that would be impossible or require multiple setups with a 3-axis machine. It represents a significant leap in precision and capability for intricate parts.

Continuous 5 axis machining works by using a CNC controller to precisely coordinate the movement of the machine's five axes at the same time. The workpiece is mounted on a table that can tilt and rotate (two axes), while the spindle carrying the cutting tool moves along the three linear axes (X, Y, Z). This synchronized movement allows the tool to maintain the optimal cutting angle and position relative to the part's contoured surfaces. By continuously adjusting the tool's orientation, it can cut undercuts, deep cavities, and complex curves without repositioning the workpiece. Sophisticated CAM software is essential to program these intricate toolpaths, calculating millions of data points to ensure smooth, collision-free motion that results in a single, highly accurate finished component.

The primary benefits of continuous 5 axis machining are unparalleled geometric complexity, superior surface finish, and significant time savings. It allows for the production of parts with intricate contours and compound angles in a single setup, which dramatically improves accuracy by eliminating errors from multiple fixture changes. This single-setup capability also reduces lead times. Furthermore, because the tool can be optimally oriented, you can use shorter cutting tools at higher speeds, which improves surface finish, reduces vibration, and extends tool life. This process is ideal for industries like aerospace, automotive, and medical where lightweight, strong, and complex components are critical. It ultimately provides design freedom, higher precision, and cost-efficiency for complex, low-to-medium volume production.

Your concerns are common and valid. The initial investment for continuous 5 axis machines and the required advanced CAM software is significantly higher than for 3-axis equipment. Furthermore, the programming and operational expertise is more specialized, requiring skilled machinists and programmers. However, for the right projects, the return on investment is substantial. The cost per part can be lower due to reduced setup time, fewer fixtures, and less manual labor. For prototyping or complex production parts, it often eliminates the need for multiple machines or expensive custom fixtures. Many manufacturers partner with experienced job shops to access this technology without the capital outlay. The key is to evaluate your part's complexity—if it has organic shapes or requires multiple angled features, the benefits will likely outweigh the costs.

The process typically begins with a consultation and design review to ensure the part is suitable for 5-axis machining and optimized for manufacturability (DFM). Next, expert programmers use CAM software to create the complex toolpaths, which includes simulation to prevent collisions. The part is then machined in a single setup from a solid block of material (like aluminum, titanium, or engineering plastics). Pricing is usually project-based and depends on several factors: part complexity and size, material cost, required tolerances and finishes, programming time, and machine run time. Unlike simpler jobs charged mainly by machine hours, the sophisticated programming for continuous 5 axis machining is a significant cost component. Requesting a detailed quote from a reputable shop with a proven track record is crucial for an accurate budget.
