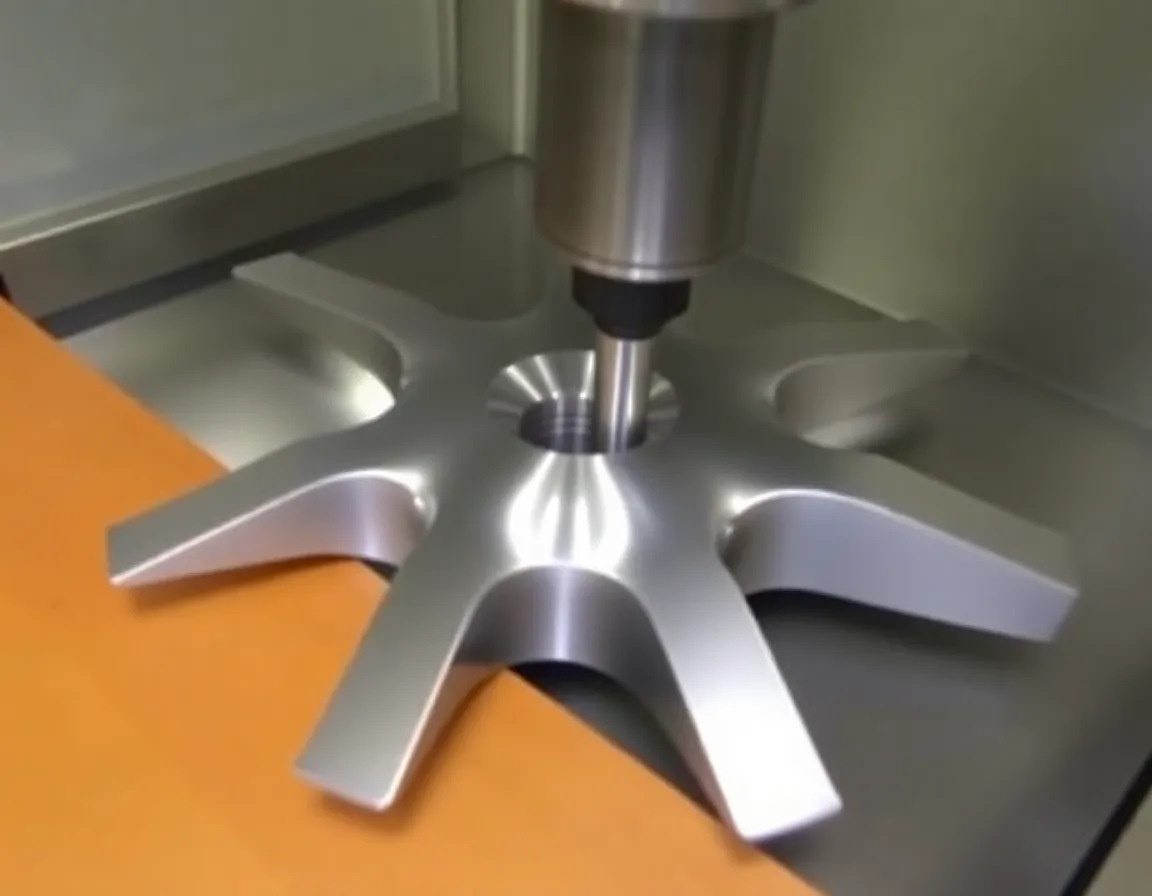

Introduction to 5 Axis Turbine Blade Machining
The modern aerospace and power generation industries demand components that can withstand extreme temperatures, rotational stresses, and corrosive environments. At the heart of these systems lies the turbine blade—a marvel of engineering that converts fluid energy into mechanical work. Manufacturing these complex, airfoil-shaped components requires a level of precision that traditional 3-axis machining simply cannot achieve. This is where 5 axis turbine blade machining becomes indispensable. By enabling simultaneous movement across five axes of motion, this advanced subtractive manufacturing process produces blades with superior surface finishes, tighter tolerances, and optimized aerodynamic profiles. In this comprehensive guide, we will explore the fundamentals, benefits, applications, and best practices of 5 axis machining for turbine blades, highlighting how this technology drives both precision and efficiency in critical industries.
What is 5 Axis Turbine Blade Machining?
5 axis machining refers to a computer numerical control (CNC) process where the cutting tool or workpiece moves simultaneously along five different axes. Unlike conventional 3-axis machines that operate only on X, Y, and Z linear axes, 5 axis systems add two rotational axes (typically A and B, or B and C). This capability allows the tool to approach the workpiece from virtually any angle, making it ideal for complex geometries like turbine blades. In turbine blade machining, the process involves cutting a solid block of superalloy—such as Inconel, titanium, or stainless steel—into the final blade shape. The 5 axis movement ensures that the tool maintains optimal contact with the material, reducing vibration and enabling the creation of intricate features like cooling holes, root forms, and tip shrouds.
Key Components of a 5 Axis Machine for Turbine Blades
- Rotary Tables (A and B Axes): These allow the workpiece to tilt and rotate, providing access to undercuts and complex contours without repositioning.
- High-Speed Spindle: Capable of operating at 15,000 to 40,000 RPM, necessary for efficient cutting of hard alloys.
- Advanced CAM Software: Generates toolpaths that synchronize all five axes to avoid collisions and optimize chip load.
- Tooling Systems: Often use carbide or ceramic end mills with specialized coatings for heat resistance.
How 5 Axis Machining Works for Turbine Blades
The process begins with a digital twin of the turbine blade, created using computer-aided design (CAD) software. The blade’s geometry is then imported into computer-aided manufacturing (CAM) software, which calculates the optimal toolpath. For a typical turbine blade, the toolpath must account for the airfoil’s twist, varying thickness, and complex root geometry. During machining, the workpiece is clamped in a fixture that allows the A and B axes to tilt. As the tool moves along the X, Y, and Z axes, the rotary axes adjust continuously to keep the tool perpendicular to the surface. This continuous 5 axis machining eliminates the need for multiple setups, drastically reducing cycle times. For example, a blade that might require five separate setups on a 3-axis machine can be completed in a single setup on a 5 axis machine.
Roughing vs. Finishing Operations
Roughing involves removing the bulk of material using larger tools and aggressive feed rates. Here, 5 axis capability allows the tool to engage the material at a constant angle, preventing tool deflection and uneven wear. Finishing passes use smaller tools with fine stepovers to achieve the required surface roughness (often Ra 0.4 μm or better). The rotational axes enable the tool to follow the blade’s twist precisely, creating a smooth, continuous surface that improves aerodynamic efficiency and fatigue life.
Benefits of 5 Axis Turbine Blade Machining
The adoption of 5 axis technology offers transformative advantages over traditional methods. These benefits directly impact production costs, component quality, and overall operational efficiency.
Unmatched Precision and Accuracy
5 axis machining achieves tolerances as tight as ±0.005 mm on critical features like blade airfoils and root serrations. By maintaining a constant tool-to-surface angle, the process minimizes scalloping and tool marks. This precision is vital for gas turbine blades, where even a 0.1 mm deviation can reduce efficiency by 2-3% or cause premature failure due to uneven stress distribution.
Reduced Setup Time and Increased Throughput
Traditional 3-axis machining of turbine blades requires multiple fixtures and manual repositioning, often taking hours or even days per blade. With 5 axis machining, the entire blade—from root to tip, including both concave and convex surfaces—can be completed in a single setup. This reduces setup time by up to 80% and allows for lights-out manufacturing, where machines run unattended overnight.
Superior Surface Finish
The ability to tilt the tool eliminates the need for long, cantilevered tool holders. Shorter tools are stiffer, reducing chatter and vibration. The result is a surface finish that often requires minimal post-processing, such as polishing or coating. A smoother surface reduces aerodynamic drag and improves the blade’s resistance to oxidation and thermal fatigue.
Extended Tool Life
By constantly orienting the tool for optimal chip evacuation and cutting angles, 5 axis machining reduces heat buildup and mechanical stress on the cutting edge. Tool life can increase by 30-50% compared to 3-axis methods, especially when machining difficult materials like Inconel 718 or Waspaloy.
Applications of 5 Axis Turbine Blade Machining
While most commonly associated with aerospace, 5 axis turbine blade machining serves a wide range of industries where high-performance rotating components are essential.
Aerospace Jet Engines
In commercial and military aviation, turbine blades operate at temperatures exceeding 1,500°C in the high-pressure turbine section. 5 axis machining produces blades with intricate internal cooling channels and thin-walled airfoils that maximize thrust while minimizing weight. Fan blades for turbofan engines, often made from titanium, benefit from the process’s ability to create complex dovetail roots that securely attach to the rotor disk.
Power Generation Gas and Steam Turbines
Land-based gas turbines used in power plants require blades that can withstand continuous operation for thousands of hours. 5 axis machining enables the production of large blades (up to 1 meter in length) with precise twist angles and tip shrouds. For steam turbines, the process is used to machine blades with integral shrouds and lacing wire holes, improving structural integrity at high rotational speeds.
Industrial Compressors and Turbochargers
Smaller turbine blades for industrial compressors and automotive turbochargers also benefit from 5 axis technology. The ability to machine complete blades from a single billet reduces the need for welding or brazing, which can introduce weak points. This is particularly important for high-speed turbochargers used in racing and heavy equipment.
Best Practices for 5 Axis Turbine Blade Machining
To fully realize the benefits of 5 axis machining, manufacturers must follow a set of best practices that address material behavior, tooling selection, and process optimization.
Material Selection and Preparation
Turbine blades are typically made from nickel-based superalloys (e.g., Inconel, Hastelloy) or titanium alloys. These materials are notoriously difficult to machine due to their high strength and low thermal conductivity. Best practices include:
- Pre-machining stress relief: Annealing the billet to reduce internal stresses that cause distortion during cutting.
- Use of high-pressure coolant: Delivering coolant at 70-100 bar through the spindle to prevent heat buildup and tool failure.
- Toolpath optimization: Employing trochoidal milling or peel milling strategies to maintain consistent chip thickness.
Tooling and Fixturing
Choosing the right cutting tools is critical. For roughing, indexable carbide inserts with multi-layer coatings (e.g., TiAlN or AlCrN) are preferred. For finishing, solid carbide end mills with 5-7 flutes and a corner radius of 0.5-1.0 mm provide the necessary surface quality. Fixturing must be rigid and repeatable. Hydraulic chucks or shrink-fit holders are recommended to minimize runout. For thin-walled blades, vacuum fixtures or custom soft jaws can prevent deformation during clamping.
CAM Programming Strategies
Effective CAM programming is the backbone of successful 5 axis machining. Key strategies include:
- Multi-axis roughing: Using constant Z-level or spiral toolpaths to remove material evenly.
- 5 axis flowline finishing: Aligning the toolpath with the blade’s natural curvature to reduce scallop height.
- Collision avoidance: Simulating the entire toolpath in software to detect interference between the tool, holder, and workpiece.
- Adaptive feed control: Adjusting feed rates based on tool engagement angle to prevent overload.
Quality Control and Inspection
After machining, turbine blades must undergo rigorous inspection. Coordinate measuring machines (CMMs) with touch probes or laser scanners verify critical dimensions. For airfoil profiles, white light scanning or structured light systems provide full-surface analysis. Non-destructive testing methods, such as fluorescent penetrant inspection (FPI) or X-ray, are used to detect subsurface cracks or inclusions. Best practice is to perform in-process probing on the 5 axis machine itself, allowing real-time adjustments to tool offsets.
Challenges and Solutions in 5 Axis Machining
Despite its advantages, 5 axis turbine blade machining presents unique challenges. The high cost of machines (often $500,000 to $2 million) and the need for skilled programmers are significant barriers. Additionally, the complex kinematics of 5 axis systems can lead to singularity issues—points where the rotational axes align and lose degrees of freedom. Modern CAM software addresses this by automatically reorienting the toolpath. Another challenge is chip evacuation in deep cavities. Using through-spindle coolant with high pressure (up to 1,000 psi) and specialized chip-breaking tools can mitigate this problem.
Future Trends in 5 Axis Turbine Blade Machining
The industry is moving toward hybrid manufacturing, combining additive and subtractive processes. In this approach, a near-net shape of the blade is first 3D printed using laser powder bed fusion, then finished on a 5 axis machine to achieve the required tolerances. This reduces material waste by up to 70% and shortens lead times. Another trend is the integration of artificial intelligence (AI) for predictive maintenance and tool wear monitoring. Sensors on the spindle and workpiece collect data on vibration, temperature, and cutting forces, which AI algorithms analyze to optimize feed rates and predict tool failure before it occurs.
Conclusion
5 axis turbine blade machining represents the pinnacle of precision manufacturing, enabling the production of components that power our world—from jet engines to power plants. By combining simultaneous multi-axis movement with advanced CAM programming and robust tooling, manufacturers achieve levels of accuracy, surface finish, and efficiency that are unattainable with conventional methods. While the initial investment and technical expertise required are substantial, the long-term benefits in reduced cycle times, extended tool life, and superior component performance make it an essential technology for any organization involved in high-stakes rotating machinery. As hybrid manufacturing and AI continue to evolve, 5 axis machining will remain at the forefront, driving innovation in turbine blade production for decades to come.
