Introduction: The Skyward Imperative of Precision
In the relentless pursuit of flight, the margin between success and failure is often measured in microns. Every component within an aircraft—from the massive fan blades of a turbofan engine to the intricate housing of an avionics sensor—must perform with absolute reliability under extreme conditions of temperature, pressure, and stress. This demand for perfection has propelled the aerospace industry to the forefront of manufacturing technology, and at its apex lies 5 axis aerospace machining. This advanced subtractive manufacturing process is not merely an evolution of traditional milling; it is a paradigm shift. By enabling the simultaneous movement of a cutting tool and a workpiece across five different axes, it unlocks the ability to create complex, organic geometries with tolerances that were previously unattainable. This article delves into the mechanics, benefits, applications, and best practices of 5 axis machining, revealing why it has become the indispensable backbone of modern aerospace production.

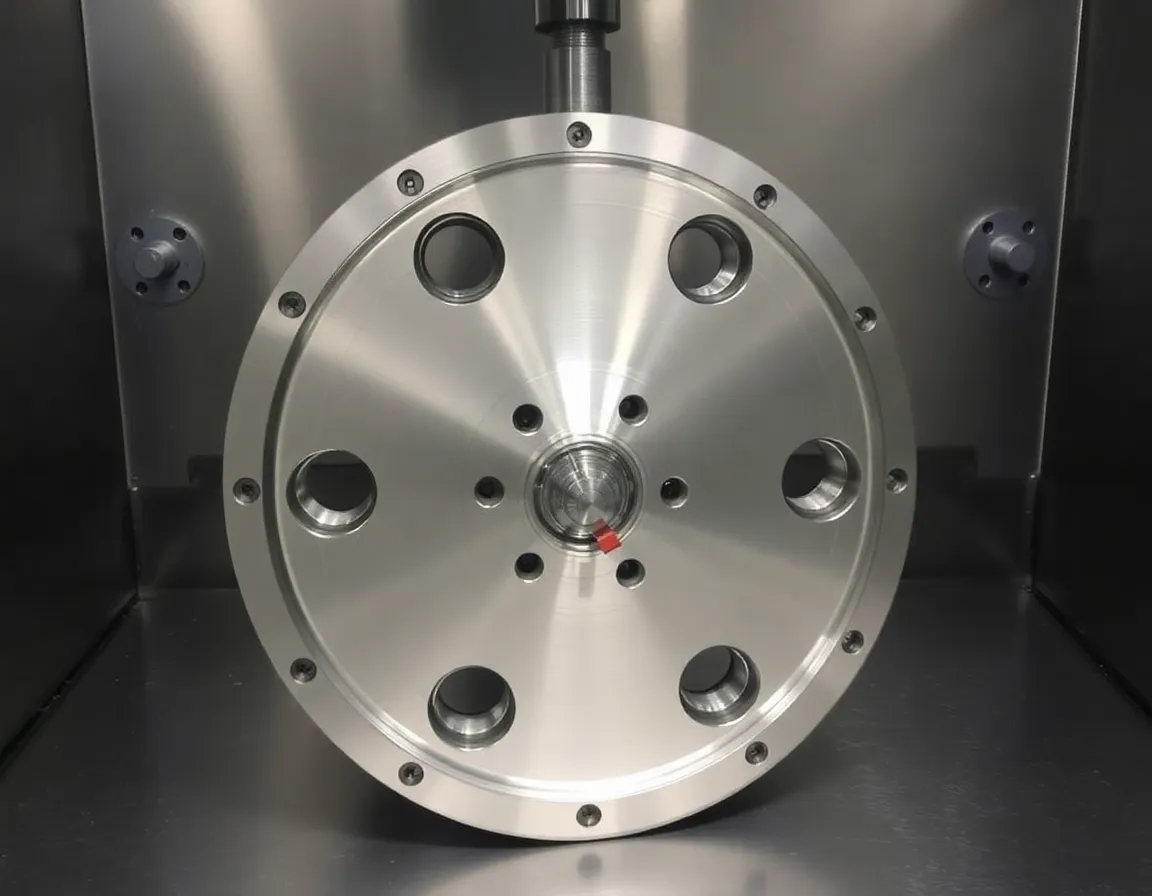

What is 5 Axis Aerospace Machining?
To understand the significance of 5 axis machining, one must first grasp its fundamental difference from conventional 3 axis machining. A standard 3 axis mill moves the cutting tool linearly along the X, Y, and Z axes. While effective for simple prismatic parts, this approach requires multiple setups and complex fixtures to machine features on different sides of a workpiece. Each setup introduces potential for error and increases cycle time.
In contrast, 5 axis machining adds two rotational axes to the three linear ones. The specific configuration varies by machine, but the most common types are the trunnion-style (where the table tilts and rotates) and the swivel-head (where the spindle head rotates). In a full 5 axis simultaneous operation, the cutting tool and the workpiece are in constant, coordinated motion. This allows the tool to approach the material from virtually any angle without repositioning the part. The result is the ability to machine undercuts, deep cavities, complex curved surfaces, and thin-walled structures in a single, continuous operation.
The Core Difference: 3+2 vs. Full 5 Axis
It is crucial to distinguish between two common operational modes. 3+2 machining, also known as positional 5 axis, locks the two rotational axes at a specific angle and then performs standard 3 axis cutting. This is highly effective for accessing difficult-to-reach features and using shorter, more rigid tools. Full 5 axis simultaneous machining, however, is a different beast. Here, all five axes move continuously and in a synchronized manner, following a complex toolpath. This is essential for creating aerodynamic surfaces, impellers, and blisks (bladed disks) where the tool must maintain a constant, optimal angle relative to the workpiece surface to achieve the required surface finish and avoid gouging.
How 5 Axis Machining Works in Aerospace
The process of 5 axis aerospace machining is a symphony of advanced hardware, sophisticated software, and rigorous process control. It begins long before the first chip is cut.
1. CAD/CAM and Toolpath Generation
The journey starts with a 3D solid model of the part, created in a Computer-Aided Design (CAD) program. This model is then imported into a Computer-Aided Manufacturing (CAM) system. The CAM software is the true brain of the operation. A skilled programmer defines the machining strategies, selects tools, and generates the complex toolpaths that will guide the machine. For full 5 axis work, the CAM software must calculate the tool's position, orientation, and feed rate at every point along the path, ensuring that the tool does not collide with the workpiece, fixture, or machine itself. This requires powerful collision detection and simulation capabilities.
2. Machine Kinematics and Workholding
The physical machine must be incredibly rigid and precise. High-end 5 axis machining centers used in aerospace feature heavy-duty cast iron or polymer concrete bases to dampen vibration, high-torque spindles capable of 15,000 to 40,000 RPM, and advanced linear and rotary encoders for feedback. Workholding is equally critical. Because the part is being machined from multiple angles, traditional vises are often replaced by custom-designed fixtures, tombstones, or vacuum chucks that provide secure clamping without obstructing tool access. In many cases, the part is held by a small, sacrificial tab that is later cut away.
3. The Cutting Process
Once the program is loaded and the workpiece is secured, the machine begins its cycle. As the tool moves, it is constantly being bathed in high-pressure coolant to remove heat and flush away chips. For aerospace materials like Titanium Ti-6Al-4V and Inconel 718, which are notoriously difficult to machine due to their toughness and low thermal conductivity, the toolpath strategy is paramount. Techniques like trochoidal milling (a constant-radius, looping path) and high-efficiency milling (HEM) are employed to manage chip load and prevent tool failure. The simultaneous 5 axis motion allows the tool to maintain a constant chip thickness and a favorable engagement angle, dramatically extending tool life and improving surface integrity.
Critical Benefits for Aerospace Manufacturing
The adoption of 5 axis machining in aerospace is not a luxury; it is a strategic necessity driven by a clear set of advantages.
- Unmatched Geometric Complexity: The primary benefit is the ability to produce parts with complex, free-form surfaces that are impossible to achieve with 3 axis methods. This includes aerodynamic profiles, internal cooling channels in turbine blades, and complex manifold geometries.
- Superior Surface Finish and Accuracy: By keeping the cutting tool tangent to the surface, 5 axis machining eliminates the "stair-stepping" effect common in 3 axis contouring. This results in a smoother finish, often eliminating the need for secondary polishing operations. Tolerances of ±0.005 mm are routinely achieved, critical for parts that must mate perfectly under extreme loads.
- Reduced Setup Time and Higher Throughput: A single 5 axis setup can replace multiple 3 axis setups. This drastically reduces non-cutting time, eliminates cumulative errors from re-clamping, and allows one operator to manage multiple machines. A part that might require five separate operations on a 3 axis mill can often be completed in one cycle on a 5 axis machine.
- Improved Tool Life and Shorter Tools: The ability to tilt the tool allows the use of shorter, more rigid cutting tools. Shorter tools deflect less, vibrate less, and can be run at higher feed rates. This directly translates to longer tool life and faster material removal rates, especially in hard metals.
- Machining of Hard-to-Reach Features: Deep cavities, steep wall angles, and undercuts become accessible. This is particularly valuable for structural aircraft components like bulkheads, ribs, and spars, which often have complex internal pockets for weight reduction.
Key Applications in Aerospace
The fingerprints of 5 axis machining can be found on almost every critical part of a modern aircraft.
Engine Components
This is the most demanding application. Blisks (Bladed Disks), impellers, and turbine blades are the poster children for 5 axis technology. These parts feature tightly spaced, twisted, and aerodynamically optimized airfoils. Machining them requires a continuous 5 axis path to reach between the blades without collision. The process is so specialized that dedicated 5 axis machines are often built specifically for this purpose.
Structural Airframe Parts
Modern aircraft are built from large, monolithic aluminum or titanium plates that are machined down to complex, webbed skeletons. Parts like wing ribs, fuselage frames, and bulkheads require extensive machining on all sides. 5 axis machining allows these parts to be completed in a single setup, ensuring that the critical mounting points for wings, landing gear, and engines are perfectly aligned.
Landing Gear and Hydraulic Components
The immense forces experienced during takeoff and landing demand components of extreme strength and precision. Landing gear struts, actuator housings, and valve bodies are often machined from high-strength steel or titanium alloys. 5 axis machining enables the creation of complex internal fluid passages and the precise drilling of deep, intersecting holes that are essential for hydraulic systems.
Tooling and Molds
Before a single composite part is laid up, the mold must be perfect. 5 axis machining is used to create the large, highly accurate molds for composite structures like wing skins, fuselage sections, and engine nacelles. The ability to machine a seamless, contoured surface on a massive scale is critical for the integrity of the final composite part.
Best Practices for High-Performance 5 Axis Machining
Success in 5 axis aerospace machining requires more than just expensive hardware. It demands a disciplined approach to process planning and execution.
- Master the CAM Software: The machine is only as good as its program. Invest heavily in CAM training and simulation. Use advanced strategies like constant scallop height and steep/shallow machining to optimize toolpaths for surface finish and cycle time. Always run a full machine simulation to detect collisions.
- Prioritize Fixture Design: A rigid, well-designed fixture is non-negotiable. Use finite element analysis (FEA) to simulate clamping forces and ensure the part does not deflect under cutting loads. Consider using modular fixturing systems for flexibility and custom hard tooling for high-volume production.
- Select the Right Tooling: For aerospace alloys, use carbide end mills with advanced coatings like AlTiN (Aluminum Titanium Nitride) or AlCrN (Aluminum Chromium Nitride). For finishing, consider using ball nose cutters for contoured surfaces and lollipop cutters for undercuts. Always use the shortest possible tool length.
- Implement In-Process Probing: Use a touch probe to automatically locate the workpiece, set tool length offsets, and measure critical features mid-cycle. This compensates for thermal growth, tool wear, and fixture variation, ensuring tight tolerances are held throughout the run.
- Manage Chip Evacuation and Cooling: Aerospace materials create stringy, difficult-to-manage chips. Use high-pressure coolant through the spindle (TSC) to break chips and flush them away. This prevents chip recutting, which damages the surface finish and tool.
- Rigorous Quality Control: Post-machining inspection is critical. Use coordinate measuring machines (CMMs) and 3D laser scanners to verify the part against the CAD model. Pay special attention to critical dimensions and surface finish requirements.
Conclusion: The Future of Flight is Machined in Five Axes
5 axis aerospace machining is far more than a manufacturing process; it is a fundamental enabler of modern aviation. It allows engineers to design lighter, stronger, and more aerodynamically efficient aircraft, pushing the boundaries of what is physically possible. As the industry moves toward more fuel-efficient engines, electric propulsion, and advanced composite airframes, the demand for complex, precision-machined parts will only intensify. The challenges of machining ever-harder superalloys and more intricate geometries will continue to drive innovation in machine design, tooling technology, and CAM software. For manufacturers who wish to compete in the stratosphere of aerospace production, mastery of 5 axis machining is not an option—it is the only path to flight.
