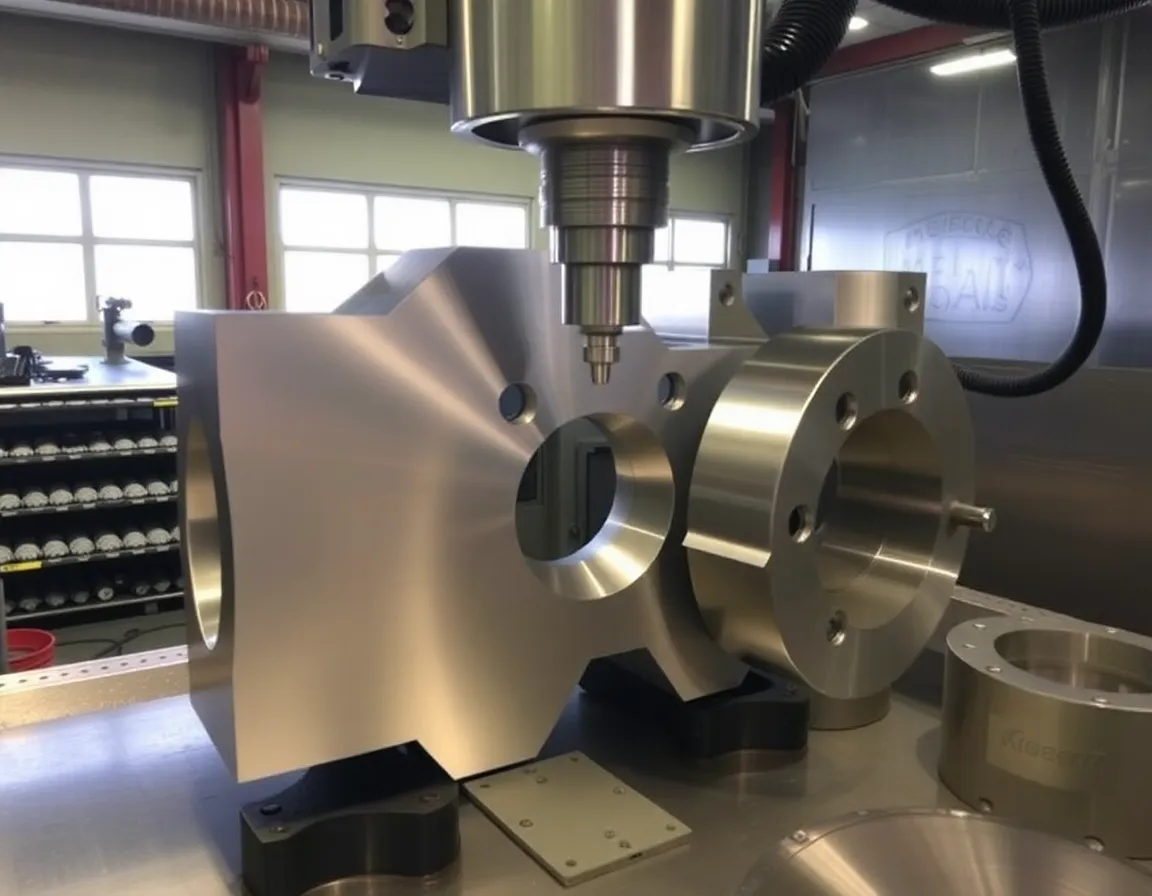

Introduction to 5 Axis Stainless Steel Machining
In the world of modern manufacturing, precision and material integrity are paramount. 5 axis stainless steel machining represents the apex of subtractive manufacturing technology, combining the inherent strength and corrosion resistance of stainless steel with the unparalleled flexibility of multi-axis computer numerical control (CNC) systems. Unlike traditional 3-axis machining, which moves a cutting tool linearly along the X, Y, and Z axes, 5 axis machining adds two rotational axes (typically A and B, or B and C). This allows the cutting tool to approach the workpiece from virtually any direction without the need for multiple setups. When applied to stainless steel—a notoriously difficult material to machine due to its work-hardening properties and low thermal conductivity—this technology delivers components with exceptional accuracy, superior surface finishes, and complex geometries that would be impossible or prohibitively expensive to produce otherwise.
What is 5 Axis Stainless Steel Machining?
At its core, 5 axis stainless steel machining is a process where a stainless steel workpiece is held in place while a cutting tool moves across five different axes simultaneously. The three primary linear axes (X, Y, Z) control the tool’s position in space, while the two rotational axes (typically A rotating around X, B around Y, and C around Z) control the tool’s orientation. This simultaneous movement enables the tool to maintain optimal contact with the material at all times, reducing vibration, improving chip evacuation, and extending tool life.
Stainless steel presents unique challenges. Grades such as 304, 316, and 17-4 PH are known for their toughness, high tensile strength, and tendency to work-harden. Standard machining methods often struggle with these properties, leading to tool wear, heat buildup, and poor surface quality. However, 5 axis machining mitigates these issues by allowing the tool to engage the material at a constant, optimal angle. This reduces the cutting force per tooth and distributes heat more evenly, preventing localized thermal damage.
How 5 Axis Machining Differs from 3 and 4 Axis
To appreciate the value of 5 axis stainless steel machining, it is important to understand the limitations of its predecessors. 3 axis machining is effective for simple prismatic parts, but it requires multiple setups to machine complex features like undercuts, angled holes, or curved surfaces. Each setup introduces potential alignment errors. 4 axis machining adds one rotational axis, typically allowing the workpiece to rotate, which is useful for cylindrical parts but still restricts tool access. 5 axis machining, by contrast, enables the tool to tilt and rotate around the workpiece, allowing for the machining of complex contours, deep cavities, and compound angles in a single clamping. This single-setup capability is a game-changer for stainless steel, as it eliminates the cumulative tolerances from re-clamping and reduces the risk of damaging the material during handling.
The Benefits of 5 Axis Stainless Steel Machining
The adoption of 5 axis technology for stainless steel fabrication offers a host of tangible advantages that directly impact production efficiency, part quality, and overall cost. Below are the key benefits, each critical for industries that demand the highest standards.
Unmatched Precision and Accuracy
Precision is the primary driver for using 5 axis machining on stainless steel. Because the part is machined in a single setup, there are no cumulative errors from repositioning. Modern 5 axis machines can achieve tolerances as tight as ±0.005 mm (0.0002 inches). This level of accuracy is essential for components used in aerospace engine parts, medical implants, and high-performance automotive systems. The ability to machine complex features—such as helical paths, twisted blades, or intricate cooling channels—without manual intervention ensures that every part meets exact design specifications.
Superior Surface Finish
Stainless steel is often chosen for its aesthetic appeal and resistance to corrosion, making surface finish a critical quality metric. In 5 axis machining, the tool can maintain a constant chip load and a consistent engagement angle with the material. This results in a smoother surface finish, often eliminating the need for secondary polishing or grinding operations. For example, when machining a stainless steel impeller, the continuous tool path reduces scalloping marks and tool lines, yielding a mirror-like finish that meets both functional and cosmetic requirements.
Reduced Setup Time and Higher Throughput
Traditional 3 axis machining of a complex stainless steel part might require five or more separate setups, each involving manual fixturing, alignment, and tool changes. 5 axis stainless steel machining consolidates these operations into a single cycle. This dramatically reduces setup time, decreases the risk of human error, and allows for unattended or "lights-out" manufacturing. For high-mix, low-volume production runs, this efficiency translates directly into faster turnaround times and lower per-part costs.
Extended Tool Life and Lower Tooling Costs
Stainless steel is abrasive and work-hardens quickly, which can rapidly dull cutting tools. In 3 axis machining, the tool often engages the material at suboptimal angles, leading to uneven wear and premature failure. In 5 axis machining, the tool is constantly oriented to present its most effective cutting edge to the material. This optimized cutting geometry reduces heat generation and mechanical stress on the tool. As a result, tool life can be extended by 30% to 50% compared to conventional methods, lowering the cost of consumables and reducing machine downtime for tool changes.
Ability to Machine Complex Geometries
Many modern stainless steel parts feature complex, organic shapes that are impossible to produce with 3 axis machining. Examples include turbine blades with variable twist, medical bone screws with custom threads, and aerospace brackets with compound-angle holes. 5 axis machining allows for the creation of these geometries through simultaneous interpolation of all five axes. The machine can cut deep, narrow cavities, reach undercuts, and produce draft angles that improve part performance and assembly ease.
Applications of 5 Axis Stainless Steel Machining
The combination of stainless steel’s material properties and 5 axis machining’s capabilities makes this technology indispensable in several high-stakes industries. Below are the primary sectors that benefit most.
Aerospace and Defense
In aerospace, weight reduction and structural integrity are non-negotiable. 5 axis stainless steel machining is used to produce critical components such as landing gear parts, engine mounts, and hydraulic manifolds. These parts often require complex internal channels for fluid flow and must withstand extreme pressures and temperatures. The precision of 5 axis machining ensures that these components meet rigorous safety standards like AS9100 and NADCAP. Additionally, the ability to machine thin walls and intricate lattice structures helps reduce weight without sacrificing strength.
Medical Devices and Implants
The medical industry demands biocompatibility, sterility, and exacting tolerances. Stainless steel grades like 316L and 17-4 PH are commonly used for surgical instruments, orthopedic implants, and dental tools. 5 axis machining enables the production of custom implants that match a patient’s unique anatomy, such as hip stems or spinal cages. The superior surface finish reduces the risk of bacterial adhesion, and the single-setup process ensures that sterile packaging requirements are met without secondary contamination risks.
Automotive and Motorsports
High-performance automotive components, including turbocharger housings, exhaust manifolds, and suspension knuckles, benefit from 5 axis stainless steel machining. These parts must endure high thermal loads, corrosive exhaust gases, and mechanical stress. The ability to machine complex internal geometries for coolant passages or aerodynamic profiles improves engine efficiency and durability. In motorsports, where every gram matters, 5 axis machining allows for the creation of lightweight, high-strength components that provide a competitive edge.
Oil and Gas Industry
In the oil and gas sector, components like valve bodies, pump impellers, and subsea connectors are often made from duplex or super duplex stainless steels. These materials offer excellent corrosion resistance in harsh environments but are extremely difficult to machine. 5 axis technology is critical for producing the complex sealing surfaces, threaded connections, and flow paths required for these components. The reduced tool wear and improved chip control provided by 5 axis machining make it economically viable to work with these challenging alloys.
Best Practices for 5 Axis Stainless Steel Machining
Successfully implementing 5 axis stainless steel machining requires a combination of advanced equipment, proper tooling, and optimized programming strategies. Following these best practices will maximize efficiency and part quality.
Selecting the Right Cutting Tools
Tool selection is critical when machining stainless steel. Carbide tools with specialized coatings—such as titanium aluminum nitride (TiAlN) or aluminum chromium nitride (AlCrN)—are recommended for their hardness and heat resistance. These coatings reduce friction and prevent built-up edge (BUE), which is a common problem with stainless steel. For 5 axis operations, variable helix and variable pitch end mills help reduce chatter and harmonic vibrations during complex tool paths. Additionally, using tools with a larger core diameter increases rigidity, which is essential for maintaining accuracy during simultaneous 5 axis movements.
Optimizing Cutting Parameters
Stainless steel requires careful control of cutting speeds, feeds, and depths of cut. A general rule is to use moderate cutting speeds (typically 80-150 surface feet per minute for austenitic grades) with higher feed rates to avoid work hardening. In 5 axis machining, the tool path should be designed to maintain a consistent chip thickness. Trochoidal milling or peel milling strategies are highly effective, as they keep the tool engaged in the material at a constant angle, reducing heat buildup. Using high-pressure coolant (800-1000 psi) directed at the cutting zone is also essential to flush away chips and dissipate heat.
Fixture Design and Workholding
Because 5 axis machining involves complex tool movements, the workpiece must be held securely without obstructing tool access. Custom modular fixturing or vacuum chucks are often used to provide maximum clearance. For stainless steel parts, soft jaws or collet chucks with serrated inserts can provide the necessary grip without marring the surface. It is also important to consider the part’s natural resonance; using damping materials or tuned fixtures can prevent vibration during heavy cuts.
CAM Programming Strategies
Effective CAM (computer-aided manufacturing) programming is the backbone of 5 axis stainless steel machining. The programmer must define tool axis vectors that avoid collisions with the workpiece and machine components. Simultaneous 5 axis tool paths should be used for complex surfaces, while 3+2 positioning (where the tool is locked at a specific angle and then moves in three axes) is suitable for simpler features. Post-processor verification and simulation are mandatory to detect potential gouges or interferences before cutting begins. Using advanced features like automatic collision avoidance and tool axis smoothing can significantly improve cycle times and surface quality.
Regular Machine Maintenance and Calibration
5 axis machines are precision instruments that require regular maintenance to maintain accuracy. Spindle runout, backlash in the rotary axes, and thermal growth can all affect part quality. It is recommended to perform daily thermal compensation routines and periodic ball-bar testing to verify machine geometry. For stainless steel machining, keeping the coolant clean and at the correct concentration (typically 8-12% for water-miscible oils) prevents bacterial growth and ensures consistent lubrication. Regular inspection of chip conveyors and filtration systems is also important, as stainless steel chips are stringy and can clog machinery.
Conclusion
5 axis stainless steel machining is a transformative technology that enables manufacturers to produce parts that were once considered impossible. By combining the corrosion resistance and strength of stainless steel with the geometric freedom and precision of 5 axis CNC systems, industries from aerospace to medical devices can achieve new levels of performance and reliability. The benefits—ranging from reduced setup times and extended tool life to superior surface finishes and complex geometries—make it an indispensable tool for modern production. However, success requires a holistic approach: selecting the right tools, optimizing cutting parameters, designing effective fixtures, and leveraging advanced CAM strategies. As manufacturing continues to evolve toward greater complexity and tighter tolerances, 5 axis stainless steel machining will remain at the forefront of innovation, driving efficiency and quality in the most demanding applications.
