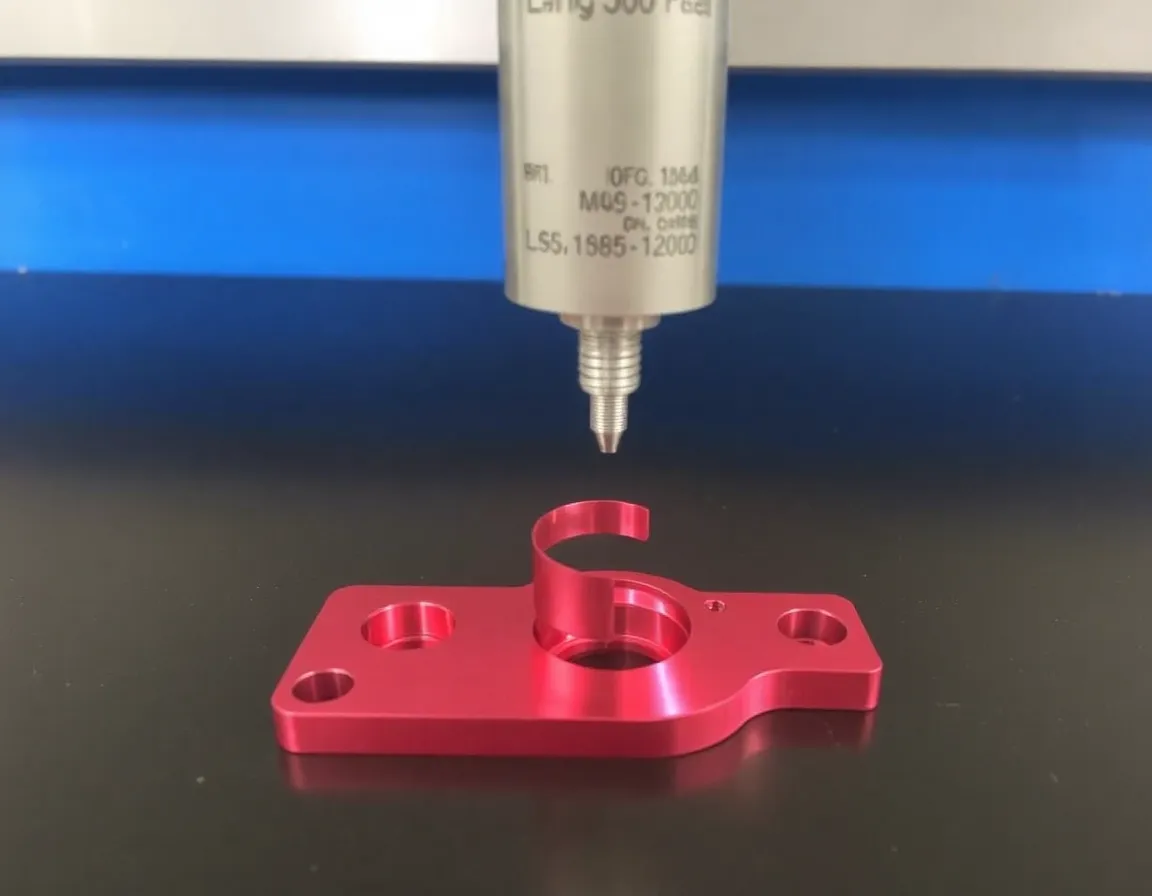

Introduction: The Convergence of Complexity and Efficiency
In the demanding world of modern manufacturing, the ability to produce complex, high-tolerance components rapidly is the ultimate competitive advantage. 5 axis aluminum machining stands at the forefront of this revolution, offering a synergistic blend of precision and speed that traditional 3-axis machining simply cannot match. By enabling the cutting tool to move simultaneously across five different axes, this advanced CNC (Computer Numerical Control) process unlocks the potential to create intricate geometries, reduce setup times, and achieve superior surface finishes—all while working with one of the most versatile and widely used materials in industry: aluminum. This article delves into the mechanics, benefits, applications, and best practices of 5 axis aluminum machining, providing a comprehensive guide for engineers, manufacturers, and designers seeking to elevate their production capabilities.
What is 5 Axis Aluminum Machining?
At its core, 5 axis machining refers to a CNC process where the cutting tool moves across five different axes simultaneously. While a standard 3-axis machine operates on the X, Y, and Z linear axes (left-right, front-back, and up-down), a 5 axis machine adds two rotational axes, typically designated as A (rotation around the X-axis) and B (rotation around the Y-axis), or C (rotation around the Z-axis). This configuration allows the tool to approach the workpiece from virtually any angle without the need for manual repositioning.
When applied to aluminum—a material prized for its excellent strength-to-weight ratio, corrosion resistance, and machinability—this technology becomes exceptionally powerful. Aluminum’s relative softness compared to steels allows for higher cutting speeds and feed rates, which, when combined with the continuous, uninterrupted cutting paths enabled by 5 axis motion, results in dramatically reduced cycle times. The process is not merely about moving the part; it is about optimizing the tool’s engagement with the material to minimize vibration, maximize chip evacuation, and achieve flawless surface integrity.
The Mechanics of Simultaneous vs. 3+2 Machining
It is crucial to distinguish between two primary modes of 5 axis operation: simultaneous 5-axis and 3+2 axis machining. In simultaneous machining, all five axes move in a coordinated, continuous motion. This is ideal for sculpted surfaces, complex aerospace impellers, and medical implants where a smooth, flowing toolpath is essential. In contrast, 3+2 machining (also known as positional 5-axis) locks two rotational axes at a specific angle and then performs standard 3-axis cutting. This technique is highly effective for accessing deep cavities, undercuts, and features on multiple faces of a part in a single setup, offering significant time savings without the computational complexity of full simultaneous motion. Both methods are frequently used in 5 axis aluminum machining, depending on the part geometry and production requirements.
Key Benefits of 5 Axis Aluminum Machining
The adoption of 5 axis technology for aluminum parts delivers a host of tangible advantages that directly impact cost, quality, and lead times. Below are the most significant benefits.
Unmatched Precision and Surface Finish
By using shorter, more rigid cutting tools and maintaining optimal chip loads, 5 axis machining drastically reduces tool deflection and vibration. The ability to tilt the tool away from the workpiece (often called "tilted tooling") allows for a more favorable cutting angle, which produces a superior surface finish—often eliminating the need for secondary polishing or grinding operations. For aluminum, which can be prone to built-up edge and poor finish at suboptimal angles, this precision is critical. The result is tighter tolerances, often within ±0.005 mm, and a flawless aesthetic appearance.
Reduced Setup Times and Increased Throughput
Traditional 3-axis machining often requires multiple setups and fixtures to machine all sides of a complex aluminum part. Each setup introduces potential for error and consumes valuable production time. With 5 axis aluminum machining, the part can be machined on five or six faces in a single clamping operation. This not only eliminates cumulative tolerance errors from re-fixturing but also dramatically reduces idle time. A part that might require five separate 3-axis operations can be completed in one continuous cycle, boosting throughput by 50% or more in many cases.
Enhanced Design Freedom and Complexity
Designers are no longer constrained by the limitations of 3-axis tool access. Features such as deep, narrow slots, complex contoured surfaces, angled holes, and intricate undercuts become readily achievable. This freedom enables the creation of lighter, stronger, and more aerodynamic parts. In the aerospace and automotive sectors, where every gram counts, the ability to machine organic, weight-optimized shapes from solid aluminum billets is a game-changer. 5 axis machining turns innovative designs into manufacturable realities.
Improved Tool Life and Cost Efficiency
Because the tool is constantly oriented to maintain an optimal cutting angle, the cutting forces are distributed more evenly. This reduces localized heat generation and wear, extending tool life significantly—often by 20-50% compared to 3-axis machining of the same part. Combined with reduced cycle times and lower scrap rates, the overall cost per part decreases, making 5 axis machining a highly economical choice for both prototypes and production runs.
Applications Across Industries
The unique capabilities of 5 axis aluminum machining make it indispensable across a wide spectrum of high-tech industries. Its ability to produce complex, lightweight, and durable components aligns perfectly with the demands of modern engineering.
- Aerospace: This sector is the largest adopter. Components like turbine blades, structural bulkheads, wing ribs, and landing gear parts are routinely machined from aluminum alloys (e.g., 7075-T6). The need for aerodynamic contours, thin walls, and absolute reliability makes 5 axis machining non-negotiable.
- Automotive and Motorsports: From custom intake manifolds and cylinder heads to suspension components and lightweight brackets, high-performance vehicles rely on 5 axis machining. It allows for the creation of complex internal coolant passages and weight-reducing pockets that are impossible to achieve with traditional methods.
- Medical Devices: Surgical instruments, prosthetic components, and diagnostic equipment housings often require intricate geometries and mirror-like finishes. Aluminum’s biocompatibility and ease of sterilization, combined with the precision of 5 axis machining, make it ideal for these critical applications.
- Mold and Die Making: Creating molds for plastic injection or die casting often involves complex cores and cavities. 5 axis machining can produce these with minimal hand finishing, reducing lead times and improving mold accuracy.
- Consumer Electronics: The sleek, unibody chassis of many laptops, smartphones, and tablets are machined from solid aluminum blocks. 5 axis technology enables the precise cutting of ports, buttons, and complex internal structures with a flawless aesthetic finish.
Best Practices for Optimal Results
While 5 axis CNC machines are powerful, achieving the best results in aluminum machining requires a strategic approach. Following these best practices ensures efficiency, quality, and safety.
Selecting the Right Aluminum Alloy
Not all aluminum is created equal. For structural parts, 7075-T6 offers high strength but is more prone to work hardening. 6061-T6 is a general-purpose alloy with excellent machinability. 2024 is common in aerospace for its fatigue resistance. 5052 is softer and ideal for forming but can be gummy during machining. Understanding the specific alloy’s properties—hardness, chip formation, and thermal expansion—is critical for selecting the correct cutting parameters.
Optimizing Toolpath and Cutting Parameters
Modern CAM (Computer-Aided Manufacturing) software is essential for generating efficient 5 axis toolpaths. Use trochoidal milling or adaptive clearing strategies to maintain a constant chip load and avoid sudden engagement changes. For aluminum, high spindle speeds (10,000-30,000 RPM) and high feed rates are common. Utilize high-speed machining (HSM) techniques with shallow radial depths of cut (e.g., 5-10% of tool diameter) and larger axial depths to maximize material removal rates while keeping cutting forces low.
Tool Selection and Cooling
Use carbide end mills with specific geometries designed for aluminum, such as polished flutes and high helix angles (35-45 degrees) to prevent chip packing. For finishing, consider using ball nose or bull nose tools for contoured surfaces. Effective coolant delivery is paramount. Use a high-quality water-soluble coolant with excellent lubricity and chip flushing capabilities. Through-tool coolant is highly recommended for deep cavities to ensure chips are evacuated and heat is dissipated from the cutting zone.
Workholding and Fixture Design
Since the part is moving in complex ways, secure and repeatable workholding is vital. Use custom fixtures, vacuum chucks, or modular vises that provide maximum access to the part. Soft jaws machined to the exact contour of the part are excellent for thin-walled components. Ensure the fixture does not collide with the machine head or spindle during rotation—this requires careful simulation in the CAM software before cutting begins.
Simulation and Verification
Never run a 5 axis program without first performing a full machine simulation. Collisions between the tool, holder, spindle, and fixture can be catastrophic and expensive. Modern CAM systems provide G-code simulation and machine-specific kinematic models to verify the entire machining process virtually. This step is non-negotiable for protecting your investment and ensuring operator safety.
Conclusion: The Future of Aluminum Manufacturing
5 axis aluminum machining represents a paradigm shift in how we approach the production of complex, high-value components. By merging the intrinsic benefits of aluminum—light weight, strength, and machinability—with the advanced kinematics of 5 axis technology, manufacturers can achieve levels of precision, speed, and design complexity that were once thought impossible. The reduction in setups, the extension of tool life, and the elimination of secondary operations translate directly into lower costs and faster time-to-market. As industries continue to demand lighter, stronger, and more intricate parts, the mastery of 5 axis aluminum machining will remain a cornerstone of modern manufacturing excellence. Whether for a critical aerospace bracket or a sleek consumer product, this technology delivers the perfect balance of speed and accuracy, driving innovation forward one precisely machined part at a time.
