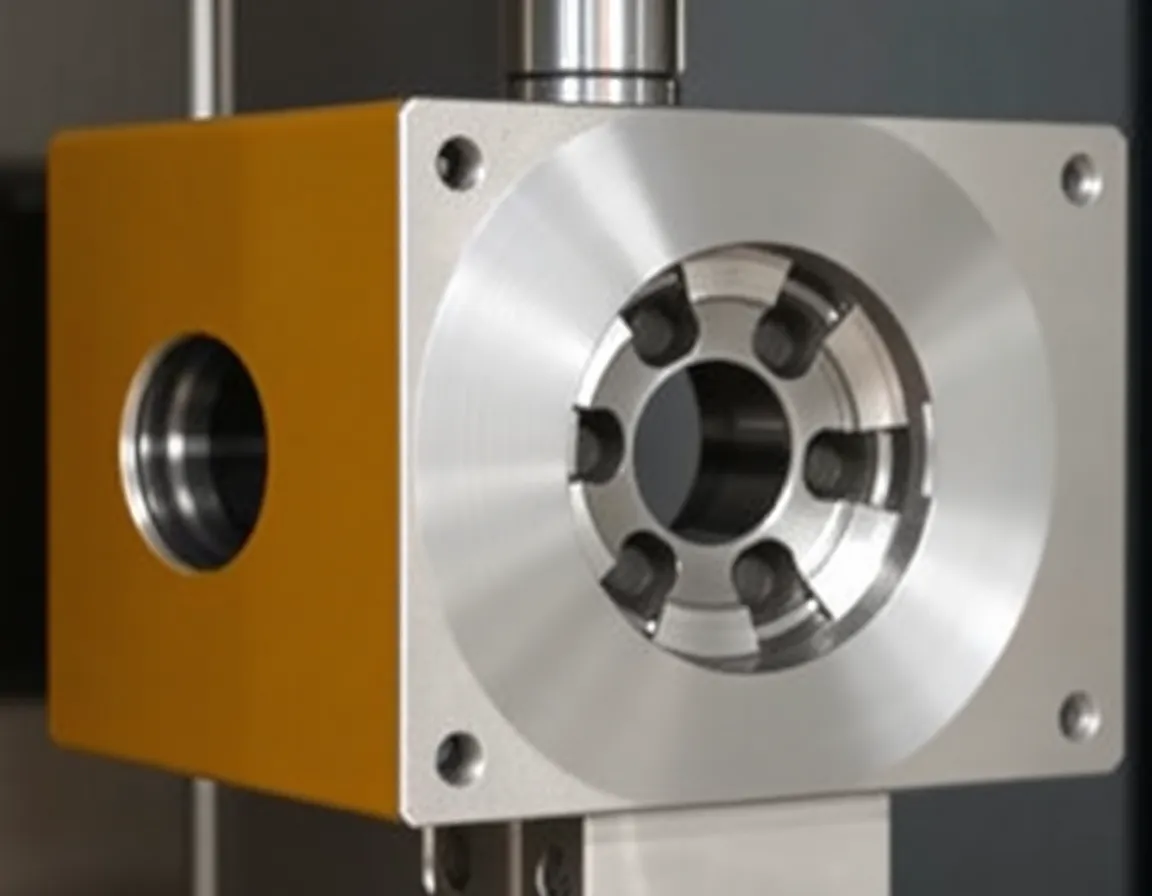

Introduction: The Pinnacle of Precision in Aerospace Manufacturing
The aerospace industry demands nothing short of perfection. Every component, from a turbine blade to a structural bulkhead, must withstand extreme temperatures, immense pressure, and relentless vibration while maintaining exacting tolerances measured in microns. This is where 5 axis aerospace parts machining has become an indispensable technology. Unlike traditional 3-axis machining, which moves a cutting tool linearly in the X, Y, and Z planes, 5-axis machining adds two rotational axes (typically A and B, or A and C). This allows the cutting tool to approach the workpiece from virtually any angle, enabling the creation of complex geometries with exceptional surface finishes and accuracy. For aerospace engineers, this capability translates directly into lighter, stronger, and more aerodynamic parts that meet stringent regulatory standards. This article will explore the mechanics, benefits, applications, and best practices of 5-axis machining within the aerospace sector, demonstrating why it has become the gold standard for high-stakes component production.
What is 5-Axis Machining and How Does It Work?
At its core, 5-axis machining is a computer numerical control (CNC) process that involves the simultaneous movement of a cutting tool or workpiece along five different axes. The three linear axes (X, Y, Z) control the tool's position in space, while the two rotational axes (A, B, or C) control the orientation of the tool or the part. This simultaneous, coordinated motion allows for complex cuts that would be impossible or require multiple setups on conventional machines.
Types of 5-Axis Machines
There are two primary configurations for 5-axis machines, each with distinct advantages:
- Trunnion Table Machines: In this design, the workpiece is mounted on a table that rotates and tilts (the A and B axes). The cutting tool moves along the X, Y, and Z axes. This configuration is excellent for smaller, lighter parts and offers high rigidity.
- Swivel Head Machines: Here, the cutting tool is mounted in a head that can tilt and rotate (the A and C axes), while the workpiece remains stationary on the table. This setup is ideal for large, heavy aerospace components like wing spars or fuselage sections.
The core principle is simultaneous 5-axis interpolation, where the CNC controller calculates the exact position of all five axes at every moment to maintain optimal tool contact with the material. This reduces the need for special fixtures and allows for shorter, more rigid cutting tools, which minimizes vibration and improves surface quality.
The Role of CAM Software
The complexity of 5-axis machining would be unmanageable without advanced Computer-Aided Manufacturing (CAM) software. CAM programs translate 3D CAD models into machine-readable G-code. For aerospace parts, this software must simulate tool paths, collision detection, and material removal to ensure the process is safe and efficient. Post-processors—software that converts generic tool paths into code specific to a machine brand (e.g., DMG MORI, Mazak, Haas)—are critical. A poorly configured post-processor can lead to crashes, scrapped parts, and costly downtime. Modern CAM systems also optimize tool orientation to maintain a constant cutting angle, extending tool life and improving surface finish.
Key Benefits of 5-Axis Machining for Aerospace Parts
The adoption of 5-axis machining in aerospace is driven by a clear set of technical and economic advantages that directly impact performance and cost.
Unmatched Geometric Complexity and Design Freedom
Aerospace designs often feature complex contours, deep cavities, undercuts, and free-form surfaces—such as those found in impellers, blisks (bladed disks), and engine housings. 5-axis machining allows engineers to design for optimal aerodynamic performance without being constrained by manufacturing limitations. The ability to tilt the tool allows for shorter, more rigid cutters that can reach deep cavities without interference, producing features that would require multiple setups on a 3-axis machine. This single-setup capability reduces errors from re-clamping and ensures tighter tolerances.
Superior Surface Finish and Reduced Post-Processing
Because the tool can be kept at an optimal angle relative to the workpiece surface, 5-axis machining produces a smoother finish than 3-axis methods. This is critical for aerospace components where surface roughness can affect airflow, fatigue life, and sealing. A better surface finish often eliminates the need for manual polishing or secondary finishing operations, saving time and labor. In many cases, 5-axis machining achieves a surface roughness (Ra) of 0.4 microns or better, meeting the stringent requirements of aerospace standards like AS9100.
Improved Tool Life and Reduced Cycle Times
By maintaining a constant chip load and an optimal tool engagement angle, 5-axis machining significantly reduces cutting forces and heat generation. This prevents premature tool wear and breakage. Furthermore, the ability to use shorter tools reduces deflection and vibration, allowing for higher feed rates and spindle speeds. Studies have shown that 5-axis machining can reduce cycle times by 30-50% compared to 3-axis methods for complex parts, as it eliminates multiple setups and reduces non-cutting time (rapid traverses and tool changes).
Enhanced Material Utilization and Lightweighting
Aerospace manufacturers are under constant pressure to reduce weight. 5-axis machining enables the creation of thin-wall structures and organic, lattice-like geometries that remove excess material while maintaining structural integrity. This is especially important for materials like titanium, aluminum, and Inconel, where every gram saved reduces fuel consumption. The process also allows for near-net-shape machining, where parts are machined from billets with minimal waste, reducing material costs and environmental impact.
Applications of 5-Axis Machining in Aerospace
The technology is used across the entire aerospace supply chain, from engine components to airframe structures and interior fittings.
Engine Components
This is perhaps the most demanding application. Turbine blades, compressor disks, and impellers require complex curved surfaces and precise airfoil profiles to efficiently compress and expand air. 5-axis machining is the only practical method to produce these parts from high-temperature superalloys like Inconel 718 or Waspaloy. The process ensures correct twist, camber, and chord length, which are critical for engine efficiency and thrust. Additionally, cooling holes and internal passages can be machined with high accuracy.
Structural Airframe Parts
Large structural components such as wing ribs, spars, fuselage frames, and landing gear components benefit immensely from 5-axis machining. These parts often have complex pockets, flanges, and mounting holes that must align perfectly. Machining them in a single setup guarantees positional accuracy and reduces the risk of assembly issues. For example, a wing rib machined from a single aluminum billet can be significantly lighter than a built-up assembly of multiple parts.
Interior and Precision Hardware
While not as structurally critical, interior components like seat tracks, overhead bin brackets, and galley fittings also require high precision and aesthetic quality. 5-axis machining allows for the efficient production of these parts from materials like aluminum or composites, with complex geometries that integrate multiple functions into a single piece. This reduces part count and simplifies assembly.
Best Practices for 5-Axis Aerospace Machining
To maximize the benefits of 5-axis machining, aerospace manufacturers must adhere to rigorous best practices. Failure to do so can result in scrapped parts, tool breakage, and machine damage.
Advanced Workholding and Fixturing
Proper workholding is critical. Since the part may be rotated and tilted, the fixture must securely hold the workpiece without interfering with the tool path. Vacuum chucks, modular vises, and custom-designed fixtures are common. For complex parts, zero-point clamping systems allow for quick and repeatable setup changes. The fixture must also be designed to dampen vibration, especially when machining thin-walled structures.
Tool Selection and Path Optimization
Choosing the right cutting tool is paramount. For aerospace materials, carbide tools with specialized coatings (e.g., AlTiN, TiAlN) are standard. The tool path should be optimized to maintain a constant chip thickness and avoid sudden changes in direction that can cause chatter. CAM software should be used to simulate the entire process, including collision detection, to verify that the tool, holder, and machine head do not collide with the fixture or workpiece. Trochoidal milling and peeling strategies are often employed to manage heat and reduce cutting forces.
In-Process Monitoring and Quality Control
Given the high value of aerospace parts, in-process monitoring is essential. Modern 5-axis machines are equipped with spindle load monitors, vibration sensors, and touch probes. Probing allows for automatic part alignment and compensation for thermal expansion or tool wear. After machining, parts are typically inspected using coordinate measuring machines (CMMs) or laser scanners to verify dimensional accuracy against the CAD model. Statistical process control (SPC) data is collected to ensure consistency across production runs.
Machine Maintenance and Calibration
5-axis machines are precision instruments that require regular maintenance. Ball bar testing is performed periodically to check for geometric errors in the machine's axes. Thermal compensation systems must be calibrated to account for heat generated during long machining cycles. Lubrication, coolant filtration, and chip removal systems must be maintained to prevent contamination and wear. A well-maintained machine ensures consistent accuracy and extends its service life.
Conclusion: The Future of Aerospace Manufacturing
5-axis machining has evolved from a niche capability to a foundational technology for the aerospace industry. Its ability to produce complex, lightweight, and high-precision parts from difficult-to-machine materials is unmatched. As aircraft designs push the boundaries of performance—with more efficient engines, composite structures, and electric propulsion—the demand for 5-axis aerospace parts machining will only grow. The integration of artificial intelligence (AI) for tool path optimization, additive-subtractive hybrid machines, and automated loading systems promises to further enhance productivity and reduce costs. For manufacturers who invest in this technology, the reward is a competitive edge in producing the safest, most efficient, and most reliable components that take to the skies. The precision of 5-axis machining is not just a manufacturing advantage; it is a fundamental enabler of modern flight.
