Introduction to Aerospace Bracket Machining
In the demanding world of aerospace engineering, every component must meet the highest standards of strength, weight, and reliability. Among these critical parts, aerospace brackets play a vital role in securing systems, supporting avionics, and maintaining structural integrity. Aerospace bracket machining refers to the specialized process of manufacturing these brackets from high-performance materials such as aluminum, titanium, and superalloys. This article explores the intricacies of this precision-driven field, detailing how modern machining techniques deliver the performance required for flight-critical applications.
Understanding Aerospace Brackets and Their Role

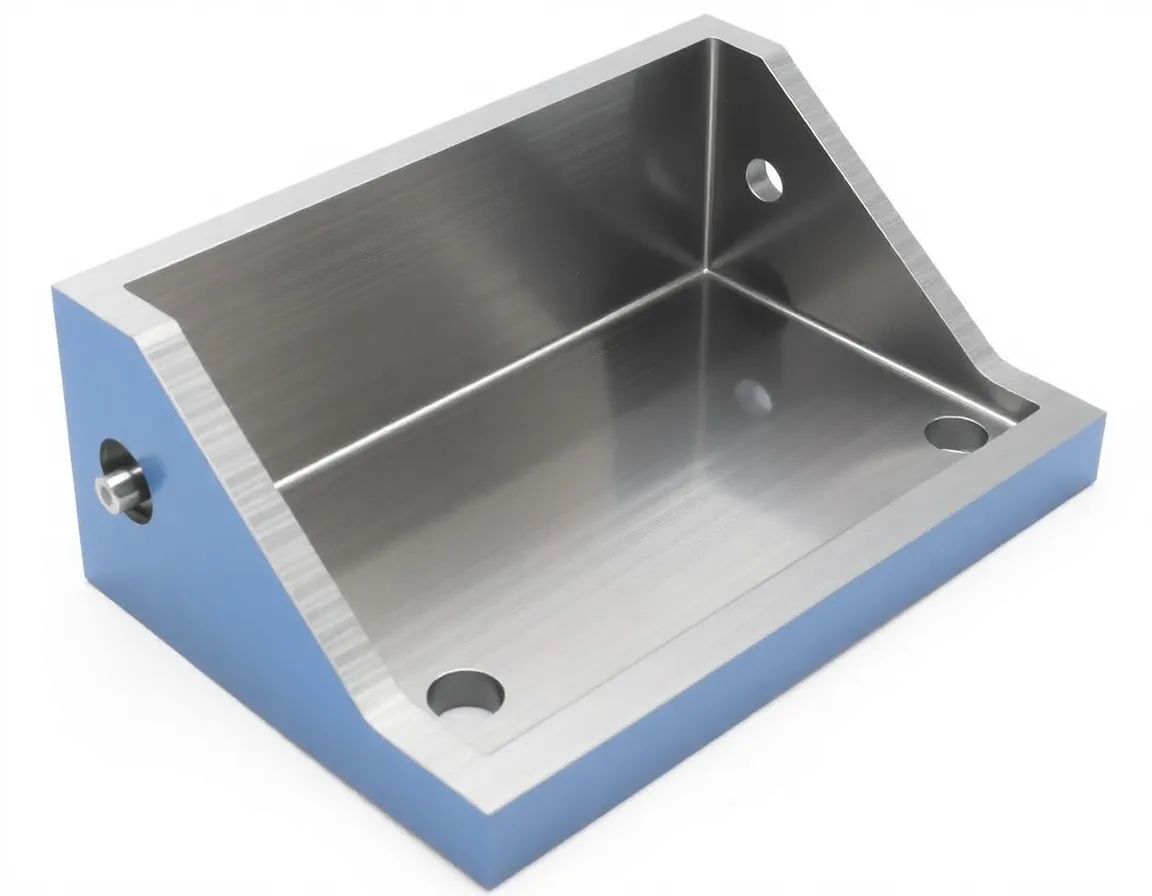

Aerospace brackets are structural components used to attach, mount, or support various elements within an aircraft or spacecraft. These can include engine components, hydraulic lines, electrical wiring, interior panels, and control systems. Unlike standard industrial brackets, aerospace versions must endure extreme temperatures, high vibration loads, and corrosive environments while contributing minimally to overall weight. Every bracket is a safety-critical part, and its failure could lead to catastrophic consequences.
The diversity of bracket types is vast. Common categories include L-brackets, angle brackets, clevis brackets, and custom-shaped mounting brackets. Each design is optimized for a specific load path and installation location. The machining process must therefore be highly adaptable, capable of producing complex geometries with tight tolerances often measured in thousandths of an inch.
Materials Used in Aerospace Bracket Machining
The choice of material is paramount. Aerospace brackets are typically machined from:
- Aluminum alloys (e.g., 7075-T6, 2024-T3): Lightweight, excellent machinability, and high strength-to-weight ratio. Used for non-critical structural brackets and interior applications.
- Titanium alloys (e.g., Ti-6Al-4V): Exceptional strength, corrosion resistance, and heat tolerance. Ideal for engine mounts and high-temperature zones.
- Stainless steels (e.g., 15-5 PH, 17-4 PH): High strength and hardness, often used where wear resistance is critical.
- Nickel-based superalloys (e.g., Inconel 718): For extreme environments like turbine sections, offering superior creep and oxidation resistance.
Each material presents unique machining challenges. For example, titanium tends to work-harden rapidly, while aluminum requires careful chip control to avoid surface damage. Selecting the correct cutting tools, speeds, and feeds is essential for achieving both precision and productivity.
The Precision Machining Process
Aerospace bracket machining is not a single operation but a sequence of carefully controlled steps. The process begins with a solid billet or near-net shape, which is then transformed through subtractive manufacturing. Modern Computer Numerical Control (CNC) machining centers are the backbone of this production, offering multi-axis capabilities for complex geometries.
Step 1: Programming and Simulation
Before any metal is cut, a detailed CAD model is converted into a CNC program using CAM (Computer-Aided Manufacturing) software. Engineers simulate the entire machining process to detect potential collisions, optimize tool paths, and ensure that all tolerances are achievable. This virtual validation saves significant time and material. Simulation also helps predict thermal expansion and vibration patterns, which are critical for maintaining accuracy in thin-walled bracket designs.
Step 2: Roughing and Semi-Finishing
During roughing, large volumes of material are removed rapidly to approach the final shape. High-speed machining techniques are employed to reduce cycle times while managing heat generation. For titanium and superalloys, this stage often involves Trochoidal milling, a toolpath strategy that spreads cutting forces evenly and prevents heat buildup. After roughing, semi-finishing passes bring the bracket close to its final dimensions, leaving a small allowance for the finishing operation.
Step 3: Finishing and Tight Tolerance Machining
The finishing stage is where precision is paramount. Using sharp, coated carbide or ceramic tools, the machine removes the final 0.005 to 0.020 inches of material. Tolerances for aerospace brackets typically range from ±0.005 inches for general dimensions to ±0.0005 inches for critical mounting holes and interfaces. Surface finish requirements often demand Ra values of 32 microinches or better to prevent stress risers and fatigue failures. In-process probing and adaptive machining techniques automatically adjust for tool wear and thermal drift, ensuring every bracket meets specifications.
Step 4: Secondary Operations and Inspection
After machining, brackets may undergo secondary processes such as deburring, anodizing, passivation, or heat treatment. Every part then enters a rigorous inspection phase. This typically includes CMM (Coordinate Measuring Machine) verification, surface roughness measurement, and non-destructive testing like dye penetrant or X-ray inspection. Documentation of all measurements is mandatory for traceability in aerospace quality systems such as AS9100.
Benefits of Precision Aerospace Bracket Machining
The investment in advanced machining techniques yields substantial benefits for aircraft manufacturers and operators.
- Weight Reduction: By using optimized toolpaths and thin-wall machining, brackets can be made significantly lighter without sacrificing strength. Every pound saved reduces fuel consumption and increases payload capacity.
- Enhanced Reliability: Tight tolerances ensure proper fit and load distribution, reducing the risk of bolt loosening or fatigue cracking over thousands of flight cycles.
- Improved Performance: Smooth surface finishes and precise geometries minimize aerodynamic drag and improve the efficiency of attached systems.
- Cost Efficiency: While initial setup costs are high, CNC automation reduces labor costs and scrap rates. High-speed machining also shortens lead times, allowing for faster production cycles.
- Material Versatility: Modern machining centers can handle a wide range of alloys, enabling engineers to select the best material for each specific application.
Best Practices for Aerospace Bracket Machining
To consistently achieve the required precision and performance, manufacturers must adhere to a set of proven best practices. These guidelines are essential for both quality and operational efficiency.
Tool Selection and Management
Using the correct cutting tools is non-negotiable. For aluminum, uncoated carbide with high rake angles works well. For titanium and superalloys, PVD-coated carbide or CBN (Cubic Boron Nitride) tools are preferred for their heat resistance. Tool life must be monitored closely; a worn tool can cause chatter, poor surface finish, and dimensional drift. Implementing a tool management system that tracks usage and triggers replacement at predetermined intervals is a standard practice.
Fixturing and Workholding
Thin-walled aerospace brackets are prone to vibration and deflection during machining. Custom-designed fixtures with vacuum chucks, soft jaws, or hydraulic clamping systems are used to hold parts securely without distortion. Modular fixturing systems allow quick changeovers between different bracket designs, reducing downtime. For complex parts, robotic workholding cells can load and unload parts automatically, maintaining consistency.
Coolant and Chip Management
High-pressure coolant systems are critical for evacuating chips and dissipating heat, especially when machining titanium or stainless steel. Flood coolant or through-spindle coolant helps prevent re-cutting of chips, which can damage the surface. MQL (Minimum Quantity Lubrication) is also gaining traction for its environmental benefits, though it requires careful parameter adjustment to maintain cooling effectiveness. Chip conveyors and filtration systems keep the work area clean and protect the machine tool's precision.
Quality Control and Documentation
Beyond the initial inspection, aerospace bracket machining demands a comprehensive quality management system. First-article inspection (FAI) is performed on the first part of each production run. In-process statistical process control (SPC) monitors key dimensions in real time. All data must be recorded and archived for compliance with AS9100 and customer requirements. Digital twins and cloud-based traceability platforms are increasingly used to create a complete digital thread from design to delivery.
Applications and Future Trends
Aerospace brackets are found in virtually every section of an aircraft: from the cockpit instrument panels to the landing gear assemblies, and from the wing leading edges to the engine nacelles. In the rapidly growing space sector, brackets are used in satellite payloads, launch vehicle stages, and crew modules. The trend toward additive manufacturing is also influencing bracket design, with hybrid machines that combine 3D printing with CNC finishing to create complex, lightweight lattice structures that are impossible to machine from solid stock.
Furthermore, the adoption of smart machining systems equipped with IoT sensors is enabling predictive maintenance and real-time optimization. As aerospace OEMs push for greater fuel efficiency and lower emissions, the demand for ever-lighter, stronger, and more precisely machined brackets will continue to grow. The future of aerospace bracket machining lies in the seamless integration of digital design, advanced materials, and autonomous manufacturing processes.
Conclusion
Aerospace bracket machining is a discipline where precision meets performance. From the initial material selection to the final inspection, every step is engineered to ensure that these small but vital components can withstand the harsh realities of flight. By leveraging advanced CNC technology, meticulous process control, and a deep understanding of material behavior, manufacturers deliver brackets that are not only dimensionally accurate but also structurally sound and lightweight. As the aerospace industry evolves, the principles of precision machining will remain foundational to achieving the safety, efficiency, and reliability that modern aviation demands.
