Introduction to Aluminum 7075 in Aerospace Machining
In the demanding world of aerospace engineering, the choice of material is often the difference between mission success and catastrophic failure. Among the pantheon of high-performance alloys, Aluminum 7075 stands as a benchmark for strength-to-weight ratio, durability, and reliability. When combined with precision machining, this alloy becomes the backbone of critical aircraft components, from wing spars to fuselage frames. This article explores the intricacies of aluminum 7075 aerospace machining, detailing its unique properties, the machining processes involved, its benefits, and the best practices required to achieve the exacting tolerances that the industry demands.
What is Aluminum 7075?
Aluminum 7075 is a precipitation-hardened aluminum alloy that contains zinc as its primary alloying element, along with magnesium, copper, and small amounts of chromium. Developed in the 1940s, it was initially used in military aircraft and has since become a standard material for aerospace structures. Its chemical composition gives it a strength comparable to many steels, while maintaining the lightweight characteristics of aluminum. The most common temper for aerospace applications is T6 (solution heat-treated and artificially aged) and T651 (stress-relieved by stretching), which offer the best combination of strength and machinability.
Key Mechanical Properties
- Ultimate Tensile Strength: 570–590 MPa (83,000–85,000 psi)
- Yield Strength: 500–540 MPa (73,000–78,000 psi)
- Fatigue Strength: Excellent, especially under cyclic loading conditions
- Hardness: Brinell hardness of 150–160
- Density: 2.81 g/cm³ (0.102 lb/in³)
These properties make 7075 ideal for components that must withstand high stress, vibration, and temperature variations without adding excessive weight. However, it is worth noting that 7075 has lower corrosion resistance compared to other aerospace alloys like 6061, so proper surface treatments such as anodizing or cladding are often required.
The Precision Machining Process for Aluminum 7075

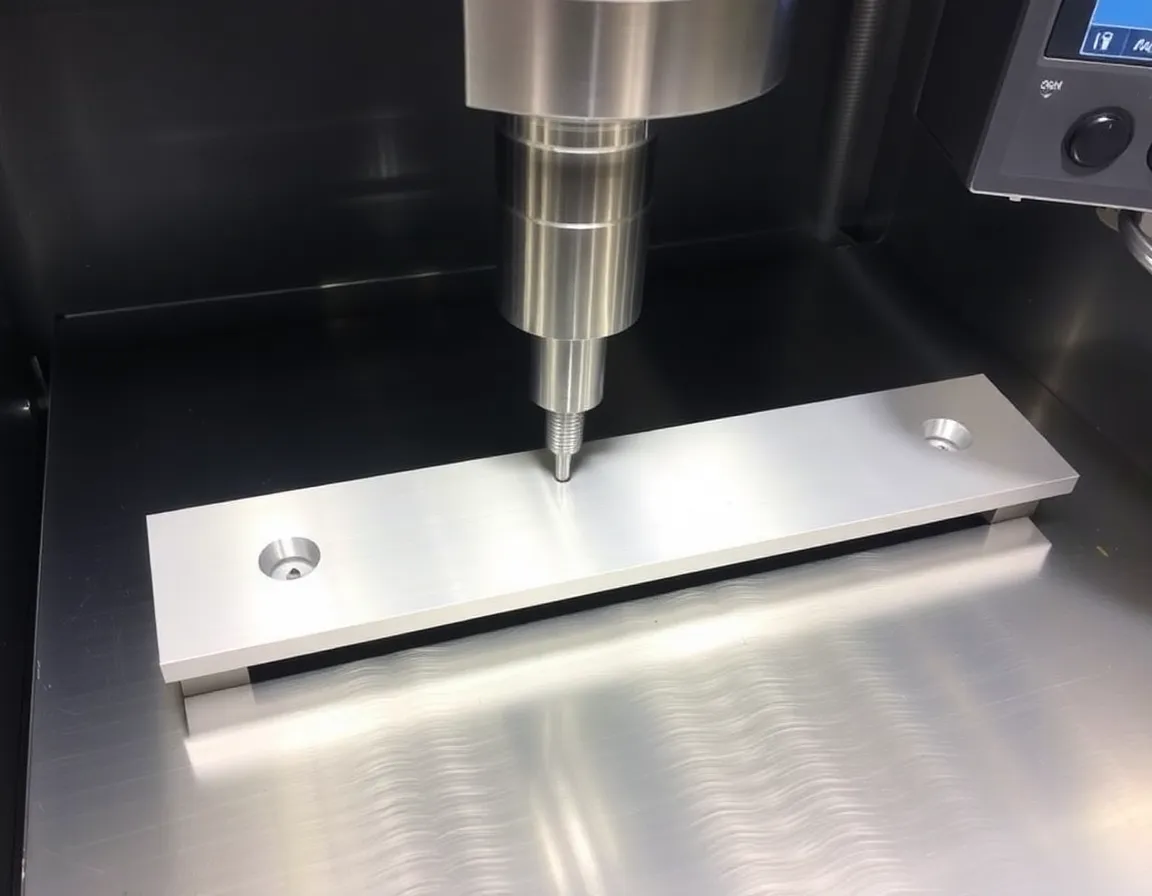

Machining aluminum 7075 to aerospace standards requires a careful balance of cutting parameters, tool selection, and cooling strategies. Unlike softer aluminum alloys, 7075 is prone to work hardening and can generate high cutting forces if not handled correctly. The process typically involves CNC (Computer Numerical Control) machining, which ensures repeatability and micron-level accuracy.
Step 1: Material Preparation and Fixturing
Before any cutting begins, the raw 7075 stock must be inspected for internal stresses. Aerospace-grade material is often supplied in the T651 temper, which has been stress-relieved to minimize distortion during machining. The workpiece is then securely clamped using vacuum chucks, vises, or custom fixtures that distribute clamping forces evenly. Proper fixturing is critical because 7075’s high strength means that even slight vibration can lead to chatter marks or dimensional inaccuracies.
Step 2: Roughing Operations
Roughing removes the bulk of the material quickly. For 7075, recommended cutting speeds range from 300 to 600 meters per minute (SFM: 1,000–2,000) with feed rates of 0.1–0.3 mm per tooth. Carbide end mills with a TiAlN (Titanium Aluminum Nitride) coating are preferred because they resist the abrasive nature of the alloy and maintain sharp edges. Coolant—usually a water-based emulsion or high-pressure air blast—is essential to dissipate heat and prevent the chips from welding to the tool.
Step 3: Semi-Finishing and Finishing
After roughing, the part undergoes semi-finishing passes to bring it closer to final dimensions. Finishing passes use slower speeds (150–300 SFM) and lighter depths of cut (0.2–0.5 mm) to achieve surface finishes of Ra 0.8 µm or better. High-speed machining (HSM) techniques, such as trochoidal milling, are often employed to reduce tool wear and maintain consistent chip load. For tight tolerances (e.g., ±0.01 mm), multi-axis CNC machines with real-time feedback systems are used to compensate for thermal expansion and tool deflection.
Step 4: Inspection and Quality Control
Every aerospace component must pass rigorous inspection. CMM (Coordinate Measuring Machine) checks verify dimensional accuracy, while non-destructive testing (NDT) methods like ultrasonic or dye penetrant inspection detect subsurface flaws. Surface roughness is measured with profilometers, and hardness tests confirm that the material has not been over-heated during machining.
Benefits of Aluminum 7075 Aerospace Machining
The combination of 7075 alloy and precision machining offers a host of advantages that make it indispensable in aerospace manufacturing.
Exceptional Strength-to-Weight Ratio
With a specific strength (strength divided by density) that rivals many titanium alloys, 7075 allows engineers to design lighter structures without compromising load-bearing capacity. This directly translates to fuel savings, increased payload, and extended range for aircraft.
High Fatigue Resistance
Aircraft components experience millions of stress cycles during their service life. Aluminum 7075’s fine grain structure and precipitation-hardened matrix provide superior fatigue life, reducing the risk of cracks and failure over time. Precision machining further enhances this by eliminating stress risers and surface defects.
Excellent Machinability with Proper Techniques
While 7075 is harder than alloys like 6061, it still machines well when using sharp carbide tools and appropriate cutting parameters. The chips produced are short and manageable, and the material responds well to high-speed machining, which reduces cycle times and cost.
Dimensional Stability
The T651 temper, combined with stress-relieving processes, ensures that machined parts maintain their shape even after material removal. This is vital for components that must fit together with zero gap, such as wing ribs or landing gear brackets.
Applications in Aerospace
Aluminum 7075 is used across a wide spectrum of aerospace applications, from commercial airliners to military fighters and spacecraft.
- Structural Airframe Components: Wing spars, stringers, ribs, and bulkheads are often machined from 7075 plate or billet. The alloy’s strength allows for thinner sections, reducing weight while maintaining structural integrity.
- Landing Gear Parts: Landing gear must absorb enormous impact forces. 7075 is used for torque links, axles, and support brackets due to its toughness and fatigue resistance.
- Fuselage Frames: Precision-machined 7075 frames provide the skeleton for the aircraft fuselage, supporting the skin and internal systems.
- Missile and Satellite Components: In defense and space applications, 7075 is used for guidance housings, antenna dishes, and structural brackets where weight and strength are critical.
- Helicopter Rotor Hubs: The high cyclic loading in rotor systems demands a material like 7075 that can withstand repeated stress without failure.
Best Practices for Machining Aluminum 7075
To achieve optimal results in aluminum 7075 aerospace machining, follow these best practices:
Tool Selection and Geometry
Use carbide tools with a high positive rake angle (10–15°) to reduce cutting forces and minimize work hardening. Coatings such as TiAlN or DLC (Diamond-Like Carbon) help manage heat and extend tool life. For finishing, use tools with a polished flute surface to prevent chip adhesion.
Coolant and Chip Management
Flood coolant is recommended for roughing to control heat, while high-pressure air or mist coolant is sufficient for finishing. Ensure that chips are evacuated quickly using through-tool coolant or vacuum systems; re-cutting chips can cause surface damage and tool breakage.
Cutting Parameters Optimization
- Roughing: Speed 400–600 SFM, feed 0.15–0.25 mm/tooth, depth of cut 2–5 mm.
- Finishing: Speed 200–350 SFM, feed 0.05–0.1 mm/tooth, depth of cut 0.2–0.5 mm.
- Climb milling is preferred to reduce tool deflection and improve surface finish.
Stress Relief and Heat Management
For large or complex parts, consider intermediate stress relief after roughing to prevent distortion. If the part heats up during machining, allow it to cool to room temperature before final finishing passes. Never exceed 120°C (250°F) at the cutting interface, as this can alter the T6 temper.
Surface Protection
After machining, clean the part thoroughly to remove cutting fluid and chips. Apply a corrosion-inhibiting coating or anodize the surface to protect against environmental attack. For parts that will be painted, a chromate conversion coating (Alodine) is standard.
Challenges and Solutions
Despite its benefits, machining 7075 presents several challenges that must be addressed:
- Work Hardening: If the tool becomes dull, the material will harden, making further cuts difficult. Solution: Use sharp tools and maintain consistent chip loads.
- Burr Formation: 7075 tends to produce larger burrs than softer alloys. Solution: Use high-speed finishing passes and deburring tools.
- Chatter and Vibration: The alloy’s stiffness can lead to resonance. Solution: Use rigid setups, shorter tool overhangs, and variable flute pitch tools.
- Corrosion Sensitivity: Without proper coating, 7075 can corrode in humid environments. Solution: Apply protective finishes immediately after machining.
Conclusion
Aluminum 7075 aerospace machining represents the pinnacle of precision engineering, where material science meets advanced manufacturing. Its unparalleled strength-to-weight ratio, fatigue resistance, and machinability make it a cornerstone of modern aircraft design. By adhering to best practices in tool selection, coolant management, and parameter optimization, manufacturers can produce components that meet the most stringent aerospace standards. As the industry moves toward lighter, more efficient aircraft, the role of 7075—and the skilled machinists who work with it—will only grow in importance. Whether for a commercial jetliner or a next-generation spacecraft, precision-machined 7075 parts ensure that what goes up stays up, safely and reliably.
