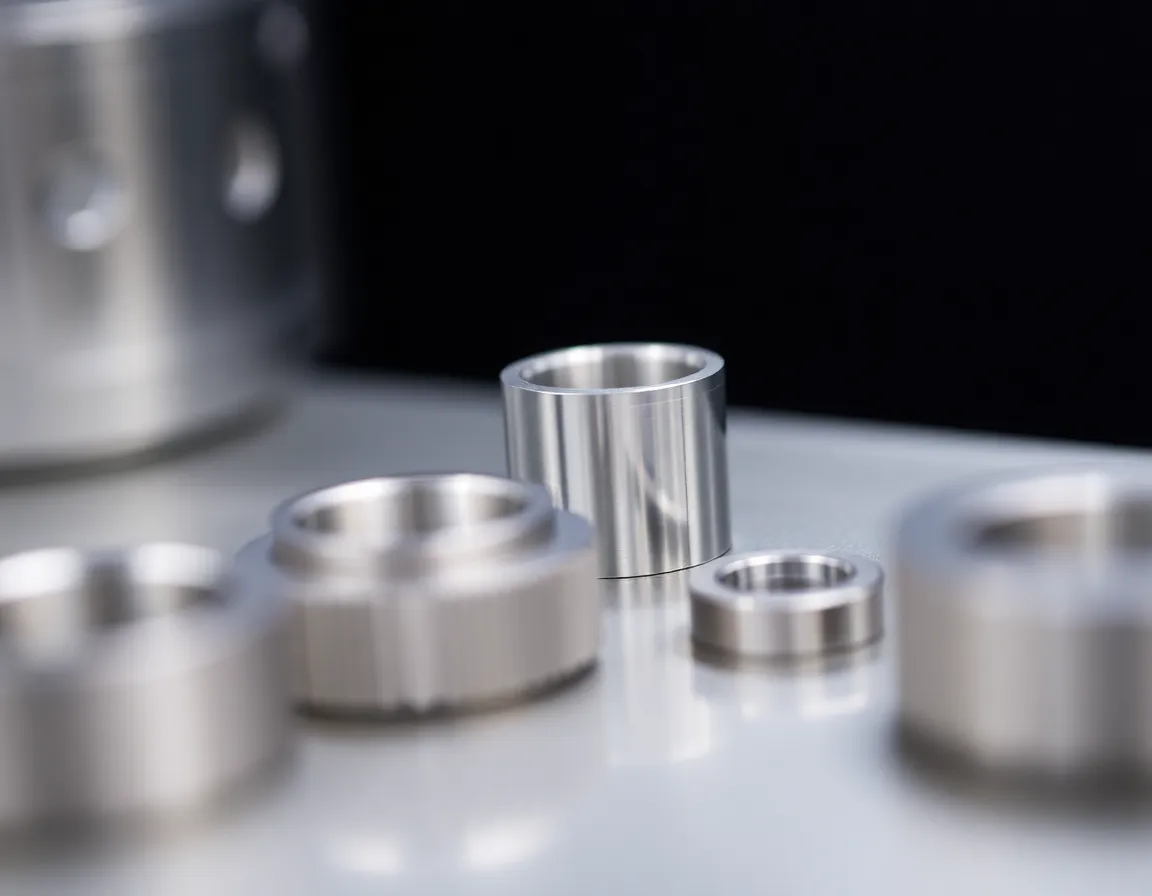

Introduction: The Imperative of Precision in Aerospace
In the unforgiving environment of aerospace engineering, there is no room for error. A component failure at 35,000 feet or during a deep-space mission is not a minor inconvenience; it is a catastrophic event. This reality places an extraordinary burden on manufacturers to produce parts that conform to exacting specifications. At the heart of this manufacturing discipline lies the concept of tight tolerance aerospace parts. These are components machined to dimensional limits that are often measured in microns—thousandths of a millimeter. Achieving this level of precision is not merely a technical achievement; it is the bedrock upon which safety, performance, and reliability are built. This article delves into the world of tight tolerance aerospace parts, exploring their definition, the advanced manufacturing processes that create them, their critical applications, and the best practices that ensure their flawless execution.
Defining Tight Tolerance in Aerospace
To understand the significance of these parts, one must first grasp what "tight tolerance" means in a practical sense. In general manufacturing, a tolerance of ±0.005 inches (0.127 mm) might be considered acceptable. In aerospace, however, tolerances can be as stringent as ±0.0001 inches (0.00254 mm)—roughly 1/50th the width of a human hair. This is often referred to as "high-precision" or "micro-machining" territory.
The Role of Material Science
Tight tolerance is not solely about the machining process; it is deeply intertwined with material science. Aerospace parts are commonly fabricated from exotic alloys like Titanium (Ti-6Al-4V), Inconel, Hastelloy, and high-strength stainless steels. These materials are chosen for their strength-to-weight ratios and resistance to extreme temperatures and corrosion. However, they are notoriously difficult to machine. They work-harden quickly, generate immense heat, and have a tendency to "spring back" after cutting. Achieving tight tolerances on these materials requires specialized tooling, advanced coolant systems, and a deep understanding of how the material will behave during and after machining.
Geometric Dimensioning and Tolerancing (GD&T)
Beyond simple linear measurements, tight tolerance aerospace parts are governed by Geometric Dimensioning and Tolerancing (GD&T). This symbolic language defines not just the size of a feature, but its form, orientation, location, and runout. For example, a turbine blade might require a flatness tolerance of 0.0002 inches across its surface, a perpendicularity tolerance to its root, and a surface finish of 16 micro-inches. GD&T ensures that every part fits and functions within a complex assembly, eliminating ambiguity and guaranteeing interchangeability.
Manufacturing Processes: How Precision is Achieved
Creating tight tolerance aerospace parts is a symphony of advanced technology, skilled craftsmanship, and rigorous quality control. Several key processes are employed, often in combination, to meet the required specifications.
5-Axis CNC Machining
The workhorse of modern aerospace manufacturing is the 5-axis Computer Numerical Control (CNC) machine. Unlike traditional 3-axis mills, a 5-axis machine can move a cutting tool or workpiece along five different axes simultaneously. This allows for the creation of complex geometries—such as impellers, blisks, and structural brackets—in a single setup. The elimination of multiple setups reduces cumulative errors and dramatically improves accuracy. High-speed spindles (20,000 RPM and above) and advanced servo motors enable the machine to make micro-cuts with minimal vibration, a critical factor for achieving surface finishes in the single-digit micro-inch range.
Electrical Discharge Machining (EDM)
For features that are too small, too deep, or too intricate for conventional cutting, Electrical Discharge Machining (EDM) is employed. There are two primary types: sinker EDM and wire EDM. Sinker EDM uses a shaped electrode to erode a cavity, while wire EDM uses a thin, electrically charged wire to cut through material. Both processes are non-contact, meaning there is no cutting force that could distort a delicate part. This makes EDM ideal for creating cooling holes in turbine blades, fuel injector nozzles, and other components where tolerances of ±0.0001 inches are mandatory. The process leaves a recast layer that often requires subsequent finishing, but the geometric precision is unparalleled.
Precision Grinding and Lapping
When surface finish and flatness are the primary concerns, precision grinding and lapping become essential. Creep-feed grinding can remove material while holding tolerances of ±0.0002 inches, often replacing milling operations for certain features. Lapping, on the other hand, is a final finishing process that uses a slurry of abrasive particles between a plate and the workpiece. It is used to create perfectly flat sealing surfaces for hydraulic manifolds, valve plates, and optical components in guidance systems. The resulting surface can have a flatness measured in light bands (millionths of an inch).
Critical Applications: Where Precision is Non-Negotiable
Tight tolerance aerospace parts are not used everywhere; they are reserved for the most critical systems where failure is not an option.
Engine Hot Section Components
The turbine section of a jet engine operates at temperatures exceeding 2,000°F. Components like turbine blades, vanes, and combustor liners must maintain incredibly tight clearances. The gap between a spinning turbine blade tip and the engine shroud is often less than 0.010 inches. If this gap is too large, performance and efficiency degrade. If it is too small, the blade can rub against the shroud, causing a catastrophic failure. These parts are typically cast from single-crystal superalloys and then machined with EDM and laser drilling for cooling channels, all held to micron-level tolerances.
Flight Control Actuation Systems
The systems that move ailerons, elevators, rudders, and landing gear rely on hydraulic and electromechanical actuators. These actuators contain spools, sleeves, pistons, and valves that must slide with near-zero friction while sealing high-pressure fluid (3,000-5,000 PSI). A clearance of 0.0001 to 0.0003 inches between a spool and its sleeve is common. Any deviation leads to internal leakage, loss of control authority, or seizure. The manufacturing of these components demands cylindrical grinding, honing, and meticulous deburring to ensure smooth, repeatable motion.
Inertial Navigation Systems (INS)
Modern aircraft and spacecraft navigate using Inertial Navigation Systems (INS). The heart of an INS is a gyroscope and accelerometer package. Early systems used spinning mass gyroscopes with jeweled bearings; modern systems use ring laser gyroscopes or fiber-optic gyroscopes. Regardless of the technology, the mechanical structures that house these sensors must be machined with extraordinary precision. Any asymmetry, thermal expansion mismatch, or residual stress in the housing can introduce drift, causing the navigation system to lose accuracy. The tolerances on these parts are often in the sub-micron range, requiring temperature-controlled cleanrooms for assembly.
Best Practices for Manufacturing Tight Tolerance Aerospace Parts
Producing these components consistently requires a holistic approach that extends beyond the machine tool itself. Adherence to best practices is what separates world-class aerospace suppliers from the rest.
- Thermal Management: A workshop that is 70°F in the morning and 75°F in the afternoon will produce parts with different dimensions. Aerospace machining is often performed in climate-controlled facilities held to ±1°F. Coolant temperature is also regulated to prevent thermal growth of the workpiece and machine structure.
- Tooling and Workholding: Standard vises are insufficient. Parts are held using custom fixtures, vacuum chucks, or hydraulic chucks that minimize distortion. Cutting tools must be made of micro-grain carbide or polycrystalline diamond (PCD) and inspected with a tool presetter before each use.
- In-Process Inspection: Relying on post-process inspection is a recipe for scrap. Modern shops use probing cycles on the CNC machine to measure critical features during machining. If a dimension drifts, the machine can automatically compensate. Coordinate Measuring Machines (CMMs) and laser scanners are used for final verification, often in a metrology lab held to NIST-traceable standards.
- Certification and Traceability: Every tight tolerance aerospace part must be traceable back to its raw material heat lot. Manufacturers must comply with standards like AS9100D (the aerospace quality management standard) and Nadcap for special processes like heat treat, welding, and non-destructive testing (NDT). Detailed inspection reports, including dimensional data and material certifications, are delivered with every part.
- Vibration Dampening: High-speed machining of thin-walled parts is prone to chatter, which ruins surface finish and tolerance. Best practices include using tuned toolholders, anti-vibration boring bars, and variable-pitch end mills to disrupt harmonic frequencies.
Conclusion: The Future of Precision
The demand for tight tolerance aerospace parts shows no signs of slowing. As aircraft engines become more efficient (operating at higher temperatures and pressures), and as spacecraft push the boundaries of exploration, the need for components that fit perfectly, seal perfectly, and perform perfectly will only intensify. Emerging technologies like additive manufacturing (3D printing) are beginning to complement traditional subtractive methods, but even printed parts often require post-machining on 5-axis mills to achieve the necessary surface finish and tolerance. The future of flight rests on the ability of manufacturers to push the limits of what is measurable and machinable. Precision, in the aerospace world, is not just a goal—it is the absolute standard. Every micron matters, every cut counts, and every part is a testament to the relentless pursuit of perfection.
