Introduction: The Unseen Foundation of Flight
When we board an aircraft, our trust is placed in a marvel of engineering. While engines, avionics, and cabin comfort often capture our attention, the true hero of aviation safety remains largely unseen: the aircraft structural parts. These components—ranging from the skin of the fuselage to the ribs inside the wings—form the skeleton, muscles, and armor of every flying machine. Without their precise design, rigorous testing, and relentless maintenance, flight as we know it would be impossible. This article delves into the world of aircraft structural parts, exploring what they are, how they function, their critical benefits, and the best practices that ensure they remain the unwavering backbone of aviation safety.
What Are Aircraft Structural Parts?
Aircraft structural parts are the physical components that give an airplane its shape, strength, and aerodynamic capability. They are broadly categorized into three primary groups: primary structures, secondary structures, and tertiary structures. Each plays a distinct role in withstanding the immense forces of flight—lift, gravity, thrust, and drag—as well as environmental stresses like turbulence, temperature extremes, and pressure differentials.
Primary Structures: The Load-Bearing Core
Primary structures are the load-bearing elements that are essential for the aircraft’s integrity. If any of these fail, the aircraft would likely suffer catastrophic loss of control. Key examples include:
- Fuselage frames and longerons: These form the longitudinal and circumferential skeleton of the fuselage, maintaining the cabin’s shape and containing pressurization loads.
- Wing spars and ribs: Spars run the length of the wing, carrying bending loads, while ribs maintain the airfoil shape and transfer aerodynamic forces to the spars.
- Empennage (tail) structures: The vertical and horizontal stabilizers provide directional and pitch stability, with their own internal spars and ribs.
- Wing and fuselage skin: Often considered a primary structure, the skin carries shear loads and, in modern aircraft, is integral to the overall load path.
Secondary and Tertiary Structures
Secondary structures, such as fairings, doors, and control surfaces (ailerons, elevators, rudders), support primary structures but are not critical for immediate flight safety. Tertiary structures include non-load-bearing items like interior panels, galleys, and overhead bins. While less critical, their failure can still impact operations or cause secondary damage, so they are designed to the same high standards of reliability.
How Aircraft Structural Parts Work: Engineering for Extreme Conditions
The function of aircraft structural parts is defined by their ability to manage and distribute loads. This is achieved through a combination of material science, geometry, and redundancy, often described by the “fail-safe” and “safe-life” design philosophies.
Load Paths and Stress Distribution
Every structural part is part of a carefully calculated load path. For example, when an aircraft encounters turbulence, the wings bend upward. The wing skin transfers this bending moment to the spars, which then distribute the load to the fuselage via the wing-to-body attachments. The fuselage frames and longerons then spread the load throughout the entire airframe. This interconnected network ensures that no single point bears an excessive stress. Finite element analysis (FEA) is used during design to simulate these loads, optimizing thickness, shape, and material placement.
Material Selection: The Key to Performance
Modern aircraft structural parts are made from a mix of materials, each chosen for specific properties:
- Aluminum alloys (e.g., 2024, 7075): Lightweight, strong, and corrosion-resistant, they are the traditional workhorses for fuselage skin and wing structures.
- Titanium alloys: Used in high-temperature areas like engine mounts and landing gear due to their strength-to-weight ratio and corrosion resistance.
- Composite materials (carbon fiber reinforced polymer): Increasingly dominant in modern aircraft (e.g., Boeing 787, Airbus A350), composites offer exceptional fatigue resistance, weight savings, and the ability to be formed into complex aerodynamic shapes.
- Steel alloys: Reserved for high-stress, high-wear components like landing gear struts and fasteners.
Redundancy and Damage Tolerance
Aircraft structural parts are designed with redundancy. In fail-safe designs, multiple load paths exist so that if one part fails (e.g., a crack in a skin panel), another adjacent structure can carry the load until the damage is detected. In safe-life designs, components like landing gear are retired after a predetermined number of flight cycles, regardless of visible condition. This dual approach ensures that even with minor damage, the aircraft remains airworthy.
Benefits of Robust Aircraft Structural Parts
The rigorous engineering behind structural parts delivers benefits that extend far beyond simply keeping the plane in the air.
1. Uncompromising Safety
The primary benefit is safety. By withstanding extreme loads—from a hard landing to a lightning strike—structural parts prevent catastrophic failures. The Federal Aviation Administration (FAA) and European Union Aviation Safety Agency (EASA) mandate that all primary structures must be able to withstand 1.5 times the maximum expected load (the ultimate load factor) without failure. This margin is a direct result of the design and testing of structural parts.
2. Fuel Efficiency and Range
Lightweight structural parts, especially composites, directly reduce aircraft weight. Every kilogram saved translates into lower fuel burn, increased payload capacity, or longer range. For example, the use of carbon-fiber wings on the Boeing 787 reduces weight by approximately 20% compared to aluminum, contributing to a 20% fuel efficiency improvement over previous models.
3. Longevity and Reduced Maintenance
High-quality materials and protective coatings (e.g., anodizing, primers, and sealants) make structural parts resistant to corrosion and fatigue. This extends the operational life of an aircraft from 20 to 30 years or more. Damage tolerance designs also allow for longer inspection intervals, reducing downtime and maintenance costs for airlines.
4. Enhanced Passenger Comfort
Stiff structural parts reduce vibration and noise. Composite fuselages, for instance, allow for higher cabin pressurization (lower cabin altitude), which reduces passenger fatigue on long flights. The structural integrity also enables larger windows and higher ceilings, improving the overall flying experience.
Applications Across Aircraft Types
Aircraft structural parts are not one-size-fits-all. Their design varies significantly depending on the mission.
- Commercial airliners: Focus on fatigue life and weight savings. Wide-body aircraft like the Airbus A380 use massive aluminum-lithium alloys and composites for the wing and fuselage.
- Military fighters (e.g., F-35): Prioritize high strength and stiffness to withstand supersonic speeds and high-G maneuvers. Extensive use of titanium and advanced composites is common.

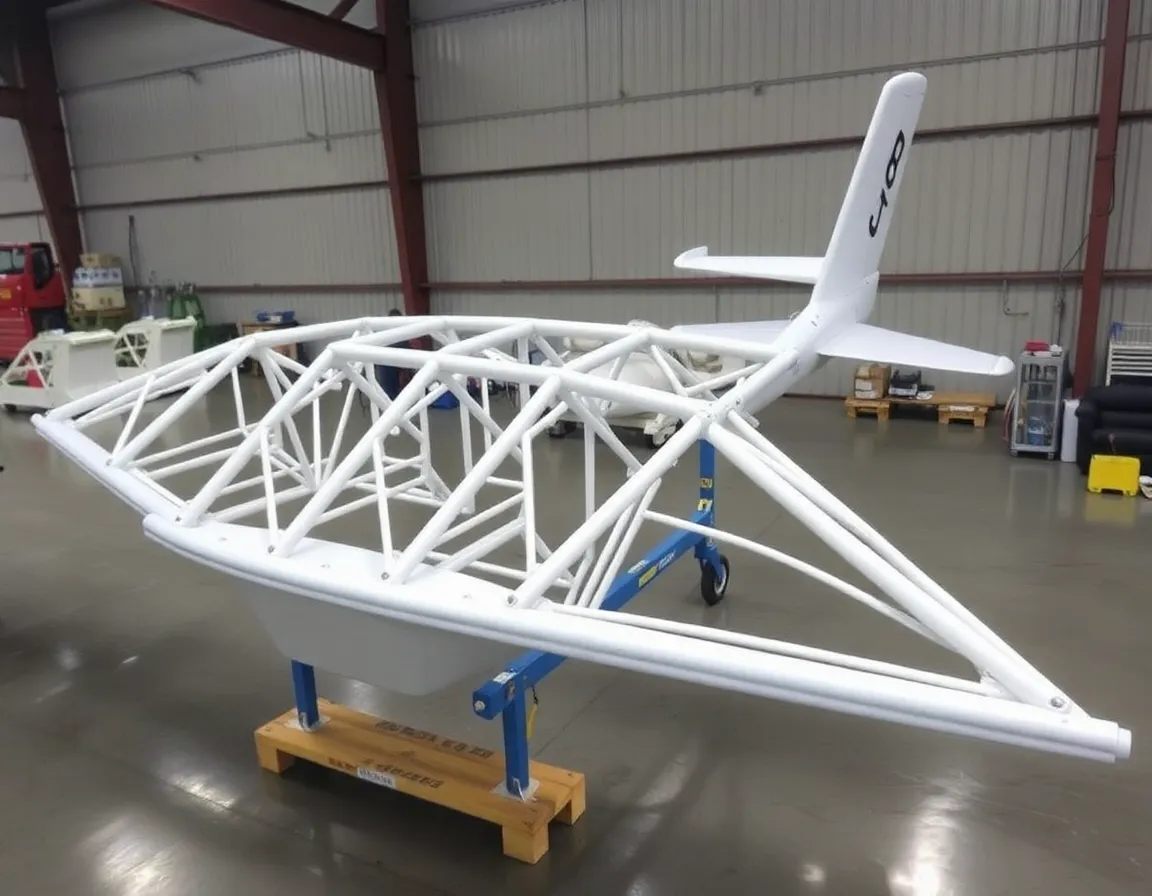

- General aviation (e.g., Cessna 172): Often use simpler aluminum sheet metal structures, with steel tube frames for the fuselage, balancing cost and performance.
- Helicopters: Require highly fatigue-resistant rotor hubs and blades, typically made from composites or forged metals, as they endure cyclic stresses with every rotation.
- Unmanned aerial vehicles (UAVs): Often use lightweight foam cores, carbon-fiber skins, and 3D-printed parts to minimize weight and maximize endurance.
Best Practices for Design, Manufacturing, and Maintenance
Ensuring the reliability of aircraft structural parts requires adherence to best practices throughout their lifecycle.
Design Best Practices
- Stress analysis: Use FEA to identify stress concentrations and optimize geometry. Avoid sharp corners and sudden changes in cross-section, which can initiate cracks.
- Corrosion prevention: Design drainage paths to prevent water entrapment. Specify protective coatings and sealants for all faying surfaces (where parts meet).
- Fatigue life assessment: Conduct detailed fatigue analysis using the stress-life (S-N) or strain-life methods to predict component lifespan under repeated loading.
Manufacturing Best Practices
- Precision machining: Use CNC machining with tight tolerances (often ±0.005 inches or less) to ensure proper fit and load transfer.
- Quality control: Implement non-destructive testing (NDT) such as ultrasonic inspection, X-ray, and dye penetrant testing on every critical part.
- Composite layup control: For composite parts, maintain strict temperature and humidity control in clean rooms. Use automated fiber placement (AFP) to ensure consistent fiber orientation.
Maintenance and Inspection Best Practices
- Regular visual inspections: Look for dents, cracks, corrosion, or loose fasteners. Pay special attention to high-stress areas like wing roots, door corners, and landing gear attach points.
- Non-destructive testing (NDT) schedules: Follow manufacturer-recommended intervals for eddy current, ultrasonic, or thermographic inspections, especially for aging aircraft.
- Repair protocols: Use approved structural repair manuals (SRMs) and only FAA/EASA-approved materials and methods. Never deviate from the original design without rigorous engineering approval.
- Life-cycle management: Track the flight cycles and hours of all critical components. Replace safe-life parts (e.g., landing gear, rotor blades) at their mandatory retirement limits.
Conclusion: The Silent Guardians of the Sky
Aircraft structural parts are far more than mere metal or composite shapes. They are the result of centuries of scientific progress, millions of hours of testing, and an unwavering commitment to safety. From the moment an aircraft begins its takeoff roll to the moment it touches down, these components silently bear the burden of flight. They absorb the forces of turbulence, resist the pressure of altitude, and endure the wear of countless cycles. As aviation technology evolves—with electric propulsion, supersonic travel, and autonomous flight on the horizon—the fundamental importance of structural parts will only grow. They will always remain the backbone of aviation safety, the invisible foundation upon which every journey in the sky is built. Understanding and respecting their role is not just an engineering necessity; it is a promise to every passenger that their trust is well placed.
