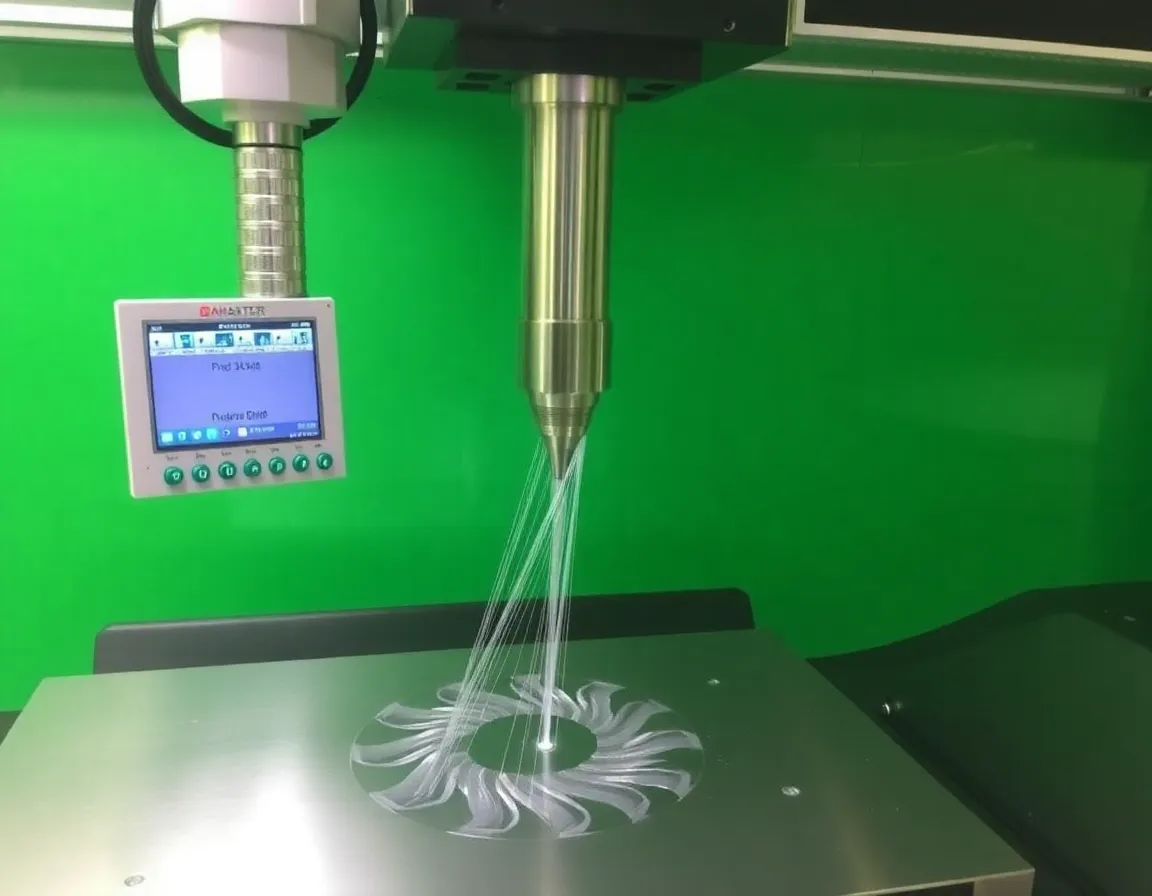

Understanding the Fundamentals of 3 Axis CNC Milling
In the realm of modern manufacturing, precision is not just a goal—it is a non-negotiable standard. Among the most versatile and widely adopted technologies for achieving this precision is 3 axis CNC milling. This subtractive manufacturing process has become the backbone of countless industries, from aerospace to medical devices, enabling the production of complex parts with exceptional accuracy. At its core, 3 axis CNC milling involves a computer numerically controlled (CNC) machine that moves a cutting tool along three distinct linear axes: the X-axis (left to right), the Y-axis (front to back), and the Z-axis (up and down). The workpiece remains stationary on a table while the spindle-mounted tool removes material according to a pre-programmed digital design.
The term "3 axis" refers to the simultaneous or sequential movement of the tool along these three planes. Unlike more advanced multi-axis systems (such as 4-axis or 5-axis mills), the 3 axis configuration does not rotate the workpiece or the tool head. This simplicity, however, is its greatest strength. It offers a robust, cost-effective, and highly repeatable method for machining features like slots, holes, pockets, and flat surfaces. The process begins with a CAD (Computer-Aided Design) model, which is converted into G-code—a language that directs the machine's movements, spindle speed, feed rate, and coolant flow. The result is a part that matches the digital blueprint within tolerances as tight as ±0.001 inches.
How 3 Axis CNC Milling Works: A Step-by-Step Breakdown
From Digital Design to Machining Code
The journey of a 3 axis CNC milled part starts long before the cutting tool touches material. Engineers first create a 3D model using software like SolidWorks, Fusion 360, or AutoCAD. This model defines every dimension, angle, and feature of the final part. Next, CAM (Computer-Aided Manufacturing) software translates this model into toolpaths. These toolpaths dictate the exact trajectory the cutting tool must follow, including roughing passes (to remove bulk material) and finishing passes (to achieve the final surface quality). The CAM software also generates the G-code, which is uploaded to the CNC machine's controller.
The Physical Machining Process
Once the G-code is loaded, the operator secures the raw material—often aluminum, steel, brass, plastic, or composites—onto the machine's worktable using vises, clamps, or vacuum fixtures. The spindle, which holds the cutting tool (such as an end mill or drill bit), begins to rotate at a programmed speed, typically ranging from 1,000 to 30,000 RPM. The tool then moves along the X, Y, and Z axes, engaging the material layer by layer. For example, to create a rectangular pocket, the tool might first plunge downward (Z-axis), then move laterally (X and Y axes) to clear the area, and retract to repeat the cycle at a deeper depth. Coolant is often applied to reduce heat, lubricate the cutting edge, and flush away chips.
Key Components of a 3 Axis CNC Mill
- Spindle: The rotating component that holds and drives the cutting tool. Spindles vary in power and speed, affecting material removal rates.
- Linear Guideways and Ball Screws: These precision components ensure smooth, accurate movement along each axis with minimal backlash.
- Controller: The "brain" of the machine that interprets G-code and sends electrical signals to servo or stepper motors.
- Workholding Devices: Vises, chucks, and fixtures that immobilize the workpiece during machining.
- Tool Changer: Many modern machines include automatic tool changers (ATC) that swap tools without operator intervention, reducing cycle times.
Key Benefits of 3 Axis CNC Milling for Complex Projects
Uncompromising Precision and Repeatability
The hallmark of 3 axis CNC milling is its ability to produce identical parts with micron-level accuracy. Once a program is verified, the machine can run hundreds or thousands of cycles, replicating the same tolerances every time. This repeatability is critical for industries where even a 0.1 mm deviation can lead to functional failure, such as in hydraulic components or surgical instruments. Furthermore, the elimination of human error reduces scrap rates and material waste, directly improving profitability.
Versatility in Material and Geometry
While 3 axis machines cannot undercut features or machine complex 3D contours from all angles (that requires 5-axis capability), they excel at producing a wide range of geometries. Prismatic parts—those with features on a single face or parallel faces—are ideally suited for 3 axis milling. Common features include flat surfaces, square shoulders, T-slots, drilled holes, tapped threads, and 2.5D pockets (pockets with vertical walls). Materials range from soft plastics like nylon to hardened tool steels, making the process adaptable for prototyping and production alike.
Cost-Effectiveness and Accessibility
Compared to multi-axis CNC systems, 3 axis mills are significantly less expensive to purchase, maintain, and operate. Their simpler kinematics mean fewer moving parts, lower energy consumption, and reduced programming complexity. For small-to-medium batch production, job shops, and even hobbyists, this accessibility makes 3 axis milling the default choice. Additionally, the learning curve for CAM software is gentler, allowing engineers and machinists to generate efficient toolpaths more quickly.
Speed and Efficiency for 2.5D and Prismatic Parts
When a part's geometry does not require tilting the tool or rotating the workpiece, 3 axis milling is often faster than its more complex counterparts. The machine can maintain aggressive feed rates and depths of cut without the need for repositioning. For example, machining a flat aluminum plate with dozens of through-holes and a peripheral contour can be completed in minutes. This speed translates to shorter lead times, which is a competitive advantage in fast-paced markets.
Common Applications and Industries Served
Aerospace and Defense
In aerospace, weight reduction and structural integrity are paramount. 3 axis CNC milling is used to produce brackets, housings, and interior components from lightweight materials like aluminum 6061 and titanium. While complex airfoil shapes require 5-axis machining, many secondary structural parts—such as seat tracks, panel stiffeners, and electronic enclosures—are efficiently manufactured on 3 axis machines. The precision ensures that parts fit seamlessly into larger assemblies, reducing rework.
Medical Device Manufacturing
The medical industry demands biocompatible materials and flawless surface finishes. 3 axis mills create surgical guides, orthopedic implants (e.g., hip stems and knee trays), and instrument handles from stainless steel, titanium, and medical-grade plastics like PEEK. The ability to machine sterile, burr-free surfaces is essential for patient safety. Moreover, the repeatability of CNC processes supports FDA validation requirements for medical devices.
Automotive Prototyping and Production
From custom engine components to transmission housings, the automotive sector relies heavily on 3 axis milling. Prototyping departments use it to quickly iterate on intake manifolds, brake calipers, and suspension parts. In high-volume production, 3 axis mills often serve as secondary operations, adding features to cast or forged blanks. The technology also supports the growing electric vehicle market, machining battery cooling plates and motor mounts.
Electronics and Consumer Goods
Miniaturization is a key trend in electronics, and 3 axis CNC milling delivers the required precision for small, intricate parts. Examples include smartphone camera modules, connector housings, and heat sinks. In consumer goods, it is used for molds and dies that produce plastic components, as well as for direct machining of high-end audio equipment, watch cases, and custom jewelry. The fine surface finishes achievable with 3 axis milling eliminate the need for secondary polishing in many applications.
Best Practices for Optimizing 3 Axis CNC Milling
Tool Selection and Geometry
Choosing the right cutting tool is critical for both part quality and machine longevity. For roughing operations, use end mills with fewer flutes (2 or 3) to allow efficient chip evacuation. For finishing, use 4 or more flutes to achieve a smoother surface. Consider coatings like TiAlN (titanium aluminum nitride) for heat resistance when machining hard materials. Always match the tool diameter to the feature size—using a tool that is too large can cause chatter, while a tool that is too small may deflect or break.
Workholding Strategies
Secure workholding prevents vibration and part movement, which are the primary causes of dimensional errors. For flat parts, a precision vise with ground jaws is standard. For irregular shapes, consider custom soft jaws or vacuum tables. When machining thin-walled parts, use low-melt-point alloys or wax to fill cavities and provide support. Always ensure that the workpiece extends beyond the vise jaws by at least 1.5 times the tool diameter to avoid collisions.
Toolpath Optimization
Modern CAM software offers advanced strategies that maximize 3 axis performance. Trochoidal milling uses a circular toolpath to maintain a constant chip load, reducing tool wear and heat buildup. Adaptive clearing adjusts the stepover based on material engagement, allowing higher feed rates. For finishing, use parallel passes or waterline machining to minimize tool marks. Always simulate the toolpath in software before running the machine to detect potential collisions or gouges.
Speeds, Feeds, and Coolant Management
Calculating correct spindle speed (RPM) and feed rate (IPM) is a science in itself. Use the manufacturer's recommendations as a starting point, then adjust based on chip load and machine rigidity. A general rule: for aluminum, use 800-1200 SFM (surface feet per minute) with a chip load of 0.002-0.005 inches per tooth. For steel, reduce SFM to 200-400. Flood coolant is effective for most materials, but for plastics like acrylic, use compressed air to prevent melting and recutting of chips.
Regular Maintenance and Calibration
Even the best 3 axis CNC mill will lose accuracy over time without proper care. Perform daily checks on coolant levels, lubrication systems, and chip removal. Weekly, inspect ball screws and linear guides for wear and backlash. Monthly, run a calibration cycle using a test indicator to verify axis squareness and positioning accuracy. Replace worn tools immediately, as a dull cutter increases cutting forces and can damage the spindle or workpiece.
Limitations and When to Consider Alternatives
While 3 axis milling is incredibly capable, it has inherent constraints. It cannot machine undercuts, angled holes, or complex 3D surfaces that require the tool to approach from multiple sides. For parts requiring such features, 4-axis or 5-axis CNC milling is necessary. Additionally, 3 axis milling is less efficient for deep cavities with small diameters, as long tools can deflect and cause taper. In these cases, consider EDM (electrical discharge machining) or investing in a multi-axis machine. However, for the vast majority of prismatic, 2.5D, and simple 3D parts, 3 axis CNC milling remains the most practical, reliable, and economical solution available in modern manufacturing.
