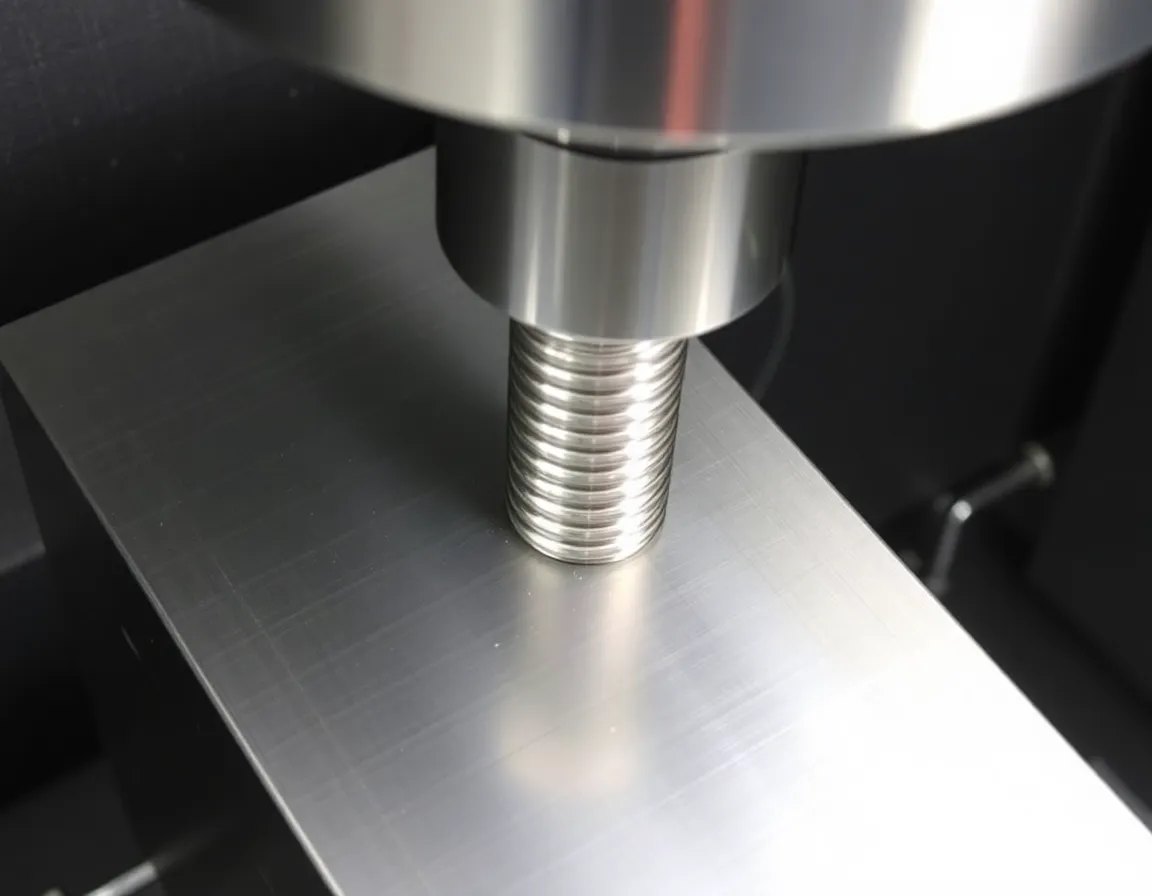

Introduction to Custom Thread Machining
In the world of precision engineering, the humble threaded fastener is a silent workhorse. From the bolts holding together a skyscraper’s steel frame to the tiny screws securing a medical implant, threads are fundamental to modern assembly. However, standard off-the-shelf threads often fall short when faced with unique material constraints, extreme environmental conditions, or specialized load requirements. This is where custom thread machining becomes indispensable. Unlike mass-produced threads, custom thread machining involves the meticulous creation of internal or external threads tailored to exact specifications, ensuring perfect fit, optimal strength, and flawless performance.
Custom thread machining is not merely about cutting grooves into a metal rod. It is a sophisticated process that combines advanced machinery, deep metallurgical knowledge, and rigorous quality control. Whether you are producing a single prototype for an aerospace component or a batch of specialized bolts for heavy machinery, understanding the nuances of this process is critical. This article provides a comprehensive exploration of custom thread machining, covering its definition, methods, benefits, applications, and best practices.
What Is Custom Thread Machining?
Custom thread machining refers to the process of creating threads—helical ridges on a cylindrical or conical surface—that deviate from standard industry norms such as UNC, UNF, or metric standards. While standard threads are defined by organizations like ISO or ANSI, custom threads are designed to meet specific engineering requirements. These requirements may involve unique pitch diameters, thread angles, lead (distance per revolution), or material combinations that are not available in standard catalogs.
Key Elements of a Custom Thread
To appreciate custom thread machining, one must understand the critical parameters that define a thread:
- Major Diameter: The largest diameter of the thread (crest for external threads, root for internal threads).
- Minor Diameter: The smallest diameter of the thread (root for external, crest for internal).
- Pitch: The distance from one thread crest to the next. Custom pitches allow for finer or coarser engagement.
- Thread Angle: The included angle between the flanks (standard is 60°, but custom angles like 55° or 29° are common).
- Thread Form: The profile shape, such as V-thread, square thread, or Acme thread.
- Lead: The distance a thread advances axially in one full rotation (can differ from pitch in multi-start threads).
How Custom Thread Machining Works
Custom thread machining employs several distinct methods, each suited to different materials, tolerances, and production volumes. The choice of method depends on factors like the workpiece material (steel, aluminum, titanium, plastics), the required precision, and the thread geometry.
1. Single-Point Thread Cutting (Turning)
This is the most versatile method for custom threads. Using a CNC lathe, a single-point cutting tool is precisely guided along the workpiece to cut the thread profile. The tool path is controlled by computer software, allowing for unparalleled flexibility in pitch, diameter, and thread form. This method is ideal for low-volume production, prototypes, and threads with non-standard geometries. It also allows for easy adjustment of tolerances during machining.
2. Thread Milling
Thread milling uses a rotating cutting tool with a helical flute to generate threads. Unlike tapping or single-point turning, the tool can machine both internal and external threads. A key advantage is that the tool is smaller than the thread diameter, making it suitable for large threads and blind holes. Thread milling produces excellent surface finish and is highly repeatable, making it a favorite for medium-volume custom runs.
3. Tapping and Die Threading
While often associated with standard threads, taps (for internal threads) and dies (for external threads) can be custom manufactured for unique profiles. For custom thread machining, specialized taps are ground to exact specifications. This method is fast and cost-effective for higher volumes but requires careful selection of tool material to avoid breakage in hard-to-machine alloys.
4. Thread Grinding
For the highest precision and surface finish, thread grinding is employed. A grinding wheel, shaped to the exact thread profile, removes material through abrasion. This method is essential for hardened materials (e.g., tool steel, stainless steel) and for threads requiring tolerances in the micrometer range. It is commonly used for leadscrews, ball screws, and aerospace fasteners.
5. Thread Rolling
Thread rolling is a cold-forming process where the workpiece is pressed between two dies to displace material into the thread form. This method produces threads with superior fatigue strength because the grain structure of the metal flows along the thread profile. Custom rolling dies must be manufactured for each unique thread, making it suitable for high-volume custom applications.
Benefits of Custom Thread Machining
Investing in custom thread machining offers tangible advantages over using standard fasteners. These benefits extend beyond mere fit and into the realm of performance and cost-efficiency over the product lifecycle.
- Perfect Fit and Alignment: Custom threads ensure that mating components engage flawlessly. This eliminates issues like cross-threading, galling, or loose connections, which can lead to mechanical failure.
- Optimized Strength and Load Distribution: By adjusting the thread form and pitch, engineers can maximize the load-bearing capacity. For example, an Acme thread (29° angle) is better suited for high axial loads than a standard 60° V-thread.
- Material Compatibility: Different materials behave differently under stress. Custom thread machining allows for thread designs that accommodate the specific hardness, ductility, and thermal expansion of exotic alloys or plastics.
- Enhanced Sealing Capabilities: In hydraulic or pneumatic systems, custom threads can be designed with specific tapers or interference fits to create a leak-proof seal without the need for additional gaskets or sealants.
- Reduced Assembly Time: Fasteners that are precision-machined to exact specifications reduce the need for rework, shimming, or force-fitting. This accelerates assembly lines and lowers labor costs.
- Compliance with Industry Standards: Many industries (aerospace, medical, automotive) have strict standards that cannot be met with off-the-shelf parts. Custom machining ensures threads meet AS9100, ISO 13485, or other regulatory requirements.
Applications of Custom Thread Machining
Custom thread machining is not a niche service—it is a critical enabler across numerous high-stakes industries. Below are some of the most prominent applications.
Aerospace and Defense
In aerospace, every gram and every millimeter matters. Custom threads are used in landing gear assemblies, engine mounts, and control surfaces. These threads must withstand extreme temperatures, high vibration, and corrosive environments. For example, a custom MJ thread (a metric thread with a rounded root) is often specified to reduce stress concentrations in titanium components.
Medical Devices
Implants, surgical instruments, and diagnostic equipment rely on custom threads. Bone screws, for instance, require unique thread pitches and forms to maximize bone grip while minimizing tissue damage. Custom machining ensures biocompatibility and precise engagement with bone material.
Automotive and Motorsports
High-performance engines, suspension systems, and drivetrains use custom threads to handle extreme torque and fatigue. Custom spark plug threads or wheel studs with specialized lead and pitch are common examples. In motorsports, every fastener is optimized for weight reduction and strength.
Oil and Gas
The oil and gas industry operates in harsh environments with high pressure, corrosive fluids, and abrasive particles. Custom thread machining is used for drill pipe connections, valve stems, and downhole tools. Threads like the API Buttress or custom trapezoidal forms provide the necessary sealing and tensile strength.
Robotics and Automation
Precision robots require leadscrews and ball screws with custom threads to achieve micron-level positioning accuracy. Thread grinding is often used to create these components with minimal backlash and high wear resistance.
Best Practices for Custom Thread Machining
To achieve the highest quality and consistency in custom thread machining, manufacturers must adhere to a set of best practices. These guidelines cover design, material selection, tooling, and inspection.
1. Design with Manufacturing in Mind
Engineers should collaborate closely with machinists during the design phase. Avoid overly complex thread forms that are difficult to tool. For example, a thread with a very fine pitch in a hard material may require thread grinding instead of turning, which can increase cost. Design for manufacturability (DFM) is essential to balance performance with production feasibility.
2. Select the Right Material
The material must be compatible with the chosen machining process. For thread rolling, materials should have good cold-forming properties (e.g., low carbon steel, aluminum). For thread grinding, materials must be heat-treatable to achieve the required hardness. Always consider the material's machinability rating to avoid excessive tool wear.
3. Use High-Quality Tooling
Custom threads demand custom tooling. Invest in carbide or coated tools for cutting operations to maintain sharp edges and reduce friction. For thread milling, use tools with proper helix angles and coatings (e.g., TiAlN for heat resistance). Ensure that taps or dies are ground to the exact custom profile.
4. Implement Rigorous Quality Control
Inspection is non-negotiable. Use thread gauges (go/no-go gauges) that are also custom-manufactured to match the thread specifications. For higher precision, employ optical comparators or coordinate measuring machines (CMM) to measure pitch diameter, thread angle, and lead. Statistical process control (SPC) should be used to monitor consistency across batches.
5. Control Cutting Parameters
Speed, feed rate, and depth of cut must be optimized for the specific thread and material. For single-point cutting, use multiple passes to avoid tool deflection and heat buildup. For thread milling, ensure proper synchronization between spindle rotation and axial feed to achieve the correct lead.
6. Consider Surface Treatments
After machining, custom threads often benefit from surface treatments such as passivation (for stainless steel), anodizing (for aluminum), or zinc plating (for steel). These treatments enhance corrosion resistance and reduce friction. However, be aware that coatings can affect thread tolerances—account for coating thickness in the machining process.
Challenges and Solutions in Custom Thread Machining
While custom thread machining offers immense flexibility, it also presents unique challenges. Understanding these hurdles is key to successful project execution.
Challenge: Maintaining Tight Tolerances
Custom threads often require tolerances of ±0.001 inches or tighter. This is difficult due to tool wear, thermal expansion, and machine rigidity.
Solution: Use temperature-controlled environments, high-rigidity CNC machines, and regular tool inspection. Consider using coolant to manage heat and stabilize dimensions.
Challenge: Machining Hard or Exotic Materials
Materials like Inconel, titanium, or hardened tool steel are notoriously difficult to machine. They cause rapid tool wear and can lead to work hardening.
Solution: Employ thread grinding instead of cutting. Use specialized tool coatings (e.g., CBN or diamond) and reduce cutting speeds. Pre-soften the material if possible, then heat-treat after threading.
Challenge: Chip Evacuation in Deep Threads
When cutting deep internal threads, chips can become trapped, causing tool breakage or poor surface finish.
Solution: Use thread milling (which produces smaller chips) or employ pecking cycles in single-point turning. Ensure adequate coolant pressure to flush chips away.
Conclusion
Custom thread machining is a cornerstone of modern precision engineering. It transforms raw materials into fasteners that are not just functional, but optimized for the most demanding applications. By moving beyond standard threads, engineers can achieve superior strength, perfect alignment, and enhanced durability—whether for a spacecraft, a surgical robot, or a deep-sea drilling rig.
The process requires a blend of advanced technology, skilled craftsmanship, and meticulous quality control. From single-point turning to thread grinding, each method offers distinct advantages for different scenarios. By following best practices in design, material selection, and inspection, manufacturers can produce threads that meet exacting specifications reliably and repeatably.
As industries continue to push the boundaries of performance and miniaturization, the demand for custom thread machining will only grow. It is not merely a service—it is a strategic advantage. For any project where a standard fastener simply will not do, custom thread machining delivers the precision required for perfect fasteners and, ultimately, perfect results.
