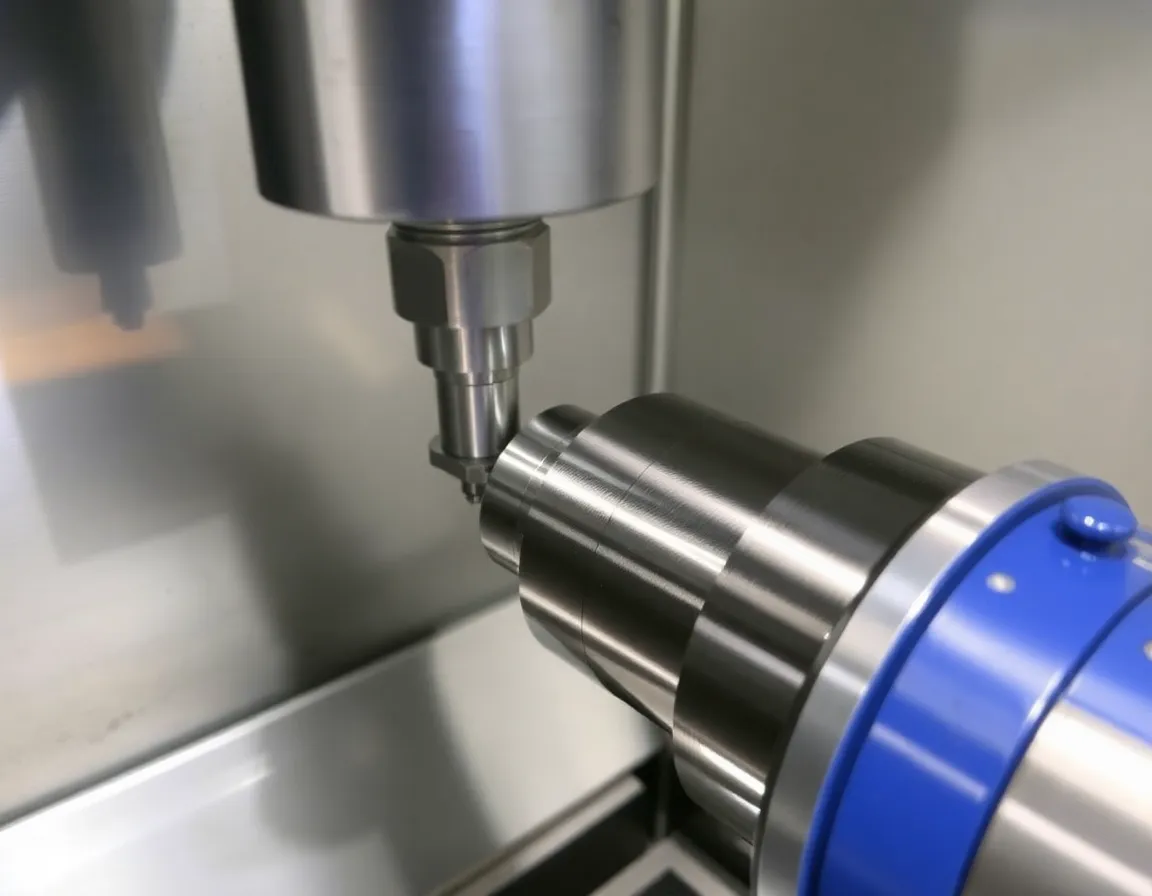

Understanding CNC Threading Services: The Foundation of Precision Engineering
In the world of modern manufacturing, threaded components are the unsung heroes that hold everything together—from the engine in your car to the critical assemblies in aerospace and medical devices. When precision is non-negotiable, CNC threading services provide the advanced machining capabilities required to produce threads with exceptional accuracy, repeatability, and surface finish. Unlike manual threading methods that rely heavily on operator skill, CNC (Computer Numerical Control) threading employs automated, computer-guided machines to cut or form threads on a wide variety of materials. This article explores what CNC threading services entail, how they work, their key benefits, common applications, and best practices for achieving optimal results.
What Are CNC Threading Services?
CNC threading services refer to specialized machining processes where computer-controlled lathes, milling machines, or multi-axis turning centers create internal or external threads on cylindrical or conical workpieces. The process is governed by precise G-code instructions that dictate spindle speed, feed rate, tool path, and depth of cut. The result is a thread that meets exact specifications for pitch, diameter, tolerance, and class of fit—often within microns of the design intent.
These services are offered by professional machine shops equipped with CNC lathes with live tooling, Swiss-type machines, and multi-tasking turning centers. They can handle everything from simple ISO metric threads to complex custom profiles like Acme, Buttress, or NPT (National Pipe Taper) threads. The key differentiator is the ability to maintain consistency across thousands of parts, making CNC threading ideal for both prototyping and high-volume production.
Types of Threads Produced by CNC Services
- External threads: Cut on the outside of a shaft or bolt, such as standard metric or UNC/UNF fasteners.
- Internal threads: Cut inside a hole or bore, including tapped holes and threaded inserts.
- Tapered threads: Common in pipe fittings (NPT, BSPT) where sealing is critical.
- Multi-start threads: Used for quick-disconnect mechanisms or high-lead applications.
- Custom profiles: Including square, Acme, and ball screw threads for specialized mechanical drives.
How CNC Threading Works: The Process in Detail
The CNC threading process is a carefully orchestrated sequence of operations that blends machine capabilities with material science. Understanding this workflow helps explain why CNC threading services deliver such reliable precision.
Step 1: CAD/CAM Programming
Every thread begins as a digital model. Engineers create a 3D CAD (Computer-Aided Design) file that specifies all thread parameters—major diameter, pitch, thread angle, length, and tolerance. This file is then imported into CAM (Computer-Aided Manufacturing) software, which generates the toolpaths and G-code. The programmer must account for factors like tool geometry, material hardness, and machine dynamics to avoid issues like chatter or tool deflection.
Step 2: Setup and Tool Selection
CNC threading requires specialized tooling. For external threads, single-point threading inserts (often carbide with coatings like TiAlN) are mounted on a threading tool holder. For internal threads, boring bars with threading inserts are used. The machine is set up with the correct collet, chuck, or workholding fixture to ensure the workpiece is rigidly held. Proper tool selection is critical; using the wrong insert geometry can lead to poor surface finish or broken tools.
Step 3: Machining Cycles
CNC threading is typically performed using a single-point threading cycle (G76 or G92 in Fanuc controls). The machine synchronizes the spindle rotation with the Z-axis movement to cut the helix. Multiple passes are made, progressively deepening the cut. Key parameters include:
- Spindle speed: Lower speeds for harder materials to reduce heat and tool wear.
- Depth of cut per pass: Typically decreasing with each pass to maintain chip control.
- Number of passes: Determined by thread pitch and material; finer threads require more passes.
- Infeed method: Flank infeed (for stronger threads) or radial infeed (for general threads).
Step 4: Inspection and Quality Control
After machining, threads are inspected using thread gauges (Go/No-Go plugs or rings), optical comparators, or coordinate measuring machines (CMM). For critical applications, profilometers measure surface roughness, and pitch diameter is verified with thread micrometers. Any deviation outside tolerance triggers adjustments to the CNC program or tooling.
Key Benefits of Professional CNC Threading Services
Choosing a professional CNC threading service provider offers distinct advantages over in-house manual threading or lower-end automated solutions. These benefits translate directly into cost savings, quality assurance, and design flexibility.
Unmatched Precision and Repeatability
CNC machines can hold thread tolerances as tight as ±0.001 inches (0.025 mm) or better, depending on the material and machine condition. Once a program is proven, every subsequent part is identical. This repeatability is essential for industries where thread fit affects safety, such as in aerospace hydraulic fittings or medical implant screws.
Material Versatility
Professional CNC threading services can handle virtually any machinable material, including:
- Metals: Stainless steel (304, 316), titanium, aluminum, brass, and tool steels.
- Exotic alloys: Inconel, Hastelloy, and Monel for high-temperature or corrosive environments.
- Plastics: Nylon, PTFE, PEEK, and acrylics for lightweight or chemical-resistant parts.
- Composites: Carbon fiber and glass-filled polymers with specialized tooling.
Complex Geometries and Customization
CNC threading is not limited to standard fasteners. It can produce left-hand threads, threads with runout or undercuts, tapered threads with specific sealant requirements, and threads on non-cylindrical surfaces using multi-axis machining. Custom pitch diameters and thread forms are also feasible without expensive special taps or dies.
Cost Efficiency for Production Runs
While setup costs for CNC threading can be higher than manual methods, the per-part cost drops dramatically for medium to large production runs. Automated cycles reduce labor time, and the elimination of scrap due to human error further lowers total cost. Many services also offer lights-out manufacturing, where machines run unattended overnight.
Common Applications of CNC Threading Services
The versatility of CNC threading makes it indispensable across numerous industries. Below are some of the most prominent applications where precision threading is critical.
Aerospace and Defense
Aircraft engines, landing gear components, and missile guidance systems rely on threads that can withstand extreme vibration, temperature fluctuations, and stress. CNC threading produces threads with controlled root radii to reduce stress concentration, and threads on materials like titanium that are notoriously difficult to machine.
Medical Devices
From bone screws and dental implants to surgical instrument handles, medical threads require biocompatibility and absolute precision. CNC threading services can hold tolerances that ensure perfect interlock between threaded components, which is vital for patient safety. Materials like 316L stainless steel and PEEK are commonly threaded.
Automotive and Motorsports
High-performance engines, transmission shafts, and suspension components use custom threads for improved strength and weight savings. CNC threading allows for rolled threads (via thread whirling or rolling attachments) that increase fatigue life compared to cut threads. This is crucial for connecting rods, wheel studs, and hydraulic line fittings.
Oil and Gas
Downhole tools, valves, and pipe connections must seal perfectly under high pressure. CNC threading services produce API (American Petroleum Institute) threads and proprietary thread forms that meet rigorous standards for leak resistance and torque requirements. Materials often include corrosion-resistant alloys.
Best Practices for Working with CNC Threading Services
To maximize the value of CNC threading services, engineers and procurement professionals should follow these best practices from design through production.
Design for Manufacturability (DFM)
Provide clear thread specifications on your engineering drawings. Include thread class (e.g., 2A for external, 2B for internal), pitch diameter limits, and any required chamfers or undercuts. Avoid unnecessarily tight tolerances that increase cost without functional benefit. Consult with the service provider early to optimize thread geometry for the chosen material.
Choose the Right Material
Harder materials like titanium or Inconel require slower speeds, specialized coatings, and more passes, which increases cycle time and cost. For non-critical applications, consider aluminum or brass to reduce expenses. Ensure the material is free of internal defects that could cause thread breakage.
Specify Surface Finish Requirements
Thread surface finish affects both performance and appearance. For dynamic loads, a smoother finish (Ra 0.8 µm or better) reduces friction and wear. For static seals, a slightly rougher finish may improve grip with sealants. Communicate your requirements clearly in the RFQ (Request for Quote).
Implement In-Process Inspection
Request that the CNC threading service provide first-article inspection reports with dimensional data. For production runs, periodic sampling with thread gauges ensures consistency. For critical applications, consider 100% inspection using automated vision systems or laser scanning.
Plan for Post-Processing
Threads may require deburring (to remove sharp edges), passivation (for corrosion resistance), or coating (e.g., zinc plating or PTFE). Discuss these requirements upfront, as they can affect thread dimensions. For instance, a plating thickness of 0.0005 inches may require pre-plate thread adjustments.
Conclusion: The Value of Trusted CNC Threading Services
In an era where manufacturing demands ever-higher precision, reliability, and speed, CNC threading services stand as a cornerstone of modern production. Whether you are designing a prototype for a medical implant or scaling up production for an automotive assembly, partnering with an experienced CNC threading provider ensures that your threaded components meet the highest standards of quality. By understanding the process, leveraging the benefits, and following best practices, you can achieve threads that are not only precise but also cost-effective and fit for purpose. Trust in CNC threading is not just about the technology—it is about the expertise, quality control, and commitment to excellence that professional service providers bring to every project.
