Introduction to ACME Thread Machining
ACME thread machining is a specialized process used to create threads with a trapezoidal profile, distinct from the more common V-shaped threads found on standard bolts and screws. Named after the ACME screw thread standard developed in the late 19th century, these threads are engineered for high-strength, repetitive motion and load-bearing applications. Unlike sharp V-threads, ACME threads feature a flat crest and root with a 29-degree included angle, which provides superior durability and resistance to wear under heavy loads. This article explores the fundamentals of ACME thread machining, offering precision tips for machinists and engineers seeking to optimize their processes.
Mastering ACME thread machining requires a deep understanding of tool geometry, material properties, and machine setup. Whether you are producing lead screws for CNC machines, jackscrews for industrial lifting, or linear actuators for automation, achieving consistent accuracy is critical. In this comprehensive guide, we will cover the essential techniques, common challenges, and best practices to ensure your ACME threads meet the highest standards of precision.
Understanding ACME Thread Geometry and Standards
The 29-Degree Thread Form
The defining characteristic of an ACME thread is its 29-degree included angle, which is shallower than the 60-degree angle of standard V-threads. This design distributes the load more evenly across the thread flanks, reducing stress concentration and allowing for higher axial loads. The flat crest and root also minimize friction, making ACME threads ideal for power transmission and positioning applications. When machining, always verify that your cutting tool matches this specific angle, as even a slight deviation can compromise thread engagement and load capacity.
Standard Classes and Tolerances
ACME threads are classified into several tolerance grades, including 2G, 3G, 4G, and 5G, with 2G being the most common for general-purpose applications. The "G" denotes a general-purpose fit, while "C" is used for centralizing threads. For precision work, such as in lead screws for machine tools, a 3G or 4G fit is often specified. It is crucial to consult the relevant standards (e.g., ASME/ANSI B1.5) to determine the correct pitch diameter, major diameter, and minor diameter tolerances for your specific application. Using a thread micrometer or optical comparator to inspect these dimensions will help maintain quality control.
Single vs. Multi-Start Threads
ACME threads can be single-start or multi-start. Single-start threads have one continuous helical groove and provide high load capacity with slower linear travel per revolution. Multi-start threads, typically double or triple-start, offer faster linear motion but with reduced load capacity. When machining multi-start ACME threads, you must index the workpiece or tool to cut each start accurately. This requires careful setup and often the use of a dividing head or CNC programming to ensure equal spacing between starts.
Essential Machining Techniques for ACME Threads
Tool Selection and Geometry

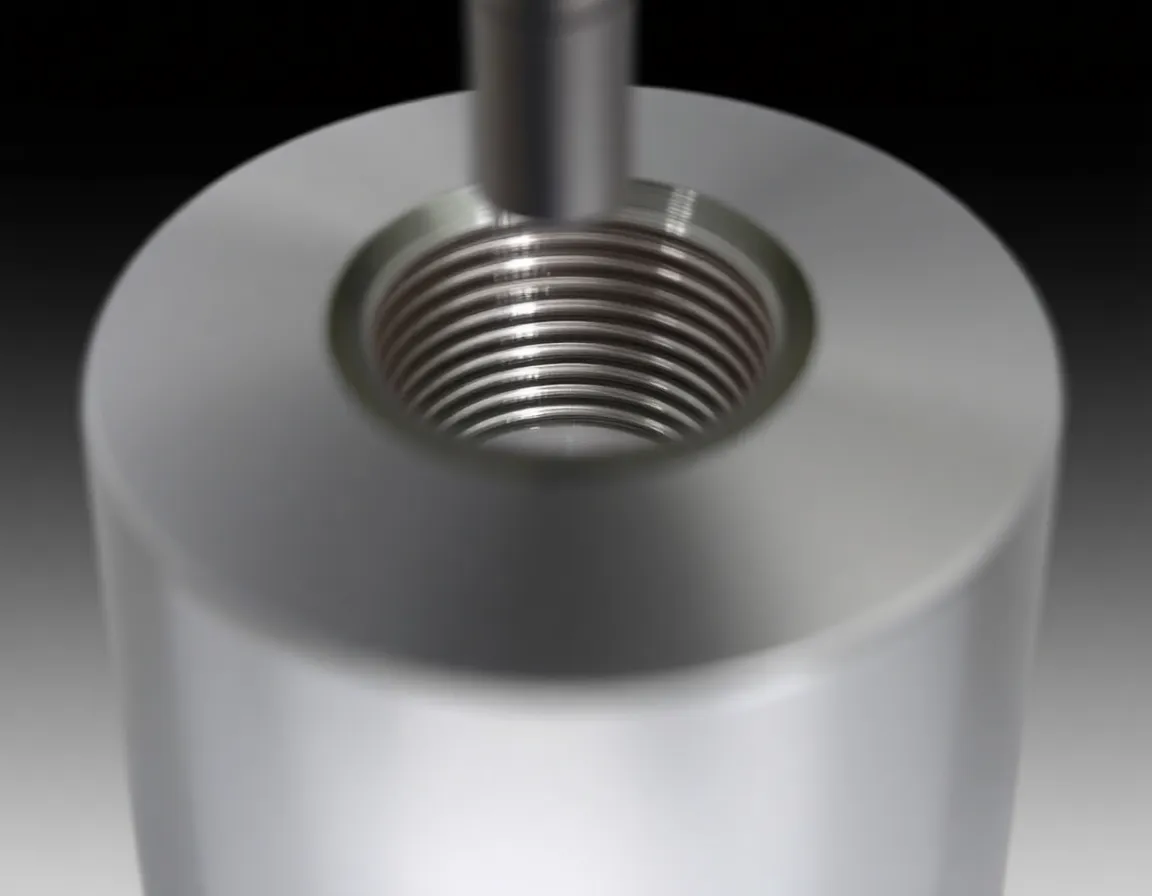

Choosing the right cutting tool is paramount for successful ACME thread machining. Carbide inserts are preferred for high-speed production and hard materials, while high-speed steel (HSS) tools may be used for softer materials or manual machining. The tool must have a 29-degree included angle and a flat tip to form the crest. Never use a standard V-thread tool for ACME threads, as this will result in improper flank angles and poor fit. For internal threads, use a boring bar with a properly ground ACME insert, ensuring adequate clearance to avoid rubbing.
When grinding your own HSS tools, pay close attention to the rake angle. A positive rake angle (5-10 degrees) improves chip flow and reduces cutting forces, but may weaken the tool edge. For harder materials like stainless steel or titanium, use a neutral or slightly negative rake to enhance tool life. Additionally, apply a honed edge to the cutting tip to prevent chipping and improve surface finish.
Machine Setup and Speeds/Feeds
ACME thread machining requires rigid machine setups to minimize vibration and deflection. Use a steady rest or tailstock support for long workpieces to prevent chatter. For lathe operations, set the compound rest to 14.5 degrees (half of the 29-degree angle) to feed the tool along the flank of the thread. This approach distributes the cutting load and produces a cleaner finish.
Selecting appropriate speeds and feeds is critical. For general-purpose steel (e.g., 4140 or 1018), use a cutting speed of 100-150 surface feet per minute (SFM) with carbide tools, and reduce by 20-30% for HSS. Feed rates should be conservative—typically 0.005 to 0.015 inches per revolution for roughing passes, and 0.002 to 0.005 inches for finishing passes. Always take multiple passes (at least 5-10) to avoid overloading the tool and to achieve the desired thread depth. Use a thread depth chart or calculate the depth using the formula: Depth = (0.5 x Pitch) / tan(14.5°).
Coolant and Chip Management
Effective coolant application is essential for ACME thread machining, especially in deep cuts. Use a high-pressure coolant system directed at the cutting zone to flush chips away and reduce heat buildup. For materials like aluminum or brass, a water-soluble coolant works well; for steels, use an oil-based cutting fluid to improve lubrication and surface finish. Chip breaking is also important—consider using a chip breaker insert or adjusting the feed rate to produce short, manageable chips that do not clog the thread flutes.
Common Challenges and How to Overcome Them
Chatter and Vibration
Chatter is a frequent issue in ACME thread machining due to the wide cutting edge and high cutting forces. To mitigate this, ensure your workpiece is securely clamped and the tool overhang is minimized. Use a larger tool shank or a vibration-damping boring bar for internal threads. Reducing the depth of cut per pass and increasing the feed rate slightly can also help stabilize the cut. If chatter persists, consider using a variable-speed spindle to break resonant frequencies.
Thread Crest and Root Finish
A poor surface finish on the crest or root can lead to premature wear and reduced thread strength. This often results from dull tools, improper coolant, or excessive cutting speeds. Always inspect your tool edge for wear and replace or regrind it as needed. For finishing passes, use a light cut (0.001-0.003 inches) and a slow feed rate to burnish the surface. In some cases, a final pass with a wiper insert can dramatically improve finish quality.
Thread Gauging and Inspection
Ensuring your ACME threads meet specifications requires accurate gauging. Use go/no-go ring gauges for external threads and plug gauges for internal threads. For critical applications, invest in a thread micrometer or a coordinate measuring machine (CMM) to measure pitch diameter and flank angles. Remember that ACME threads often have a larger tolerance than V-threads, but consistency is key. Document your inspection results to identify trends and adjust your machining parameters accordingly.
Applications and Benefits of ACME Thread Machining
Industrial Power Transmission
ACME threads are the backbone of many power transmission systems. Lead screws in CNC machines, lathes, and milling machines rely on ACME threads for precise linear motion. The high mechanical advantage of the trapezoidal form allows these screws to handle heavy loads with minimal backlash, making them ideal for positioning tables and robotic arms. In comparison to ball screws, ACME lead screws are more cost-effective and easier to manufacture, though they have higher friction and lower efficiency.
Lifting and Jacking Systems
From automotive jacks to industrial scissor lifts, ACME threads are widely used in lifting applications. The self-locking property of certain ACME thread designs (when the lead angle is less than the friction angle) provides safety without the need for additional braking mechanisms. When machining threads for lifting systems, pay special attention to thread engagement length and material selection—hardened steel or bronze nuts are common to reduce wear.
Valve Actuation and Clamping
In the oil and gas industry, ACME threads are used in valve stems and gate valves to control fluid flow. The robust thread form withstands high pressures and corrosive environments. Similarly, clamping mechanisms in fixtures and vises often use ACME threads for their ability to generate high clamping forces with minimal input torque. For these applications, corrosion-resistant coatings like nickel plating or black oxide can extend thread life.
Best Practices for Precision ACME Thread Machining
Pre-Threading Preparation
Before cutting the thread, ensure the workpiece diameter is turned to the correct major diameter with a smooth finish. For external threads, the major diameter should be slightly undersized (by 0.002-0.005 inches) to allow for tool deflection and finishing passes. For internal threads, bore the minor diameter to the correct size and chamfer the entry hole to prevent burrs. Always deburr the workpiece after turning to avoid damaging the thread tool.
Using CNC Programming for Consistency
CNC lathes offer significant advantages for ACME thread machining, particularly for multi-start threads or complex geometries. Use a G76 threading cycle with incremental depth cuts to control chip load. Program a spring pass (a final pass at zero depth) to correct any elastic deflection in the workpiece or tool. For multi-start threads, use G32 or G92 with a spindle index to cut each start sequentially. Verify your program with a simulation before running on the machine.
Tool Maintenance and Monitoring
Regular tool inspection is critical for maintaining precision. Check for edge wear, chipping, and built-up edge (BUE) after every 10-20 parts. Use a tool presetter or microscope to measure tool geometry, and replace inserts at the first sign of degradation. For long production runs, consider using a tool wear monitoring system that tracks cutting forces or spindle load to predict tool life.
Conclusion
Mastering ACME thread machining requires a blend of theoretical knowledge and practical skill. By understanding the unique geometry of the 29-degree thread form, selecting the right tools, and optimizing your machine setup, you can produce threads that deliver exceptional performance and durability. Whether you are machining a single prototype or running a high-volume production line, the tips and techniques outlined in this article will help you achieve the precision required for critical applications in automation, lifting, and power transmission.
Remember that consistency is the hallmark of a skilled machinist. Document your parameters, inspect your work rigorously, and continuously refine your process. With attention to detail and a commitment to quality, you can master ACME thread machining and contribute to the reliability of countless mechanical systems. For further reading, consult the ASME B1.5 standard and explore advanced topics like thread rolling or grinding for ultra-precision applications.
