Introduction: The Critical Role of CNC Machining in Modern UAV Manufacturing
The rapid evolution of Unmanned Aerial Vehicles (UAVs) from niche military tools to ubiquitous commercial, industrial, and recreational platforms has placed unprecedented demands on manufacturing precision. At the heart of this transformation lies UAV CNC machining, a subtractive manufacturing process that delivers the tight tolerances, lightweight structures, and material integrity essential for high-performance flight. Unlike additive manufacturing or traditional fabrication methods, CNC (Computer Numerical Control) machining offers the repeatability and strength required for critical components such as motor mounts, gimbal housings, frame arms, and payload enclosures. This article explores the technical intricacies, benefits, and best practices of precision CNC machining for UAV parts, providing a comprehensive guide for engineers, manufacturers, and enthusiasts seeking to elevate their aerial platforms.

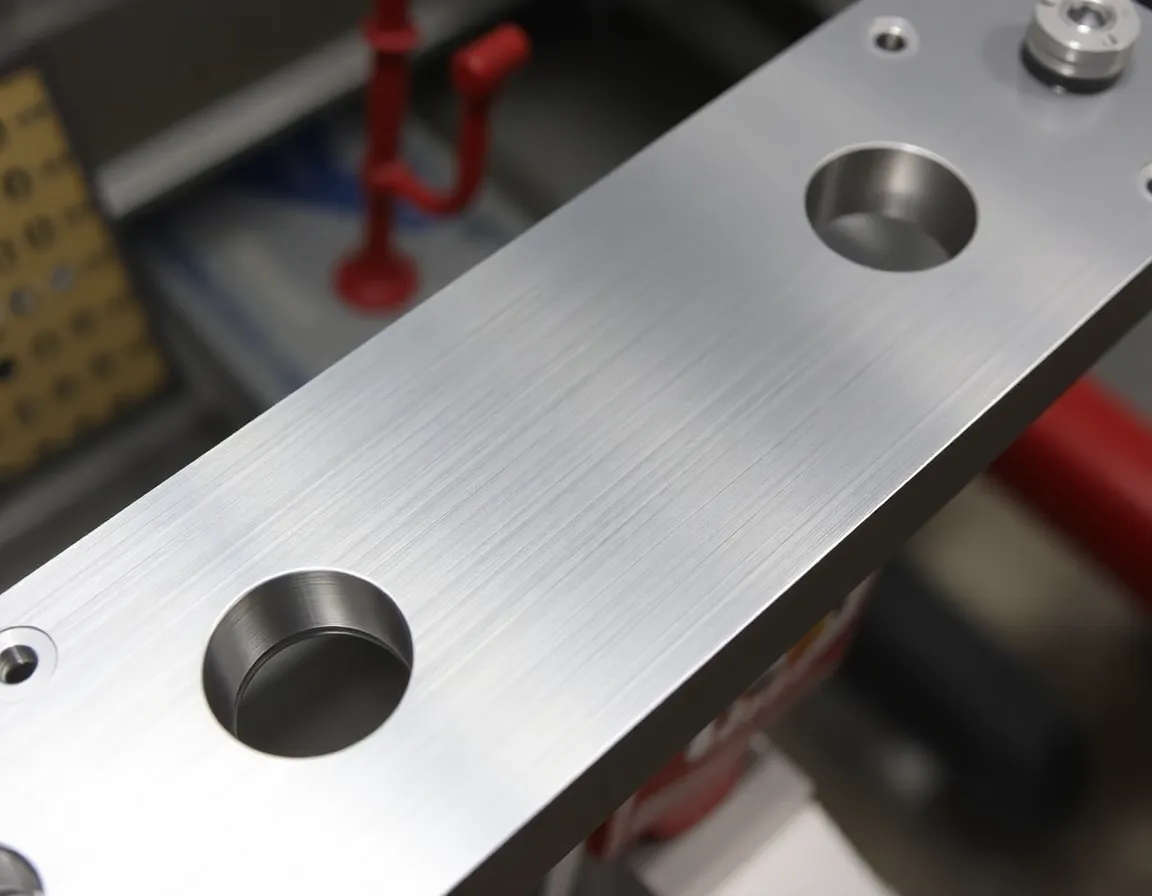

What is UAV CNC Machining?
UAV CNC machining refers to the use of computer-controlled milling, turning, and drilling equipment to produce parts for drones and other unmanned aircraft systems. The process begins with a 3D CAD (Computer-Aided Design) model, which is converted into G-code instructions that guide the cutting tools with micron-level accuracy. This technology is particularly suited for UAV components because it can work with high-performance materials—such as aluminum 7075, titanium Ti-6Al-4V, carbon fiber-reinforced polymers, and engineering plastics like PEEK—that cannot be easily processed through 3D printing or injection molding.
The Core Process: From CAD to Finished Part
The typical workflow for UAV CNC machining involves several critical stages:
- Design Optimization: Engineers create models with features like internal lightening pockets, threaded inserts, and aerodynamic curves. For UAVs, weight reduction is paramount, so designs often incorporate thin walls and complex geometries that require 5-axis machining.
- Material Selection: The choice of material directly impacts flight performance. For example, 6061-T6 aluminum offers an excellent strength-to-weight ratio for frame arms, while 7075-T6 aluminum provides higher strength for structural joints. Magnesium alloys are also gaining traction for their extreme lightness.
- Fixture and Toolpath Planning: Machinists develop custom fixtures to hold thin-walled parts without deformation. Multi-axis toolpaths are programmed to access complex angles, reducing the need for secondary operations.
- Precision Machining: Using high-speed spindles (20,000-40,000 RPM) and micro-tools, the machine removes material in layers. Tolerances of ±0.005 mm (0.0002 inches) are common for critical mating surfaces.
- Post-Processing: Parts undergo deburring, anodizing (for corrosion resistance), and inspection via CMM (Coordinate Measuring Machine) or laser scanning to verify dimensional accuracy.
Key Benefits of CNC Machining for UAV Components
The adoption of CNC machining in UAV manufacturing is driven by several distinct advantages that directly contribute to flight performance and reliability.
Unmatched Dimensional Accuracy and Repeatability
UAVs operate in dynamic environments where even microscopic imbalances can cause vibrations, reducing flight stability and battery efficiency. CNC machining ensures that each part—whether a rotor hub or a camera gimbal bearing housing—is identical to the design specifications. This repeatability is critical for mass production, where every drone in a fleet must behave predictably. Unlike 3D-printed parts that may exhibit layer adhesion weaknesses, CNC-machined components from solid billet provide isotropic material properties, ensuring uniform strength in all directions.
Superior Material Properties and Weight Optimization
High-performance UAVs demand materials that withstand high G-forces, temperature fluctuations, and exposure to moisture or UV radiation. CNC machining allows the use of aerospace-grade metals and composites that are unsuitable for other manufacturing methods. For instance, machined carbon fiber plates offer exceptional stiffness without the delamination risks seen in molded parts. Furthermore, advanced CAM (Computer-Aided Manufacturing) software enables the creation of organic, lattice-like internal structures that reduce weight by up to 40% compared to solid designs, while maintaining structural integrity.
Complex Geometries Without Compromise
Modern UAVs feature intricate designs for aerodynamics, thermal management, and component integration. 5-axis CNC machines can produce complex undercuts, curved surfaces, and deep pockets in a single setup. This capability is essential for manufacturing streamlined fuselage sections that reduce drag, or heat sinks with fine fin arrays for cooling high-power electronics. The elimination of multiple setups also reduces cumulative errors, resulting in better-fitting assemblies.
Critical Applications of CNC Machining in UAVs
From racing drones to military surveillance platforms, CNC machining plays a pivotal role in various UAV subsystems.
Structural Frames and Arms
The main frame of a UAV must be both lightweight and rigid to resist torsional forces during aggressive maneuvers. CNC-machined aluminum or titanium frame arms are common in industrial drones, where they must support heavy payloads like LiDAR scanners or multispectral cameras. Racing drones, on the other hand, often use machined carbon fiber plates bonded with CNC-machined aluminum standoffs. The precision machining of motor mounting holes ensures perfect alignment, reducing vibration and improving motor efficiency.
Propulsion System Components
The propulsion system is the most demanding subsystem in terms of precision. CNC-machined motor bells and propeller hubs require concentricity tolerances within 0.01 mm to prevent imbalance at high RPM. Similarly, spinner cones and propeller adapters are machined from 7075 aluminum to minimize rotational inertia. For heavy-lift drones, custom CNC-machined reduction gearbox housings are essential for transferring torque from high-speed motors to low-speed propellers.
Payload and Sensor Integration
Professional UAVs carry sophisticated payloads, including thermal cameras, multispectral sensors, and gimbaled systems. CNC machining produces precision gimbal mounts with smooth bearing seats and threaded holes for quick attachment. Sensor housings are often machined from lightweight magnesium alloys to reduce the burden on stabilization motors. Additionally, CNC-machined payload bay inserts allow for modular configuration, enabling operators to swap between different sensors in the field.
Specialized Components for High-Speed and Long-Endurance UAVs
For fixed-wing UAVs and VTOL (Vertical Take-Off and Landing) aircraft, CNC machining is used for wing spar connectors, aileron hinges, and landing gear struts. These parts must handle high cyclic loads and are often machined from titanium or heat-treated steel. In long-endurance drones, CNC-machined fuel system components (for hybrid powerplants) require leak-proof threads and smooth internal passages to prevent cavitation.
Best Practices for UAV CNC Machining
To achieve optimal results, manufacturers must adhere to rigorous design and process guidelines tailored specifically for UAV applications.
Design for Machinability (DFM) for UAV Parts
While CNC machining offers great flexibility, certain design choices can significantly reduce cost and lead time:
- Avoid sharp internal corners: Use radii of at least 1.5x the tool diameter to prevent stress concentrations and tool breakage.
- Standardize hole sizes: Use common thread sizes (e.g., M3, M4) to reduce tool changes and simplify assembly.
- Minimize deep, narrow pockets: These require long, thin tools that are prone to deflection and chatter. Instead, design with variable depth features.
- Incorporate chamfers and fillets: These improve part handling and reduce the risk of edge cracking during flight vibrations.
Material Handling and Surface Finishing
UAV parts often require specialized surface treatments to enhance performance and longevity:
- Anodizing (Type II or III): Provides a hard, wear-resistant surface for aluminum parts, reducing friction in sliding joints and improving corrosion resistance.
- Electroless Nickel Plating: Ideal for magnesium components, offering both corrosion protection and a uniform surface finish.
- Vibratory Deburring: Essential for removing micro-burrs from thin-walled parts that could otherwise become stress risers.
- Chemical Etching: Used to remove a thin layer of material from machined surfaces, improving fatigue life by eliminating machining-induced micro-cracks.
Quality Control and Inspection Protocols
Given the safety-critical nature of UAV components, rigorous inspection is non-negotiable:
- First Article Inspection (FAI): A complete dimensional check of the first production part against the CAD model, typically using a CMM.
- In-Process Gauging: Use of air gauges or laser micrometers during machining to monitor critical dimensions like bearing bore diameters.
- Non-Destructive Testing (NDT): For flight-critical parts, techniques like dye penetrant inspection or X-ray CT scanning can detect internal voids or cracks.
- Surface Roughness Measurement: A Ra value of 0.8 µm or better is typically required for sealing surfaces and bearing fits.
Challenges and Future Trends in UAV CNC Machining
Despite its advantages, CNC machining for UAVs presents certain challenges. The high cost of raw materials (especially aerospace-grade titanium and magnesium) and the significant waste from subtractive processes can drive up per-part costs. Additionally, the thin-walled nature of many UAV parts makes them prone to vibration during machining, known as chatter, which requires advanced toolpath strategies like trochoidal milling or dynamic feed rate optimization.
Looking ahead, the integration of AI-driven CAM software is emerging as a game-changer. These systems can simulate cutting forces in real-time and automatically adjust feeds and speeds to prevent chatter. Furthermore, hybrid manufacturing—combining CNC machining with additive manufacturing—is gaining traction. For example, a part might be 3D printed in a near-net shape and then CNC-machined for critical surfaces, reducing material waste by up to 70%. Another trend is the use of micro-machining for miniaturized UAV components, such as those used in drone swarms or insect-inspired micro-air vehicles, where features are measured in microns.
Conclusion: Precision as a Competitive Advantage
In the highly competitive UAV market, performance is non-negotiable. UAV CNC machining remains the gold standard for producing components that meet the exacting demands of flight—where every gram of weight, every micron of tolerance, and every surface finish directly impacts mission success. By leveraging advanced materials, multi-axis capabilities, and rigorous quality control, manufacturers can produce drones that are lighter, stronger, and more reliable than ever before. As UAV technology continues to push boundaries—from beyond-visual-line-of-sight operations to autonomous cargo delivery—the role of precision CNC machining will only grow in importance, serving as the structural backbone that enables these remarkable machines to take flight.
