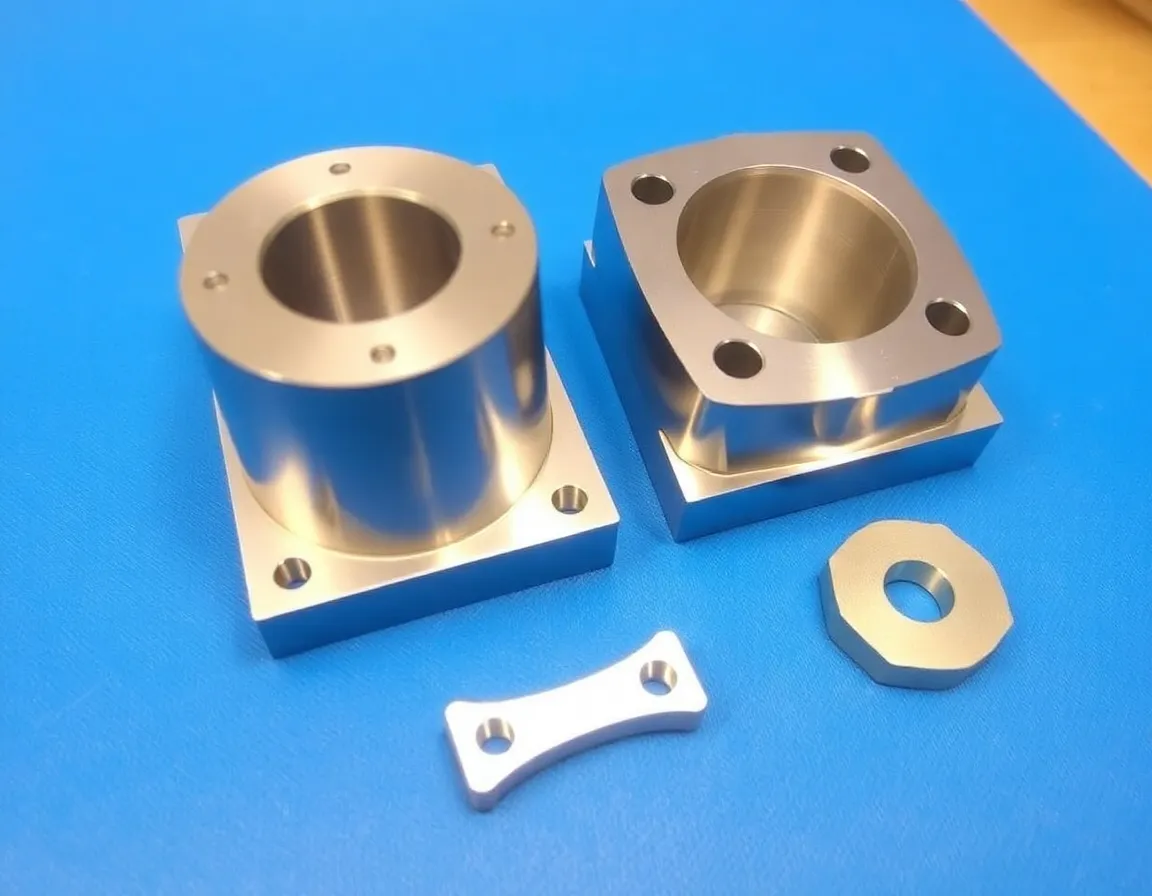

Understanding Magnesium CNC Machining: An Overview
Magnesium CNC machining is a specialized subtractive manufacturing process that involves the use of computer numerical control (CNC) machines to shape and finish magnesium alloys. As the lightest structural metal available, magnesium offers an exceptional strength-to-weight ratio, making it highly desirable in industries where weight reduction is critical, such as aerospace, automotive, and medical devices. However, machining magnesium presents unique challenges due to its chemical reactivity and mechanical properties. Unlike aluminum or steel, magnesium chips are highly flammable, especially when fine dust is produced. This requires strict adherence to safety protocols and optimized machining parameters. The process typically involves milling, turning, drilling, and grinding using advanced CNC equipment that can precisely control cutting speeds, feed rates, and coolant application. When executed correctly, magnesium CNC machining yields components with excellent dimensional accuracy, smooth surface finishes, and minimal post-processing requirements.
Key Properties of Magnesium Alloys for Machining
Lightweight and High Strength
Magnesium alloys are approximately 33% lighter than aluminum and 75% lighter than steel, yet they offer comparable strength in many applications. The most common machining alloys include AZ31, AZ91, AM60, and ZK60. These alloys exhibit good machinability, meaning they can be cut at high speeds with relatively low cutting forces. The low density also reduces inertial loads on CNC machine components, allowing for faster acceleration and deceleration during complex toolpaths.
Thermal Conductivity and Chip Formation
Magnesium has a high thermal conductivity, which helps dissipate heat away from the cutting zone. However, its low melting point (approximately 650°C for pure magnesium) means that localized heat can cause chip welding or even ignition if temperatures rise excessively. Magnesium chips tend to form short, discontinuous chips that are easier to evacuate from the cutting area compared to the long, stringy chips produced by many steels. This characteristic reduces the risk of chip entanglement but increases the need for effective chip management to prevent accumulation.
Corrosion Resistance Considerations
While magnesium alloys naturally form a protective oxide layer, they are more susceptible to galvanic corrosion when in contact with dissimilar metals. This factor influences post-machining treatments such as anodizing, conversion coating, or painting. During CNC machining, it is crucial to use coolants that do not promote corrosion, such as water-based emulsions with appropriate corrosion inhibitors or, in many cases, dry machining with compressed air.
Critical Safety Protocols for Magnesium CNC Machining
Safety is the paramount concern when machining magnesium. The fine chips and dust created during cutting are highly combustible and can ignite from a spark, high temperature, or even static electricity. A magnesium fire is extremely difficult to extinguish because it burns at temperatures exceeding 3000°C and can react violently with water, carbon dioxide, or halon extinguishers. Therefore, the following safety measures are non-negotiable:
- Use of Class D fire extinguishers specifically rated for metal fires. These typically contain dry powder agents such as sodium chloride or graphite.
- Never use water, foam, or CO₂ extinguishers on magnesium fires, as they can intensify the combustion or cause explosions.
- Maintain a clean work environment by regularly removing chips and dust from the machine area. Use vacuum systems with spark-proof construction and HEPA filtration.
- Install proper ventilation to prevent the accumulation of flammable dust particles in the air. Explosion-proof lighting and electrical equipment are recommended.
- Keep cutting tools sharp to reduce friction and heat generation. Dull tools increase the risk of ignition.
- Avoid cutting fluid mixtures that contain water unless specifically formulated for magnesium. Water can react with fine chips to produce hydrogen gas, which is also flammable.
Optimized Machining Parameters for Flawless Results
Cutting Speeds and Feeds
Magnesium allows for significantly higher cutting speeds compared to aluminum or steel. Recommended spindle speeds for milling can range from 1,500 to 10,000 RPM depending on tool diameter and material hardness. Feed rates should be aggressive enough to prevent the tool from rubbing against the workpiece, which generates excessive heat. A general guideline is to use feed rates of 0.1 to 0.5 mm per tooth for end mills and 0.05 to 0.2 mm per revolution for turning operations. The depth of cut can be substantial—up to 6 mm for roughing passes—but should be reduced to 0.5–2 mm for finishing to achieve superior surface quality.
Tool Selection and Geometry
Carbide tools are the preferred choice for magnesium CNC machining due to their hardness and wear resistance. Polycrystalline diamond (PCD) tools offer even longer tool life but are more expensive. Tool geometry should feature positive rake angles (10°–15°) to promote efficient chip flow and reduce cutting forces. Larger relief angles (8°–12°) help prevent chip packing and heat buildup. Coated tools are generally not recommended because the coating can flake off and create a friction hazard. Instead, use uncoated, polished carbide tools to minimize chip adhesion.
Coolant and Lubrication Strategies
While many machinists prefer dry machining for magnesium to avoid coolant-related fire risks, the use of a minimal quantity lubrication (MQL) system with a fine mist of vegetable oil or synthetic ester can improve surface finish and tool life. If flood coolant is used, it must be a water-free, high-flash-point oil such as mineral oil or a specially formulated magnesium machining fluid. Never use water-based emulsions unless the coolant concentration is carefully monitored and the system is designed to prevent chip accumulation. Compressed air directed at the cutting zone is an effective method for chip evacuation and cooling without the fire risk associated with liquids.
Best Practices for Chip Management and Surface Finish
Chip Evacuation Strategies
Effective chip management is critical for both safety and quality. Magnesium chips should be collected in sealed, fireproof containers and disposed of according to local hazardous waste regulations. Within the CNC machine, use high-pressure air nozzles or vacuum systems to continuously remove chips from the cutting area. For deep pockets or cavities, consider using peck drilling cycles to break chips into small, manageable pieces. Never allow chips to accumulate around the cutting tool, as this creates a fire hazard and can cause re-cutting of chips, which degrades surface finish.
Achieving Superior Surface Finishes
Magnesium can achieve surface finishes as low as 0.2–0.8 µm Ra with proper techniques. To achieve this, use sharp tools with small nose radii for finishing passes. Reduce stepover distances to 10–20% of tool diameter for final passes. Climb milling is generally preferred over conventional milling because it produces a cleaner cut with less burr formation. For turned parts, use a wiper insert geometry to burnish the surface during the final pass. Additionally, consider using high-speed machining (HSM) strategies with trochoidal toolpaths to maintain consistent chip load and minimize thermal buildup.
Burr Prevention and Deburring
Magnesium tends to form small, feather-like burrs along edges, especially during drilling and tapping. To minimize burrs, use tools with sharp cutting edges and employ entry and exit chamfers on holes. For tapping, use spiral-flute taps that pull chips upward rather than pushing them into the hole. If burrs do form, they can be removed using manual deburring tools, abrasive blasting, or vibratory finishing. However, avoid abrasive methods that generate fine magnesium dust unless proper dust collection is in place.
Common Applications of Magnesium CNC Machining
The unique properties of magnesium make it ideal for components where weight savings translate directly to performance improvements. Key application areas include:
- Aerospace: Aircraft gearbox housings, helicopter transmission cases, seat frames, and interior components. Every kilogram saved reduces fuel consumption and increases payload capacity.
- Automotive: Steering wheels, instrument panel beams, engine blocks, transmission housings, and wheels. Magnesium is increasingly used in electric vehicles to offset battery weight.
- Medical Devices: Biodegradable implants (e.g., bone screws and plates) that dissolve safely in the body after healing. CNC machining enables the complex geometries required for these applications.
- Electronics: Laptop and smartphone chassis, camera bodies, and drone frames where thin-wall structures require high stiffness and light weight.
- Defense: Night vision goggles, portable communication equipment, and weapon components where soldier mobility is critical.
Post-Machining Treatments and Quality Control
Surface Protection
After machining, magnesium parts require surface protection to prevent corrosion. Common treatments include chromate conversion coating (though increasingly restricted due to environmental concerns), anodizing (Type I or Type III), and powder coating. For medical implants, specialized biodegradable coatings or plasma electrolytic oxidation (PEO) are used. Parts should be cleaned immediately after machining to remove any coolant residue or chips, using non-aqueous solvents like isopropyl alcohol.
Dimensional Inspection
Due to magnesium’s higher coefficient of thermal expansion compared to steel, parts should be inspected at a controlled temperature (typically 20°C) to ensure dimensional accuracy. Coordinate measuring machines (CMM) and optical comparators are commonly used. For thin-walled parts, consider using non-contact measurement methods to avoid deformation from probing forces.
Troubleshooting Common Machining Issues
Even with optimal parameters, issues can arise. Here are solutions to common problems:
- Chip ignition: Immediately stop the machine, evacuate the area, and use a Class D extinguisher. Reduce spindle speed and increase feed rate to lower cutting temperatures. Ensure no coolant with water is present.
- Poor surface finish: Check tool sharpness and replace if worn. Increase spindle speed or reduce feed rate for finishing passes. Verify that chip evacuation is effective.
- Excessive burr formation: Use sharper tools with smaller corner radii. Adjust tool entry/exit angles. Consider using a deburring tool as a secondary operation.
- Tool wear: Switch to PCD tools or use MQL lubrication. Reduce cutting speed slightly and ensure adequate chip clearance.
Conclusion
Magnesium CNC machining offers remarkable opportunities for producing lightweight, high-performance components, but it demands a disciplined approach to safety and process optimization. By understanding the material’s unique properties—its flammability, high machinability, and thermal behavior—machinists can achieve flawless results while mitigating risks. The key takeaways are to use sharp carbide tools, maintain aggressive feed rates, implement rigorous chip management, and never compromise on fire safety protocols. With these practices in place, magnesium CNC machining becomes a reliable and rewarding manufacturing method that pushes the boundaries of what is possible in weight-sensitive engineering. As industries continue to prioritize efficiency and sustainability, the demand for magnesium components will only grow, making mastery of this process a valuable skill for any modern machine shop.
