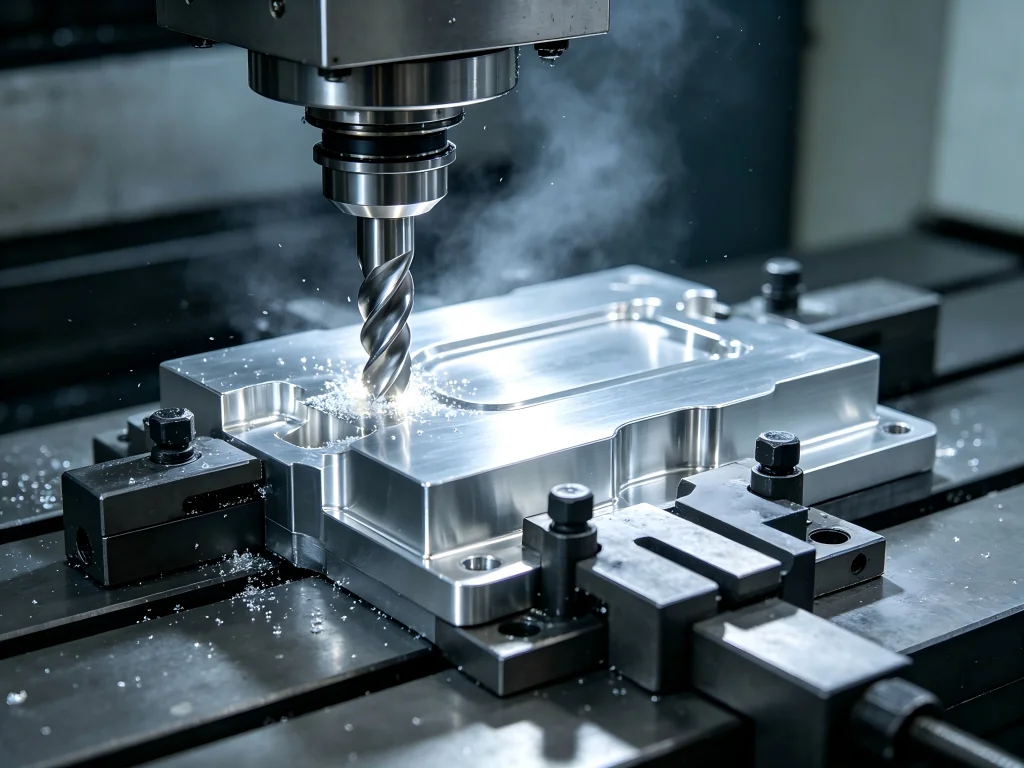

When engineers first consider zinc CNC machining, they typically ask a practical question: “Zinc is a die casting alloy—why would I machine it?” The question makes sense on the surface. But for product developers facing a significant tooling investment, CNC machining zinc isn’t an odd choice—it’s one of the smartest decisions they can make. It serves as an insurance policy against costly design flaws discovered too late. This guide explores how zinc CNC machining bridges the gap between digital design and mass production, offering a practical pathway for engineers, procurement specialists, and product designers who need functional prototypes and low-volume production parts.
Why Machine Zinc? Understanding the Strategic Value
The purpose of a prototype is to provide data and reduce risk before committing to mass production. A 3D printed prototype works well for checking basic shape and fit, but it cannot replicate the real-world performance of a final die-cast zinc part. It’s made of plastic—too light, too weak, and cannot be electroplated. A prototype created through zinc CNC machining is fundamentally different. It’s a high-fidelity prototype made from the exact same family of alloys—like Zamak 3—as the final die-cast part. This means the data it provides is trustworthy, offering a true preview of the final product.
This approach allows engineers to machine solid zinc blocks to simulate the exact weight, strength, and thermal properties of a final die-cast product. The process is essential for verifying fit, function, and aesthetics—especially plating feasibility—before committing to expensive hard tooling.
The Weight and Feel Factor
One of the most underrated properties in product design is perceived quality. How does a product feel in a customer’s hand? Zinc is a dense metal—much heavier than plastic and even heavier than aluminum. This density gives zinc parts a satisfying, substantial feel that communicates quality. For a luxury faucet handle or a premium consumer electronic device, the way it feels when a customer interacts with it is a significant part of the experience.
A lightweight plastic prototype cannot simulate this. By CNC machining the prototype from a solid block of zinc, you create a model with the exact weight, balance, and thermal feel of the final die-cast product. You can put it in users’ hands and gather meaningful feedback on ergonomics and perceived quality before spending a dollar on a die casting tool.
A Perfect Canvas for Finishing
Zinc’s other superpower is its ability to accept beautiful finishes. It serves as an ideal canvas for electroplating, particularly chrome plating. This is another area where plastic prototypes fall short—you cannot properly test the final cosmetic appearance. A prototype created with zinc CNC machining can undergo the exact same finishing process as final parts. You can machine it, polish it, and send it for mirror-like chrome plating. This creates a visual and functional prototype that is truly indistinguishable from the final product—perfect for marketing photoshoots, trade show displays, and investor presentations.
Zinc Alloys for CNC Machining: Understanding Your Options
Selecting the right zinc alloy for your CNC machining project depends on your specific requirements for strength, ductility, creep resistance, and finishing characteristics. The most common alloys used for machining prototypes include:
| Grade | Composition | Key Properties | Ideal Applications |
|---|---|---|---|
| Zamak 3 | Zn-4Al | Industry standard; best balance of physical and mechanical properties; long-term dimensional stability; excellent finishing characteristics | Automotive components, housings, hand tools, safety razors, interior trim |
| Zamak 5 | Zn-4Al-1Cu | Higher copper content increases tensile strength and hardness; better creep resistance; slightly reduced ductility | Automotive parts requiring higher strength, hardware, wheel balancing weights |
| ZA-8 | Zinc-Aluminum | Higher aluminum content (~8.4%); offers higher strength and hardness than Zamak alloys; excellent bearing properties | Bushings, wear plates, decorative hardware requiring sharp detail |
| ZA-12 | Zinc-Aluminum | ~11% aluminum; best gravity casting alloy; machinable; excellent wear resistance; strength comparable to cast iron | Heavy-duty bearing surfaces, hydraulic components |
Zamak 3 and Zamak 5 remain the most widely used grades for CNC machining zinc parts. Zamak 5, with its additional copper content, provides greater strength, hardness, and creep resistance—making it suitable for parts requiring more structural integrity and durability.
Key Applications Across Industries
Zinc CNC machining serves a diverse range of industries, each leveraging the material’s unique properties for specific applications.
Automotive Industry
The automotive sector makes extensive use of CNC machined zinc alloys. Typical applications include part shells, small electric motor casings, gears, brackets, and electrical connectors. The material’s strength, rigidity, and ability to accept plated finishes make it ideal for both functional and cosmetic components.
Aerospace and Defense
In aerospace applications, zinc-aluminum alloys are valued for being lightweight yet strong. Components such as fasteners, brackets, and housings benefit from zinc’s machinability and dimensional stability. The material’s EMI/RFI shielding properties also make it valuable for sensitive electronic applications.
Medical Devices
The medical industry utilizes CNC machined zinc components for surgical instruments and orthopedic implants. The material’s biocompatibility, combined with its ability to achieve tight tolerances, supports the demanding requirements of medical device manufacturing.
Consumer Electronics and Hardware
Zinc is particularly valued in consumer electronics for its premium feel and excellent plating ability. High-end audio equipment, luxury hardware, and cosmetic trims often rely on zinc CNC machining for prototypes and low-volume production runs. The material’s density provides a substantial “hand-feel” crucial for high-end consumer products.
Robotics and Automation
Jucheng Precision specializes in producing operational prototypes for high-precision robotic components using 3 and 5-axis micro-milling and turning. Zinc and aluminum die casting support mass production of robotic arms and automation components.
Understanding CNC Machining Costs
When evaluating zinc CNC machining for your project, understanding the cost structure helps make informed decisions. Several factors influence the overall expense.
Upfront Investment vs. Per-Unit Cost
Zinc CNC machining requires less upfront investment than die casting because no molds or dies are needed. However, the per-unit cost typically remains higher due to longer machining time and material waste. This makes CNC machining more economical for low to medium production volumes, especially when the cost of tooling for die casting cannot be justified.
Factors Affecting Machining Costs
The total cost of zinc CNC machining depends on several variables:
- Part complexity: More complex geometries require longer machining times and may need multi-axis setups
- Material selection: Different zinc alloys have varying machinability ratings, affecting tool wear and cycle times
- Surface finish requirements: Cosmetic finishes like mirror chrome require additional polishing and plating steps
- Production volume: Setup costs are amortized across the batch size; larger runs reduce per-unit costs
- Equipment used: 5-axis CNC centers command higher hourly rates than 3-axis machines
Cost Comparison: CNC Machining vs. Die Casting
For prototypes and small batches, CNC machining zinc from solid material offers efficiency and flexibility. For large-volume complex parts, zinc die casting followed by secondary machining may prove more cost-effective. The decision often comes down to whether the cost of tooling can be justified by the production volume.
Best Practices for Zinc CNC Machining
Machining zinc is generally efficient, but specific care is needed to maintain surface quality and tool life.
Chip Control and Material Behavior
Zinc alloys are relatively soft and ductile. During machining, the material can become “gummy” or “sticky,” adhering to the cutting edge of the tool. This requires attention to tool selection and cutting parameters. Zinc produces short, brittle chips similar to brass—they evacuate easily but can be abrasive.
Cutting Speeds and Feeds
Proper cutting speeds and feed rates are crucial for efficient zinc machining. Given zinc alloys’ low melting points, avoiding excessive heat buildup is important. Moderate to high cutting speeds are often recommended to ensure efficient chip formation and heat dissipation, while feed rates should be adjusted to balance material removal and tool wear. For roughing operations on zinc alloy components, recommended cutting speeds range from 150-250 m/min when using carbide end mills.
Tool Selection
Maintaining tool sharpness and applying adequate coolant helps prevent heat buildup at the cutting edge. Compared to other die casting alloys, zinc alloys machine faster and with less tool wear than aluminum alloys, and without the fire risk associated with magnesium die castings. High-quality surface finishes and long tool life are achievable across a wide range of machining conditions.
Common Machining Challenges
Several challenges can arise when CNC machining zinc:
- Built-up edge (BUE): The soft, ductile nature of zinc can cause material to adhere to cutting tools
- Surface finish issues: Improper feed rates or tool wear can compromise surface quality
- Heat management: Excessive heat can affect dimensional accuracy and surface finish
By selecting the right tools, optimizing speeds and feeds, and addressing these challenges, manufacturers can achieve high-quality zinc components.
Surface Finishing Options for Zinc CNC Machined Parts
One of zinc’s greatest advantages is its ability to accept a wide range of surface finishes. This makes it particularly valuable for applications where aesthetics matter as much as function.
Electroplating
Electroplating is a popular method for zinc alloy CNC parts, providing a protective metal layer that improves corrosion resistance, wear resistance, and aesthetic qualities. Zinc is considered the absolute champion for luxury cosmetic hardware because its dense, non-porous surface accepts brilliant chrome and gold electroplating flawlessly. Unlike aluminum, which contains silicon that complicates finishing, zinc provides the perfect foundation for reflective mirror-chrome finishes.
Vibratory Finishing
Vibratory finishing is a cost-effective method for deburring, edge rounding, and surface improvement of zinc alloy CNC parts in bulk. The process involves placing parts in a vibrating tub filled with abrasive media, smoothing rough edges before applying final finishes.
Additional Finishing Options
Zamak 3 can be media blasted or tumbled to achieve various surface finishes. Powder coating can be applied for matte or glossy colors. Jucheng Precision offers in-house polishing followed by chrome, nickel, or gold plating to achieve Class-A cosmetic finishes.
Why Choose Jucheng for Zinc CNC Machining
Jucheng Precision brings significant capabilities to zinc CNC machining projects, backed by substantial infrastructure and expertise.
Manufacturing Scale and Equipment
Jucheng Precision operates a manufacturing powerhouse featuring 150+ CNC machines, including 25+ 5-axis centers, 30+ sheet metal fabrication units, 50+ industrial 3D printing systems, and 35+ injection presses. This scale enables the company to handle projects of any size, from single prototypes to low-volume production runs.
Engineering Expertise
With 190+ skilled professionals, including 30+ senior engineers with 13+ years of experience, Jucheng brings deep technical knowledge to every project. The company is IATF 16949 and ISO 13485 certified, demonstrating commitment to quality management in automotive and medical applications.
Integrated Services
One of Jucheng’s key advantages is its vertically integrated approach. The company executes CNC machining and final electroplating entirely under one roof. This eliminates the supply chain friction of shipping bare zinc parts to separate finishing shops, where surface oxidation and physical scratching can occur.
Precision and Quality
Jucheng’s CNC milling centers can hold tolerances of +/- 0.02mm—significantly tighter than typical “as-cast” tolerances. This precision ensures perfect assembly fit-checks and functional testing. The company sources high-quality Zamak alloy blocks to ensure material composition matches production intent.
End-to-End Support
Jucheng offers both expert zinc CNC machining for high-fidelity prototypes and full-scale die casting services for production. This makes the company a partner throughout the entire journey, from the first perfect prototype to the ten-thousandth perfect part.
Frequently Asked Questions About Zinc CNC Machining
Can CNC machines cut metal like zinc?
Yes, CNC machines can effectively cut zinc and its alloys. Zinc offers excellent machinability, with low melting points that allow for easy chip formation and removal. The material responds well to high-speed machining and is easy on tools.
What are the advantages and disadvantages of CNC machining zinc?
Advantages include excellent machinability, good surface finish, dimensional accuracy, no tooling costs for prototypes, and the ability to achieve tight tolerances. Disadvantages include lower creep strength compared to some alternatives—zinc can deform under long-term stress—and higher per-unit costs compared to die casting for large volumes.
How do I calculate machining costs for zinc CNC parts?
Machining costs depend on part complexity, material selection, surface finish requirements, production volume, and equipment used. Setup costs are typically amortized across the batch size. For accurate pricing, uploading your design for a quote from an experienced provider like Jucheng provides the most reliable estimate.
What’s the difference between Zamak 3 and Zamak 5 for CNC machining?
Zamak 3 offers the best balance of physical and mechanical properties with excellent finishing characteristics. Zamak 5 contains more copper (~1%), which increases tensile strength and hardness while slightly reducing ductility. Zamak 5 provides better creep resistance, making it suitable for higher-stress applications.
Is zinc CNC machining suitable for high-volume production?
Zinc CNC machining is most economical for low to medium production volumes, especially when die casting tooling costs cannot be justified. For high-volume production, zinc die casting typically offers lower per-unit costs, though secondary machining may still be needed for tight tolerances.
What surface finishes are available for zinc CNC machined parts?
Zinc accepts a wide range of finishes including electroplating (chrome, nickel, gold), powder coating, media blasting, tumbling, and vibratory finishing. Its non-porous surface makes it ideal for mirror-chrome and other cosmetic finishes.
Why choose CNC machining over die casting for zinc parts?
CNC machining is preferred for prototypes, design validation, and low-volume production because it requires no tooling investment. It also achieves tighter tolerances than die casting and allows for design iterations without the cost and delay of modifying molds.
Making the Right Decision for Your Project
The decision to use zinc CNC machining ultimately depends on your project’s specific requirements—volume, tolerances, surface finish, timeline, and budget. For product development teams, the strategic value of high-fidelity zinc prototypes often outweighs the per-unit cost, serving as insurance against costly tooling mistakes discovered too late.
Jucheng Precision’s combination of extensive equipment, engineering expertise, and integrated services makes it a capable partner for zinc CNC machining projects of any scale. Whether you need a single functional prototype or a low-volume production run, the company’s vertically integrated approach ensures quality, precision, and efficient project execution.
Ready to discuss your zinc CNC machining project? Contact Jucheng Precision to explore how their capabilities can support your product development goals.
