The Imperative of Precision: Why Tight Tolerances Define Modern Medical Devices
In the realm of modern medicine, the difference between a successful procedure and a catastrophic failure often hinges on measurements measured in microns—thousandths of a millimeter. This is the world of tight tolerance medical parts, where components must be manufactured with exacting precision to ensure patient safety, device reliability, and surgical efficacy. From the stent that opens a blocked artery to the implant that replaces a worn hip joint, these parts are the unsung heroes of healthcare. This article delves into the critical role of precision in medical manufacturing, exploring what tight tolerances entail, how they are achieved, and why they are non-negotiable in saving lives.

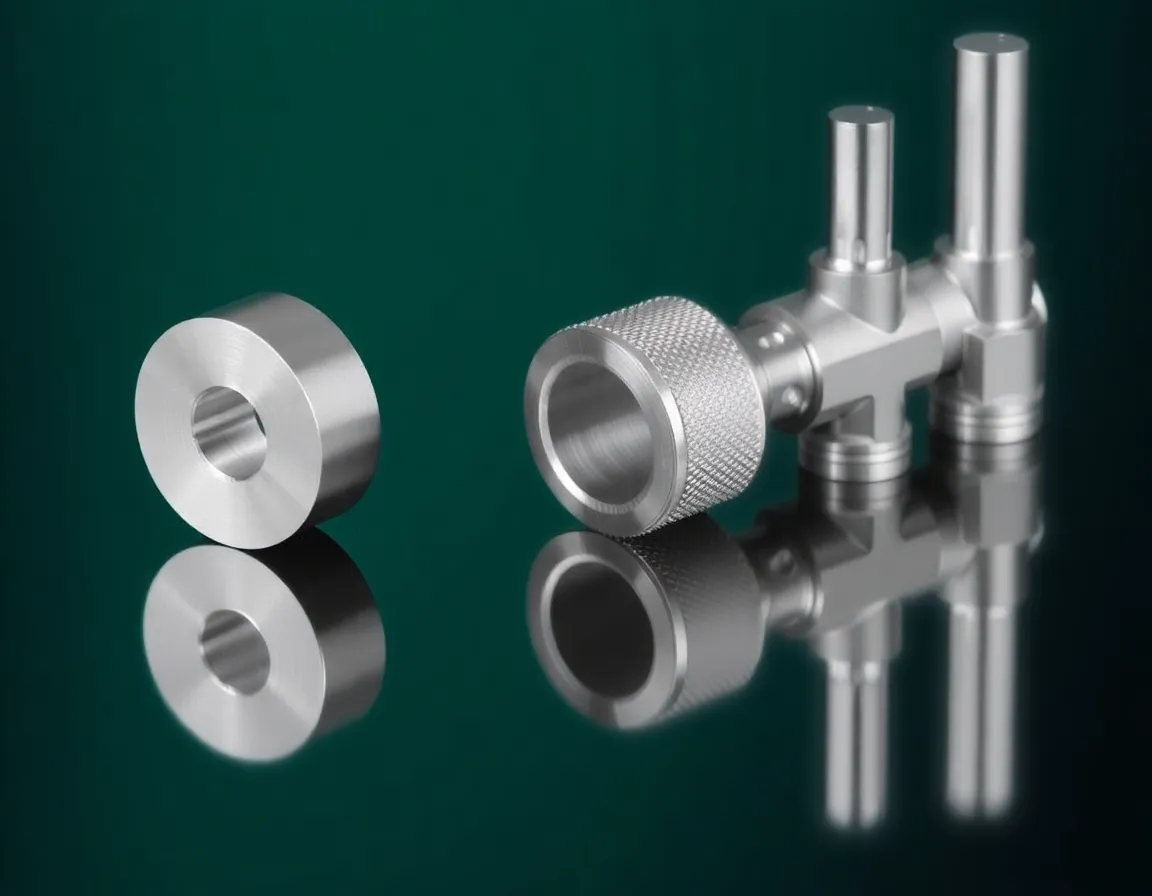

What Are Tight Tolerance Medical Parts?
Tight tolerance medical parts are components manufactured to extremely narrow dimensional limits, typically specified in micrometers (µm) or even nanometers. A "tight tolerance" generally refers to a deviation of less than ±0.005 inches (0.127 mm), but in high-precision applications, tolerances can be as tight as ±0.0001 inches (2.54 µm) or less. These parts are fundamental to devices ranging from surgical instruments and orthopedic implants to diagnostic equipment and drug delivery systems.
Key Characteristics of Tight Tolerance Parts
- Dimensional Accuracy: The part’s geometry must match the design specifications within a microscopic margin of error.
- Surface Finish: Extremely smooth surfaces are often required to reduce friction, prevent bacterial adhesion, and ensure biocompatibility.
- Material Integrity: Materials such as titanium, stainless steel, medical-grade polymers, and ceramics must be free of defects and maintain their properties under sterilization and repeated use.
- Repeatability: Every part in a production run must be identical to the last, ensuring consistent performance in critical applications.
These characteristics are not merely desirable; they are essential. For example, a pacemaker lead must fit precisely into a vein without causing damage, while a neurosurgical drill bit must be perfectly centered to avoid catastrophic errors during brain surgery.
How Tight Tolerances Are Achieved: Manufacturing Processes and Quality Control
Achieving tight tolerances in medical parts requires a combination of advanced manufacturing technologies, rigorous quality control, and skilled craftsmanship. The process begins with Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software, which translate complex geometries into machine instructions.
Primary Manufacturing Technologies
- CNC Machining: Computer Numerical Control (CNC) milling and turning are the workhorses of precision manufacturing. Multi-axis CNC machines can create complex shapes with tolerances down to ±0.0002 inches. They are used for components like surgical handles, implantable screws, and instrument housings.
- Swiss Machining: A specialized form of CNC turning, Swiss machining is ideal for small, slender parts like guidewires, catheter components, and dental implants. It offers exceptional accuracy and surface finish by supporting the workpiece near the cutting tool.
- Electrical Discharge Machining (EDM): EDM uses electrical sparks to erode material, allowing for the creation of intricate features and hard materials that are difficult to machine conventionally. It is critical for stents, surgical blades, and micro-molds.
- Injection Molding: For high-volume production of polymer parts, injection molding with precision molds can achieve tight tolerances. This process is used for syringe barrels, IV connectors, and drug delivery components.
- Additive Manufacturing (3D Printing): Technologies like Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) enable the creation of complex, patient-specific implants with internal lattice structures that promote bone ingrowth.
Quality Control and Metrology
Producing tight tolerance parts is only half the battle; verifying their accuracy is equally critical. Modern metrology equipment is employed to ensure every part meets specifications:
- Coordinate Measuring Machines (CMMs): These devices use a probe to measure physical geometries with micron-level accuracy.
- Optical Comparators and Vision Systems: Non-contact methods that capture 2D and 3D images to check dimensions, surface flaws, and feature alignment.
- Laser Scanning and White Light Interferometry: Used for measuring surface roughness and complex freeform shapes.
- Statistical Process Control (SPC): Real-time monitoring of production data to detect deviations before parts fall out of tolerance.
Benefits of Tight Tolerance Medical Parts: Why Precision Saves Lives
The benefits of manufacturing medical parts with tight tolerances extend far beyond simple compliance with design specifications. They directly impact patient outcomes, surgical success, and healthcare economics.
Enhanced Patient Safety
The most significant benefit is improved patient safety. A poorly manufactured implant that is even slightly oversized can cause stress fractures, implant loosening, or tissue damage. Conversely, a part that is too small may not function correctly, leading to device failure. For example, a heart valve with a misaligned closure mechanism can cause fatal regurgitation. Tight tolerances eliminate these risks by ensuring perfect fit and function.
Superior Device Performance and Reliability
Medical devices often operate under extreme conditions—inside the human body, during sterilization, or under high mechanical loads. Tight tolerance parts ensure consistent performance. A surgical robot with high-precision joints can perform delicate procedures with sub-millimeter accuracy, reducing recovery times and complications. Similarly, a drug infusion pump with precisely machined valves delivers medication at exact rates, preventing underdosing or overdosing.
Reduced Risk of Infection and Rejection
Surface finish is a critical factor in biocompatibility. Rough surfaces can harbor bacteria, leading to post-surgical infections. They can also trigger an inflammatory response, causing the body to reject an implant. Tight tolerance manufacturing ensures ultra-smooth surfaces that minimize bacterial adhesion and promote healthy tissue integration. This is particularly vital for orthopedic implants, dental implants, and vascular grafts.
Cost-Effectiveness and Reduced Waste
While precision manufacturing may have higher upfront costs, it reduces long-term expenses. Fewer defective parts mean less material waste and rework. Devices that function reliably reduce the need for revision surgeries, which are costly and traumatic for patients. Moreover, tight tolerances enable the miniaturization of devices, allowing for less invasive procedures and shorter hospital stays.
Critical Applications: Where Tight Tolerances Are Non-Negotiable
Certain medical applications are so critical that even a micron-level deviation can have life-threatening consequences. These include:
Cardiovascular Devices
Stents, pacemakers, defibrillators, and heart valves must be manufactured to the highest precision. A stent that expands unevenly can cause restenosis (re-narrowing of the artery). Pacemaker leads must have perfect electrical conductivity and insulation to prevent short circuits. Heart valve leaflets must seal perfectly to prevent blood leakage.
Orthopedic Implants
Hip and knee replacements, spinal implants, and bone screws require tight tolerances for proper load distribution and long-term stability. A hip stem that is even slightly misaligned can cause aseptic loosening, leading to pain and revision surgery. The articulating surfaces of knee implants must be polished to a mirror finish to reduce wear and tear.
Neurological and Ophthalmic Devices
Deep brain stimulation (DBS) leads and intraocular lenses (IOLs) require extreme precision. DBS leads must be placed within millimeters of specific brain nuclei to treat conditions like Parkinson’s disease. IOLs must have precise optical power and curvature to restore clear vision after cataract surgery.
Diagnostic and Surgical Instruments
Endoscopes, laparoscopic instruments, and biopsy needles rely on tight tolerances for accurate visualization and tissue sampling. A misaligned endoscope lens can distort images, leading to misdiagnosis. A biopsy needle with a poorly ground tip can cause tissue tearing and inadequate samples.
Best Practices for Manufacturing Tight Tolerance Medical Parts
To consistently produce parts that meet the stringent demands of the medical industry, manufacturers must adhere to a set of best practices:
- Design for Manufacturability (DFM): Engineers should collaborate with manufacturers early in the design phase to ensure that tolerances are achievable and cost-effective. Unnecessarily tight tolerances can increase costs without adding value.
- Material Selection: Choose materials that are biocompatible, corrosion-resistant, and sterilizable. Common choices include Ti-6Al-4V titanium alloy, 316L stainless steel, PEEK, and UHMWPE.
- Process Validation: Every manufacturing process must be validated to ensure it can consistently produce parts within tolerance. This includes IQ (Installation Qualification), OQ (Operational Qualification), and PQ (Performance Qualification).
- Environmental Control: Temperature and humidity fluctuations can cause materials to expand or contract, affecting tolerances. Manufacturing should be conducted in climate-controlled cleanrooms (typically ISO Class 7 or 8).
- In-Process Inspection: Instead of relying solely on final inspection, implement in-process checks at critical stages. This allows for immediate correction of deviations and reduces scrap rates.
- Traceability and Documentation: Maintain detailed records for every part, including raw material lot numbers, machine parameters, and inspection results. This is essential for FDA compliance and ISO 13485 certification.
- Continuous Improvement: Use data from SPC and customer feedback to refine processes. Implement Lean manufacturing and Six Sigma methodologies to reduce variability and improve quality.
Conclusion: The Future of Precision in Medicine
As medical technology advances, the demand for tight tolerance medical parts will only intensify. The rise of minimally invasive surgery, robotic-assisted procedures, personalized implants, and wearable health monitors all depend on components that are manufactured with microscopic accuracy. The ability to produce these parts reliably is not just a technical achievement; it is a moral imperative. Every micron matters because, in the operating room and inside the human body, tight tolerances truly save lives.
