The Critical Intersection of Precision and Patient Safety
In the realm of modern healthcare, the line between a routine procedure and a life-threatening complication is often measured in micrometers. Medical device machining is the specialized manufacturing discipline responsible for creating the intricate, high-stakes components that surgeons implant, clinicians use for diagnosis, and patients rely on for survival. From a tiny stent that opens a blocked artery to the complex joint of a robotic surgical arm, these parts must meet tolerances that are often tighter than a human hair. This article delves into the world of precision machining for medical devices, exploring the processes, materials, quality standards, and best practices that ensure these life-saving tools function flawlessly under the most demanding conditions.

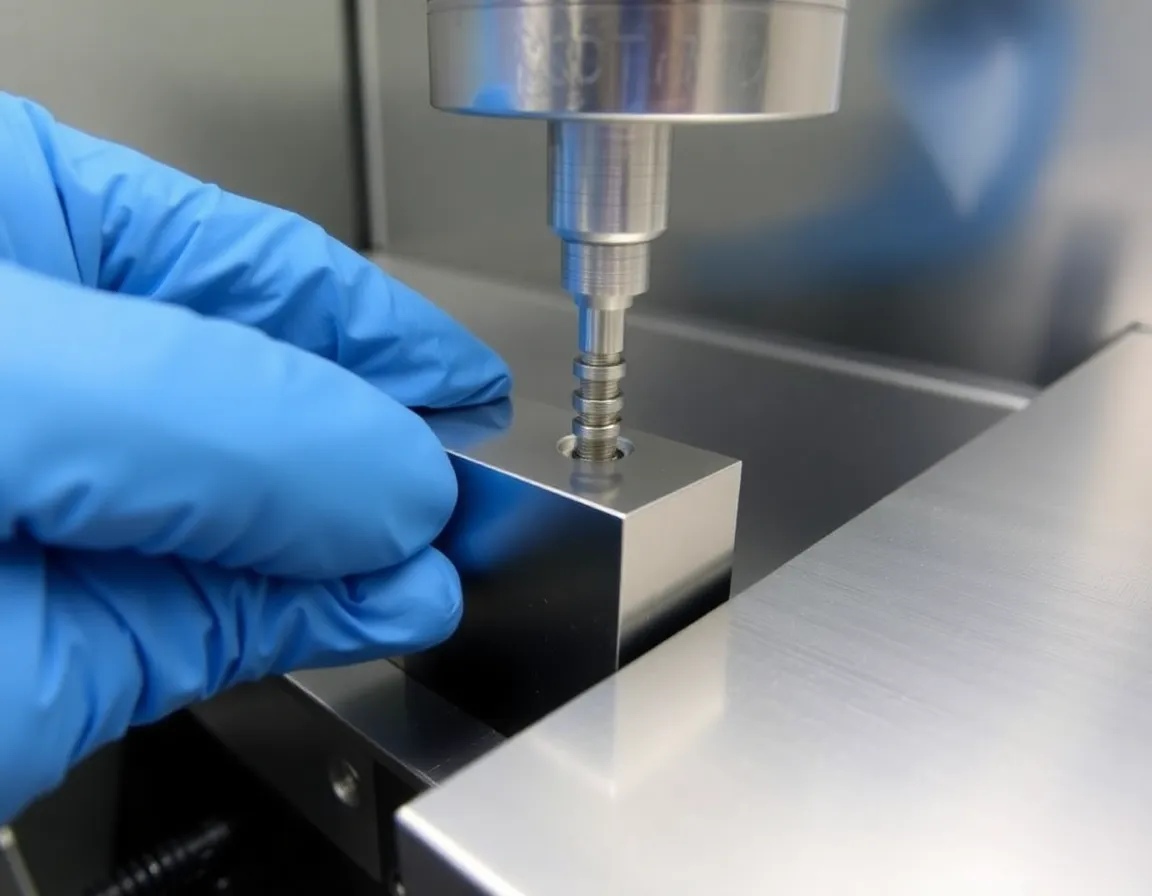

What is Medical Device Machining?
At its core, medical device machining is the process of removing material from a workpiece to create a specific shape, feature, or finish, using advanced computer-controlled equipment. Unlike general machining, this field operates under a unique set of constraints. The components are typically small, geometrically complex, and made from specialized materials like titanium, stainless steel, cobalt-chrome, and medical-grade polymers. The goal is not just to create a part, but to create a part that is biocompatible, sterilizable, and capable of performing a critical function inside or on the human body.
Key Manufacturing Processes
Several subtractive manufacturing techniques are employed, each with distinct advantages for specific applications.
- CNC Milling: Uses rotating cutting tools to remove material from a stationary block. Ideal for creating complex 3D geometries, pockets, and features on surgical instruments and implant components. 5-axis CNC milling is particularly valuable for machining undercuts and organic shapes found in orthopedic implants.
- CNC Turning: The workpiece rotates while a stationary cutting tool shapes it. This is the preferred method for creating cylindrical parts like bone screws, pins, and components for drug delivery systems.
- Swiss Machining: A specialized form of turning where the workpiece is held in a guide bushing and fed through the cutting tool. This technique excels at producing extremely small, long, and slender parts with exceptional precision, such as micro-screws, dental implants, and catheter components.
- Electrical Discharge Machining (EDM): Uses electrical sparks to erode material from a workpiece. It is indispensable for machining extremely hard materials, creating sharp internal corners, or adding features to parts that are too delicate for conventional cutting tools.
How It Works: From Design to Sterile Packaging
The journey of a machined medical device component is a meticulous, multi-stage process governed by rigorous documentation and validation.
Design for Manufacturability (DFM)
The process begins long before any metal is cut. Engineers collaborate with surgeons and medical device designers to translate clinical needs into a manufacturable design. Design for Manufacturability (DFM) is critical. It involves analyzing the part geometry, selecting appropriate materials that can withstand machining stresses and sterilization, and determining the most efficient tool paths. A poorly designed part, even if theoretically perfect, can be impossible to machine without introducing micro-cracks or burrs that compromise safety.
Material Selection and Preparation
Material choice is paramount. The selected alloy or polymer must be biocompatible (non-toxic and non-reactive with body tissues), corrosion-resistant, and possess the necessary mechanical strength. For example, Ti-6Al-4V titanium alloy is widely used for orthopedic implants due to its high strength-to-weight ratio and osseointegration properties. 316L stainless steel is common for surgical instruments due to its cost-effectiveness and corrosion resistance. Materials are sourced with full traceability, often requiring certifications (e.g., ASTM F136 for titanium) to verify their composition.
The Machining Process
Once the material is prepared, it is loaded into a CNC machine. The machine follows a G-code program generated from the 3D CAD model. Coolants and lubricants are meticulously selected. In standard machining, coolants are primarily for heat dissipation. In medical machining, they must also be non-toxic and compatible with the workpiece material to prevent chemical reactions. High-pressure coolant systems are often used to flush away chips from deep, narrow features. The cutting speeds, feeds, and depths of cut are optimized to minimize heat generation, which can alter the material's microstructure and create residual stresses.
Post-Machining and Finishing
After the primary machining, parts undergo several critical finishing steps:
- Deburring: The removal of sharp edges and burrs. A burr left on a surgical instrument could tear tissue or cause a clot on an implant. This is often done manually under a microscope or with specialized electrochemical processes.
- Surface Finishing: Processes like electropolishing, passivation, and micro-blasting are used to achieve a specific surface roughness. For implants, a rough surface may encourage bone growth, while a mirror-smooth finish is needed for articulating surfaces in joint replacements to reduce wear.
- Cleaning and Inspection: Parts are cleaned in ultrasonic baths to remove any machining oils, chips, or residues. They are then inspected using Coordinate Measuring Machines (CMM), optical comparators, and surface profilometers to verify they meet the tight tolerances (often ±0.0001 inches or less).
Benefits and Critical Applications
The benefits of precision machining in the medical field are profound, directly impacting patient outcomes and surgical success.
Uncompromising Accuracy and Repeatability
Human life depends on these components. A bone screw that is 0.01mm too wide can fracture the bone upon insertion. A catheter tip with a rough edge can damage a blood vessel. CNC machining guarantees that every single part in a production run is identical to the last, within microscopic tolerances. This repeatability is the bedrock of regulatory compliance (FDA, ISO 13485) and patient safety.
Complex Geometries for Advanced Therapies
Modern medical devices are not simple shapes. They feature complex curves, internal channels for fluid delivery, and textured surfaces for tissue integration. 5-axis CNC milling and Swiss machining allow manufacturers to create these intricate forms in a single setup, eliminating the errors that come from repositioning the part. This capability is essential for manufacturing components for:
- Orthopedic Implants: Custom knee, hip, and spinal implants that perfectly match a patient's anatomy.
- Cardiovascular Devices: Stents, heart valve frames, and components for ventricular assist devices (VADs).
- Neurological Implants: Electrode arrays for deep brain stimulation and components for cochlear implants.
- Surgical Robotics: Precision gears, joints, and end-effectors for robotic surgical systems like the da Vinci system.
- Drug Delivery Systems: Micro-needles, pump components, and metering valves for insulin pumps and implantable drug ports.
Material Versatility
Medical device machining is not limited to metals. High-performance plastics like PEEK (polyether ether ketone), UHMWPE (ultra-high-molecular-weight polyethylene), and PTFE (Teflon) are also machined. PEEK, for instance, is radiolucent (invisible on X-rays) and is used for spinal fusion cages. Machining these polymers requires different strategies to avoid melting or warping, but the process delivers the same level of precision as for metals.
Best Practices and Quality Control
Adhering to the highest standards is not optional; it is a regulatory and ethical imperative. The following best practices define excellence in medical device machining.
Regulatory Compliance and Validation
Manufacturers must operate under a Quality Management System (QMS) certified to ISO 13485:2016, the international standard for medical device manufacturing. This requires documented procedures for every step, from incoming material inspection to final product release. The machining process itself must be validated. This means proving, through documented evidence, that the process consistently produces parts that meet specifications. This includes First Article Inspection (FAI) for every new part and periodic process capability studies (Cpk analysis).
Cleanliness and Contamination Control
The machining environment must be meticulously controlled. Many medical device machining facilities operate in cleanrooms (Class 7 or 8) to prevent contamination from dust, lint, or airborne particles. Machining fluids are carefully filtered and monitored to prevent bacterial growth. Operators wear cleanroom garments, gloves, and hairnets. The goal is to ensure that the final product, after sterilization, is free from any foreign material that could cause an adverse biological reaction.
Tooling and Machine Maintenance
Using dull or worn cutting tools is a recipe for disaster. It generates excessive heat, creates poor surface finishes, and can cause dimensional drift. Best practice involves using high-quality, sharp tooling made from carbide or polycrystalline diamond (PCD). Tool life is rigorously tracked, and tools are replaced preemptively based on cutting time or part count. CNC machines themselves require regular calibration and preventive maintenance to maintain their positional accuracy.
Traceability and Documentation
Every single part must be traceable back to its raw material lot and the specific machine and operator that produced it. This is often achieved through laser marking or etching a unique identifier (e.g., a Data Matrix code) directly onto the part. Comprehensive documentation, including inspection reports, process logs, and material certificates, is maintained for the entire lifespan of the device (often 10-15 years after the last production run). This traceability is critical for recalls, investigations, and continuous improvement.
Conclusion: The Future of Life-Saving Precision
Medical device machining is far more than a manufacturing process; it is a discipline of extreme care, exacting science, and unwavering commitment to human well-being. As medical technology advances toward smaller, smarter, and more personalized devices, the demands on precision machining will only grow. The integration of micro-machining for implantable sensors, the use of advanced alloys for biodegradable implants, and the adoption of automation and AI for process optimization are shaping the next generation of life-saving devices. For the patient receiving a new hip, a life-saving stent, or a neural implant, the quiet, precise work of a CNC machine in a cleanroom is the invisible hand that makes recovery and a better quality of life possible. The margin for error is zero, and the reward is immeasurable.
