Introduction: The Invisible Engineering Behind Modern Medicine
In the operating rooms of the 21st century, surgeons perform procedures that would have been considered science fiction just a generation ago. They navigate catheters through blood vessels thinner than a human hair, implant sensors that monitor glucose levels in real time, and place stents that expand to keep arteries open. Behind every one of these life-saving interventions lies a discipline that operates at the edge of what is physically possible: micromachining medical parts. This field, which involves fabricating components with features measured in micrometers—often smaller than a grain of sand—is the quiet backbone of modern medical device innovation. Without it, the precision required for minimally invasive surgery, advanced diagnostics, and implantable therapeutics would simply not exist.

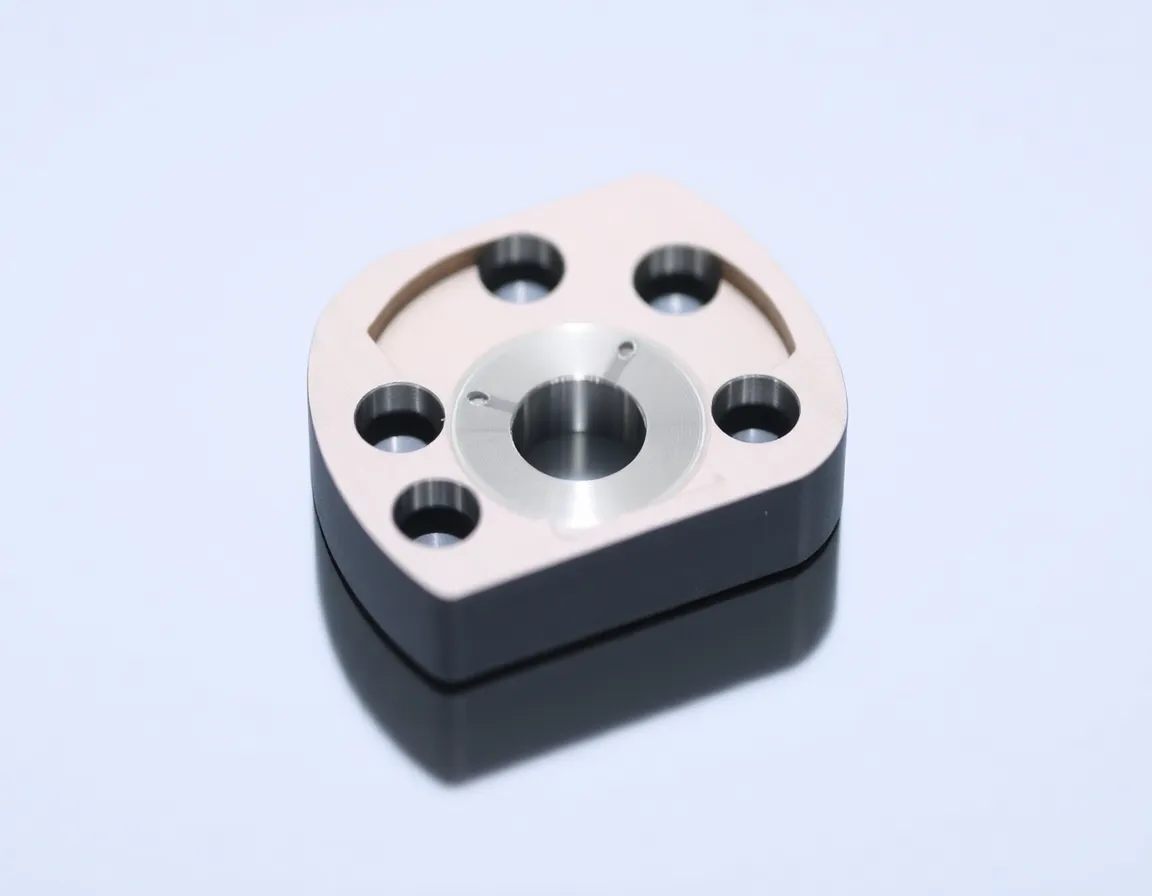

What Is Micromachining for Medical Devices?
Micromachining is a specialized manufacturing process that removes material from a workpiece to create extremely small, highly precise features. In the context of medical parts, this means producing components with tolerances in the range of ±5 to ±50 micrometers (µm), and sometimes even tighter. For perspective, a human red blood cell is approximately 7 µm in diameter. The parts produced through micromachining are not merely small; they must also meet the stringent biocompatibility, surface finish, and mechanical integrity standards required for use inside the human body or in direct contact with sterile environments.
Key Processes in Medical Micromachining
Several distinct techniques fall under the umbrella of micromachining, each suited to specific materials and geometries:
- Micro-Cutting (Micro-Milling & Micro-Turning): Using miniature end mills or single-point cutting tools, often made of ultra-fine grain carbide or diamond, to carve features like slots, holes, and contours. This is ideal for metals like stainless steel, titanium, and Nitinol.
- Laser Micromachining: Employing focused laser beams (femtosecond, picosecond, or nanosecond) to ablate material with minimal heat-affected zones. This is crucial for polymers, ceramics, and heat-sensitive alloys.
- Micro-EDM (Electrical Discharge Machining): Using controlled electrical sparks to erode conductive materials. It excels at creating deep, narrow holes and complex internal geometries in hard metals.
- Micro-Ultrasonic Machining: A non-thermal process that uses high-frequency vibrations and an abrasive slurry to machine brittle materials like glass, silicon, and ceramics.
- Photochemical Machining (PCM) & Photo-Lithography: Using chemical etchants and light-sensitive resists to selectively remove material, often used for creating thin, flat components like stents and sensor arrays.
The choice of process depends on the part’s material, geometry, required precision, and production volume. Often, a single medical component will undergo multiple micromachining steps to achieve its final form.
How Micromachining Works: From Design to Finished Part
The journey of a micromachined medical part begins long before any tool touches material. It starts with a digital design, typically created in CAD (Computer-Aided Design) software. However, designing for micromachining requires a different mindset than conventional machining. The designer must account for the physical limitations of micro-tools—their fragility, their tendency to deflect, and the need for effective chip evacuation in tiny spaces.
Step 1: Process Selection and Fixturing
Once the design is finalized, engineers select the appropriate micromachining process. A key challenge at this scale is fixturing—holding the workpiece securely without distorting it. For parts that are just a few millimeters across, standard vises are useless. Instead, manufacturers use vacuum chucks, adhesive bonding, or custom-designed micro-pallets. The goal is to present the material to the tool with absolute stability, as any vibration of even a few micrometers can ruin the part.
Step 2: Tool Path Programming and Simulation
Using CAM (Computer-Aided Manufacturing) software, programmers generate tool paths that guide the cutting tool or laser beam. For micro-milling, these paths must be incredibly smooth, avoiding sharp directional changes that could snap the tool. Advanced simulation software predicts cutting forces, tool deflection, and potential collisions. For laser processes, the focus is on controlling pulse energy, repetition rate, and scan speed to achieve the desired ablation depth without causing thermal damage to the surrounding material.
Step 3: Machining and In-Process Inspection
The actual machining is often performed on high-precision machine tools with sub-micrometer resolution. These machines are typically housed in temperature-controlled environments to prevent thermal expansion from affecting accuracy. In-process inspection is critical. Many micromachining centers integrate optical measurement systems or touch probes that check critical dimensions during the machining cycle. If a feature begins to drift out of tolerance, the machine can make real-time adjustments or stop the process before producing a batch of scrap.
Step 4: Post-Processing and Validation
After machining, parts often require deburring, cleaning, and surface treatment. For medical devices, this step is particularly important because any burr or contaminant can trigger an adverse biological response. Final validation involves high-magnification optical inspection, scanning electron microscopy (SEM), coordinate measuring machines (CMMs) with micro-probes, and sometimes CT scanning for internal features. Parts are only released for assembly or sterilization after passing these rigorous checks.
Critical Benefits of Micromachining for Medical Applications
The adoption of micromachining in medical manufacturing is not accidental. It offers several distinct advantages that are essential for modern healthcare:
- Uncompromising Precision: The ability to hold tolerances in the micron range ensures that devices fit together perfectly and function as intended, which is vital for implants and surgical instruments.
- Miniaturization: Micromachining enables the creation of smaller, less invasive devices. This leads to shorter recovery times, reduced scarring, and the ability to treat conditions that were previously inoperable.
- Material Versatility: From hardened stainless steel and titanium to flexible polymers and bioabsorbable materials, micromachining processes can handle a wide range of materials required for different biological environments.
- Excellent Surface Finishes: Many micromachining processes can achieve surface roughness values (Ra) below 0.1 µm, which is critical for reducing friction, preventing bacterial adhesion, and promoting proper cell growth on implants.
- Complex Geometry: Features such as undercuts, micro-threads, sharp internal corners, and high-aspect-ratio holes are achievable, enabling designs that maximize functionality in a minimal space.
Key Applications: Where Micromachining Saves Lives
The range of medical devices that rely on micromachining is vast and growing. Some of the most impactful applications include:
Cardiovascular Devices
Stents are a classic example. Modern drug-eluting stents are laser-micromachined from thin-walled Nitinol or cobalt-chromium tubes. The intricate lattice pattern—often with struts as thin as 60 µm—must be cut with absolute precision to ensure uniform expansion and drug delivery. Similarly, guidewires and catheters feature micromachined tips and slots that allow them to navigate the tortuous pathways of the coronary arteries.
Neurological Implants
Deep brain stimulation (DBS) electrodes and cortical arrays require micromachining to create tiny electrodes and contact pads on flexible substrates. These devices must interface with individual neurons, demanding feature sizes on the order of 10-20 µm. Micro-EDM and laser micromachining are the preferred methods for creating these delicate structures from platinum-iridium or gold.
Orthopedic and Dental Implants
While many orthopedic implants are large, their surface textures and locking mechanisms are often micromachined. Micro-milling creates precise threads in bone screws and porous surfaces on hip stems to promote osseointegration. In dentistry, micromachined abutments and implant fixtures ensure a perfect fit with crown and bridge restorations.
Diagnostic and Microfluidic Devices
Lab-on-a-chip devices for point-of-care diagnostics rely on micromachined channels, chambers, and valves. These features, often created by photochemical machining or micro-milling in polymers like PMMA or COC, guide fluids and cells for analysis. The precision of these channels directly affects the accuracy and speed of diagnostic tests, from blood glucose monitoring to infectious disease detection.
Surgical Instruments
From micro-scissors and forceps used in ophthalmic surgery to biopsy needles with micromachined cutting edges, precision instruments enable surgeons to perform delicate procedures with minimal trauma. The sharpness and geometry of these tools are critical for clean cuts and reduced tissue damage.
Best Practices and Challenges in Medical Micromachining
Producing micromachined medical parts is not without its difficulties. Manufacturers must adhere to a set of best practices to ensure quality and regulatory compliance:
- Stringent Process Control: Because the margin for error is so small, every variable—coolant temperature, tool wear, spindle speed, and environmental humidity—must be monitored and controlled. Statistical process control (SPC) is essential for detecting drift before it leads to out-of-tolerance parts.
- Tool Management: Micro-tools are fragile and wear quickly. Implementing a robust tool management system, including automated tool measurement and replacement schedules, prevents catastrophic tool breakage that can damage parts and machines.
- Cleanliness and Contamination Control: Medical parts must be free of machining fluids, metal chips, and other contaminants. Many micromachining operations are performed in cleanroom environments, followed by specialized cleaning protocols using ultrasonic baths and deionized water.
- Validation and Traceability: For regulated medical devices, every part must be traceable back to its manufacturing batch, materials, and process parameters. ISO 13485 certification is often required, and validation documentation must demonstrate that the process consistently produces parts meeting specifications.
- Design for Manufacturability (DFM): Close collaboration between device designers and micromachining engineers is critical. Design features that are difficult or impossible to machine—such as extremely deep, narrow slots or sharp internal corners—can be modified early to ensure manufacturability without compromising function.
Conclusion: The Future of Precision in Medicine
As medical technology continues to advance toward smaller, smarter, and more personalized devices, the role of micromachining will only grow in importance. Emerging trends such as bioprinting, smart implants with micro-sensors, and robotic surgical systems all demand components with ever-greater precision and complexity. The ability to machine features at the scale of individual cells is no longer a luxury—it is a necessity for the next generation of life-saving therapies. For the engineers and technicians who operate these machines, the work is more than just manufacturing; it is an act of precision for life itself. Every micron counts, because in the world of medical devices, accuracy is not just a specification—it is a promise.
