Introduction: The Foundation of Modern Manufacturing

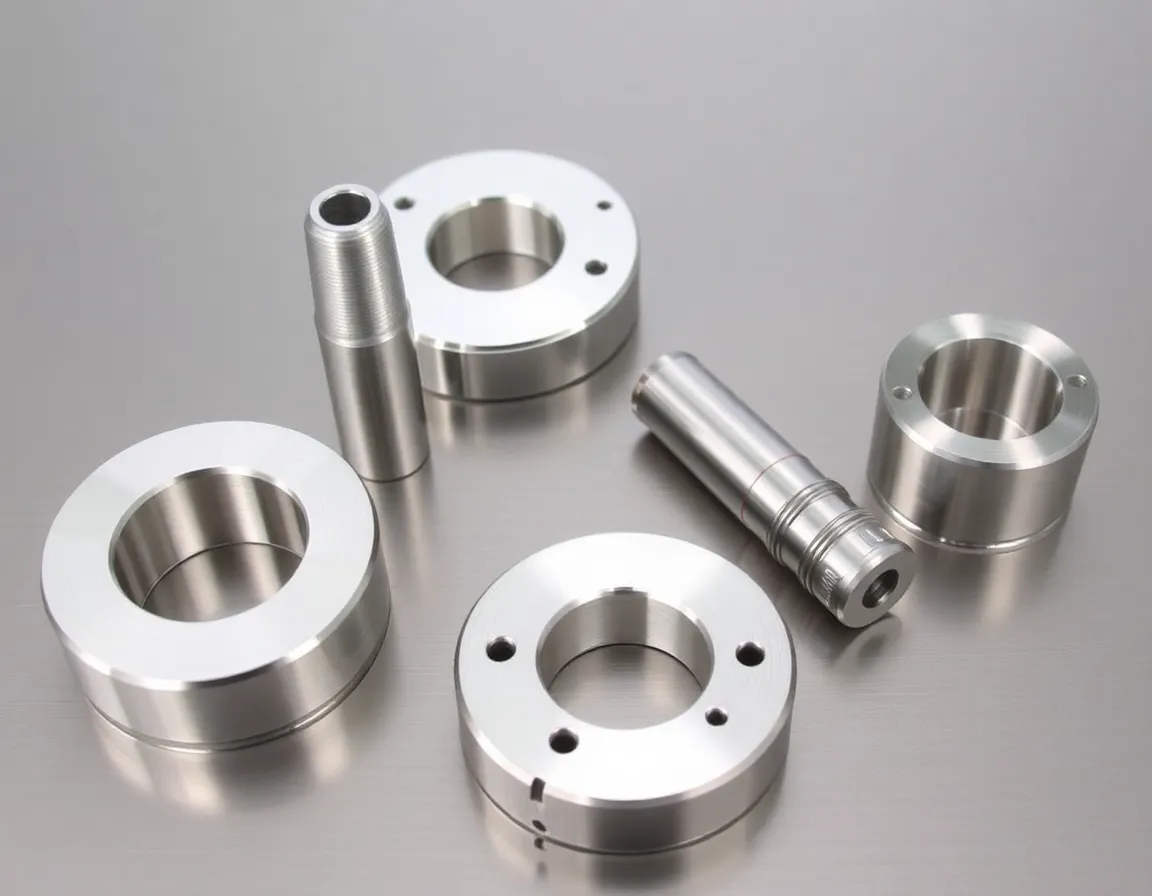

In the realm of high-precision manufacturing, precision CNC turned parts represent the pinnacle of engineering accuracy and repeatability. These components, produced through Computer Numerical Control (CNC) turning processes, are fundamental to industries ranging from aerospace and medical devices to automotive and electronics. The process involves rotating a workpiece while a cutting tool removes material to create a symmetrical, cylindrical shape with exceptionally tight tolerances—often within microns. However, the value of these parts is only as good as the quality assurance measures applied during and after production. A single defect can compromise an entire assembly, leading to costly failures. This article delves into the mechanics of precision CNC turning, its critical applications, and most importantly, the five essential quality checks that separate superior components from rejected scrap.
Understanding Precision CNC Turning: The Core Process
Before examining quality checks, it is vital to understand the process itself. Precision CNC turning is a subtractive manufacturing method where a bar of material—commonly metals like aluminum, stainless steel, brass, titanium, or engineering plastics—is held in a chuck and rotated at high speeds. A stationary cutting tool, guided by precise computer code (G-code), traverses along the rotating workpiece, carving out the desired geometry. This can include external diameters, internal bores, grooves, threads, and complex contours.
How CNC Turning Differs from Conventional Turning
The critical distinction lies in the automation and feedback control. While manual lathes rely on operator skill, CNC turning uses servo motors, ball screws, and linear guides to position tools with sub-micron accuracy. Modern CNC lathes often feature live tooling, allowing for milling, drilling, and tapping operations without removing the part from the machine. This multi-axis capability, often seen in Swiss-type lathes and multi-spindle machines, enables the production of incredibly complex parts in a single setup.
Key Materials and Their Challenges
The choice of material dramatically influences both the turning process and the required quality checks:
- Aluminum alloys (6061, 7075): Excellent machinability but prone to burr formation and surface scratching.
- Stainless steel (303, 316): High strength and corrosion resistance, but work-hardens quickly, requiring rigid setups and sharp tools.
- Titanium (Ti-6Al-4V): Exceptional strength-to-weight ratio but generates intense heat, leading to thermal expansion issues.
- Brass and copper: Soft and easy to machine, but chip control and surface finish require careful parameter tuning.
- Engineering plastics (PEEK, Delrin): Prone to melting, warping, and dimensional instability from heat and clamping pressure.
The Critical Role of Quality in Precision CNC Turned Parts
In high-stakes applications, a failed turned part can have catastrophic consequences. A medical implant with a surface crack can cause infection or fracture. An aerospace hydraulic fitting with an incorrect thread pitch can lead to fluid leaks and system failure. Therefore, quality is not merely a metric—it is a non-negotiable requirement. The following five critical quality checks form the backbone of any robust quality assurance protocol for precision CNC turned parts.
Quality Check 1: Dimensional Accuracy and Tolerances
The most fundamental quality check is verifying that every critical dimension falls within the specified tolerance range. For precision CNC turned parts, tolerances are commonly expressed in ±0.005 mm (5 microns) or even tighter for high-end applications.
Tools and Techniques for Dimensional Verification
- Calipers and Micrometers: For quick, manual checks of diameters, lengths, and depths. Digital micrometers with data output reduce human error.
- Coordinate Measuring Machines (CMM): For complex geometries and multiple features. A CMM uses a touch probe to map the part's surface and compare it to the CAD model.
- Air Gauging: Ideal for measuring internal diameters and bores with high precision, as it eliminates contact deformation.
- Optical Comparators: For inspecting thread profiles, radii, and small features by projecting a magnified shadow onto a screen.
Best Practice: Implement statistical process control (SPC). Measure a sample of parts at regular intervals (e.g., every 50 parts) and plot the results on a control chart. This allows you to detect drift before parts go out of tolerance, rather than catching defects after the fact.
Quality Check 2: Surface Finish and Roughness
Surface finish is not just about aesthetics; it directly impacts friction, wear resistance, sealing capability, and fatigue life. A turned part intended for a dynamic seal must have a smooth, consistent surface to prevent leakage. Conversely, a part requiring adhesive bonding may need a controlled roughness for better adhesion.
Measuring Surface Finish
The standard parameter is Ra (Average Roughness), measured in micrometers (µm) or microinches (µin). For precision turned parts, typical Ra values range from 0.4 µm (fine finish) to 1.6 µm (standard finish). Measurement is performed using a profilometer, which drags a diamond stylus across the surface to record deviations.
Common Surface Defects to Inspect
- Tool marks and feed lines: Visible spiral patterns caused by improper feed rate or tool geometry.
- Burns and tears: Rough edges or material pull-out, often at intersections of features.
- Chatter marks: Wavy patterns resulting from vibration in the machine, tool, or workpiece.
- Scratches and dings: Handling damage after machining.
Best Practice: Use a combination of tactile (profilometer) and visual inspection (magnification or microscope). For critical sealing surfaces, consider non-contact laser scanning to avoid scratching the part.
Quality Check 3: Material Integrity and Internal Defects
Even if a part meets dimensional and surface requirements, it may have hidden internal flaws that compromise its structural integrity. This is especially critical for parts subjected to high stress, cyclic loading, or extreme temperatures.
Non-Destructive Testing (NDT) Methods
- Visual Inspection (VT): The simplest method, but effective for detecting surface cracks, porosity, and discoloration.
- Dye Penetrant Inspection (DPI): A colored dye is applied to the surface, then a developer draws the dye out of any cracks or pores, making them visible under UV light.
- Magnetic Particle Inspection (MPI): For ferromagnetic materials. Magnetic particles are attracted to leakage fields at surface and near-surface cracks.
- Ultrasonic Testing (UT): High-frequency sound waves are sent through the part. Internal voids, inclusions, or delaminations reflect the waves, creating an echo pattern that reveals defects.
- X-ray or CT Scanning: For complex internal geometries, providing a 3D image of the part's internal structure.
Best Practice: Establish a risk-based testing plan. For high-risk parts (e.g., aircraft landing gear components), 100% NDT is mandatory. For lower-risk parts, sampling at defined intervals may suffice.
Quality Check 4: Thread Quality and Geometric Tolerances
Many precision CNC turned parts feature threads—both internal and external. Threads are notoriously difficult to inspect because they involve multiple interrelated features: pitch diameter, major/minor diameter, thread angle, lead, and flank surface finish. A thread that passes a simple "go/no-go" gauge may still fail under load if the thread form is incorrect.
Comprehensive Thread Inspection
- Thread Gauges: Go/no-go plug gauges for internal threads and ring gauges for external threads. This is a functional check but does not quantify deviations.
- Thread Micrometers: Measure the pitch diameter directly by contacting the thread flanks.
- Optical or Laser Scanning: Provides a full profile of the thread form, allowing measurement of angle, root radius, and lead error.
- Wire Method (Three-Wire Measurement): A highly accurate method for measuring pitch diameter using precision wires and a micrometer.
Geometric Dimensioning and Tolerancing (GD&T)
Beyond simple dimensions, precision turned parts often have GD&T callouts such as concentricity, cylindricity, and runout. For example, a shaft may require that the outer diameter is concentric to the internal bore within 0.01 mm. This is checked by mounting the part on a precision mandrel or between centers and using a dial indicator to measure deviation as the part rotates.
Best Practice: Never rely solely on functional gauges. Use a combination of direct measurement (micrometers, CMM) and profile scanning to ensure thread geometry is correct, not just within the gauge limits.
Quality Check 5: Cleanliness and Burr-Free Condition
This final check is often overlooked but is critical for assembly and performance. Precision CNC turned parts must be free of burrs, sharp edges, and contaminants. A microscopic burr on a valve seat can cause leakage. Metal chips or coolant residue left in a blind hole can contaminate a hydraulic system or cause electrical shorts in an electronic enclosure.
Deburring and Edge Finishing
- Manual Deburring: Using hand tools, files, or abrasive pads. Effective but labor-intensive and inconsistent.
- Mechanical Deburring: Tumbling, vibratory finishing, or centrifugal disc finishing. Suitable for high volumes and parts with complex internal passages.
- Thermal Deburring (TEM): A controlled explosion of gas inside a sealed chamber burns off burrs without damaging the part.
- Electrochemical Deburring (ECD): Uses an electrolyte and electrical current to dissolve burrs selectively.
Cleanliness Verification
For critical applications (e.g., medical implants, aerospace fuel systems), parts must meet specific cleanliness standards such as ISO 16232 or VDA 19. This involves:
- Visual inspection under magnification: For visible particles and residues.
- Rinse and filtration: The part is rinsed with a clean solvent, and the rinse fluid is filtered. The filter is then analyzed under a microscope to count and classify particles.
- Residual contamination testing: Using gravimetric analysis (weighing the filter before and after) or spectroscopic methods.
Best Practice: Integrate deburring as a step in the CNC program where possible (e.g., using a chamfer tool to break edges). For cleanliness, implement a final ultrasonic cleaning process followed by a cleanroom inspection and packaging.
Benefits of Rigorous Quality Checks
Implementing these five critical quality checks is not just about avoiding defects—it delivers tangible business benefits:
- Reduced Scrap and Rework: Catching issues early saves material, machine time, and labor.
- Improved Customer Trust: Delivering consistently high-quality parts builds long-term relationships.
- Compliance with Standards: Many industries (ISO 9001, AS9100, ISO 13485) require documented quality control processes.
- Lower Total Cost: Preventing field failures avoids warranty claims, liability, and reputation damage.
Applications Where Precision CNC Turned Parts Excel
The quality checks described are particularly vital in these high-stakes sectors:
- Aerospace: Turbine blades, landing gear components, hydraulic fittings, and fasteners. Tolerances are often ±0.002 mm.
- Medical Devices: Bone screws, surgical instruments, dental implants, and catheter components. Biocompatibility and surface finish are paramount.
- Automotive: Fuel injector nozzles, transmission shafts, brake system components, and engine valves.
- Electronics: Connector pins, heat sinks, and precision housings for sensors and semiconductors.
- Oil & Gas: Valve stems, pump shafts, and downhole tools that must withstand extreme pressure and corrosive environments.
Best Practices for Ensuring Quality from Start to Finish
To consistently produce precision CNC turned parts that pass all five checks, adopt the following best practices:
- Design for Manufacturability (DFM): Collaborate with the CNC shop early to optimize part geometry for turning, avoiding sharp internal corners and deep, narrow bores.
- Select the Right Machine: Use a CNC lathe with sufficient rigidity, spindle accuracy, and thermal stability for the required tolerances.
- Tool Selection and Management: Use high-quality carbide or diamond inserts with appropriate coatings. Monitor tool wear and replace tools proactively.
- Coolant and Chip Control: Use high-pressure coolant to manage heat and evacuate chips. For difficult materials, consider through-spindle coolant.
- First Article Inspection (FAI): Always perform a complete dimensional and functional inspection on the first part produced from a new setup. This serves as the baseline for all subsequent parts.
- Environmental Control: Maintain a stable temperature in the machining area (typically 20°C ±1°C) to minimize thermal expansion effects on both the machine and the workpiece.
Conclusion: Quality is a Continuous Process
Precision CNC turned parts are the unsung heroes of modern engineering, enabling everything from life-saving medical devices to powerful aircraft engines. However, their reliability hinges on a disciplined, multi-layered approach to quality assurance. The five critical checks—dimensional accuracy, surface finish, material integrity, thread and geometric tolerances, and cleanliness—form a comprehensive framework that protects against failure at every stage. By integrating these checks into a robust quality management system, manufacturers can deliver parts that not only meet specifications but exceed expectations. In the world of precision manufacturing, quality is not an inspection event; it is a culture embedded in every turn of the spindle.
