Understanding Custom CNC Turning: The Foundation of Precision Manufacturing

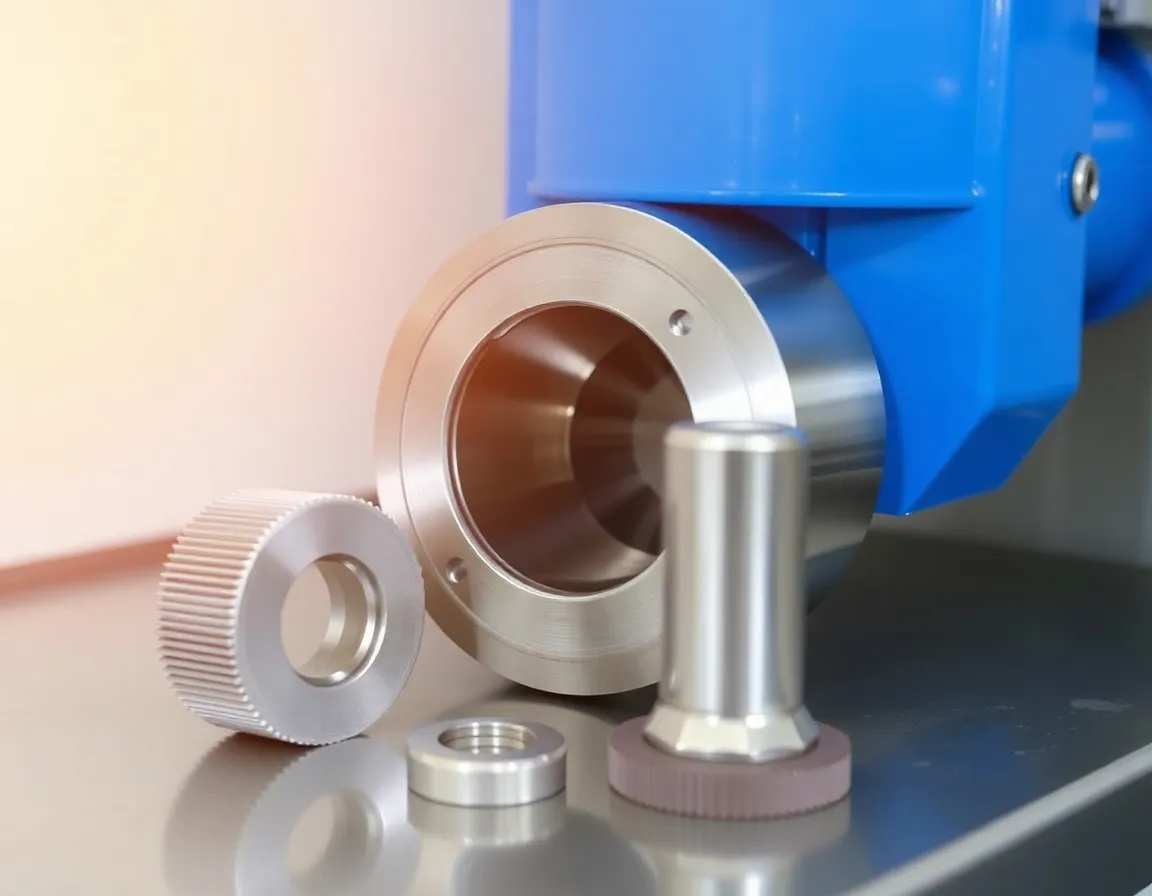

In the modern landscape of manufacturing, the demand for custom CNC turning parts has never been higher. From aerospace components to medical implants and automotive fittings, the ability to produce cylindrical parts with exacting tolerances is a cornerstone of industrial progress. CNC turning, a subtractive manufacturing process, utilizes computer-controlled lathes to rotate a workpiece while a cutting tool removes material to create the desired shape. Unlike manual turning, which relies on the skill of a machinist, CNC turning is automated, precise, and repeatable. This article delves into the intricacies of custom CNC turning, exploring its mechanics, benefits, applications, and best practices to help you understand why it is the ideal choice for your next project.
At its core, custom CNC turning is about transforming a raw material—often metal or plastic—into a finished part that meets specific design requirements. The "custom" aspect means that each part is tailored to a unique set of specifications, whether that involves complex geometries, tight tolerances, or specialized surface finishes. This flexibility makes it indispensable for prototyping, low-volume production, and high-volume runs alike. By leveraging advanced software and multi-axis machinery, manufacturers can produce parts that are not only functional but also optimized for performance and longevity.
How Custom CNC Turning Works: The Process from Design to Part
Step 1: Design and CAD Modeling
Every custom CNC turning project begins with a digital blueprint. Engineers use Computer-Aided Design (CAD) software to create a 3D model of the part, specifying dimensions, tolerances, and material properties. This model serves as the master reference for all subsequent steps. For complex parts, designers may incorporate features like threads, grooves, tapers, and internal bores. The CAD file is then converted into a format compatible with CNC machines, typically as a STEP or IGES file.
Step 2: CAM Programming and Toolpath Generation
Once the design is finalized, the CAD model is imported into Computer-Aided Manufacturing (CAM) software. Here, the programmer defines the toolpaths—the precise routes that the cutting tool will follow. The CAM software calculates the optimal speeds, feeds, and depths of cut to minimize cycle time while ensuring surface quality. For custom parts, this stage often involves selecting the appropriate tooling, such as carbide inserts for hard metals or high-speed steel for softer materials. The output is a G-code file, which is the language that CNC machines understand.
Step 3: Machine Setup and Material Preparation
Before machining begins, the operator prepares the CNC lathe. This includes mounting the workpiece—usually a round bar or billet—into a chuck or collet. The machine is then calibrated to ensure zero-point alignment. For custom CNC turning parts, material selection is critical. Common materials include aluminum (6061, 7075), stainless steel (304, 316), brass, titanium, and engineering plastics like Delrin or Nylon. Each material has unique machinability characteristics that influence cutting parameters.
Step 4: The Turning Operation
With the machine ready, the CNC lathe executes the G-code program. The workpiece rotates at high speed while the cutting tool moves linearly along multiple axes. Standard turning operations include:
- Facing: Removing material from the end of the workpiece to create a flat surface.
- Turning: Reducing the diameter of the workpiece to a specified dimension.
- Boring: Enlarging an existing hole or creating an internal diameter.
- Threading: Cutting external or internal threads using a single-point tool or die.
- Grooving and Parting: Cutting narrow channels or separating the finished part from the stock.
Advanced CNC lathes may feature live tooling, allowing for milling, drilling, and tapping operations without removing the workpiece. This capability, known as multi-tasking, reduces handling errors and shortens production time.
Step 5: Quality Inspection and Finishing
After machining, each part undergoes rigorous inspection. Coordinate measuring machines (CMMs), micrometers, and profilometers verify that dimensions fall within the specified tolerances—often as tight as ±0.005 mm for high-precision applications. Surface finishes are also checked, with options ranging from as-machined (Ra 3.2 µm) to mirror-polished (Ra 0.1 µm). If required, secondary processes like anodizing, plating, or heat treatment are applied to enhance durability or appearance.
Key Benefits of Custom CNC Turning Parts
Unmatched Precision and Repeatability
The primary advantage of custom CNC turning is its ability to produce parts with extraordinary accuracy. Because the process is computer-controlled, every part in a production run is identical to the first. This repeatability is essential for industries where even a micron of deviation can lead to failure, such as in hydraulic systems or surgical instruments. Modern CNC lathes can hold tolerances within ±0.0001 inches, a feat impossible with manual methods.
Design Flexibility for Complex Geometries
Custom CNC turning is not limited to simple cylinders. With multi-axis machines (e.g., 5-axis lathes), manufacturers can create parts with off-center features, eccentric diameters, and intricate contours. This flexibility allows engineers to consolidate multiple components into a single turned part, reducing assembly complexity and improving overall system reliability. For example, a custom valve stem might integrate threads, a hexagonal driving surface, and a precision seal groove—all in one setup.
Material Versatility
From soft plastics to hardened tool steels, CNC turning accommodates a wide range of materials. This versatility is crucial for custom projects that require specific material properties, such as corrosion resistance, thermal conductivity, or electrical insulation. Additionally, advanced tool coatings like titanium nitride (TiN) or diamond-like carbon (DLC) enable machining of abrasive materials without excessive tool wear.
Cost-Effectiveness for Low to High Volumes
While the initial setup cost for CNC turning can be higher than manual methods, the per-part cost decreases significantly with volume. For low-volume runs (1–100 parts), the speed and precision of CNC turning often eliminate the need for expensive jigs or fixtures. For high-volume production, automated bar feeders and robotic part handling can run lights-out operations, reducing labor costs. This scalability makes custom CNC turning an economical choice for both prototypes and mass production.
Rapid Prototyping and Short Lead Times
In today’s fast-paced market, speed to market is critical. Custom CNC turning can produce functional prototypes in as little as 24–48 hours, allowing designers to test form, fit, and function before committing to mass production. This agility is particularly valuable for industries like consumer electronics, where product cycles are short and iterative design is common.
Common Applications of Custom CNC Turning Parts
Aerospace and Defense
The aerospace industry demands components that are lightweight, strong, and resistant to extreme temperatures. Custom CNC turning is used to manufacture critical parts such as turbine shafts, landing gear pins, fuel system fittings, and actuator housings. Materials like titanium and Inconel are common, and parts often require certifications like AS9100 or NADCAP. The precision of CNC turning ensures that these components meet stringent safety standards.
Medical Devices and Implants
In the medical field, custom CNC turning produces implants (e.g., hip stems, bone screws), surgical instruments (e.g., drill bits, retractors), and diagnostic equipment components. Biocompatible materials such as stainless steel 316L, titanium grade 5, and PEEK are frequently used. The process must adhere to ISO 13485 standards, and parts often require passivation or electropolishing to achieve a sterile, smooth surface.
Automotive and Motorsports
From engine pistons and brake calipers to transmission shafts and steering components, CNC turning is integral to automotive manufacturing. In motorsports, where performance is paramount, custom parts are machined from high-strength alloys like 4340 steel or 7075 aluminum. The ability to reduce weight without compromising strength—through features like internal lightening holes or thin-wall sections—gives race teams a competitive edge.
Industrial Machinery and Hydraulics
Hydraulic and pneumatic systems rely on precision-turned parts such as cylinders, pistons, valves, and connectors. These components must seal effectively under high pressure, requiring tight tolerances on diameters and surface finishes. Custom CNC turning also produces rollers, bushings, and shafts for conveyors, pumps, and compressors, ensuring smooth operation and long service life.
Consumer Products and Electronics
Even everyday items benefit from CNC turning. Custom parts for cameras (lens barrels), audio equipment (knobs and connectors), and sporting goods (fishing reel spools) are often turned from aluminum or brass for a premium feel. In electronics, heat sinks, connector pins, and switch components are machined to precise dimensions to ensure proper fit and thermal management.
Best Practices for Designing Custom CNC Turning Parts
Optimize for Machinability
To reduce costs and lead times, design your part with machinability in mind. Avoid sharp internal corners; instead, use fillets or radii that match standard tool sizes. For threaded features, specify standard thread forms (e.g., UNF, metric) rather than custom pitches. Also, consider the aspect ratio—long, slender parts may require support from a steady rest to prevent vibration or deflection.
Specify Realistic Tolerances
While CNC turning can achieve extremely tight tolerances, every additional decimal place of precision increases machining time and cost. For most applications, a tolerance of ±0.005 inches is sufficient. Reserve tighter tolerances (e.g., ±0.0005 inches) only for critical mating surfaces or sealing areas. Clearly annotate these on your drawing using standard GD&T symbols (e.g., true position, concentricity).
Choose the Right Material and Finish
Select a material that balances performance, cost, and machinability. For example, 6061 aluminum is easy to machine and affordable, while 7075 offers higher strength but is more abrasive. For surface finish, specify the required Ra value. A standard as-machined finish (Ra 3.2 µm) is adequate for most parts, but if your application involves sliding contact or aesthetics, request a finer finish (Ra 0.8 µm or better).
Communicate with Your Manufacturer
Successful custom CNC turning projects rely on clear communication. Provide your manufacturer with a complete technical drawing, including material specs, tolerances, and any secondary operations. Discuss potential design improvements—such as adding chamfers for easier assembly or reducing wall thickness to save weight. A collaborative approach often leads to a better final product at a lower cost.
Plan for Inspection and Quality Control
Incorporate inspection features into your design where possible. For example, include a reference surface or datums that can be used for dimensional verification. If your part will be used in a safety-critical application, request a first article inspection (FAI) report and material certifications. This documentation ensures that your custom CNC turning parts meet all regulatory and performance requirements.
Conclusion: Elevate Your Project with Custom CNC Turning
Custom CNC turning is more than a manufacturing process—it is a partnership between design intent and production capability. By understanding how CNC turning works, its benefits, and best practices, you can leverage this technology to create parts that are precise, durable, and cost-effective. Whether you are developing a prototype for a medical device or scaling up production for an automotive component, the versatility and reliability of custom CNC turning parts will help you achieve your goals. As industries continue to demand higher performance and tighter tolerances, CNC turning will remain a vital tool in the engineer’s arsenal. Invest in quality design, choose a reputable manufacturer, and watch your project come to life with unmatched precision.
