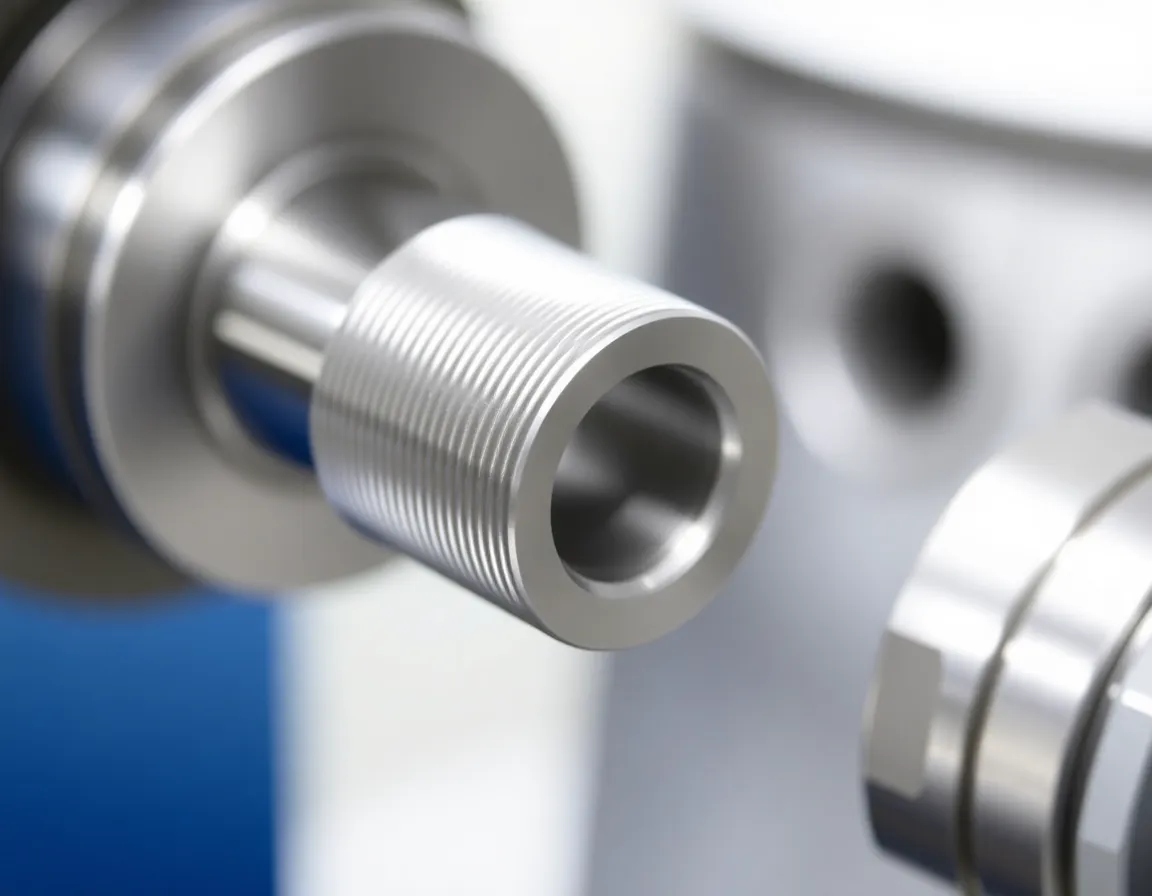

Precision NPT Thread Machining – Expert Services & Solutions

Introduction: The Critical Role of NPT Thread Machining in Leak-Free Systems

In the world of industrial piping, hydraulic systems, and pneumatic networks, the integrity of every joint is paramount. A single leak can lead to catastrophic fluid loss, system downtime, safety hazards, and costly environmental cleanup. Among the most widely used standards for creating these connections is the National Pipe Taper (NPT) thread. Mastery of NPT thread machining is not merely a technical skill; it is a fundamental requirement for engineers, machinists, and maintenance professionals who demand reliability. This comprehensive guide delves into the intricacies of NPT threading, offering actionable tips and best practices to ensure leak-free joints every time.

What is NPT Thread Machining?

NPT thread machining refers to the process of cutting or forming a specific type of tapered thread on the end of a pipe or fitting, as defined by the American National Standard Pipe Thread standard (ANSI/ASME B1.20.1). Unlike straight threads, which have a constant diameter, NPT threads are tapered at a rate of 1 inch in diameter for every 16 inches of length (1:16 taper). This taper is the key to its sealing mechanism. As the male and female threads are tightened, the tapered flanks wedge together, creating a mechanical interference fit that forms the primary seal. This design, combined with the use of a thread sealant, effectively blocks the path of fluid or gas.

Key Characteristics of NPT Threads

• Taper Angle: The standard taper is 1° 47' (1.7899 degrees) from the axis, or 3° 34' included angle.
• Thread Angle: The included thread angle is 60 degrees, consistent with many other unified thread forms.
• Flank Design: The threads are truncated at both the crest and root to allow for a more consistent fit and easier engagement.
• Nominal Size: NPT sizes are designated by the nominal pipe size (e.g., 1/2" NPT), which refers to the approximate inside diameter of the pipe, not the thread's outer diameter.

How NPT Thread Machining Works

The machining process can be performed using several methods, each suited to different production volumes and precision requirements. The most common techniques include:

• Single-Point Threading: A lathe tool is used to cut a single thread groove at a time. This method offers maximum flexibility for custom or low-volume production but requires careful setup to achieve the correct taper and lead.
• Die Threading: A solid or adjustable die is used to cut the thread. This is faster than single-point threading and is common for manual threading of pipes on-site.
• Thread Milling: A rotating multi-point cutter is used to interpolate the thread profile. This method is highly precise and efficient for high-volume production, especially on CNC machines.
• Roll Forming (Thread Rolling): Material is displaced rather than cut, creating a stronger thread with a smoother surface finish. This is typically used for high-strength applications and mass production.

Critical Factors for Achieving Leak-Free NPT Joints

Achieving a leak-free NPT joint is a function of precision in machining, proper material selection, and correct installation techniques. The following factors are non-negotiable for success.

1. Precision Taper and Thread Form

The most common cause of leaks is an incorrect taper angle. Even a deviation of a few hundredths of a degree can prevent the threads from properly wedging together. During NPT thread machining, it is essential to verify that the taper is consistent along the entire threaded length. Use a thread plug gage or a taper micrometer to check the angle. Additionally, the thread form must be clean and free of burrs. A damaged or distorted thread will create a spiral leak path.

2. Thread Depth and Engagement

NPT threads are designed to be assembled with a specific amount of engagement. Over-tightening can cause the female component to crack or the male thread to gall, while under-tightening leaves gaps for leakage. The standard practice is to tighten the joint until it is hand-tight, then use a wrench for an additional 1 to 2 turns. The machined thread length must be sufficient to allow for this full engagement. A common rule of thumb is that the thread length should be approximately the nominal pipe diameter plus 1/8 inch for sizes up to 1 inch.

3. Surface Finish and Cleanliness

A smooth surface finish on the thread flanks is crucial for effective sealing. Rough surfaces can trap air or debris, preventing the sealant from filling the helical clearance. After machining, all chips, cutting fluid, and debris must be thoroughly removed. Any contamination can interfere with the sealant's ability to bond and create a continuous barrier. Use a wire brush or solvent to clean the threads immediately before assembly.

4. Thread Sealant Selection and Application

While the taper provides the mechanical interference, a thread sealant is almost always required to fill the microscopic leak paths that remain between the thread crests and roots. The choice of sealant is critical:

• PTFE Tape (Teflon Tape): Suitable for low-pressure applications and general plumbing. Must be applied in the correct direction (clockwise when looking at the end of the pipe) and should not be used with oxygen systems due to fire risk.
• Pipe Dope (Thread Compound): A paste-like sealant that provides excellent lubrication and sealing. It is preferred for high-pressure and high-temperature applications. Some formulations are rated for potable water or gas systems.
• Anaerobic Sealants: These cure in the absence of air and provide a very strong, vibration-resistant seal. They are ideal for hydraulic and pneumatic systems but require clean, dry threads for proper curing.

Never use sealant as a filler for poorly machined threads. It is a sealant, not a gap-filler. The mechanical seal must be established by the taper itself.

Best Practices for NPT Thread Machining on CNC and Manual Lathes

Whether you are using a state-of-the-art CNC machine or a manual lathe, adherence to best practices is the foundation of quality NPT thread machining.

CNC Machining: Programming and Tool Path Optimization

• Use a Taper Threading Cycle: Most modern CNC controls (e.g., Fanuc, Haas, Siemens) have specific G-codes (like G76 or G92) for tapered threading. Ensure the correct taper value (R parameter) is programmed based on the thread length.
• Tool Nose Radius Compensation: Always apply tool nose radius compensation (TNR comp) to achieve the correct thread profile. A sharp tool will cut a different form than a tool with a 0.015" radius.
• Multiple Passes: Use a constant volume or constant depth cutting strategy. For NPT threads, a constant depth per pass is often preferred to manage the increasing cutting forces as the tool moves deeper into the taper.
• In-Process Gauging: Use a thread plug gage to check the first part. Measure the "L1" (hand-tight engagement length) and "L2" (wrench-tight engagement length) to ensure the thread is not too shallow or too deep.

Manual Lathe Machining: Setup and Technique

• Compound Rest Angle: Set the compound rest at 30 degrees (half of the 60-degree thread angle) to allow for infeed control. The cross-slide is used for depth, while the compound is used to advance the tool along the flank.
• Taper Attachment: If your lathe has a taper attachment, use it to ensure a consistent taper. If not, you must manually feed the cross-slide in a precise ratio with the carriage movement. This is challenging and requires practice.
• Thread Chasing: Use a thread chasing dial to re-engage the half-nut at the correct position. For tapered threads, the relationship between the spindle and leadscrew is critical; misalignment will ruin the thread.
• Start with a Test Piece: Always machine a test piece from the same material as the final part. This allows you to verify the setup before committing to the actual component.

Inspection and Quality Control

Quality control is not an afterthought; it is an integral part of the machining process. Use the following tools to verify your work:

• NPT Thread Plug Gage: This is the definitive tool for checking internal threads. It has a go/no-go section that verifies both the taper and the pitch diameter.
• NPT Thread Ring Gage: Used for external threads. A correctly machined thread should screw into the go side and stop at the no-go side within the specified number of turns.
• Thread Micrometer: Measures the pitch diameter at a specific location along the thread.
• Optical Comparator: Allows for visual inspection of the thread form, including the angle, crest truncation, and root radius.

Common Mistakes in NPT Thread Machining and How to Avoid Them

Even experienced machinists can fall victim to common pitfalls. Awareness is the first step to prevention.

• Mistake: Using the wrong taper angle.
  Solution: Always verify the machine setup with a test cut and a taper gage. Double-check the CNC program's R parameter.
• Mistake: Over-tightening the joint.
  Solution: Follow the manufacturer's recommended tightening torque. Use a torque wrench for critical applications. Remember: NPT seals by wedging, not by brute force.
• Mistake: Applying sealant to the first few threads.
  Solution: Apply sealant to the middle and upper threads, leaving the first two threads clean. This prevents sealant from entering the system and causing contamination.
• Mistake: Machining threads that are too long or too short.
  Solution: Refer to standard thread length charts (e.g., ASME B1.20.1). Use a thread gage to confirm the correct length before final assembly.
• Mistake: Ignoring material hardness and ductility.
  Solution: Softer materials like brass require different cutting speeds and feeds than harder materials like stainless steel. Use appropriate tooling and coolants to prevent work hardening or tearing.

Applications and Industry Standards

NPT thread machining is ubiquitous across a vast range of industries due to its reliability and simplicity. Understanding where it is used helps underscore its importance.

• Plumbing and Water Systems: Residential and commercial water supply lines, fixtures, and valves.
• Hydraulic and Pneumatic Systems: High-pressure fluid power systems in manufacturing, construction, and mobile equipment.
• Oil and Gas: Wellhead equipment, pipelines, and refinery components. (Note: For critical oilfield applications, API threads are often preferred over NPT).
• Chemical Processing: Piping for corrosive fluids where leak integrity is critical for safety and environmental compliance.
• Automotive and Aerospace: Fuel lines, brake systems, and pneumatic controls.

It is important to note that while NPT is a North American standard, it is used globally. However, for applications involving extreme pressure, temperature cycling, or vibration, other thread forms like NPTF (Dryseal) or SAE straight threads with O-rings may be specified. NPTF threads are designed to seal without any additional sealant, relying solely on the metal-to-metal interference.

Conclusion: The Path to Perfection in NPT Thread Machining

Mastering NPT thread machining is a journey that combines theoretical knowledge with practical skill. From understanding the fundamental 1:16 taper to selecting the correct sealant and verifying your work with precision gages, every step matters. A leak-free joint is not a matter of luck; it is the direct result of meticulous setup, careful machining, and rigorous inspection. By following the tips and best practices outlined in this guide, you can significantly reduce the risk of leaks, improve system reliability, and enhance your reputation as a skilled professional. Whether you are machining a single fitting for a critical hydraulic system or producing thousands of components for a commercial plumbing project, the principles remain the same: precision, cleanliness, and adherence to standards are the keys to success.
