Introduction: The Critical Role of Precision in Medical Innovation
In the high-stakes world of medical device development, the difference between a life-saving innovation and a failed concept often comes down to precision. Medical prototyping, specifically through medical machining prototype services, has emerged as the backbone of modern healthcare engineering. These prototypes are not merely preliminary models; they are functional, often sterile-ready components that must meet rigorous regulatory standards while mimicking the exact performance of final production devices. From orthopedic implants to surgical robotics, the ability to machine complex geometries from biocompatible materials with micron-level accuracy is transforming how we approach patient care. This article delves into the intricacies of medical prototyping through precision machining, exploring its methodologies, benefits, applications, and the best practices that ensure these prototypes can truly save lives.

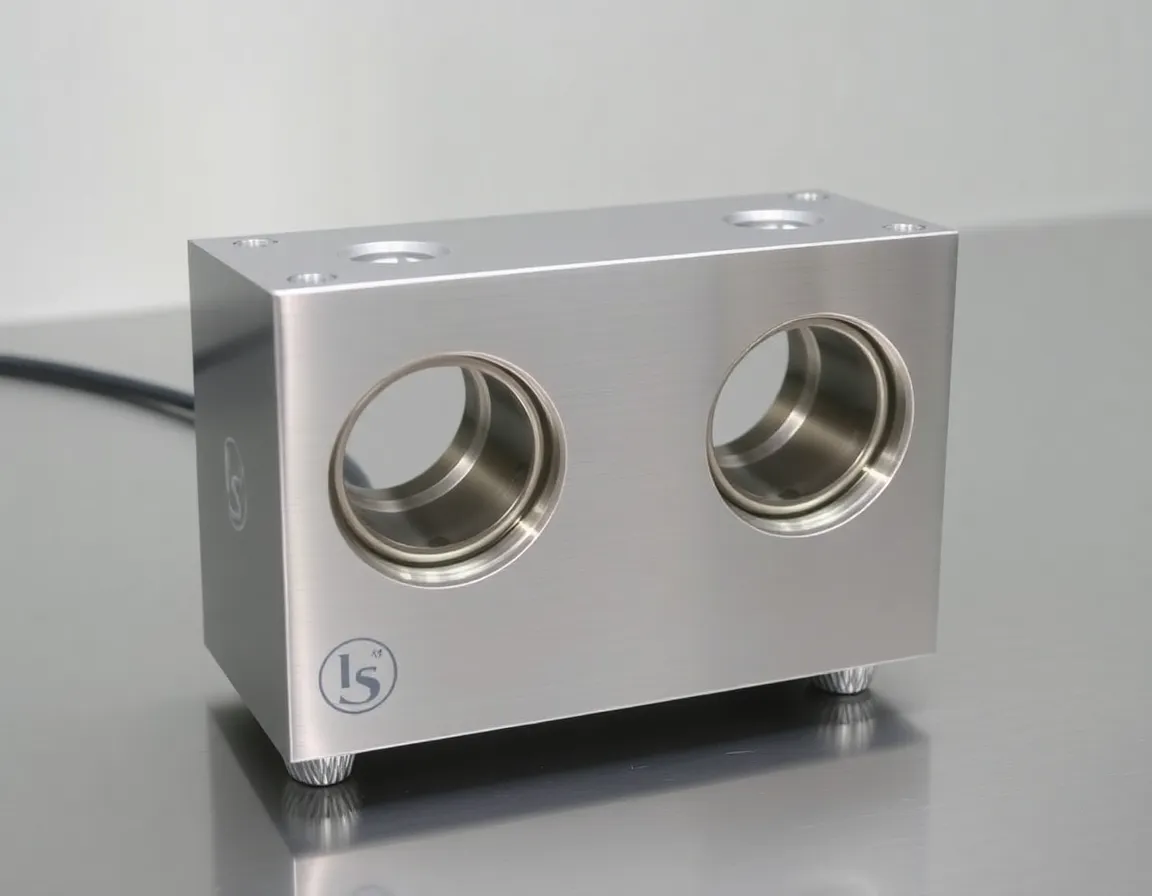

What is Medical Machining Prototyping?
Medical machining prototyping refers to the process of using advanced Computer Numerical Control (CNC) machining, multi-axis milling, turning, and Swiss-style machining to create functional prototypes of medical devices and components. Unlike additive manufacturing (3D printing), which builds parts layer by layer, subtractive machining starts with a solid block of material and removes material to achieve the desired shape. This method is particularly critical for medical applications where material integrity, surface finish, and mechanical properties are non-negotiable.
Key Characteristics of Medical Prototypes
Medical prototypes produced through machining are distinguished by several critical attributes:
- Biocompatibility: Materials such as titanium (Ti-6Al-4V), stainless steel (316L), PEEK, and medical-grade polymers are machined to ensure they do not cause adverse reactions in the body.
- Tight Tolerances: Typical tolerances range from ±0.005 mm to ±0.01 mm, essential for components that must mate with other parts or fit within the human anatomy.
- Surface Finish: Ra values of 0.2 µm or better are common, reducing friction, bacterial adhesion, and wear in implantable devices.
- Regulatory Compliance: Parts are manufactured under processes that align with ISO 13485 and FDA 21 CFR Part 820 quality management systems.
How Precision Machining Works for Medical Prototypes
The journey from a digital design to a physical medical prototype involves several sophisticated stages. Each step is optimized to ensure that the final part not only looks like the intended device but also functions under physiological conditions.
Design for Manufacturability (DFM) Analysis
Before any cutting tool touches material, engineers perform a thorough DFM analysis. This process examines the 3D CAD model for potential machining challenges, such as deep cavities that are difficult to reach, thin walls that may warp, or sharp internal corners that require special tooling. For medical devices, DFM also considers sterilization compatibility—ensuring the prototype can withstand autoclaving, gamma radiation, or ethylene oxide without deformation or degradation.
Material Selection and Preparation
Choosing the correct material is arguably the most critical decision. For a medical machining prototype intended for a spinal implant, titanium alloy is often selected for its high strength-to-weight ratio and osseointegration properties. For a surgical instrument handle, a medical-grade PEEK might be chosen for its radiolucency and chemical resistance. Raw materials are sourced with certifications (such as ASTM F136 for titanium) to guarantee traceability and purity.
Multi-Axis CNC Machining
Modern medical prototypes are rarely simple 2D shapes. They often feature complex organic curves, undercuts, and threaded features that require 5-axis or even 7-axis CNC machining centers. These machines can rotate the workpiece and cutting tool simultaneously, allowing the creation of intricate geometries in a single setup. This reduces errors and eliminates the need for multiple fixtures, which is vital when producing life-saving devices where every micron counts.
Post-Processing and Finishing
After machining, prototypes undergo a series of finishing operations. This includes deburring to remove sharp edges, electropolishing to improve surface smoothness, and passivation to enhance corrosion resistance. For implantable prototypes, a final cleaning in an ISO Class 7 or better cleanroom is mandatory to remove any machining oils or particulate contamination.
Benefits of Precision Machining for Medical Prototyping
The advantages of using precision machining for medical prototypes extend far beyond simple dimensional accuracy. These benefits directly impact the speed of innovation and the safety of patients.
Uncompromised Mechanical Properties
Unlike 3D-printed parts, which can have anisotropic properties (different strength in different directions) due to layer adhesion, machined prototypes retain the full mechanical integrity of the parent material. This is essential for load-bearing devices like hip stems or bone plates, where fatigue resistance and ultimate tensile strength must match or exceed the final product.
Superior Surface Quality for Biocompatibility
A machined surface, when properly finished, can achieve a mirror-like polish that reduces the risk of bacterial colonization. This is particularly important for devices that will be implanted for extended periods. Furthermore, smooth surfaces reduce friction in moving parts, such as those found in insulin pumps or robotic surgical arms, enhancing both efficiency and lifespan.
Rapid Iteration with Production-Ready Materials
Medical device development often requires multiple design iterations. Precision machining allows engineers to test prototypes made from the exact same materials as the final production run. This means that validation testing—whether for tensile strength, fatigue life, or biocompatibility—can be performed on the prototype with confidence that the results will translate directly to the manufactured device.
Scalability from Prototype to Production
One of the most significant advantages is the seamless transition from prototype to low-volume or high-volume production. The same CNC programs and tooling used for a single prototype can often be optimized for batch runs. This reduces time-to-market and eliminates the need for costly retooling, which is critical for startups and established manufacturers alike.
Key Applications of Medical Machining Prototypes
The versatility of precision machining makes it indispensable across nearly every sector of medical technology. Below are some of the most impactful applications.
Orthopedic Implants and Instruments
Knee and hip replacements, spinal cages, and fracture fixation plates are among the most common machined prototypes. These devices must replicate the complex anatomy of bones and joints. For example, a custom total knee arthroplasty prototype requires machining a femoral component with a specific radius of curvature and a tibial tray with precise locking mechanisms. Machining allows for the creation of these features with tolerances that ensure proper alignment and load distribution.
Surgical Robotics and Instrumentation
Robotic-assisted surgery systems, such as the da Vinci platform, rely on miniature, high-precision components. Machined prototypes for these systems include end-effectors, wrist joints, and camera housings. The micron-level accuracy of CNC machining ensures that these parts move without backlash, providing surgeons with the dexterity needed for delicate procedures like prostatectomies or cardiac bypasses.
Cardiovascular Devices
Stents, heart valve frames, and catheter components are often prototyped using Swiss-style CNC machining. These devices require extremely small features—sometimes as small as 0.1 mm—and must be free of burrs that could cause thrombosis. Machining from materials like Nitinol or cobalt-chrome allows engineers to test the superelastic properties and fatigue resistance of these life-saving devices before clinical trials.
Diagnostic and Monitoring Equipment
Prototypes for MRI machines, CT scanners, and portable diagnostic devices also benefit from precision machining. Components such as sensor housings, fluidic manifolds, and optical mounts must be machined to exacting standards to ensure signal integrity and fluid flow. For instance, a microfluidic chip prototype for point-of-care blood analysis requires channels machined to depths of 10–50 microns, which is achievable only through advanced micromachining techniques.
Best Practices for Medical Machining Prototyping
To maximize the success of a medical machining prototype project, manufacturers and engineers must adhere to a set of established best practices. These guidelines ensure that the prototype not only meets design intent but also passes regulatory scrutiny.
Engage Machining Experts Early in the Design Phase
Involving precision machinists during the conceptual design stage can prevent costly redesigns later. Machinists can advise on tool access, optimal wall thicknesses, and the selection of materials that are both machinable and biocompatible. This collaborative approach often leads to faster turnaround times and lower overall development costs.
Prioritize Documentation and Traceability
Every medical prototype should be accompanied by a detailed manufacturing record, including material certifications, in-process inspection reports, and final dimensional measurements. This documentation is vital for FDA submissions and ISO audits. Using a quality management system that tracks every revision ensures that changes are controlled and validated.
Implement Rigorous Inspection Protocols
Precision machining is only as good as the measurement tools used to verify it. Best practices include using Coordinate Measuring Machines (CMMs) for dimensional verification, optical comparators for complex profiles, and surface profilometers for finish quality. For critical features, 100% inspection is recommended over statistical sampling, especially for implantable prototypes.
Validate Sterilization and Biocompatibility Early
Prototypes intended for clinical use should undergo sterilization validation as early as possible. Machining processes can leave residual stresses or micro-cracks that may become problematic after autoclaving. Testing the prototype’s response to sterilization methods (steam, EtO, or radiation) ensures that the design can survive the final packaging and hospital protocols.
Plan for Design Iterations
Medical device development is rarely linear. A best practice is to build flexibility into the prototyping schedule, allowing for at least two to three iterations. Each iteration should focus on a specific aspect—such as ergonomics, mechanical strength, or manufacturability—rather than attempting to perfect everything at once. This iterative approach, supported by precision machining, reduces risk and accelerates the path to a final, validated design.
Conclusion: The Future of Life-Saving Prototypes
Medical prototyping through precision machining stands at the intersection of engineering excellence and patient care. As medical devices become smaller, more complex, and more personalized, the demand for medical machining prototypes will only intensify. Advances in micro-machining, automation, and real-time quality monitoring are pushing the boundaries of what is possible, enabling the creation of devices that were once confined to theoretical designs. For manufacturers, clinicians, and patients alike, the ability to rapidly produce functional, biocompatible, and highly accurate prototypes is not just a technical achievement—it is a lifeline. By adhering to best practices and leveraging the inherent strengths of CNC machining, the medical industry can continue to deliver innovations that save lives, reduce recovery times, and improve the quality of human existence.
