Introduction to Large-Scale CNC Milling
In the world of modern manufacturing, precision is not limited to small components. As industries push the boundaries of engineering, the demand for massive, intricately detailed parts has surged. This is where large-scale CNC milling steps in. Unlike conventional milling machines that handle smaller workpieces, large-scale CNC milling machines are engineered to process parts that can weigh several tons and span dozens of feet in length. These behemoths of the machine shop combine computer numerical control (CNC) technology with robust structural design to achieve tolerances measured in thousandths of an inch, even on parts the size of a small car. This article provides a comprehensive exploration of large-scale CNC milling, covering its definition, operational principles, benefits, industry applications, and best practices for success.
What is Large-Scale CNC Milling?
Large-scale CNC milling refers to the automated machining process of removing material from a workpiece using rotary cutters, where the machine’s work envelope is significantly larger than standard equipment. Typically, these machines have travels exceeding 10 feet in at least one axis, with some gantry-style mills boasting 50 feet or more of X-axis movement. The process is subtractive, meaning it starts with a solid block of material—often aluminum, steel, titanium, or composite—and carves away excess to form the final shape.

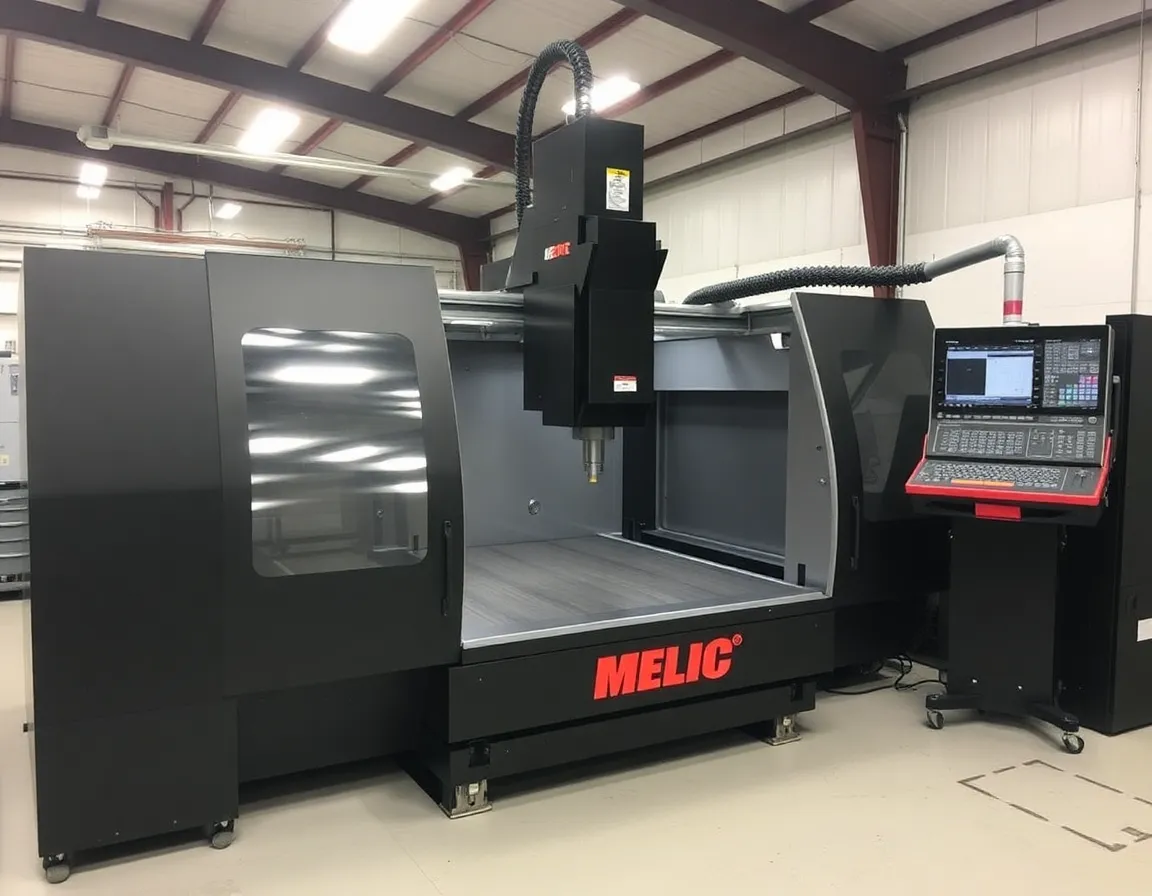

The core components of a large-scale CNC mill include a rigid frame (often a gantry or bridge design), powerful spindles capable of high torque at low RPM, and advanced control systems that manage complex toolpaths. These machines are equipped with features such as automatic tool changers (ATC), coolant systems for heat dissipation, and sometimes secondary spindles for multitasking operations. The scale of these machines demands specialized foundations, heavy-duty electrical supplies, and climate-controlled environments to maintain accuracy.
Key Differences from Standard CNC Milling
Understanding what sets large-scale milling apart is crucial. While the fundamental principles of CNC machining remain the same, the challenges multiply with size:
- Structural Rigidity: Larger machines must resist deflection under their own weight and cutting forces. Heavy cast iron or welded steel frames are essential.
- Thermal Stability: Heat from cutting and ambient temperature changes cause material expansion. Large parts require careful thermal management to avoid dimensional errors.
- Material Handling: Moving and fixturing a 10,000-pound workpiece requires cranes, specialized pallet systems, and robust vacuum or clamping fixtures.
- Chip Evacuation: Massive amounts of material are removed, necessitating powerful chip conveyors and high-volume coolant systems.
How Large-Scale CNC Milling Works
The process of large-scale CNC milling is a symphony of mechanical power and digital precision. It begins with a 3D CAD model of the part, which is converted into toolpaths using CAM (Computer-Aided Manufacturing) software. These toolpaths instruct the machine on where to move, how fast to cut, and which tool to use. The operator then sets up the workpiece, often using a combination of bolting, clamping, and vacuum fixturing to secure it against the massive cutting forces.
The actual milling operation typically involves several stages:
- Roughing: High-speed removal of bulk material using large-diameter cutters. This stage prioritizes material removal rate (MRR) over surface finish. Trochoidal milling paths are often used to reduce tool stress.
- Semi-Finishing: A lighter cut that removes the rough steps left by roughing, preparing the surface for final passes.
- Finishing: Precision passes with smaller tools and slower feed rates to achieve the final dimensions, surface finish, and tolerances (often ±0.001 inches or tighter).
- Secondary Operations: Drilling, tapping, and boring holes, often performed in the same setup to maintain datum accuracy.
Throughout the process, the CNC controller continuously monitors spindle load, torque, and vibration. Adaptive control algorithms can automatically adjust feed rates to prevent tool breakage or chatter, which is critical when machining expensive, large billets.
Benefits of Large-Scale CNC Milling
The investment in large-scale CNC milling technology yields substantial advantages for manufacturers and their clients. These benefits extend beyond simply having a bigger machine.
1. Unmatched Precision and Repeatability
Even on parts spanning 20 feet, large-scale CNC mills can hold tolerances that manual machining cannot achieve. The automated nature of CNC eliminates human error, and the rigid machine construction minimizes vibration. This repeatability means that every part produced from the same program will be identical, which is vital for industries where interchangeability is critical, such as aerospace assembly jigs.
2. Reduced Lead Times and Assembly Complexity
By machining a single large block rather than fabricating and welding multiple smaller pieces, manufacturers can drastically reduce production time. A large-scale mill can create a monolithic part that replaces an assembly of dozens of smaller components. This not only speeds up production but also eliminates potential weak points like weld joints, improving the overall strength and reliability of the final product.
3. Enhanced Material Utilization
While subtractive manufacturing inherently creates waste, advanced CAM software and simulation tools allow for optimized nesting of parts within a single billet. For expensive materials like titanium or Inconel, the ability to machine a complex shape from a near-net-shape forging reduces scrap significantly compared to traditional fabrication methods.
4. Complex Geometry Capabilities
Large-scale 5-axis CNC mills can produce undercuts, compound angles, and contoured surfaces that are impossible to achieve with manual milling or 3-axis machines. This enables engineers to design parts with optimized aerodynamics, fluid flow, or structural load paths without being constrained by manufacturing limitations.
Key Applications Across Industries
Large-scale CNC milling is a cornerstone technology in several heavy industries. Its ability to produce massive, precise parts makes it indispensable.
Aerospace and Defense
The aerospace sector is perhaps the largest driver of large-scale milling technology. Components such as wing spars, fuselage frames, bulkheads, and engine mounts are often machined from single billets of aluminum or titanium. For example, the Boeing 777X wing ribs are milled from massive aluminum plates to achieve the precise aerodynamic shape required for fuel efficiency. Defense applications include missile casings, radar arrays, and armored vehicle hulls.
Energy Sector (Oil, Gas, and Renewable)
In the energy industry, large-scale milling is used to create components for drilling rigs, turbines, and nuclear reactors. Wind turbine hubs and generator housings are often machined from ductile iron or steel castings. Oil and gas applications include valve bodies, blowout preventers, and large-diameter flanges that must withstand extreme pressures.
Automotive and Motorsports
While high-volume automotive production relies on casting and forging, prototyping and low-volume production of high-performance vehicles use large-scale CNC milling. Engine blocks for V12 and V16 engines, transmission casings, and custom chassis components are frequently machined from solid billets to ensure maximum strength and minimal weight. Motorsports teams use these machines to produce aerodynamic components and suspension parts with exacting specifications.
Industrial Machinery and Mold Making
Manufacturers of heavy machinery—such as presses, extruders, and injection molding machines—rely on large-scale milling to produce their own components. Large mold bases for automotive body panels are a classic example. These molds, often weighing tens of tons, must be machined to mirror finishes to produce flawless plastic or metal parts.
Best Practices for Large-Scale CNC Milling
Operating a large-scale CNC mill requires a disciplined approach to avoid costly mistakes. The following best practices are essential for success.
1. Precision Workholding and Fixturing
Securing a massive workpiece is the first challenge. Use modular fixturing systems with multiple clamping points to distribute forces evenly. Vacuum tables are effective for non-ferrous materials, while magnetic chucks work for steel. Always verify that the part is free of internal stresses before final clamping, as residual stress from the raw material can cause distortion when material is removed.
2. Toolpath Optimization and Simulation
Never run a program on a large machine without first simulating it offline. Collisions between the spindle, tool, and workpiece can cause catastrophic damage. Use CAM software with full machine simulation to check for collisions and optimize toolpaths for chip thinning and constant engagement. For roughing, use high-feed cutters to maximize material removal while minimizing cutting forces.
3. Thermal Management and In-Process Inspection
Temperature control is critical. Machine the part in a climate-controlled environment if possible. Allow the workpiece to reach thermal equilibrium before taking final finishing passes. Use probing cycles to measure critical features during the machining process. If the part has moved due to thermal expansion or stress relief, the program can be adjusted in real-time to compensate.
4. Regular Machine Maintenance
Large-scale mills are significant capital investments. Implement a strict preventive maintenance schedule. Check spindle runout, ball screw backlash, and guideway lubrication daily. Calibrate the machine’s geometry using laser interferometers or ballbars at regular intervals. A machine that is out of alignment by 0.001 inch at the spindle can produce a part that is out of tolerance by 0.010 inch at the far end of a long table.
5. Skilled Operator Training
Even with advanced automation, the human element remains vital. Operators must understand G-code, tool selection, and troubleshooting. Invest in continuous training on the specific machine control and CAM software. An experienced operator can hear or feel the onset of chatter and adjust parameters before damage occurs, saving thousands of dollars in scrapped material.
Conclusion
Large-scale CNC milling represents the pinnacle of precision manufacturing for massive components. By combining immense structural rigidity with sophisticated computer control, these machines enable industries to create parts that were once impossible to manufacture. From the wing of an airliner to the hub of a wind turbine, the technology drives innovation in aerospace, energy, automotive, and beyond. While the challenges of thermal management, workholding, and toolpath optimization are significant, adherence to best practices ensures that manufacturers can deliver parts with exceptional accuracy and repeatability. As material science and machining technology continue to evolve, large-scale CNC milling will remain a critical enabler of the world’s largest and most demanding engineering projects.
