Introduction: The Art and Science of CNC Milling Aluminum
CNC milling aluminum has become a cornerstone of modern manufacturing, bridging the gap between rapid prototyping and high-volume production. Whether you are a seasoned machinist or a product designer exploring subtractive manufacturing, understanding the nuances of machining this versatile metal is essential for achieving tight tolerances, superior surface finishes, and cost-effective parts. Aluminum’s unique combination of low density, high strength-to-weight ratio, excellent thermal conductivity, and machinability makes it the material of choice for industries ranging from aerospace to consumer electronics. However, despite its reputation as an “easy” metal to cut, successful CNC milling of aluminum requires a deep understanding of tooling, speeds and feeds, workholding, and chip management. This comprehensive guide will walk you through the critical techniques and best practices to produce perfect aluminum parts every time.
What is CNC Milling Aluminum?

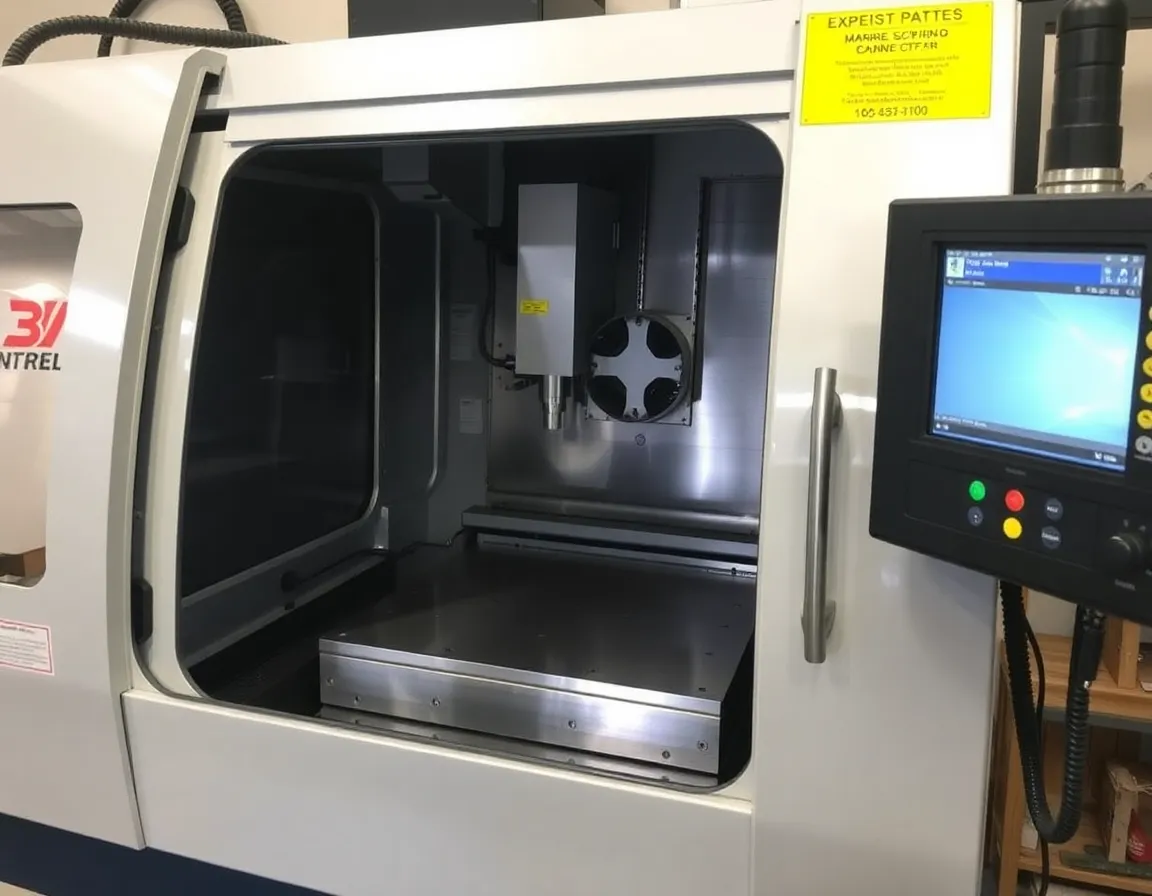

CNC milling aluminum refers to the subtractive manufacturing process where computer numerical control (CNC) machines remove material from a solid block of aluminum using rotating cutting tools. Unlike 3D printing, which builds layers, milling carves away unwanted material to create precise geometries. The process is guided by a digital design file—typically a CAD model converted into G-code—that dictates every movement of the spindle, the tool path, and the depth of cut. Aluminum is particularly well-suited for this process because it is softer than steel, allowing for faster cutting speeds, but it also presents unique challenges such as chip welding, built-up edge, and heat dissipation.
Key Aluminum Alloys for CNC Milling
Not all aluminum is created equal. The alloy you choose directly impacts machinability, final strength, and surface quality. Common alloys include:
- 6061-T6: The most popular general-purpose alloy. Excellent machinability, good corrosion resistance, and moderate strength. Ideal for structural parts, brackets, and enclosures.
- 7075-T6: A high-strength alloy comparable to some steels. More difficult to machine due to hardness, but perfect for aerospace and high-stress components.
- 2024-T4: Known for high fatigue resistance. Commonly used in aircraft structures but prone to stress corrosion cracking.
- 5052-H32: Excellent for forming and welding. Often used for sheet metal parts and marine applications.
- MIC-6: A cast aluminum tooling plate with stress-relieved properties, ideal for vacuum chucks and precision fixtures.
For most CNC milling projects, 6061-T6 offers the best balance of cost, machinability, and mechanical properties. Beginners should start with this alloy before experimenting with more exotic variants.
How CNC Milling Aluminum Works: The Process Breakdown
Understanding the step-by-step workflow of CNC milling aluminum helps demystify the technology and empowers you to troubleshoot issues effectively. The process can be divided into five core stages:
1. Design and CAM Programming
Everything begins with a 3D CAD model. Once the part geometry is finalized, the file is imported into CAM (Computer-Aided Manufacturing) software. Here, the programmer defines toolpaths, selects appropriate cutting tools, and sets parameters such as spindle speed, feed rate, depth of cut, and stepover. For aluminum, CAM strategies often include adaptive clearing (trochoidal milling) to maintain constant chip load and reduce heat buildup. The output is a G-code file that the CNC machine reads.
2. Workholding and Fixturing
Aluminum parts can be delicate, and vibration is a common enemy of precision. Proper workholding is critical. Options include:
- Vises: Standard for rectangular stock. Use soft jaws or machined aluminum jaws to prevent marring.
- Vacuum Chucks: Ideal for thin-walled or large flat parts. Ensure the surface is sealed to maintain vacuum.
- Double-Sided Tape: For small, low-torque operations on flat stock.
- Custom Fixtures: For complex geometries, 3D-printed or machined fixtures provide repeatable clamping.
A common mistake is over-tightening vises, which can distort thin aluminum walls. Use the minimum clamping force necessary to hold the part securely.
3. Tool Selection and Geometry
Choosing the right end mill is arguably the most important decision in aluminum milling. Key factors include:
- Flute Count: 2-flute or 3-flute end mills are preferred for aluminum. Fewer flutes create larger chip valleys, improving chip evacuation. 4-flute tools are prone to clogging in aluminum.
- Helix Angle: A high helix angle (35°-45°) reduces cutting forces and shears the material cleanly, resulting in better surface finish.
- Coating: Uncoated carbide or tools with ZrN (Zirconium Nitride) or DLC (Diamond-Like Carbon) coatings reduce friction and prevent aluminum from welding to the cutter.
- Corner Radius: Use tools with a small corner radius (0.5mm-1mm) to distribute cutting forces and reduce chipping on sharp corners.
Avoid high-speed steel (HSS) tools for production work; solid carbide end mills offer superior rigidity and wear resistance.
4. Speeds, Feeds, and Depth of Cut
Aluminum’s high thermal conductivity allows for aggressive cutting parameters, but there are limits. Recommended starting points for 6061-T6 with a 6mm (1/4”) 2-flute carbide end mill:
- Spindle Speed: 10,000 – 18,000 RPM (depending on machine rigidity).
- Feed Rate: 0.05 – 0.15 mm/tooth (0.002 – 0.006 in/tooth).
- Axial Depth of Cut (Ap): Up to 1x tool diameter for roughing; 0.1x to 0.5x for finishing.
- Radial Depth of Cut (Ae): 40-60% of tool diameter for roughing; 5-10% for finishing.
Critical note: Always use coolant or mist lubrication when milling aluminum. Without coolant, chips can weld to the tool, causing catastrophic failure. For hobbyist machines without flood coolant, a mist system or even compressed air with a light oil spray works effectively.
5. Toolpath Strategies for Aluminum
CAM software offers multiple toolpath strategies optimized for aluminum:
- Adaptive Clearing: Maintains a constant chip load by using a radial engagement angle. This prevents tool overload and reduces heat.
- Trochoidal Milling: A circular toolpath that enters and exits material smoothly, ideal for deep slots and narrow pockets.
- High-Speed Machining (HSM): Uses light radial depths and high feed rates to remove material quickly while reducing tool stress.
- Conventional vs. Climb Milling: Always use climb milling (cutter rotates in the same direction as feed) for aluminum. It produces a better finish and reduces work hardening.
Benefits of CNC Milling Aluminum
The popularity of CNC milling aluminum is not accidental. The process offers a unique set of advantages that make it indispensable for modern manufacturing:
Unmatched Precision and Repeatability
CNC machines can hold tolerances of ±0.005mm (0.0002 inches) or better on aluminum parts. This level of precision is essential for mating components in engines, robotics, and medical devices. Once a program is proven, every subsequent part will be identical within microns.
Excellent Surface Finish
With proper tooling and parameters, CNC milling can achieve surface finishes as low as 0.4 µm Ra (16 microinches). This often eliminates the need for secondary polishing or grinding, saving time and cost. Aluminum’s natural oxide layer also provides a clean, aesthetically pleasing appearance.
Fast Material Removal Rates
Compared to steel or titanium, aluminum allows for significantly higher spindle speeds and feed rates. A typical CNC machine can remove 50-100 cubic centimeters of aluminum per minute during roughing, making it one of the fastest materials to machine.
Lightweight Yet Strong Parts
Aluminum’s density (2.7 g/cm³) is one-third that of steel, yet alloys like 7075-T6 have tensile strengths exceeding 570 MPa. This makes it ideal for weight-sensitive applications such as drone frames, automotive components, and aerospace brackets.
Design Flexibility
CNC milling can produce complex geometries that are impossible with casting or forming. Undercuts, internal threads, thin walls, and intricate 3D contours are all achievable with multi-axis machines. Additionally, design changes can be implemented instantly by editing the CAD file.
Common Applications of CNC Milled Aluminum Parts
The versatility of CNC milling aluminum means it is used across virtually every industry that requires precision metal components:
- Aerospace: Structural brackets, wing ribs, landing gear components, and interior fittings. 7075 and 2024 alloys are prevalent here.
- Automotive: Engine blocks (racing), transmission housings, suspension components, and custom intake manifolds.
- Electronics: Heat sinks, enclosures for smartphones and laptops, camera housings, and connectors. 6061 is favored for its thermal conductivity.
- Medical: Surgical instrument handles, prosthetic components, and diagnostic equipment frames.
- Robotics: Lightweight arms, grippers, and chassis plates that require high rigidity.
- Consumer Products: Bicycle components, high-end flashlights, watch cases, and kitchen gadgets.
Best Practices for Perfect CNC Milled Aluminum Parts
Achieving consistent, high-quality results requires more than just pressing “Start.” Follow these professional best practices to avoid common pitfalls:
1. Master Chip Evacuation
Aluminum chips are long, stringy, and sharp. If not evacuated properly, they can recut, mar the surface, and clog flutes. Use compressed air or a high-pressure coolant system directed at the cutting zone. For deep pockets, peck milling cycles help break chips.
2. Prevent Built-Up Edge (BUE)
BUE occurs when aluminum welds to the cutting edge due to high temperatures and friction. Signs include poor surface finish and increased cutting forces. Solutions: increase spindle speed, use coated tools, and ensure adequate coolant flow. A light mist of WD-40 can also act as a lubricant for small jobs.
3. Control Heat Generation
While aluminum conducts heat well, excessive heat can cause thermal expansion, leading to dimensional errors. Use interrupted cuts (such as adaptive toolpaths) to allow the tool to cool between engagements. Avoid dwell times where the tool spins in one spot.
4. Minimize Vibration and Chatter
Chatter ruins surface finish and can break end mills. To reduce it:
- Use the shortest possible tool stickout from the collet.
- Secure the workpiece with multiple clamps or a vice.
- Reduce radial depth of cut (stepover) if chatter persists.
- Consider using a variable helix end mill to disrupt harmonic vibrations.
5. Finish Pass Strategy
For the best surface finish, leave 0.2-0.5 mm (0.008-0.020 inches) of stock for a final finish pass. Use a sharp, new end mill for finishing. Run the finish pass at high spindle speed, low radial engagement (5-10%), and moderate feed rate. A climb milling approach is mandatory.
6. Deburring and Post-Processing
Even with perfect milling, sharp edges remain. Use a deburring tool, file, or abrasive brush to remove burrs. For cosmetic parts, consider vibratory tumbling or bead blasting to achieve a uniform matte finish. Anodizing is a popular post-process that adds wear resistance and color.
Conclusion: Elevate Your Aluminum Milling
CNC milling aluminum is a rewarding discipline that combines engineering precision with practical craftsmanship. By understanding the properties of different alloys, selecting the right tools, optimizing speeds and feeds, and adhering to best practices for chip management and heat control, you can consistently produce parts that meet the highest standards of quality. Whether you are prototyping a new product in your garage or running a production line in a factory, the principles outlined in this guide will help you avoid costly mistakes and achieve the perfect finish every time. Remember: successful machining is not about luck—it is about knowledge, preparation, and continuous refinement. Start with a solid design, invest in quality tooling, and always prioritize safety. Your aluminum parts will thank you.
