Introduction to Precision Custom Stainless Steel Parts
In the modern industrial landscape, the demand for components that offer both durability and exacting specifications has never been higher. Precision custom stainless steel parts represent the intersection of material science and advanced manufacturing, providing tailored solutions for industries ranging from aerospace to medical devices. Unlike off-the-shelf components, custom parts are engineered to meet unique dimensional tolerances, mechanical properties, and surface finishes that standard products cannot achieve. This guide will walk you through every critical aspect of custom stainless steel parts, from material selection to production methods, ensuring you have the knowledge to make informed decisions for your projects.
Understanding Custom Stainless Steel Parts
What Are Custom Stainless Steel Parts?

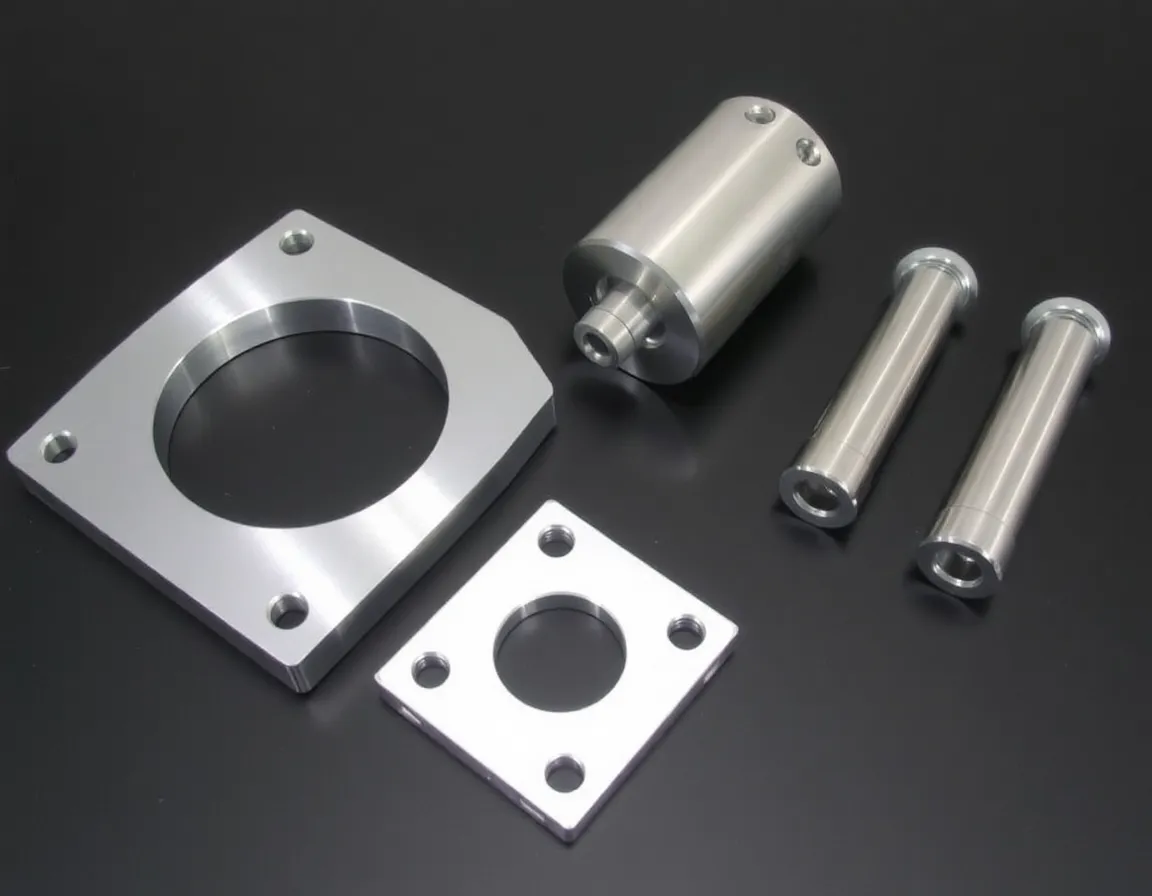

Custom stainless steel parts are components specifically designed and manufactured to meet a client’s unique requirements. These parts are not mass-produced; instead, they are fabricated using precise engineering drawings, CAD models, or sample specifications. The defining characteristic is dimensional accuracy, often measured in microns, and the ability to withstand harsh environments due to stainless steel’s inherent corrosion resistance. Common examples include custom flanges, brackets, shafts, enclosures, and surgical instruments.
Key Properties of Stainless Steel for Custom Parts
Stainless steel is an alloy of iron with a minimum of 10.5% chromium, which forms a passive layer of chromium oxide that prevents rust. For custom parts, the most relevant grades include:
- 304 Stainless Steel: The most common grade, offering excellent corrosion resistance and formability. Ideal for food processing and architectural applications.
- 316 Stainless Steel: Contains molybdenum, providing superior resistance to chlorides and acids. Used in marine and chemical environments.
- 17-4 PH Stainless Steel: A precipitation-hardening alloy that achieves high strength through heat treatment. Common in aerospace and valve components.
- 430 Stainless Steel: A ferritic grade with good corrosion resistance but lower tensile strength, often used for decorative trim.
Selecting the right grade is crucial, as it directly impacts the part’s lifespan, machinability, and cost.
The Manufacturing Process for Custom Stainless Steel Parts
Design and Engineering Phase
Every custom part begins with a detailed design. Engineers use Computer-Aided Design (CAD) software to create a 3D model that includes all dimensions, tolerances, and surface finishes. During this phase, factors like load-bearing requirements, thermal expansion, and assembly interfaces are analyzed. For complex geometries, Finite Element Analysis (FEA) is employed to simulate stress points and optimize the design before any material is cut.
Primary Manufacturing Methods
The choice of manufacturing method depends on part complexity, volume, and required tolerances. The most common techniques include:
- CNC Machining: Computer Numerical Control (CNC) milling, turning, and drilling are used for high-precision parts. This method achieves tolerances as tight as ±0.005 mm and is ideal for low to medium volumes.
- Laser Cutting: Ideal for flat parts like gaskets, brackets, and panels. Laser cutting offers a clean edge with minimal heat-affected zone, reducing the need for secondary finishing.
- Waterjet Cutting: Uses high-pressure water mixed with abrasive particles to cut stainless steel without heat. This prevents material distortion and is excellent for thick plates (up to 150 mm).
- Investment Casting: For complex shapes that require minimal machining. A wax pattern is coated with ceramic, then melted away to leave a mold. This method is cost-effective for medium to high volumes.
- Additive Manufacturing (3D Printing): Direct Metal Laser Sintering (DMLS) builds parts layer by layer from stainless steel powder. It enables organic geometries and internal channels impossible with traditional methods.
Post-Processing and Finishing
After the primary manufacturing, parts often undergo post-processing to enhance performance and aesthetics:
- Passivation: A chemical treatment that removes free iron from the surface, restoring the chromium oxide layer and maximizing corrosion resistance.
- Electropolishing: An electrochemical process that smooths surfaces at a microscopic level, reducing friction and improving cleanability. This is critical for pharmaceutical and food-grade parts.
- Heat Treatment: Applied to precipitation-hardening grades like 17-4 PH to achieve specific hardness levels (e.g., H900 or H1150 conditions).
- Coating: While stainless steel is naturally corrosion-resistant, some applications require additional coatings like PTFE (Teflon) for non-stick properties or black oxide for light absorption.
Benefits of Using Precision Custom Stainless Steel Parts
Unmatched Durability and Longevity
Stainless steel parts resist rust, pitting, and oxidation even in aggressive environments such as saltwater or chemical processing plants. This longevity reduces replacement costs and downtime. For example, a custom 316L stainless steel valve in a desalination plant can last over 20 years, whereas carbon steel would fail in months.
Exact Fit and Function
Custom parts are engineered to fit your specific assembly without modifications. This eliminates the need for shims, adapters, or rework. In industries like robotics or semiconductor manufacturing, where tolerances are measured in micrometers, a custom part ensures proper alignment and repeatable performance.
Enhanced Performance Through Material Optimization
By selecting the precise grade and heat treatment, you can tailor properties such as tensile strength (from 500 MPa to over 1,400 MPa), hardness, and magnetic permeability. For instance, a custom surgical tool made from 17-4 PH stainless steel can be hardened to resist wear while remaining non-magnetic for MRI compatibility.
Cost Efficiency in the Long Run
While the initial cost of custom parts is higher than off-the-shelf alternatives, the total cost of ownership is often lower. Reduced maintenance, fewer replacements, and improved operational efficiency offset the upfront investment. Additionally, custom parts can be designed for manufacturability, reducing waste during production.
Common Applications Across Industries
Aerospace and Defense
Precision stainless steel parts are critical for aircraft engines, landing gear, and hydraulic systems. Components like custom fuel nozzles and actuator housings must withstand extreme temperatures and pressures while maintaining tight weight constraints. The use of 15-5 PH stainless steel is common for its high strength-to-weight ratio.
Medical and Pharmaceutical
In medical devices, biocompatibility is paramount. Custom stainless steel parts are used in surgical instruments, implantable devices (e.g., bone screws), and diagnostic equipment. Electropolishing ensures a smooth surface that resists bacterial adhesion, meeting FDA and ISO 13485 standards.
Food and Beverage Processing
Hygiene is non-negotiable in food processing. Custom parts like conveyor sprockets, mixing blades, and tank fittings are made from 304 or 316L stainless steel. These parts are designed with no crevices or dead zones where bacteria could grow, and they can withstand frequent cleaning with caustic chemicals.
Oil and Gas
Downhole tools, pipeline fittings, and valve components require resistance to hydrogen sulfide (H2S) and high-pressure environments. Custom parts made from duplex stainless steel (e.g., 2205) offer twice the yield strength of 316L while resisting stress corrosion cracking.
Best Practices for Ordering Custom Stainless Steel Parts
Provide Complete Specifications
When requesting a quote, include detailed engineering drawings or 3D CAD files. Specify the stainless steel grade, required tolerances (e.g., ISO 2768-m), surface finish (Ra value), and any testing requirements (e.g., dye penetrant inspection). The more information you provide, the fewer errors and revisions you will face.
Choose the Right Manufacturing Partner
Look for a supplier with ISO 9001 certification and experience in your industry. Ask about their capabilities for both prototyping and production runs. A good partner will offer Design for Manufacturing (DFM) feedback, suggesting minor design changes that reduce cost without compromising function.
Consider Lead Times and Minimum Order Quantities
Custom parts often have longer lead times than standard components. For CNC machining, expect 2-4 weeks for prototyping and 4-8 weeks for production. Laser cutting and waterjet can be faster. Be aware that some processes, like investment casting, have high tooling costs that require minimum order quantities (typically 100–500 pieces).
Request Samples and First Article Inspection
Before approving full production, request a sample or a First Article Inspection (FAI) report. This document verifies that the part meets all dimensional and material requirements. For critical applications, request a Certificate of Conformance and material test reports (MTRs) to trace the stainless steel back to its mill.
Conclusion: The Value of Precision in Custom Fabrication
Precision custom stainless steel parts are not merely components; they are engineered solutions that solve specific challenges in demanding environments. By understanding the material properties, manufacturing processes, and application requirements, you can leverage stainless steel’s unique advantages to improve product reliability, reduce maintenance, and achieve better overall performance. Whether you are designing a new medical device or upgrading an industrial system, investing in well-made custom parts is a decision that pays dividends in safety, efficiency, and longevity. Remember to collaborate closely with your manufacturer, provide clear specifications, and prioritize quality over initial cost. With the right approach, your custom stainless steel parts will deliver exceptional value for years to come.
