Introduction: The Precision Behind Modern Manufacturing
In the world of modern manufacturing, the demand for components that are both highly durable and exceptionally accurate has never been greater. From the intricate valves in a medical ventilator to the critical gears in an aerospace actuator, the reliability of complex machinery often hinges on tiny, unassuming parts. Among the most vital manufacturing processes for creating these components is CNC turning, a subtractive machining method that produces turned metal parts. These parts are characterized by their symmetrical, cylindrical shape, created by rotating a metal workpiece while a stationary cutting tool removes material. While the concept is simple, the execution is a high-precision science. This article explores the five key benefits of using precision turned metal parts, examining why they are indispensable across industries ranging from automotive to electronics, and offering insights into best practices for their application.

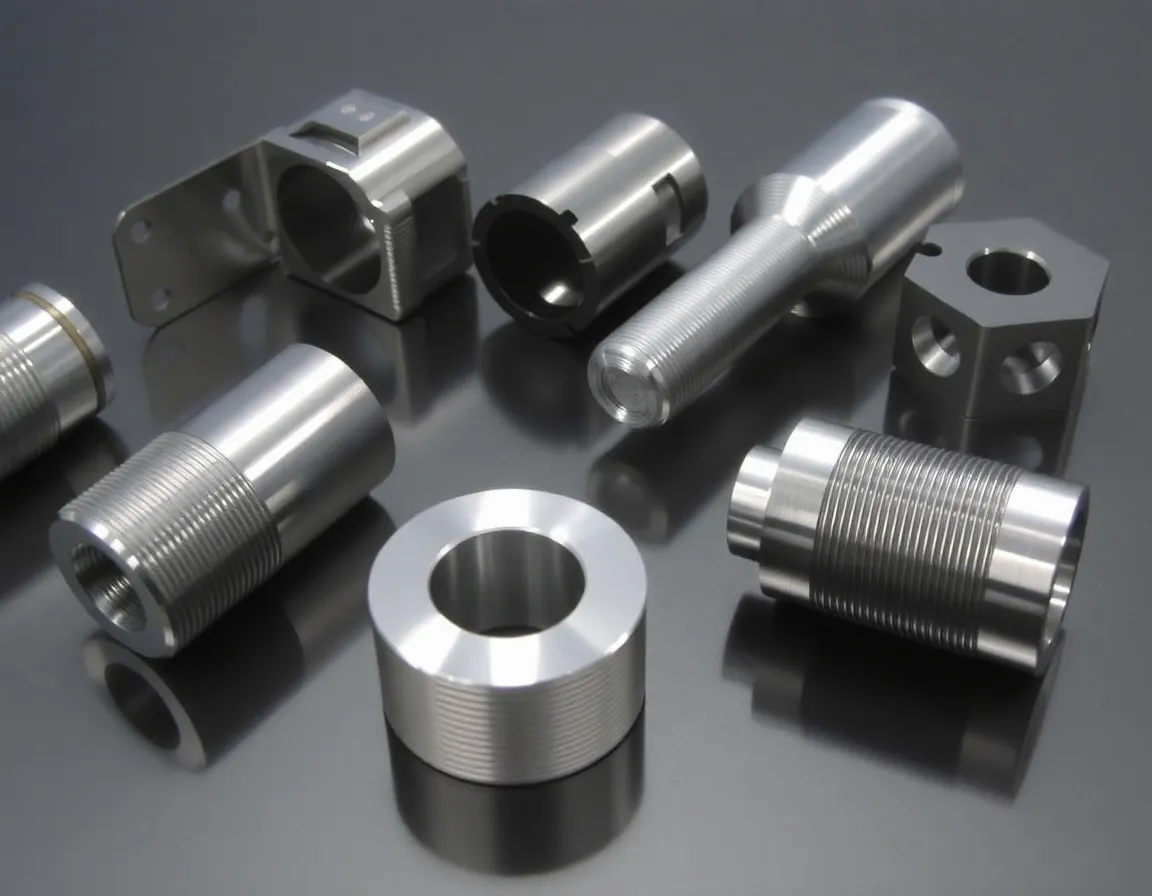

Understanding Turned Metal Parts and the Turning Process
Before diving into the benefits, it is essential to understand what defines a turned metal part and how it is made. The process typically occurs on a CNC (Computer Numerical Control) lathe. A bar of metal—such as stainless steel, aluminum, brass, or titanium—is held in a chuck and rotated at high speed. As the material spins, a cutting tool moves linearly along the axis of rotation, shaving off material to create the desired shape. This can produce features like diameters, grooves, threads, tapers, and chamfers with remarkable repeatability.
Modern CNC turning centers can perform complex operations, including live tooling (where the cutting tool itself rotates) to create off-center holes or flats, and multi-axis machining for intricate geometries. The result is a component that meets tight tolerances—often within a few microns—without requiring secondary finishing operations. This foundational understanding sets the stage for appreciating the specific advantages these parts bring to engineering and production.
Benefit 1: Unmatched Dimensional Accuracy and Consistency
The most significant advantage of precision turned metal parts is their ability to achieve and maintain extremely tight tolerances. In industries like aerospace and medical devices, a deviation of even 0.001 inches can lead to functional failure or safety hazards. CNC turning excels here because it is a computer-controlled process that eliminates human error in the cutting path.
How Consistency is Achieved
Once a CNC program is verified, every subsequent part is an exact replica of the first. The machine’s rigid construction, combined with high-quality tooling and precise spindle bearings, ensures that the cutting forces are applied uniformly. This is particularly critical for high-volume production runs. For example, a manufacturer producing 10,000 identical bushings for an automotive transmission can rely on the fact that the 10,000th part will fit just as perfectly as the first. This consistency reduces assembly line downtime caused by parts that do not fit, and it minimizes the need for costly inspection and rework.
Impact on Quality Control
With precision turned components, statistical process control (SPC) becomes highly effective. Manufacturers can sample parts at intervals with confidence that the process is stable. This level of accuracy also enables the creation of parts that are interchangeable—a cornerstone of modern modular design. Engineers can specify a turned pin or sleeve knowing that any supplier using a certified CNC turning process will deliver parts that meet the exact specifications.
Benefit 2: Superior Surface Finish and Material Integrity
Beyond dimensional accuracy, turned metal parts offer exceptional surface finishes directly from the machine. The turning process naturally produces a smooth, uniform surface because the cutting tool continuously shears the material in a controlled manner. This is a significant advantage over other processes like casting or 3D printing, which often require extensive post-processing to achieve a similar finish.
The Role of Cutting Parameters
The surface quality of a turned part is influenced by factors such as spindle speed, feed rate, and tool nose radius. A skilled programmer can optimize these parameters to achieve a surface roughness (Ra) as low as 0.4 microns or better. This eliminates the need for grinding or polishing in many applications. For instance, a hydraulic piston made from turned steel requires a mirror-like finish to ensure a proper seal and prevent fluid leakage. The turning process can deliver this finish in a single operation, reducing lead times and costs.
Material Benefits
Because turning is a subtractive process, it preserves the original material properties of the metal. Unlike casting, which can introduce porosity or inconsistencies in the grain structure, or welding, which can create heat-affected zones, turned parts retain the strength and hardness of the raw stock. This is crucial for components that must withstand high stress, such as shafts, axles, and fasteners. The material integrity is further enhanced by the fact that the cutting action work-hardens the surface, increasing wear resistance.
Benefit 3: Cost-Effectiveness for Complex Geometries
Contrary to popular belief, precision turning is often more cost-effective than other manufacturing methods, especially for parts with complex cylindrical features. While the initial setup of a CNC lathe requires programming and tooling investment, the per-part cost drops dramatically with volume. This makes turned parts an economical choice for both prototyping and mass production.
Reduced Secondary Operations
One of the primary drivers of cost savings is the reduction of secondary operations. A modern Swiss-type lathe or multi-axis turning center can perform drilling, milling, threading, and knurling in a single setup. This eliminates the need to move the part between different machines, reducing labor, handling time, and the risk of errors. For example, a complex fitting for a fuel system might require a turned body, cross-drilled holes, and an internal thread. In a single turning operation, all these features can be completed, whereas a traditional approach might require three separate machines.
Material Efficiency
Turning also offers material efficiency, particularly when using bar-fed machines. The process uses a continuous bar of metal, and the machine cuts off the finished part, leaving only a small remnant. Advanced programming can nest parts to minimize waste. While turning is subtractive and does produce chips, these chips are easily recycled. For expensive materials like titanium or Inconel, the ability to minimize scrap is a significant cost advantage over processes like machining from a solid block, which might waste 80% of the material.
Benefit 4: Versatility Across Materials and Applications
Precision turned metal parts are not limited to a single type of metal. The process is incredibly versatile and can handle a wide range of materials, each offering unique properties for specific applications. This flexibility makes turning a go-to solution for engineers across diverse sectors.
Common Materials for Turned Parts
- Stainless Steel (304, 316): Excellent corrosion resistance, used in medical instruments, food processing equipment, and marine hardware.
- Aluminum (6061, 7075): Lightweight and machinable, ideal for aerospace brackets, electronic enclosures, and automotive components.
- Brass and Bronze: High machinability and low friction, perfect for valves, fittings, and electrical connectors.
- Carbon Steel (1018, 12L14): Strong and economical, used for shafts, pins, and structural fasteners.
- Titanium and Exotic Alloys: High strength-to-weight ratio and biocompatibility, essential for aerospace structural parts and surgical implants.
Industry Applications
The versatility of turned parts is reflected in their widespread use. In the automotive industry, they are found in fuel injectors, brake system components, and transmission shafts. In medical technology, precision turning creates bone screws, dental implants, and surgical tool handles. The electronics industry relies on turned contacts, connectors, and heat sinks. Even the oil and gas sector uses turned parts for downhole tools and valve stems. This broad applicability highlights the process’s ability to adapt to varying requirements for strength, conductivity, corrosion resistance, and biocompatibility.
Benefit 5: Scalability and Rapid Prototyping Capabilities
The final key benefit of precision turned metal parts is the process’s scalability. From a single prototype to millions of units, CNC turning can accommodate any production volume without sacrificing quality or lead time. This flexibility is crucial in today’s fast-paced market, where time-to-market can determine a product’s success.
From Prototype to Production
For rapid prototyping, CNC turning is unmatched. A designer can create a CAD model, generate toolpaths, and have a physical part in hand within hours. This allows for quick design iterations and functional testing. Because the same machine can be used for both prototypes and production, the transition to full-scale manufacturing is seamless. There is no need to requalify a different process or supplier. This continuity reduces risk and accelerates the development cycle.
High-Volume Efficiency
For high-volume production, turning centers can be equipped with bar feeders and automated part catchers to run unattended for extended periods. Lights-out manufacturing—running machines overnight without human intervention—is common in turning shops. This maximizes machine utilization and lowers the per-part cost. Additionally, the repeatability of the process means that quality remains consistent even at high speeds. For industries like consumer electronics, where millions of tiny turned pins or connectors are needed, this scalability is essential for meeting global demand.
Best Practices for Designing and Specifying Turned Parts
To fully leverage the benefits of precision turned metal parts, engineers and buyers should follow certain best practices during the design and specification phase. These guidelines help ensure manufacturability, reduce costs, and optimize performance.
Design for Manufacturability (DFM)
- Avoid sharp internal corners: Turning tools create a radius at the bottom of a groove or shoulder. Specify a fillet radius that matches standard tooling to avoid custom-ground tools.
- Minimize deep, small-diameter holes: Deep holes require specialized drilling and can increase cycle time. Keep hole depth-to-diameter ratios under 4:1 when possible.
- Consider part symmetry: Parts that are symmetrical around the axis of rotation are easier and faster to turn. Asymmetrical features may require live tooling or multiple setups.
- Specify tolerances realistically: The tighter the tolerance, the higher the cost. Only apply critical tolerances to functional surfaces. Use general tolerances (e.g., ±0.005”) for non-critical features.
Material Selection and Finishing
Choose a material that balances performance with machinability. Free-machining steels (like 12L14) are easier to cut and produce better finishes, while stainless steel offers superior corrosion resistance. Also, consider whether the part requires additional surface treatments such as passivation, anodizing, or plating. These processes can enhance corrosion resistance or appearance but should be accounted for in the part’s final dimensions (e.g., adding 0.0005” for plating buildup).
Communication with the Manufacturer
Provide a clear, detailed drawing or 3D model with all critical dimensions, tolerances, and surface finish requirements. Discuss the intended application with the turning shop—this allows them to recommend the best tooling, speeds, and feeds. For high-volume runs, inquire about the possibility of using Swiss-type turning for long, slender parts, or multi-spindle machines for complex parts with multiple operations.
Conclusion: The Indispensable Role of Precision Turning
Precision turned metal parts are far more than simple cylinders; they are the result of a sophisticated, highly controlled manufacturing process that delivers unmatched accuracy, surface quality, and cost efficiency. The five key benefits discussed—dimensional consistency, superior finishes, cost-effectiveness, material versatility, and scalability—demonstrate why this technology remains a cornerstone of modern industry. Whether you are designing a critical component for a life-saving medical device or a high-volume connector for a consumer product, understanding the capabilities of CNC turning empowers you to make better engineering decisions. By adhering to best practices in design and material selection, you can harness the full potential of turned parts to create products that are reliable, durable, and economically viable. In a world that demands precision, turned metal parts deliver exactly what is required.
