Introduction: The Unsung Heroes of Modern Manufacturing
In the vast ecosystem of modern manufacturing, certain components are often overlooked despite their critical importance. Simple turned parts fall into this category. These cylindrical, precision-machined components are the backbone of countless products, from the engine in your car to the surgical instruments in a hospital. While the term "simple" might suggest a lack of sophistication, the reality is that their design, production, and application require a profound understanding of material science, geometry, and process control. This article delves deep into the world of simple turned parts, exploring their definition, the precision engineering behind them, their diverse benefits, real-world applications, and the best practices that ensure their quality.
What Are Simple Turned Parts? Defining the Core
At its most basic, a simple turned part is a component manufactured on a lathe or CNC (Computer Numerical Control) turning machine. The process involves rotating a workpiece—typically metal, plastic, or wood—while a cutting tool moves linearly to remove material. The result is a part with a symmetrical, axisymmetric shape. "Simple" in this context refers to the part's geometry: it usually has a single diameter, a straightforward profile, and minimal features like grooves, threads, or chamfers. However, don't let the term fool you. The precision required for these parts can be extraordinarily high, often measured in microns.

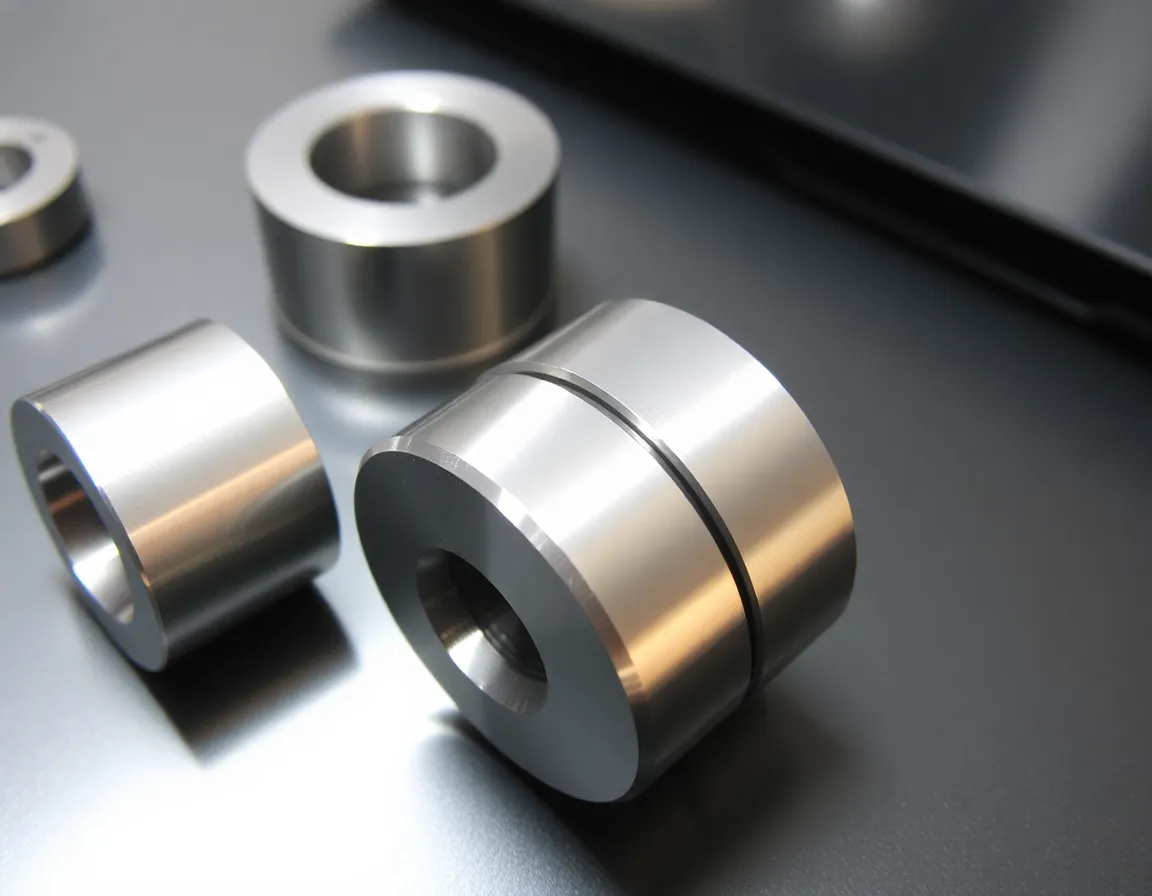

Common examples of simple turned parts include shafts, pins, bushings, sleeves, spacers, and dowels. They are characterized by their cylindrical form, concentricity, and consistent finish. Unlike complex turned parts that might have multiple diameters, eccentric features, or intricate contours, simple turned parts are defined by their efficiency in design and production. They are the "workhorses" of the assembly line, providing function without unnecessary complexity.
The Distinction Between Simple and Complex Turned Parts
Understanding the line between simple and complex is crucial for engineers and procurement specialists. Simple turned parts typically have the following characteristics:
- Uniform or single-step diameter: The part’s outer and inner diameters are constant, or change in a single, simple step.
- Basic features: They may include a chamfer, a thread, or a single groove, but not multiple or intersecting features.
- Symmetry: The part is perfectly symmetrical around its rotational axis.
- High volume potential: Their simplicity makes them ideal for mass production, often using automated bar feeders.
In contrast, complex turned parts might have multiple diameters, tapers, eccentric holes, or complex thread profiles. While both require precision, the "simple" variant is optimized for speed, cost-effectiveness, and repeatability.
How It Works: The Precision Machining Process
The creation of a simple turned part is a symphony of mechanical engineering and computational control. The process begins with selecting the right raw material—often a cylindrical bar stock of steel, aluminum, brass, stainless steel, or engineering plastics like Delrin or Nylon. The entire journey from raw stock to finished part can be broken down into distinct stages.
Stage 1: Material Selection and Preparation
Material choice dictates everything from machinability to final part strength. For instance, 303 stainless steel is favored for its corrosion resistance and ease of machining, while 12L14 steel is prized for high-speed production. The raw material is typically supplied in long bars, which are fed into the turning machine. Proper material preparation ensures consistent cutting forces and surface finishes.
Stage 2: CNC Turning Operations
The heart of the process is the CNC lathe. The bar stock is held securely in a chuck and rotated at high speeds—often thousands of RPMs. The cutting tool, mounted on a tool post, then moves along the X and Z axes to remove material. For simple parts, the tool path is straightforward: it may travel along the length of the part to create a diameter, then move to face the end, and finally create a chamfer. Modern CNC machines use G-code to control these movements with micron-level accuracy. The process can be broken into several operations:
- Facing: Creating a flat, square end on the part.
- Turning: Reducing the diameter to the specified dimension.
- Grooving: Cutting a recess for an O-ring or snap ring.
- Threading: Creating internal or external threads.
- Parting Off: Cutting the finished part from the remaining bar stock.
For simple turned parts, the entire cycle time can be measured in seconds, making them incredibly efficient to produce.
Stage 3: Inspection and Quality Assurance
Precision is not achieved by accident. After machining, each part (or a statistical sample) undergoes rigorous inspection. Key measurements include outer diameter (OD), inner diameter (ID), length, concentricity, and surface roughness. Tools like micrometers, calipers, and profilometers are used. For high-volume production, automated inspection systems using laser micrometers or vision systems can check every part in real time. Any deviation from the specified tolerance—often as tight as ±0.0005 inches (±0.0127 mm)—results in rejection or rework.
Benefits: Why Simple Turned Parts Matter
The widespread use of simple turned parts is no accident. They offer a unique combination of advantages that make them indispensable across industries. These benefits extend beyond just function to include economic and operational efficiency.
Unmatched Precision and Consistency
CNC turning achieves repeatability that manual machining cannot match. Once a program is proven, every subsequent part is virtually identical. This consistency is critical in assemblies where thousands of parts must fit together without variation. Simple turned parts ensure that a shaft fits perfectly into a bearing, or a pin aligns precisely with a hole, every single time. This reduces assembly time, lowers rejection rates, and enhances product reliability.
Cost-Effectiveness at Scale
Because simple turned parts have straightforward geometry, they can be produced with minimal tooling changes and rapid cycle times. This translates directly into lower per-unit costs, especially for large production runs. The use of multi-spindle lathes or Swiss-type machines further amplifies this efficiency. Economies of scale mean that the cost per part can drop dramatically as volume increases, making these parts the most economical choice for high-volume applications.
Material Versatility
Simple turned parts can be made from virtually any machinable material. This flexibility allows designers to choose the optimal material for a specific application without worrying about complex machining constraints. For example, a medical implant might require biocompatible titanium, while a automotive fastener might use hardened steel. The turning process adapts easily to these materials, provided the correct cutting tools and speeds are used.
Excellent Surface Finishes
Turning inherently produces a smooth surface finish due to the continuous cutting action and the use of single-point tools. With proper parameters, surface roughness (Ra) values of 0.8 µm or better are achievable. This eliminates the need for secondary finishing operations like grinding or polishing in many applications. A high-quality surface finish reduces friction, improves wear resistance, and enhances the aesthetic appeal of the final product.
Applications: Where Simple Turned Parts Power Your Products
The reach of simple turned parts is astonishing. They are found in almost every mechanical and electromechanical device. Understanding their applications highlights their critical role in modern technology.
Automotive and Transportation
In the automotive industry, simple turned parts are ubiquitous. Engine valves, fuel injector components, transmission shafts, brake caliper pistons, and suspension bushings are all examples. These parts must withstand extreme temperatures, high pressures, and constant vibration. Precision-turned pins and sleeves ensure that engines run smoothly, brakes engage reliably, and transmissions shift without hesitation. The reliability of your vehicle depends on these humble components.
Medical Devices and Healthcare
The medical field demands the highest standards of precision and cleanliness. Simple turned parts are used in surgical instruments (e.g., bone screws, drill bits), orthopedic implants (e.g., hip stems, spinal rods), and diagnostic equipment (e.g., syringe components, catheter fittings). Biocompatible materials like titanium and medical-grade stainless steel are commonly turned into these life-saving parts. The ability to produce parts with tight tolerances and sterile finishes is non-negotiable in this sector.
Electronics and Consumer Goods
From smartphones to power tools, simple turned parts are inside the devices we use every day. Connector pins, battery contacts, camera lens barrels, and motor shafts are all produced via turning. In electronics, miniature turned parts often have diameters smaller than a millimeter, requiring specialized Swiss-type lathes. The precision of these parts ensures that electrical connections are secure and that moving parts operate quietly and efficiently.
Industrial Machinery and Hydraulics
In heavy industry, simple turned parts form the core of hydraulic systems, pneumatic actuators, and conveyor systems. Cylinder rods, piston pins, valve spools, and bearing spacers are all turned components. These parts must be durable, corrosion-resistant, and dimensionally stable under load. Hard-chrome plated shafts and hardened steel pins are common examples, providing long service life in demanding environments.
Best Practices for Designing and Procuring Simple Turned Parts
To fully leverage the advantages of simple turned parts, engineers and buyers must follow certain best practices. These guidelines ensure that the parts are manufacturable, cost-effective, and fit for purpose.
Design for Manufacturability (DFM)
The golden rule of simple turned parts is to keep the design as simple as possible. Avoid unnecessary features like multiple undercuts, tight tolerances on non-critical dimensions, or complex thread forms. Standardize diameters and lengths wherever possible to use common tooling. For example, specifying a diameter of 10.00 mm instead of 10.02 mm allows the machinist to use a standard tool and reduces setup time. Always consult with your manufacturer early in the design phase to optimize the part for turning.
Material and Tolerance Selection
Specify materials that are readily available and easy to machine. Exotic alloys or unusual plastics can increase lead times and costs. Similarly, only assign tight tolerances to critical features. For example, a shaft that fits into a bearing needs a tight OD tolerance, but a spacer with a clearance fit can have a looser tolerance. Balancing precision with cost is essential. A good rule is to use standard tolerances (e.g., ISO 2768-m) for non-critical dimensions and reserve tighter tolerances for functional surfaces.
Supplier Selection and Communication
Not all machine shops are equal. When sourcing simple turned parts, look for suppliers with experience in your industry and the required materials. Certifications like ISO 9001 (quality management) or AS9100 (aerospace) indicate a commitment to quality. Provide clear, detailed drawings with all dimensions, tolerances, and surface finish requirements. A well-specified part reduces the risk of errors and rework. Additionally, discuss packaging and delivery requirements to ensure parts arrive undamaged and on schedule.
Quality Control and Testing
Implement a robust quality control plan. For high-volume parts, consider statistical process control (SPC) to monitor production trends. For critical applications, request first-article inspection reports (FAIR) and material certifications. Regular audits of your supplier can also help maintain consistent quality. Remember that a single defective simple turned part can cause a costly assembly failure, so prevention is always better than cure.
Conclusion: The Power of Precision in Simplicity
Simple turned parts may not be glamorous, but they are undeniably powerful. They represent the perfect fusion of engineering efficiency and manufacturing precision. By understanding their definition, production process, benefits, and applications, you can harness their potential to improve your products. Whether you are designing a new medical device, improving an automotive system, or optimizing industrial machinery, these components offer a reliable, cost-effective path to performance. The next time you see a shaft, a pin, or a bushing, remember: precision is not about complexity—it is about doing simple things exceptionally well. In the world of manufacturing, that is the ultimate power.
