Introduction: The Unseen Heroes of Modern Engineering
In the intricate world of manufacturing, where the difference between success and failure is often measured in microns, precision turned components serve as the silent, indispensable backbone. These are not just simple metal parts; they are the result of a highly controlled, sophisticated process that transforms raw material into perfectly cylindrical, complex geometries with tolerances that can be as tight as a few thousandths of a millimeter. From the fuel injectors in your car to the surgical instruments in an operating room, these components ensure that assemblies fit together flawlessly, operate with minimal friction, and perform reliably under extreme conditions. This article delves deep into the world of precision turning, exploring its methodologies, undeniable benefits, diverse applications, and the best practices that guarantee a perfect fit every time.
What Are Precision Turned Components?

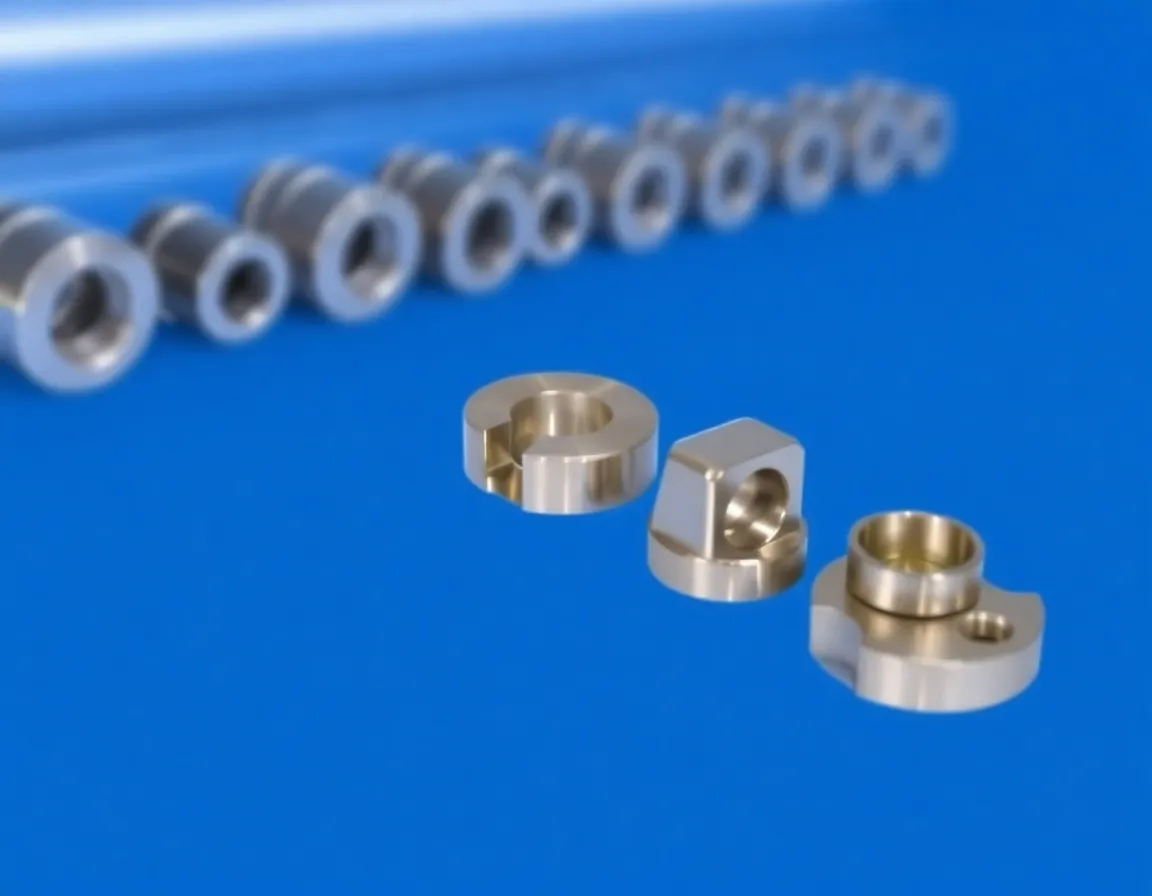

At its core, a precision turned component is any part manufactured using a lathe or a CNC (Computer Numerical Control) turning center, where the workpiece is rotated while a cutting tool removes material to create the desired shape. The defining characteristic of these components is their exceptional dimensional accuracy and surface finish. Unlike standard turned parts, which may have looser tolerances, precision turned components are engineered to meet exacting specifications, often within +/- 0.005 mm (5 microns) or even tighter. This level of precision is critical for applications where even the slightest deviation can lead to failure, leakage, or excessive wear.
The Core Process: How CNC Turning Works
The modern art of creating precision turned components relies heavily on CNC technology. The process begins with a digital design, typically a CAD (Computer-Aided Design) file, which is converted into a series of machine-readable instructions (G-code). These instructions dictate every movement of the cutting tool with unparalleled accuracy. The key steps include:
- Material Selection: The process starts with choosing the right raw material, which can range from various grades of steel, stainless steel, aluminum, and brass to more exotic alloys like titanium, Inconel, and plastics such as PEEK or Delrin.
- Workholding: The material, usually in the form of a bar or a pre-cut blank, is securely held in a chuck or collet. The precision of the workholding device is crucial, as any runout or wobble will be transferred to the finished part.
- Turning Operations: The primary operation involves the cutting tool moving along the rotating workpiece to reduce its diameter. This includes external turning (creating the outer diameter), facing (creating a flat end surface), and profiling (creating complex contours).
- Secondary Operations: Modern CNC lathes are equipped with live tooling, allowing for milling, drilling, tapping, and knurling without moving the part to another machine. This capability, known as multi-axis turning, significantly enhances complexity and reduces production time.
- Finishing Passes: After roughing operations remove the bulk of the material, a series of finishing passes are made at a slower feed rate and higher spindle speed. This final step achieves the required surface finish (often measured in Ra or Rz) and holds the tightest tolerances.
Key Metrics of Precision
When evaluating precision turned components, several critical parameters define their quality:
- Tolerance: The permissible limit of variation in a physical dimension. For precision work, this is typically in the IT6 to IT8 grade range or tighter.
- Surface Finish: The texture of the part's surface, which affects friction, wear, and sealing capabilities. A mirror-like finish (e.g., Ra 0.2 µm) is often required for hydraulic pistons or bearing surfaces.
- Concentricity: How perfectly centered one cylindrical feature is to another. Poor concentricity leads to vibration and premature failure in rotating assemblies.
- Roundness: A measure of how closely a cross-section of the part matches a perfect circle.
The Compelling Benefits of Precision Turned Components
The investment in precision turning technology yields substantial returns across the entire product lifecycle. The benefits extend far beyond just a tight fit.
Uncompromising Quality and Reliability
The most immediate benefit is the guarantee of a perfect fit. In assemblies where hundreds or thousands of components must interact seamlessly, precision turned parts eliminate the risk of binding, leakage, or misalignment. This directly translates to higher product reliability, fewer warranty claims, and a stronger brand reputation. For example, in aerospace hydraulic systems, a single imprecise valve spool can lead to catastrophic failure. Precision turning mitigates this risk entirely.
Enhanced Performance and Efficiency
Components with superior surface finishes and exact tolerances operate with significantly less friction. This is critical in applications like engine pistons, pump shafts, and bearing races. Reduced friction means lower energy consumption, less heat generation, and extended component life. In high-speed applications, this efficiency gain can be substantial, leading to lower operational costs and improved overall system performance.
Cost-Effectiveness in the Long Run
While the per-part cost of precision turning may be higher than conventional machining, the total cost of ownership is often lower. This is due to several factors:
- Reduced Scrap: CNC automation and precise toolpath control minimize material waste.
- Elimination of Secondary Operations: The ability to perform multiple operations (turning, milling, drilling) in a single setup reduces handling time and the need for additional fixtures.
- Lower Assembly Costs: Parts that fit perfectly the first time eliminate the need for manual rework, shimming, or selective assembly, speeding up production lines.
- Extended Tool Life: Optimized cutting parameters and high-quality tooling reduce tool wear, lowering replacement costs and machine downtime.
Design Flexibility and Complexity
Modern multi-axis CNC turning centers can create incredibly complex geometries that were impossible to achieve just a few decades ago. Features like off-center holes, back-face machining, and complex threads can be produced in a single cycle. This allows engineers to design more compact, lighter, and more functional products without being constrained by manufacturing limitations.
Critical Applications Across Industries
Precision turned components are not a niche product; they are a fundamental requirement across a vast spectrum of industries. Here are some of the most demanding sectors that rely on them.
Aerospace and Defense
This industry demands the highest levels of precision and material integrity. Components include landing gear pins, fuel system nozzles, actuator shafts, and engine turbine blades (though these often require more complex 5-axis milling, turning is a key starting point). Materials are often high-strength, heat-resistant alloys like Inconel 718 or Titanium 6Al-4V. Tolerances here are often measured in "tenths" (0.0001 of an inch) and require rigorous inspection and certification.
Medical and Dental
In the medical field, precision is a matter of life and death. Surgical bone screws, dental implants, orthopedic joint replacement components, and minimally invasive surgical instruments are all precision turned. These parts must be biocompatible, often made from titanium, stainless steel 316L, or PEEK, and must have flawless surfaces to prevent bacterial growth and ensure patient safety.
Automotive and Motorsport
From standard passenger vehicles to high-performance Formula 1 cars, precision turned parts are everywhere. Key applications include fuel injector components, brake caliper pistons, steering system parts, transmission shafts, and turbocharger rotors. The drive for fuel efficiency and performance pushes tolerances tighter, especially in motorsport where every gram and every micron of friction matters.
Hydraulics and Pneumatics
These systems rely entirely on the ability to seal fluids and gases under high pressure. Piston rods, valve spools, cylinder barrels, and connectors must be precision turned to create a perfect seal. A surface finish of Ra 0.1 µm or better is common for piston rods that run against seals, ensuring zero leakage and long service life.
Best Practices for Achieving and Maintaining Precision
Producing precision turned components is not simply a matter of owning a CNC lathe. It requires a holistic approach that integrates technology, process control, and skilled craftsmanship.
Machine Selection and Maintenance
The foundation of precision is a high-quality machine tool. Thermal stability is critical; machines with cast iron bases and cooling systems for the spindle and ball screws maintain accuracy over long production runs. Regular calibration, spindle runout checks, and preventative maintenance are non-negotiable. A machine that is out of alignment by 1 micron will produce parts that are out of tolerance.
Tooling and Workholding Mastery
The cutting tool and the way the part is held are equally important. Using inserts with the correct geometry and grade for the specific material is essential. For workholding, a high-quality, precision collet chuck is superior to a standard 3-jaw chuck for holding tight concentricity. In some cases, custom soft jaws are machined in-situ to perfectly grip a specific part profile.
In-Process Inspection and Metrology
You cannot control what you do not measure. Best practices involve in-process probing, where a touch-trigger probe on the lathe measures critical features after a roughing pass and automatically adjusts the finishing toolpath. After production, parts are verified using high-precision instruments like coordinate measuring machines (CMMs), optical comparators, and surface roughness testers. Statistical Process Control (SPC) charts are used to monitor trends and prevent drift before bad parts are made.
Material Handling and Environment
Even the best machine cannot compensate for poor material quality. Bar stock must be straight and free of internal stresses. The manufacturing environment should be climate-controlled, as temperature changes of just a few degrees can cause significant dimensional changes in both the workpiece and the machine tool. Proper chip management and coolant filtration are also vital to prevent re-cutting of chips, which can damage the surface finish and tool.
Conclusion: The Pursuit of Perfection
Precision turned components are far more than simple machined parts; they are a testament to human ingenuity and the relentless pursuit of perfection in manufacturing. They represent the critical interface where design meets reality, ensuring that complex systems function as intended—safely, efficiently, and reliably. As technology advances with the advent of micro-machining, Swiss-type turning, and Industry 4.0 integration, the capabilities of precision turning will only expand, enabling even more innovative products. For engineers and manufacturers, understanding and leveraging the power of precision turned components is not just an option; it is the key to unlocking a perfect fit and achieving a competitive edge in an increasingly demanding world.
