Introduction: The New Standard in Product Development
In the fast-paced world of product development, the gap between a digital design and a physical, functional part has historically been a bottleneck. Traditional prototyping methods, such as 3D printing or manual machining, often force engineers to compromise on material properties, surface finish, or dimensional accuracy. Enter precision machined prototypes—a game-changing approach that leverages advanced Computer Numerical Control (CNC) technology to produce parts that are not only geometrically identical to the final production component but also possess the same mechanical strength and durability. This article explores why precision machined prototypes are becoming the gold standard for industries ranging from aerospace to medical devices, delivering results that are demonstrably faster, stronger, and better than any alternative.
What Are Precision Machined Prototypes?

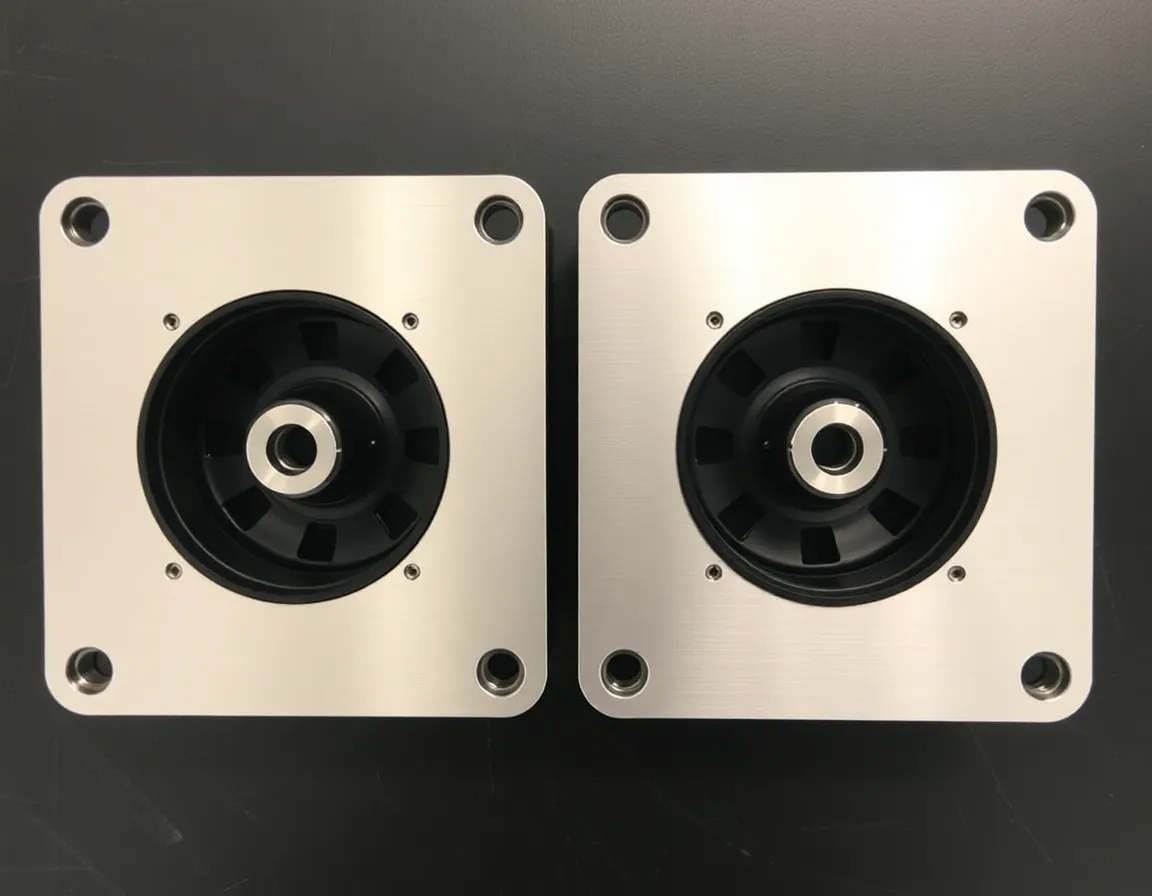

At its core, a precision machined prototype is a functional, physical part created using subtractive manufacturing processes—primarily CNC milling, turning, and grinding—where material is removed from a solid block (billet) to achieve exact specifications. Unlike additive manufacturing (3D printing), which builds parts layer by layer, precision machining starts with a proven, homogeneous material stock, such as aluminum 7075, stainless steel 316L, titanium Ti-6Al-4V, or engineering plastics like PEEK and Delrin.
The defining characteristic of these prototypes is their adherence to tight tolerances, often within ±0.005 mm (0.0002 inches) or better. This level of accuracy ensures that the prototype behaves identically to the final production part under stress, heat, and load. As a result, engineers can conduct real-world validation—including fit checks, functional testing, and even destructive analysis—without the uncertainty that comes from using inferior prototype materials.
Key Distinctions from Other Prototyping Methods
- vs. 3D Printing (Additive): While additive methods are excellent for complex geometries and rapid iteration, they often lack the isotropic strength of machined parts. 3D-printed polymers can be anisotropic (weaker in one direction), and metal printing (DMLS/SLM) still requires post-processing to match machined surface finishes.
- vs. Manual Machining: Manual lathes and mills rely heavily on operator skill and are impractical for complex 3D contours. Precision CNC machining offers repeatability, multi-axis capability, and the ability to produce dozens of identical prototypes in a single run.
- vs. Urethane Casting: Silicone molding is cost-effective for low volumes but introduces shrinkage and limited material selection. Precision machining uses the same material as the final product, eliminating material-property discrepancies.
How Precision Machined Prototypes Work: The Process
The journey from CAD file to a finished precision prototype is a meticulous, multi-stage process that integrates advanced software, skilled programming, and high-performance machine tools. Understanding this workflow is critical for appreciating the speed and quality these prototypes deliver.
Step 1: Design for Manufacturability (DFM) Analysis
Before any metal is cut, a DFM review is performed. Experienced machinists and applications engineers analyze the 3D CAD model to identify potential issues such as sharp internal corners that require special tooling, deep cavities with poor tool access, or thin walls that might vibrate during cutting. This collaborative step often results in minor design modifications that drastically reduce machining time and cost without compromising function.
Step 2: CAM Programming and Toolpath Optimization
Using Computer-Aided Manufacturing (CAM) software like Mastercam, Fusion 360, or NX, the prototype is translated into a series of precise toolpaths. Modern CAM systems employ high-speed machining (HSM) strategies that use trochoidal milling and adaptive clearing to maintain a constant chip load. This reduces tool wear, heat buildup, and cycle times. For complex prototypes, 5-axis simultaneous machining allows the part to be rotated and tilted, enabling the cutting tool to reach undercuts and complex surfaces in a single setup.
Step 3: Material Selection and Fixturing
The chosen material is sourced as certified bar stock or plate. The blank is then secured in a workholding device—often a precision vise, custom soft jaws, or a vacuum chuck. For thin-walled or delicate prototypes, cryogenic fixturing (freezing the part with liquid nitrogen) or specialized low-force clamping is used to prevent distortion.
Step 4: Machining Operations
This phase typically involves multiple operations:
- Roughing: High-feed cutters remove the bulk of material quickly, leaving 0.5–1.0 mm of stock for finishing.
- Semi-Finishing: Smaller tools refine the geometry and prepare for final passes.
- Finishing: Using ball-end mills, radius cutters, or single-point diamond tools, the final surface is created to the specified roughness (often Ra 0.4 µm or better).
- Secondary Operations: Thread milling, tapping, drilling, and deburring are performed, often on the same machine using live tooling on a CNC lathe (mill-turn centers).
Step 5: Inspection and Quality Assurance
Precision is meaningless without verification. Every prototype undergoes rigorous inspection. Coordinate Measuring Machines (CMM) with touch probes or non-contact laser scanners measure critical features against the CAD model. Surface roughness testers, optical comparators, and hardness testers ensure material integrity. A full dimensional report is typically provided with the prototype, offering complete traceability.
Benefits: Why Precision Machined Prototypes Are Superior
The advantages of choosing precision machining over other prototyping methods are substantial and directly impact the success of a product development cycle. These benefits can be categorized into three core areas: speed, strength, and overall quality.
Faster Time-to-Market with Iterative Agility
Contrary to the belief that machining is slow, modern CNC prototyping services can deliver first-article parts in as little as 1–3 business days. This is achieved through automated lights-out manufacturing, where machines run 24/7 with minimal supervision. Furthermore, because the prototype is machined from the same material as the production part, engineers can skip the "material validation" phase. If a design change is needed, the CAM program can be updated in hours and a new prototype machined immediately. This rapid iterative loop compresses development timelines by weeks compared to methods that require new molds or dies.
Stronger, Production-Equivalent Mechanical Properties
This is arguably the most critical benefit. A precision machined prototype possesses the exact microstructure and grain flow of the raw material. For example, a machined aluminum bracket will have the same yield strength, fatigue life, and thermal conductivity as the final part. This is in stark contrast to 3D-printed metal parts, which can suffer from porosity, residual stress, and anisotropic properties unless subjected to expensive Hot Isostatic Pressing (HIP). For load-bearing applications—such as robot arms, engine components, or surgical instruments—only a machined prototype can provide the certifiable strength data needed for regulatory submissions (e.g., FDA 510(k) or FAA certification).
Better Surface Finish and Dimensional Accuracy
Precision machining achieves surface finishes that additive manufacturing cannot match without extensive post-processing. A standard machined finish (Ra 1.6 µm) is suitable for most functional parts, while mirror finishes (Ra 0.1 µm) are achievable with polishing. This superior surface quality reduces friction in moving assemblies, improves sealing in fluid systems, and provides a professional appearance for customer demonstrations. Additionally, the ability to hold tight tolerances ensures that multiple prototypes from the same program are interchangeable—a critical requirement for multi-part assemblies.
Applications: Where Precision Machined Prototypes Excel
While precision machining is versatile, it is particularly indispensable in industries where failure is not an option or where performance must be verified under extreme conditions.
Aerospace and Defense
In this sector, prototypes must withstand extreme temperatures, vibration, and stress. Precision-machined prototypes of turbine blades, actuator housings, and structural brackets are tested in wind tunnels and on test stands. The ability to use certified aerospace alloys (Inconel 718, 17-4PH stainless, 7075-T6 aluminum) means that test data is directly transferable to production.
Medical Devices and Surgical Instruments
For implants and tools that enter the human body, material biocompatibility and surface finish are paramount. Precision machining produces prototypes of hip stems, bone screws, and endoscopic tools from medical-grade titanium and PEEK. The process ensures no residual powder or layer lines that could harbor bacteria, and the smooth surfaces meet the stringent requirements of ISO 13485 manufacturing standards.
Automotive (Motorsport and EV)
High-performance vehicles require prototypes for engine blocks, transmission components, and electric motor housings. Precision machining allows engineers to test lightweighting strategies by machining complex internal cooling channels and thin-wall structures that would be impossible to cast. The resulting prototypes are track-tested under full load, providing critical data on thermal management and structural integrity.
Robotics and Automation
Robotic arms, end-effectors, and gearboxes demand zero backlash and high stiffness. Precision-machined prototypes of harmonic drive components, linkages, and sensor mounts are produced with tolerances that ensure repeatable motion. The ability to quickly iterate on joint geometry allows robotics engineers to optimize payload capacity and cycle times before committing to expensive injection molds.
Best Practices for Working with Precision Machined Prototypes
To maximize the value of precision machined prototypes, design engineers and project managers should follow a set of established best practices. These guidelines help avoid common pitfalls and ensure the prototype serves its intended purpose effectively.
1. Communicate the "Critical-to-Function" Features
Not every dimension on a prototype requires ±0.01 mm tolerance. Clearly identify which features are functional interfaces (e.g., bearing seats, mating surfaces, threaded holes) and which are cosmetic. This allows the machinist to focus on precision where it matters and relax tolerances elsewhere, reducing cost and lead time.
2. Specify Material Condition and Certification
Always specify the exact material temper and condition. For example, "6061-T6 aluminum" is different from "6061-O" (annealed). For critical applications, request a material certification (MTR) that verifies chemical composition and mechanical properties. This documentation is often required for regulatory audits and ensures the prototype's test results are valid.
3. Plan for Secondary Operations
Some features are more efficiently added after machining. For instance, passivation of stainless steel parts improves corrosion resistance, while electroless nickel plating adds wear resistance to aluminum. Discuss these requirements with the machining service early, as they may affect the stock allowance and fixturing strategy.
4. Embrace Design for Manufacturing (DFM) Feedback
When a machining partner suggests a change—such as adding a radius to an internal corner or increasing a wall thickness—listen carefully. These suggestions are based on years of practical experience and often result in a prototype that is stronger and faster to produce. A collaborative relationship with the machine shop is one of the most effective ways to accelerate development.
5. Use Multiple Prototypes for Statistical Validation
If the prototype will be used for destructive testing or to establish process capability, order a small batch (e.g., 5–10 pieces) rather than a single unit. This allows you to assess manufacturing variation and ensures that your test results are statistically significant, not just a "one-off" anomaly.
Conclusion: The Future of Prototyping is Precision
As product development cycles continue to shrink and performance demands escalate, the role of precision machined prototypes will only grow. They bridge the gap between concept and reality with unmatched fidelity, providing engineers with the confidence to make critical decisions based on real-world data. Whether you are developing a life-saving medical implant, a next-generation drone motor, or a high-stakes aerospace component, the choice is clear: precision machined prototypes deliver results that are faster, stronger, and better. By integrating this technology into your development workflow, you not only reduce risk but also accelerate innovation—turning ambitious designs into tangible, testable realities in record time.
