Introduction: The Quiet Revolution in Modern Manufacturing
In the relentless pursuit of perfection, modern manufacturing has undergone a quiet revolution. At its core lies a discipline that separates the exceptional from the merely adequate: high precision machined parts. These are components manufactured to extraordinarily tight tolerances, often measured in microns (one-millionth of a meter), where the margin for error is virtually zero. From the life-saving components of a medical implant to the critical rotor blades of a jet engine, high precision machining is the invisible hand that ensures reliability, safety, and performance. This article delves into the world of high precision machined parts, exploring their definition, the technology that enables them, and the five game-changing benefits they offer to industries worldwide. We will also examine their diverse applications and the best practices required to achieve such exacting standards.
What Are High Precision Machined Parts?

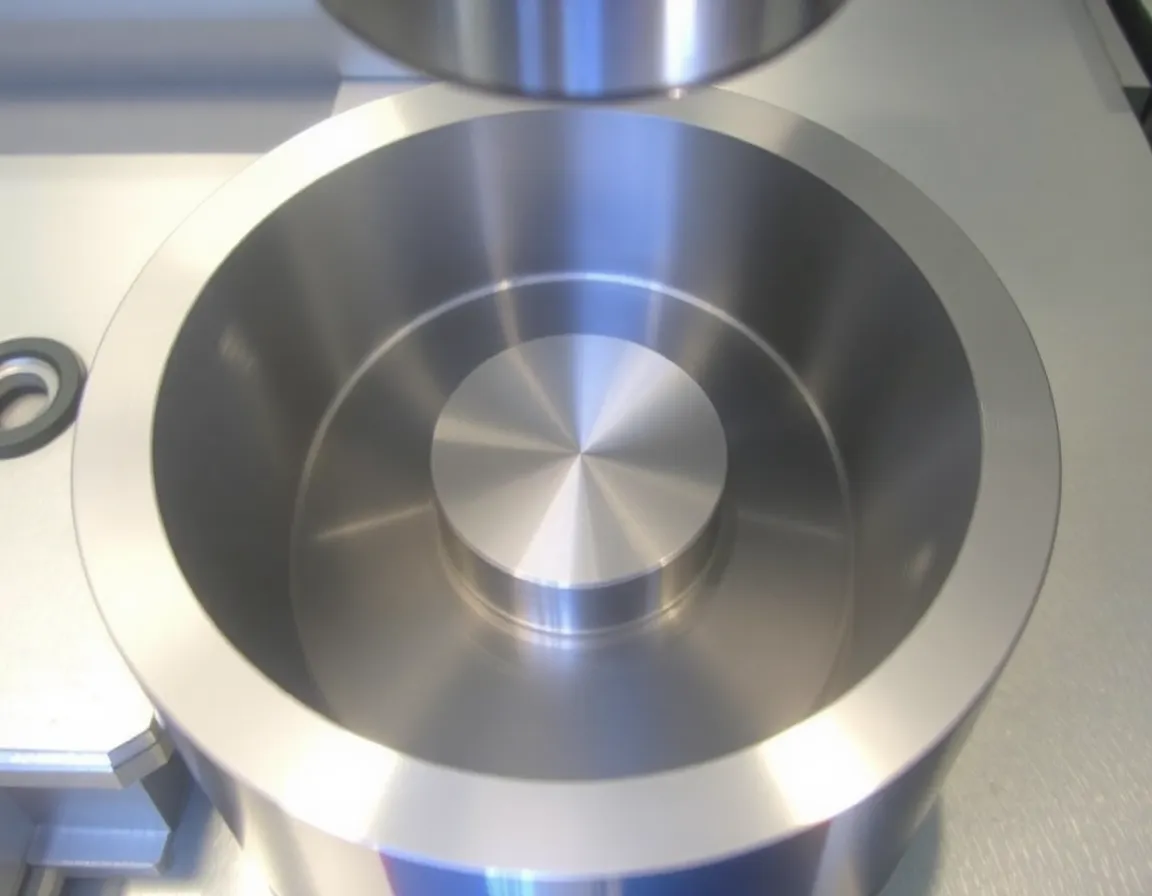

High precision machined parts are components created through advanced subtractive manufacturing processes that remove material from a solid workpiece to achieve a specified geometry. The defining characteristic is the tolerance level. While standard machining might hold tolerances of ±0.005 inches (0.127 mm), high precision machining routinely achieves tolerances of ±0.0002 inches (0.005 mm) or even tighter. This is often referred to as "tight tolerance machining."
The Technology Behind the Precision
This level of accuracy is not achieved by accident. It requires a synergistic combination of several factors:
- Advanced CNC Machines: Computer Numerical Control (CNC) machines with high-resolution encoders, rigid frames, and thermal compensation systems are essential. Five-axis and multi-tasking machines allow for complex geometries to be machined in a single setup, reducing error accumulation.
- Specialized Tooling: Cutting tools made from ultra-fine grain carbides, cubic boron nitride (CBN), or polycrystalline diamond (PCD) are used. These tools maintain their sharpness and dimensional stability under extreme cutting conditions.
- Precision Metrology: The ability to measure is as critical as the ability to cut. Coordinate Measuring Machines (CMMs), laser scanners, and optical comparators are used to verify every dimension against the design specifications.
- Environmental Control: Temperature fluctuations cause materials to expand and contract. High precision machining is often performed in climate-controlled environments to maintain dimensional stability.
Benefit 1: Uncompromising Quality and Interchangeability
The most immediate and obvious benefit of high precision machined parts is the uncompromising quality they deliver. When a part is made to a tolerance of ±0.001 mm, every single unit produced is virtually identical to the next. This creates a powerful advantage: perfect interchangeability.
Consider an automotive assembly line. Thousands of pistons, connecting rods, and valve components must be assembled into thousands of engines. If one piston is 0.01 mm larger than another, it can cause excessive friction, increased wear, or even catastrophic engine failure. High precision machining ensures that any part from a batch of 10,000 will fit and function exactly like any other. This eliminates the need for time-consuming hand-fitting, selective assembly, or rework. The result is a smoother manufacturing process, lower waste, and a final product that performs consistently, whether it is the first unit off the line or the ten-thousandth.
Benefit 2: Enhanced Performance and Functionality
In many engineering applications, performance is directly tied to precision. Tighter tolerances directly translate to better functionality. This is particularly evident in systems where moving parts interact with each other.
Reduced Friction and Wear
In a high-precision bearing or gear train, the clearance between components is precisely controlled. This minimizes friction, reduces heat generation, and lowers energy consumption. For example, in a precision spindle for a semiconductor manufacturing tool, even microscopic imbalances can cause vibration that ruins a silicon wafer. High precision machining eliminates these imbalances, allowing the spindle to rotate at tens of thousands of RPM with near-perfect smoothness.
Improved Sealing and Fluid Dynamics
In hydraulic systems, fuel injectors, and pneumatic valves, precision is paramount for creating effective seals. A valve spool that is just a few microns out of specification will leak, reducing efficiency and potentially causing system failure. High precision machined parts create perfect mating surfaces, ensuring zero leakage and optimal fluid flow. This is critical in applications like aerospace fuel systems, where a leak could be catastrophic.
Benefit 3: Increased Material Efficiency and Cost Savings
While high precision machining often carries a higher upfront cost per part, it paradoxically leads to significant long-term cost savings. This is achieved through several mechanisms:
- Reduced Scrap and Rework: When a part is machined to a wide tolerance, there is a higher probability that it will fall outside the acceptable range, becoming scrap. High precision processes, with their tight control, drastically reduce this scrap rate. Every piece of raw material is used effectively.
- Elimination of Secondary Operations: A standard machined part might require a secondary grinding or finishing operation to achieve the final tolerance. High precision machining can often achieve the final surface finish and tolerance in a single operation, saving time, labor, and machine capacity.
- Lightweighting: Precision allows engineers to design parts with thinner walls and less material without sacrificing strength. By removing unnecessary material, they create lighter components. In industries like aerospace and automotive, lighter parts mean lower fuel consumption and higher payload capacity, offering immense operational cost savings over the product's lifetime.
Benefit 4: Enabling Complex Geometries and Miniaturization
The modern world demands smaller, more complex, and more capable products. From smartphones to medical robots, the trend is towards miniaturization. High precision machining is the enabler of this trend. It allows engineers to create features that were previously impossible to manufacture.
Micro-Machining and Intricate Details
Using specialized micro-tools and high-speed spindles, high precision machines can create features like micro-holes (diameters of 0.05 mm or less), fine threads, and complex internal channels. This is essential for components like medical stents, micro-fluidic devices, and fiber optic connectors. The ability to machine a part with hundreds of intricate features in a single setup, without error, is a game-changer for product design.
Consolidation of Parts
High precision machining also enables part consolidation. Instead of assembling a mechanism from 10 separate parts (each with its own tolerance stack-up), a single, complex high precision part can be machined from one block of material. This eliminates assembly steps, reduces the number of potential failure points, and increases the overall rigidity and reliability of the final assembly. This is a cornerstone of advanced manufacturing in the defense and medical device sectors.
Benefit 5: Superior Surface Finishes and Aesthetics
While often overlooked, the surface finish of a part is a critical quality indicator. High precision machining is synonymous with superior surface finishes. The combination of sharp, high-quality cutting tools, low vibration, and optimized cutting parameters produces surfaces that are exceptionally smooth, often with a roughness (Ra) of 0.2 microns or less.
This has multiple benefits:
- Functional Benefits: A smooth surface reduces friction, minimizes particle generation, and improves fatigue life. In a medical implant, a smooth surface is less likely to attract bacteria or cause tissue irritation.
- Aesthetic Benefits: For consumer products, automotive trim, or high-end audio equipment, the visual appeal of a perfectly machined surface is a mark of quality. The "machined finish" is often a desired aesthetic in itself, conveying a sense of precision and luxury.
- Improved Coating Adhesion: A consistent, high-quality surface finish provides an ideal base for subsequent coatings, such as anodizing, plating, or painting, ensuring better adhesion and a more uniform final appearance.
Applications Across Critical Industries
The benefits of high precision machined parts are leveraged across a wide spectrum of industries where failure is not an option.
Aerospace and Defense
From turbine blades that operate at extreme temperatures to guidance system components that must withstand immense G-forces, the aerospace industry is the ultimate consumer of high precision parts. Every component must be flawless to ensure safety and mission success.
Medical Devices
Surgical instruments, orthopedic implants (hips, knees), and components for diagnostic equipment like MRI machines demand absolute precision. A poorly machined bone screw can fail, causing immense patient suffering. High precision ensures biocompatibility and perfect fit.
Automotive (Especially Formula 1 and EVs)
In high-performance racing and electric vehicles, every gram and every micron matters. High precision parts for engines, transmissions, battery housings, and braking systems maximize efficiency and performance.
Semiconductor Manufacturing
The machines that create computer chips are themselves marvels of precision engineering. Components for wafer handling, lithography, and etching require tolerances measured in sub-microns to produce the billions of transistors on a single chip.
Best Practices for Achieving High Precision
Success in high precision machining is not just about having the right machine. It is a holistic process that demands adherence to strict best practices:
- Rigorous Process Planning: Every operation must be carefully planned, including the order of cuts, tool selection, and fixturing strategy. Simulation software is used to predict and eliminate potential issues before a single chip is cut.
- Thermal Management: Controlling the temperature of the machine, the coolant, and the workpiece is critical. Many shops use high-volume coolant systems and maintain a constant ambient temperature within ±1°C.
- Vibration Damping: Machines are often mounted on vibration-dampening foundations. Cutting parameters are optimized to avoid chatter, which can destroy precision and surface finish.
- In-Process Inspection: Rather than measuring parts only at the end, modern high precision machining uses probes and sensors to measure critical features during the cutting process. This allows for real-time adjustments and prevents the manufacture of a batch of bad parts.
- Skilled Workforce: Ultimately, the most important element is the human operator and programmer. A deep understanding of materials, cutting physics, and metrology is irreplaceable. Continuous training is a non-negotiable best practice.
Conclusion: The Future is Precise
High precision machined parts are far more than just components; they are the building blocks of modern technology. The five game-changing benefits—uncompromising quality, enhanced performance, cost efficiency, enabling complex designs, and superior finishes—make them indispensable for any industry that demands the highest standards. As technology continues to advance, pushing towards nano-scale tolerances and even more complex geometries, the reliance on high precision machining will only grow. For engineers and manufacturers, embracing this discipline is not just a competitive advantage; it is a fundamental requirement for innovation and excellence in the 21st century. The margin for error is shrinking, but the potential for achievement is expanding, one perfectly machined part at a time.
