Introduction: The New Standard in Rapid Product Development
In the fast-paced world of product design and engineering, the ability to transition from a digital concept to a physical part quickly is a critical competitive advantage. Custom CNC prototype machining has emerged as the cornerstone of this process, offering an unparalleled combination of speed and precision. Unlike traditional manufacturing methods that require expensive tooling and long lead times, CNC (Computer Numerical Control) prototyping allows engineers to fabricate functional, high-tolerance components directly from CAD files. This article explores the intricacies of custom CNC prototyping, detailing how it works, its substantial benefits, and the best practices that ensure project success.

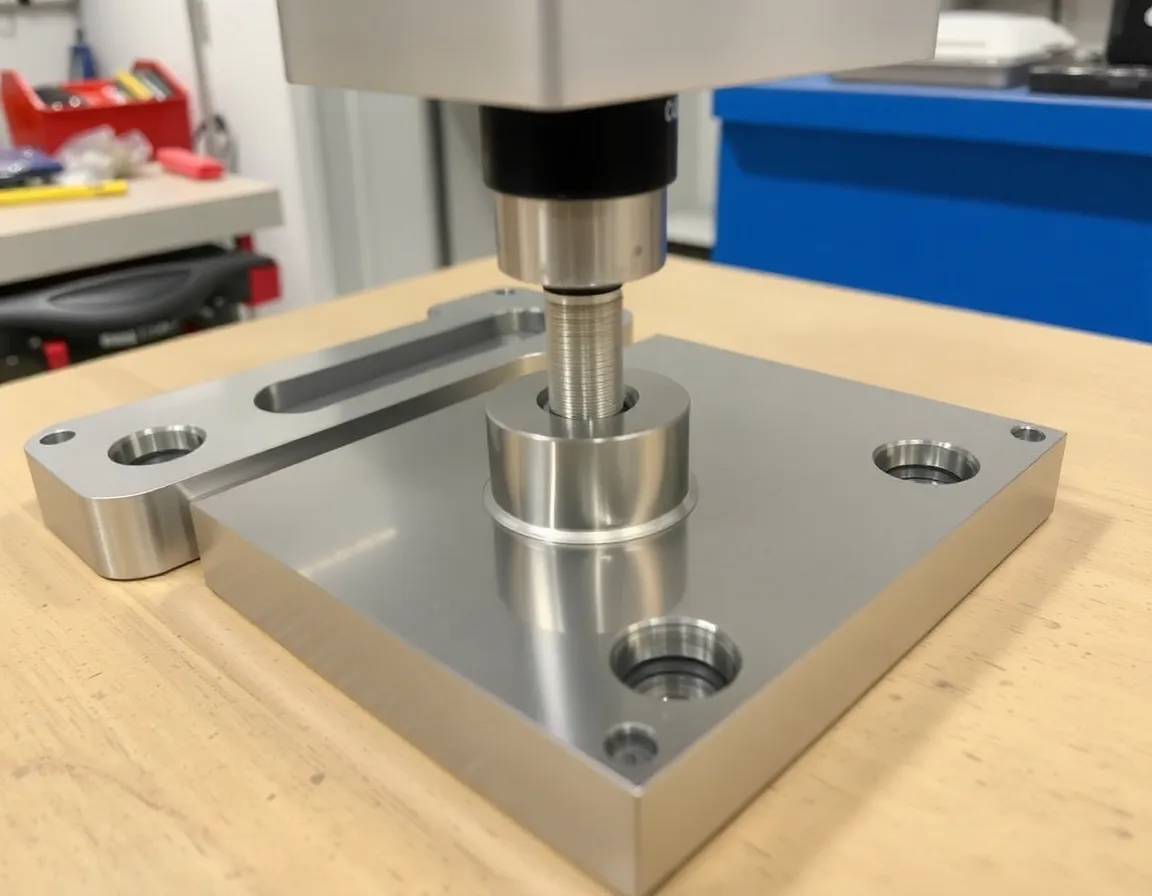

What is Custom CNC Prototype Machining?
At its core, custom CNC prototype machining is a subtractive manufacturing process where computer-controlled machine tools remove material from a solid block (or billet) to create a specific part. The "custom" aspect refers to the fact that each part is manufactured according to unique design specifications, making it ideal for prototypes, one-off parts, and small to medium production runs. This process is distinct from 3D printing (additive manufacturing) because it starts with a fully dense material, resulting in parts that possess the same mechanical properties as the final production version.
The primary goal of a CNC prototype is not mass production, but validation. It serves as a physical representation of a design, allowing engineers to test form, fit, and function before committing to expensive hard tooling. Whether the material is aluminum, steel, plastic, or titanium, CNC machining delivers the dimensional accuracy and surface finish required for rigorous testing.
The Core Difference: Prototyping vs. Production
While production CNC machining focuses on optimizing cycle times for high volumes, prototyping prioritizes flexibility and speed. A prototype shop can often run a single part in a matter of hours, making adjustments to the CNC program on the fly. This agility is impossible in a high-volume production environment where setup costs are amortized over thousands of units. Custom CNC prototyping bridges the gap between a digital model and a tangible, testable reality.
How Custom CNC Prototyping Works: A Step-by-Step Process
Understanding the workflow behind custom CNC prototype machining reveals why it is so effective. The process is a seamless blend of digital design and physical execution.
Step 1: Design and File Preparation
Everything begins with a 3D CAD model. The engineer designs the part using software like SolidWorks, Fusion 360, or NX. For CNC prototyping, the design must be optimized for manufacturability (DFM). This means considering tool access, avoiding sharp internal corners, and ensuring appropriate wall thicknesses. The final CAD file is then converted into a neutral format (like STEP or IGES) and imported into CAM (Computer-Aided Manufacturing) software.
Step 2: CAM Programming and Toolpath Generation
CAM software is where the "intelligence" of the process resides. The programmer selects the cutting tools, defines the machining strategies (roughing, finishing, drilling), and generates the toolpaths. These are the precise instructions that tell the CNC machine where to move, how fast to spin, and how deep to cut. For custom prototypes, programmers often use adaptive clearing strategies to remove material quickly while protecting the tool. This step is critical for achieving both speed and precision.
Step 3: Material Selection and Setup
The appropriate material is selected based on the prototype's requirements. Common choices include:
- Aluminum 6061: Excellent machinability, good strength-to-weight ratio, corrosion resistant.
- Steel (1018, 4140): High strength and durability for structural components.
- Stainless Steel (304, 316): Corrosion resistance for medical and food-grade applications.
- Plastics (Delrin, Nylon, ABS): Lightweight, low friction, and cost-effective for functional testing.
- Titanium (Grade 5): Exceptional strength and biocompatibility for aerospace and medical implants.
The material block is securely mounted onto the CNC machine's bed using a vise, clamps, or a custom fixture. For complex prototypes, a 5-axis CNC machine may be used to reduce the need for multiple setups.
Step 4: Machining and Real-Time Monitoring
With the program loaded and the material in place, the machining begins. Modern CNC machines operate at high spindle speeds (often exceeding 15,000 RPM) and feed rates. During the cutting process, the machine operator monitors for tool wear, chip evacuation, and dimensional accuracy. For custom prototypes, the ability to pause and modify the program is a key advantage. If a feature is slightly off, the operator can adjust offsets or change tools without starting over.
Step 5: Inspection and Finishing
Once the machining is complete, the prototype is deburred and inspected. Precision measurement tools like CMMs (Coordinate Measuring Machines), micrometers, and optical comparators verify that the part meets the specified tolerances, which can be as tight as ±0.005 mm. Surface finishes can be improved through secondary processes such as bead blasting, anodizing, or powder coating.
The Key Benefits of Custom CNC Prototyping
Why do engineers overwhelmingly choose CNC machining for their prototypes? The answer lies in a unique combination of advantages that other methods cannot match.
Unmatched Dimensional Accuracy and Surface Finish
CNC machining is the gold standard for precision. While 3D printing can produce complex geometries, it often leaves visible layer lines and requires significant post-processing. Custom CNC prototypes are machined from solid material, resulting in smooth surfaces and sharp edges that are indistinguishable from production parts. This accuracy is critical for parts that must fit into an assembly or seal against another component.
Material Versatility and Mechanical Properties
Because the process is subtractive, the prototype inherits the exact mechanical properties of the bulk material. This is a major advantage over 3D printing, where parts can be anisotropic (weaker in one direction) or porous. For functional testing—such as stress analysis, thermal cycling, or load-bearing—a CNC-machined prototype behaves exactly like the final product. You can test with the same aluminum, steel, or engineering-grade plastic that will be used in production.
Speed and Rapid Iteration
In the world of product development, time is money. Custom CNC prototyping is exceptionally fast. For simple parts, a prototype can be machined in hours. Even complex components with dozens of features can be turned around in 1-3 days. This speed allows for rapid iteration: design, prototype, test, refine, and repeat. The ability to hold a physical part in your hand within 24 hours of finishing a CAD model accelerates decision-making and reduces the risk of costly design errors.
Cost-Effectiveness for Low Volumes
Unlike injection molding, which requires expensive steel molds that can cost tens of thousands of dollars, CNC prototyping has no tooling costs. The investment is purely in the machine time and material. This makes it highly economical for quantities ranging from one to one hundred parts. For product validation, bridge production, or low-volume manufacturing, CNC machining is often the most cost-effective solution.
Applications Across Industries
The versatility of custom CNC prototyping makes it indispensable across a wide range of sectors.
Aerospace and Defense
In aerospace, failure is not an option. CNC prototypes are used to test critical components like brackets, housings, and engine parts. Materials like titanium and aluminum are machined to exacting standards to ensure they can withstand extreme temperatures and stresses. The precision of CNC machining ensures that these prototypes match the CAD model within microns, allowing for accurate flight testing.
Medical Devices
Medical device prototyping requires biocompatible materials and exceptional surface finishes. Custom CNC machining is used to create surgical instruments, implant prototypes, and diagnostic equipment housings. The ability to work with stainless steel, PEEK, and titanium makes it the preferred method for FDA validation testing.
Automotive and Motorsports
From custom intake manifolds to suspension components, the automotive industry relies on CNC prototypes for performance testing. The speed of the process allows race teams to design, machine, and test new parts between races. Custom prototypes help engineers optimize weight, strength, and aerodynamics without waiting weeks for castings.
Consumer Electronics and Robotics
For electronic enclosures, heat sinks, and robot chassis, CNC machining provides the tight tolerances required for complex assemblies. The ability to machine thin walls and intricate features makes it ideal for modern, compact designs. Prototyping in aluminum or ABS allows engineers to check for interference and heat dissipation before committing to injection molding.
Best Practices for Successful CNC Prototyping
To maximize the value of custom CNC prototype machining, engineers should follow a set of proven guidelines.
Design for Manufacturability (DFM)
The most important step happens before the machine ever starts. Review your design for CNC-specific constraints. Avoid deep, narrow pockets that require long, thin tools (which can chatter or break). Design internal corners with a radius that matches common end mill sizes (e.g., R0.5mm or R1mm). Maintain uniform wall thickness to prevent warping. A simple DFM review can reduce machining time by 30% or more.
Communicate Tolerances and Surface Finish
Not every feature needs a tolerance of ±0.01 mm. Over-specifying tolerances increases cost and lead time. Clearly indicate which surfaces are critical (e.g., bearing seats, sealing surfaces) and which can be standard (±0.1 mm). Similarly, specify the required surface finish (e.g., Ra 3.2 µm for general use, Ra 0.8 µm for sealing). This allows the machinist to plan the most efficient toolpath strategy.
Consider Fixturing and Tool Access
Complex prototypes may require multiple setups. When designing, consider how the part will be held. Flat surfaces are easy to clamp. If a part has no parallel faces, it may require a custom fixture or soft jaws, which adds time and cost. Also, ensure that cutting tools can reach all features. Deep, vertical walls with no draft angle can be difficult to machine without specialized tooling.
Plan for Secondary Operations
While CNC machining is highly capable, some features are better handled off the machine. Threads smaller than M2, sharp external corners, and mirror-like finishes often require hand finishing or secondary processes like wire EDM. Discuss these requirements with your machining partner early in the process to avoid surprises.
Conclusion: The Future of Prototyping
Custom CNC prototype machining has transformed the landscape of product development. It offers a unique synergy of speed and precision that no other manufacturing method can replicate. By enabling rapid iteration, material fidelity, and exacting tolerances, it empowers engineers to innovate with confidence. As CNC technology continues to advance—with faster spindles, smarter CAM algorithms, and 5-axis automation—the role of CNC prototyping will only grow. For any team looking to bring a physical product to market, mastering the art of custom CNC machining is no longer optional; it is a fundamental requirement for success.
