Introduction: Defining Precision in Metal Manufacturing
In the modern industrial landscape, the difference between a component that functions reliably and one that fails catastrophically often comes down to a matter of microns. Precision machined metal parts are the unsung heroes of countless technologies, from the life-saving devices in surgical theaters to the critical components in aerospace engines. This guide serves as a comprehensive resource for understanding what constitutes true quality in precision machining. We will explore the fundamental processes, the rigorous quality control measures, the material science involved, and the best practices that separate superior parts from merely adequate ones. Whether you are a procurement specialist, a design engineer, or a manufacturing professional, understanding these principles is essential for ensuring product performance, safety, and longevity.
What Are Precision Machined Parts?

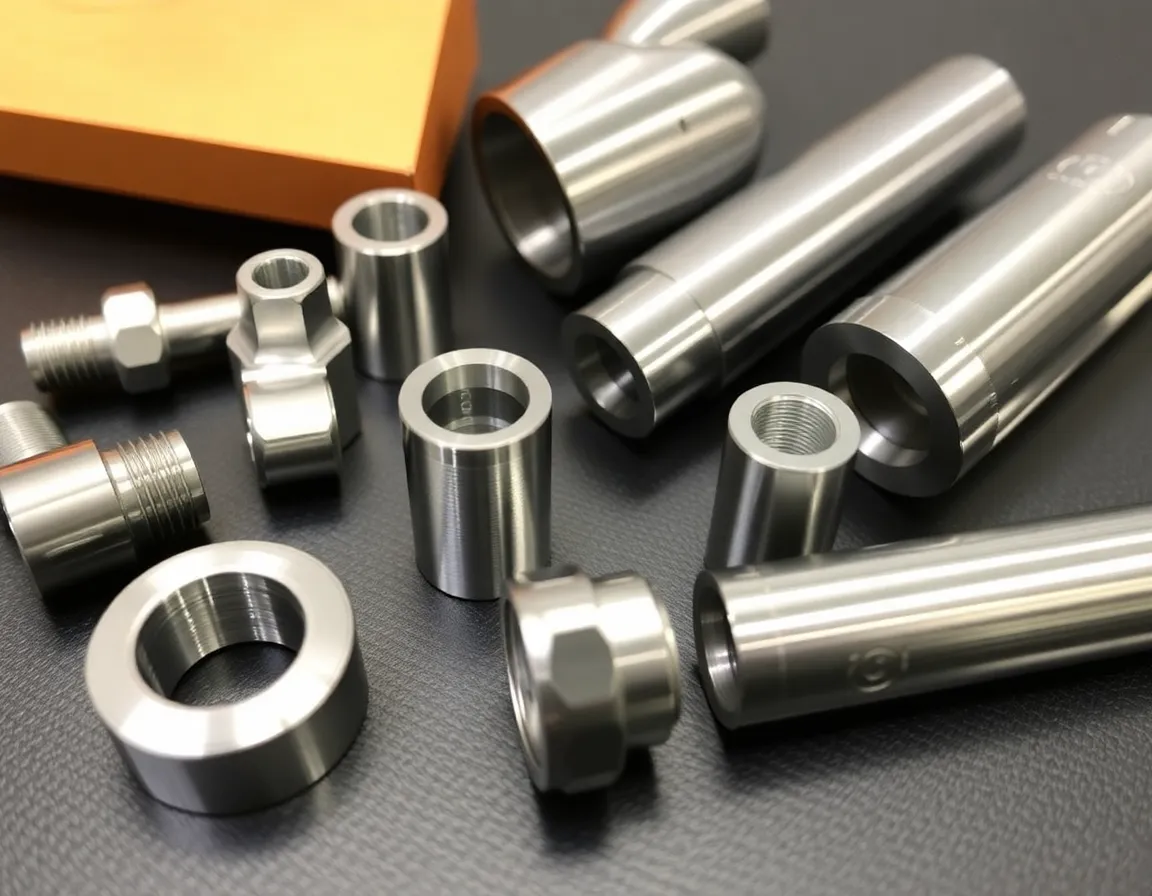

At its core, precision machining is a subtractive manufacturing process where material is removed from a solid workpiece to create a specific shape, dimension, and surface finish. However, the term “precision” implies far more than simple shaping. Precision machined parts are components manufactured to exceptionally tight tolerances—often within ±0.005 inches (0.127 mm) or even tighter, down to ±0.0001 inches (0.0025 mm) for high-end applications. These parts are characterized by their repeatability, dimensional accuracy, and superior surface quality.
The Core Processes
Several key machining processes are employed to achieve these exacting standards:
- CNC Milling: Utilizes rotating multi-point cutting tools to remove material from a stationary or moving workpiece. This process is ideal for creating complex geometries, slots, holes, and flat surfaces.
- CNC Turning: The workpiece rotates while a stationary cutting tool shapes it. This is the primary method for creating cylindrical parts, shafts, and threaded components.
- Electrical Discharge Machining (EDM): Uses electrical sparks to erode material from a workpiece. This non-contact process is essential for creating extremely hard materials or intricate shapes that conventional tools cannot achieve.
- Grinding: An abrasive machining process used to achieve extremely fine surface finishes and tight tolerances, often as a finishing step after initial milling or turning.
Material Selection: The Foundation of Quality
The quality of a precision part is inseparable from the material from which it is made. Common metals include:
- Aluminum Alloys (e.g., 6061, 7075): Lightweight, corrosion-resistant, and excellent for aerospace and automotive applications.
- Stainless Steel (e.g., 304, 316): High strength, corrosion resistance, and biocompatibility, making it ideal for medical and food processing equipment.
- Steel Alloys (e.g., 4140, 4340): Exceptional strength and toughness, used in heavy machinery and tooling.
- Brass and Copper: Excellent electrical conductivity and corrosion resistance, often used for electrical connectors and plumbing components.
- Titanium: High strength-to-weight ratio and biocompatibility, critical for aerospace and medical implants.
Selecting the wrong material—or material with improper heat treatment or impurities—will compromise the part’s functionality, regardless of how precisely it is machined.
The Pillars of Quality in Precision Machining
True quality in precision machined parts is not a single attribute but a combination of several critical factors. Understanding these pillars is essential for evaluating suppliers and ensuring your components meet performance requirements.
Dimensional Accuracy and Tolerance Control
This is the most obvious measure of precision. Tolerance refers to the permissible limit of variation in a physical dimension. For example, a shaft specified as 10.00 mm ± 0.01 mm must measure between 9.99 mm and 10.01 mm. High-quality precision machining relies on advanced CNC equipment, rigid machine structures, and thermal compensation to minimize deviations. Quality assurance involves using calibrated instruments such as micrometers, CMMs (Coordinate Measuring Machines), and optical comparators to verify every critical dimension.
Surface Finish and Integrity
Surface finish is measured in Ra (Roughness Average) and directly impacts a part’s performance. A rough surface can lead to increased friction, premature wear, and stress concentration points that cause fatigue failure. Precision machining can achieve surface finishes as low as 0.1 µm Ra through careful selection of cutting parameters, tool geometry, and finishing passes. Surface integrity also encompasses the absence of micro-cracks, burns, or residual stresses induced by the machining process itself.
Geometric Tolerances (GD&T)
Beyond simple linear dimensions, parts must adhere to geometric specifications. Geometric Dimensioning and Tolerancing (GD&T) defines the allowable variation in form (flatness, straightness, roundness), orientation (perpendicularity, parallelism), and location (true position, concentricity). For instance, a precisely machined hole may have the correct diameter, but if its center is offset by 0.02 mm from the datum, the assembly will fail. Adherence to GD&T is a hallmark of professional precision machining.
Repeatability and Consistency
A single perfect part is a prototype; a thousand identical parts is a production run. True quality is demonstrated by the ability to produce the same part, with the same tolerances and finish, across multiple batches. This requires robust process control, including tool wear monitoring, environmental stability, and statistical process control (SPC). Consistency reduces assembly issues, lowers scrap rates, and ensures predictable performance in the field.
Applications: Where Precision Parts Make the Difference
The demand for precision machined metal parts spans virtually every advanced industry. Here are some of the most critical sectors:
Aerospace and Defense
In aircraft engines, landing gear, and flight control systems, failure is not an option. Components must withstand extreme temperatures, pressures, and cyclic loads. Precision machined parts in this sector are often made from exotic alloys like Inconel or titanium and must meet stringent AS9100 quality standards. A turbine blade’s cooling channel geometry, for example, must be machined to within microns to ensure efficient heat dissipation.
Medical Devices
Surgical instruments, orthopedic implants, and diagnostic equipment require parts that are both biocompatible and sterile. Precision machining of stainless steel, titanium, and cobalt-chrome alloys creates hip replacements, bone screws, and custom surgical tools. The surface finish is critical for preventing bacterial adhesion, and the dimensional accuracy ensures a perfect fit within the human body.
Automotive and Motorsport
From engine blocks and transmission gears to fuel injectors and braking systems, modern vehicles rely on precision parts for performance, efficiency, and safety. In motorsport, where every gram and every horsepower counts, CNC-machined components from billet aluminum or carbon fiber composites are used to create lightweight, high-strength parts that endure extreme racing conditions.
Electronics and Semiconductors
The miniaturization of electronics demands microscopic precision. Connectors, heat sinks, and sensor housings must be machined to exacting standards. In semiconductor manufacturing, precision parts are used in wafer handling equipment and vacuum chambers, where even a single micron of contamination can ruin a batch of chips.
Best Practices for Ensuring Quality
Achieving and maintaining high quality in precision machining requires a holistic approach that spans design, process, and inspection.
Design for Manufacturability (DFM)
The quality of a final part begins with its design. Engineers must collaborate with machinists to ensure that features like internal radii, undercuts, and deep holes are feasible to machine. DFM principles include avoiding tight tolerances where they are not functionally necessary, specifying standard tool sizes, and allowing for adequate tool access. This reduces production costs and improves consistency.
Advanced Metrology and Inspection
Quality cannot be assumed; it must be verified. Best-in-class facilities employ a mix of inspection techniques:
- In-Process Inspection: Using probes and sensors on the CNC machine to verify dimensions during cutting, allowing for real-time adjustments.
- Coordinate Measuring Machines (CMMs): For detailed 3D measurement of complex geometries.
- Non-Contact Measurement: Laser scanners and vision systems for delicate or highly reflective parts.
- Surface Roughness Testers: To confirm that the Ra value meets specifications.
Process Control and Certification
Reputable precision machine shops operate under certified quality management systems. Look for certifications such as ISO 9001:2015 (general quality management), AS9100D (aerospace), or ISO 13485 (medical devices). These certifications require documented procedures, regular audits, and continuous improvement initiatives. Furthermore, maintaining a clean, temperature-controlled environment minimizes thermal expansion and contamination, directly impacting part quality.
Tooling and Maintenance
The quality of a machined part is only as good as the tool that cuts it. Using premium carbide or diamond-coated tooling, along with rigorous tool management systems, ensures consistent cutting edges. Regular machine calibration, spindle runout checks, and preventive maintenance are non-negotiable for achieving tight tolerances over long production runs.
Conclusion: Investing in Quality for Long-Term Success
Precision machined metal parts are the building blocks of modern technology, and their quality directly influences the safety, reliability, and performance of the final product. From the initial material selection and advanced CNC processes to rigorous metrology and adherence to international standards, every step in the manufacturing chain contributes to the ultimate quality. For businesses, investing in high-quality precision machining is not an expense—it is a strategic decision that reduces warranty claims, enhances brand reputation, and ensures operational efficiency. By understanding the principles outlined in this guide, you are now equipped to make informed decisions, collaborate effectively with manufacturing partners, and demand the highest standards for your precision components.
