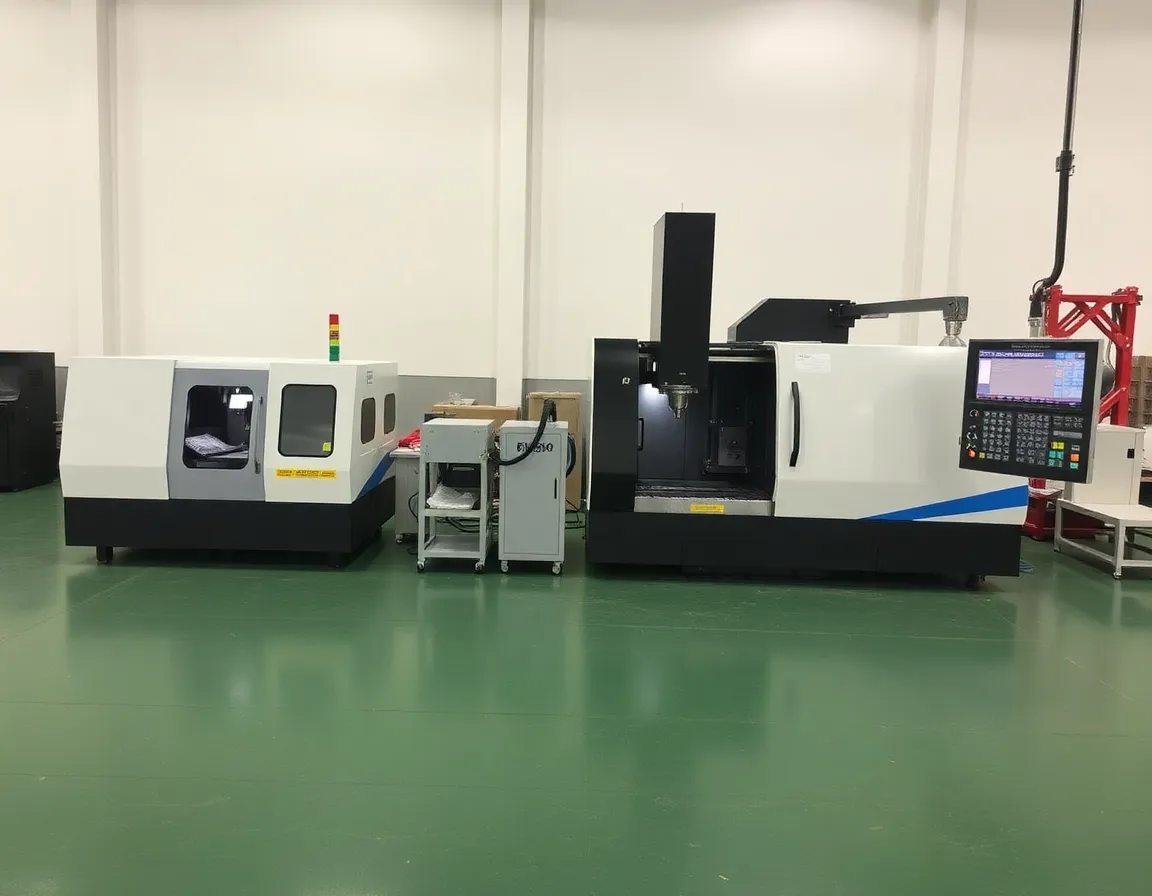

Introduction: The Imperative of Quality in Precision CNC Machining
In the modern manufacturing landscape, precision CNC machining stands as the backbone of industries that demand exacting tolerances, complex geometries, and flawless surface finishes. From aerospace components to medical implants, the parts produced by a precision CNC machining factory must perform reliably under extreme conditions. However, achieving such high standards is not a matter of chance; it is the result of rigorous, systematic quality control. For any factory that claims to be a leader in this field, five key quality checks are non-negotiable. These checks form the foundation of a robust quality management system, ensuring that every part leaving the facility meets or exceeds customer specifications. This article will delve into these five critical quality checks, explaining how they work, why they are essential, and how they contribute to the overall excellence of precision CNC machining.
1. First Article Inspection (FAI): The Foundational Check
The First Article Inspection (FAI) is arguably the most critical quality check in any precision CNC machining factory. It is a comprehensive, documented process performed on the very first part produced from a new production run or after any significant change in tooling, machine setup, or program. The goal is to verify that the manufacturing process is capable of producing parts that conform to all engineering and design requirements before full-scale production begins.
How FAI Works
During an FAI, a qualified inspector meticulously measures every dimension, feature, and tolerance specified on the engineering drawing. This includes critical parameters such as hole diameters, thread depths, surface roughness, and geometric tolerances (e.g., flatness, concentricity, and perpendicularity). The inspector uses a variety of tools, from manual calipers and micrometers to advanced coordinate measuring machines (CMMs). The results are recorded on a detailed FAI report, which is then compared against the customer’s requirements. Any discrepancy, no matter how small, triggers a corrective action, such as adjusting the CNC program, changing tooling, or re-evaluating the raw material.
Benefits of FAI
- Risk Mitigation: It catches potential errors early, preventing costly scrap and rework during mass production.
- Process Validation: It confirms that the chosen machining strategy, tooling, and setup are correct.
- Documentation: It provides a formal record that the first part meets specifications, which is essential for regulatory compliance in industries like aerospace and medical devices.
- Customer Confidence: It demonstrates a factory’s commitment to quality and its ability to deliver consistent results.
For a precision CNC machining factory, skipping or rushing the FAI is a dangerous shortcut. A thorough FAI is the single best investment a manufacturer can make to ensure a smooth production run.
2. In-Process Inspection: Real-Time Quality Assurance
While FAI validates the initial setup, in-process inspection ensures that quality is maintained throughout the entire production cycle. This is a dynamic quality check that occurs at predetermined intervals during machining. It is the factory’s first line of defense against tool wear, thermal expansion, material inconsistencies, and other variables that can degrade part quality over time.
Methods of In-Process Inspection
In-process inspection can be performed manually by machine operators or automatically using integrated sensors and probes. Common methods include:
- Operator Checks: Operators use handheld gauges, such as snap gauges, thread gauges, and surface roughness testers, to check a sample of parts at regular intervals (e.g., every 10th or 50th part).
- Machine Probes: Many modern CNC machines are equipped with touch-trigger probes that can automatically measure critical features after a machining operation. The machine can then compensate for any detected deviations in real-time.
- Statistical Process Control (SPC): Data from in-process inspections is plotted on control charts. If the data shows a trend toward the upper or lower specification limit, the process is adjusted before any non-conforming parts are produced.
Why It Matters
In-process inspection is vital because it reduces the risk of producing a large batch of defective parts. It also provides immediate feedback to the machine operator and programmer, allowing for quick adjustments to cutting speeds, feeds, or coolant flow. For a precision CNC machining factory, a robust in-process inspection protocol is a hallmark of operational excellence, demonstrating a proactive rather than reactive approach to quality.
3. Dimensional Metrology: The Science of Measurement
Dimensional metrology is the scientific discipline of measuring the physical dimensions and geometric characteristics of a machined part. In a precision CNC machining factory, this is not a single check but a suite of highly accurate measurement techniques used both in the metrology lab and on the shop floor. The choice of measurement tool depends on the tolerance requirements and the complexity of the part.
Key Measurement Tools and Techniques
- Coordinate Measuring Machines (CMMs): These are the workhorses of dimensional metrology. A CMM uses a probe to touch multiple points on a part’s surface, creating a 3D digital model that can be compared to the CAD model. CMMs are ideal for complex geometries and tight tolerances.
- Optical Comparators and Vision Systems: These non-contact measurement tools use light and cameras to magnify and measure part features. They are excellent for measuring intricate profiles, small holes, and thin-walled parts without risk of deformation.
- Laser Scanners: For extremely complex freeform surfaces, laser scanners capture millions of data points in seconds, creating a “point cloud” that is compared to the nominal design. This is especially useful for turbine blades, impellers, and medical implants.
- Air Gages and Precision Micrometers: For high-volume production of simple features like bores or shafts, dedicated air gages or electronic micrometers provide rapid, precise measurements.
The Role of Calibration
All measurement equipment must be regularly calibrated against national or international standards (e.g., ISO 17025). A single out-of-calibration gage can lead to the acceptance of defective parts or the rejection of good ones. A precision CNC machining factory maintains a strict calibration schedule and keeps detailed records to ensure traceability and accuracy.
4. Surface Finish and Visual Inspection: The Aesthetic and Functional Check
While dimensional accuracy is paramount, the surface finish of a machined part is equally critical. Surface finish refers to the texture, roughness, and waviness of a part’s surface. It is not just an aesthetic concern; it directly impacts the part’s functionality, including friction, wear resistance, fatigue strength, and sealing capability. A precision CNC machining factory must perform rigorous surface finish checks to ensure the part meets its intended use.
Methods of Surface Finish Inspection
- Profilometers: These devices drag a diamond-tipped stylus across the surface to measure its roughness. The results are expressed as Ra (average roughness), Rz (average maximum height), or other parameters. Profilometers are the standard tool for quantifying surface finish.
- Comparison Samples: For quick, non-quantitative checks, machinists use surface roughness comparison samples. They visually and tactilely compare the part’s surface to a set of known roughness standards.
- Visual Inspection: Under proper lighting and magnification, inspectors look for defects such as burrs, scratches, tool marks, discoloration, or pitting. While subjective, visual inspection is a critical final check for cosmetic and functional defects.
Common Surface Finish Issues and Their Causes
Poor surface finish can be caused by dull tooling, incorrect cutting parameters, vibration (chatter), or inadequate coolant. For example, a rough surface on a bearing journal can lead to premature wear, while a poor finish on a sealing surface can cause leaks. By catching these issues during inspection, the factory can adjust the machining process to achieve the required surface quality.
5. Material Verification and Traceability: The Foundation of Integrity
The final key quality check goes beyond the part itself and focuses on the raw material. Material verification is the process of confirming that the material used to make the part is exactly what was specified in the engineering drawing and purchase order. This is especially critical in industries like aerospace, defense, and medical, where material failure can have catastrophic consequences.
Material Verification Methods
- Material Certificates (Mill Test Reports): Every batch of material should come with a certificate from the supplier that lists its chemical composition and mechanical properties (e.g., tensile strength, hardness). The factory must verify that this certificate matches the order.
- Positive Material Identification (PMI): Using handheld X-ray fluorescence (XRF) or optical emission spectroscopy (OES) analyzers, inspectors can non-destructively verify the alloy composition of a material in seconds. This is crucial for detecting mix-ups between similar-looking alloys (e.g., 304 vs. 316 stainless steel).
- Hardness Testing: For heat-treated parts, hardness testing (e.g., Rockwell, Brinell, or Vickers) is performed to ensure the material has been properly hardened or tempered.
The Importance of Traceability
Traceability means that every part can be linked back to its original material batch, machining process, and inspection records. This is often achieved through serial numbers, barcodes, or laser marking on the part itself. In the event of a field failure, a precision CNC machining factory with robust traceability can quickly identify the root cause, isolate other potentially affected parts, and implement corrective actions. Without traceability, a single material defect could lead to a massive, costly recall.
Conclusion: A Culture of Quality
These five key quality checks—First Article Inspection, In-Process Inspection, Dimensional Metrology, Surface Finish Inspection, and Material Verification—are not isolated tasks. They are interconnected components of a comprehensive quality management system. A world-class precision CNC machining factory integrates these checks into its daily workflow, creating a culture where quality is everyone’s responsibility, from the machine operator to the quality engineer. By rigorously applying these checks, a factory can deliver parts that are not only dimensionally perfect but also functionally reliable and safe. In the competitive world of precision manufacturing, this commitment to quality is the ultimate differentiator, building trust with customers and ensuring long-term success.
Ultimately, the true measure of a precision CNC machining factory is not just the machines it runs, but the discipline and rigor of its quality control processes. These five checks are the pillars that support that discipline, turning raw material into precisely engineered components that the world depends on.
