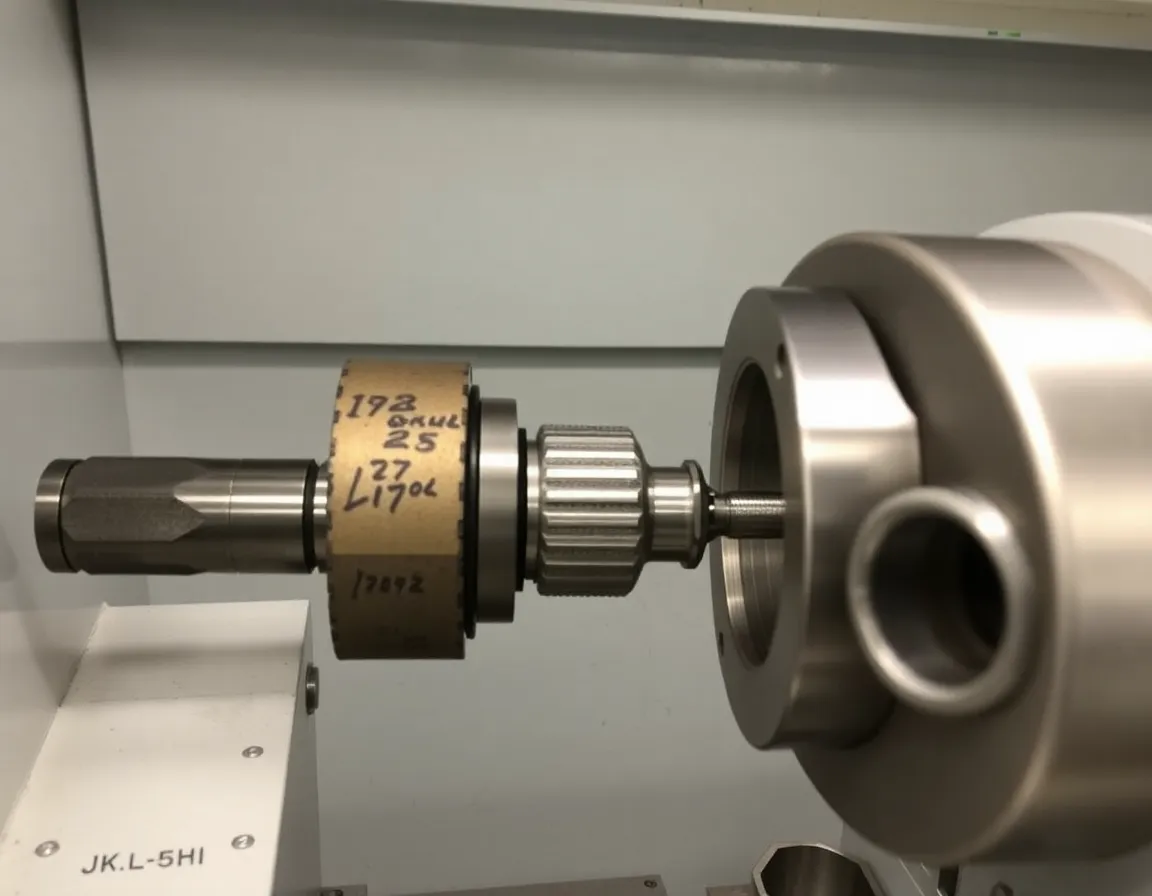

Understanding Live Tooling Lathe Services: A New Paradigm in Precision Machining
In the world of advanced manufacturing, the demand for complex, multi-featured parts has never been higher. Traditional lathe operations, which once required multiple machines and setups to create a single component, are rapidly being replaced by a more efficient and versatile solution: live tooling lathe services. This technology represents a significant leap forward, merging the capabilities of a CNC lathe with those of a milling machine. By integrating rotating cutting tools directly into the turret of a lathe, manufacturers can perform turning, drilling, milling, tapping, and slotting operations all in a single setup. The result is a dramatic reduction in lead times, improved part accuracy, and the ability to produce geometries that were previously impossible or prohibitively expensive.
Live tooling lathes, often referred to as turning centers with live tooling, are not merely an incremental improvement; they are a fundamental shift in how complex parts are manufactured. Whether you are producing medical implants, aerospace components, or intricate automotive parts, understanding the nuances of this service is critical for optimizing your supply chain and product quality. This comprehensive guide will explore what live tooling is, how it works, its undeniable benefits, key applications, and the best practices for leveraging this technology to its fullest potential.
What is Live Tooling and How Does It Work?
The Core Concept of Live Tooling
At its most basic level, live tooling refers to cutting tools that are powered by an independent motor, allowing them to rotate while the workpiece is held stationary or rotating in the main spindle. Unlike conventional lathe tools that are fixed and only cut in a linear path, live tooling can perform rotary cutting actions such as milling, cross-drilling, and off-center hole drilling. This is achieved through a specialized turret that houses both static turning tools and motor-driven live tool holders.
Mechanics and Integration
The magic of live tooling lies in its integration with the lathe’s CNC control system. Modern turning centers are equipped with a C-axis (rotational axis of the spindle) and a Y-axis (vertical movement of the turret). When combined, these axes allow the machine to position the workpiece at any angle and then use the live tool to mill or drill at that exact location. The process typically unfolds as follows:
- Primary Turning: The main spindle rotates the workpiece while a stationary tool in the turret performs standard turning, facing, or grooving operations.
- Positioning: The C-axis locks the spindle at a precise rotational angle, stopping the workpiece's rotation.
- Live Tool Engagement: The turret indexes to a live tool holder (e.g., an end mill or drill). The tool begins to rotate at high RPM, driven by a servo motor within the turret.
- Secondary Operations: The machine simultaneously moves the turret along the X, Y, and Z axes to perform milling, drilling, or tapping on the stationary workpiece.
This seamless interplay between the main spindle and the live tool turret eliminates the need to transfer the part to a separate milling machine, drastically reducing handling errors and cycle times.
Key Benefits of Live Tooling Lathe Services
Unmatched Efficiency and Reduced Cycle Times
The most immediate advantage of live tooling is the elimination of secondary operations. In traditional manufacturing, a part requiring both turned features and a cross-drilled hole would first be machined on a lathe, then manually moved to a milling machine or drill press. This transfer not only consumes time but also introduces the risk of misalignment. Live tooling collapses these multiple steps into one continuous process. Parts that once required three or four setups can now be completed in a single cycle, often reducing total production time by 40% to 60%.
Superior Accuracy and Repeatability
Precision is paramount in industries like aerospace and medical device manufacturing. When a part is machined in a single setup, all features—turned surfaces, milled flats, drilled holes—are referenced from the same datum. This eliminates tolerance stack-up that occurs when a part is moved between different machines or fixtures. Live tooling lathes can hold positional tolerances of ±0.0002 inches (5 microns) or better, ensuring that every hole, slot, and contour is perfectly aligned with the part’s rotational axis.
Complex Geometry Without Compromise
Live tooling enables the creation of parts with complex, non-rotational features that would be impossible on a standard lathe. Consider a part that requires a hexagonal head, a cross-drilled oil passage, and a threaded bore on the face. With live tooling, the lathe can turn the cylindrical body, mill the hexagon using a live end mill, drill the cross hole, and then tap the face—all without stopping. This capability opens the door to design for manufacturability (DFM) innovations, allowing engineers to consolidate multiple components into a single, more robust part.
Reduced Labor and Material Handling
Fewer setups mean less manual intervention. Operators are not required to transport parts between machines, re-fixture them, or re-zero tool offsets. This reduces the potential for human error and lowers labor costs. Additionally, because the part is handled less, there is a lower risk of cosmetic damage or contamination, which is critical for industries with stringent cleanliness standards.
Common Applications and Industries Served
Aerospace and Defense
The aerospace sector demands parts that are both lightweight and incredibly strong. Live tooling lathe services are ideal for producing hydraulic fittings, valve bodies, landing gear components, and engine mounts. These parts often require complex porting, cross-drilled holes for fluid passages, and precise threads. The ability to machine these features in a single setup ensures the integrity required for high-stress, safety-critical applications.
Medical Device Manufacturing
In medical machining, precision is a matter of life and death. Live tooling is extensively used to create bone screws, surgical instruments, implantable components, and dental abutments. These parts frequently feature tiny threads, off-axis holes, and complex contours that must match patient-specific anatomy. The single-setup capability of a live tooling lathe guarantees the exacting tolerances and surface finishes required for biocompatibility and functionality.
Automotive and Motorsports
From fuel injectors to transmission shafts, the automotive industry relies on live tooling for high-volume, precision components. Custom racing parts like billet aluminum pulleys, brake caliper pistons, and steering rack components benefit from the ability to add milled pockets and drilled ports directly onto a turned base. This reduces weight and improves performance without sacrificing structural integrity.
Hydraulics and Pneumatics
Components such as manifolds, cylinders, and spool valves require a combination of turned diameters and intricate internal passages. Live tooling allows manufacturers to drill cross holes, create O-ring grooves, and mill flat sealing surfaces in a single operation. This not only speeds up production but also ensures that the part is leak-proof and meets strict ISO standards.
Best Practices for Leveraging Live Tooling Lathe Services
Design for Live Tooling from the Start
To maximize the benefits, engineers should design parts with live tooling capabilities in mind. Avoid unnecessary sharp internal corners that require expensive EDM operations. Instead, design internal radii that match standard end mill sizes. Additionally, consider the orientation of cross holes and milled features. Aligning them with the machine’s Y-axis can reduce tool deflection and improve surface finish. Consulting with a live tooling expert during the design phase can prevent costly rework.
Tool Selection and Rigidity
Live tooling operations generate significant cutting forces, especially when milling or drilling off-center. Using high-quality carbide tooling with proper coatings (e.g., TiAlN or AlTiN) is essential for tool life and chip evacuation. Additionally, ensure that the live tool holders are rigid and well-maintained. Worn or loose holders can cause chatter, leading to poor surface finishes and dimensional inaccuracies. For deep-hole drilling, consider using through-tool coolant to flush chips and reduce heat buildup.
Optimizing Cutting Parameters
Live tooling lathes are highly versatile, but they require careful parameter optimization. Unlike a dedicated milling machine, the turret’s live tool motor may have lower torque at high RPM. Therefore, it is crucial to balance spindle speed, feed rate, and depth of cut. Start with conservative parameters recommended by the tool manufacturer and gradually increase feed until the optimal balance between cycle time and tool life is achieved. Using high-speed machining (HSM) techniques, such as trochoidal milling paths, can reduce radial loads and allow for deeper cuts without chatter.
Workholding and Part Stability
When milling or drilling on a turned part, the workpiece experiences lateral forces that can cause it to shift in the chuck. For delicate or long parts, consider using a steady rest or a sub-spindle to provide additional support. When using a standard three-jaw chuck, ensure that the gripping pressure is sufficient to prevent rotation during live tool operations. For complex parts, custom soft jaws or collet chucks can provide the necessary grip without deforming the part.
Regular Maintenance and Calibration
Live tooling turrets are intricate mechanical assemblies that require regular maintenance. The drive gears, bearings, and coupling mechanisms must be inspected and lubricated according to the manufacturer’s schedule. A misaligned turret can cause tool runout, leading to oversized holes or broken tools. Implement a routine calibration schedule that checks the C-axis accuracy and the live tool holder’s concentricity. This proactive approach prevents unexpected downtime and ensures consistent quality.
Conclusion: The Future of Complex Part Manufacturing
Live tooling lathe services have revolutionized the way complex parts are made. By combining the efficiency of a lathe with the versatility of a milling machine, manufacturers can produce higher-quality parts faster and at a lower cost. The elimination of secondary setups, the ability to machine intricate geometries, and the superior accuracy achieved through single-setup processing make this technology indispensable for modern precision engineering. Whether you are a design engineer looking to consolidate components or a procurement manager seeking to reduce lead times, partnering with a service provider that specializes in live tooling is a strategic move. As materials become more challenging and tolerances tighter, the mastery of live tooling will continue to define the leaders in advanced manufacturing. By following the best practices outlined here, you can unlock the full potential of this powerful technology and bring your most complex designs to life with confidence.
