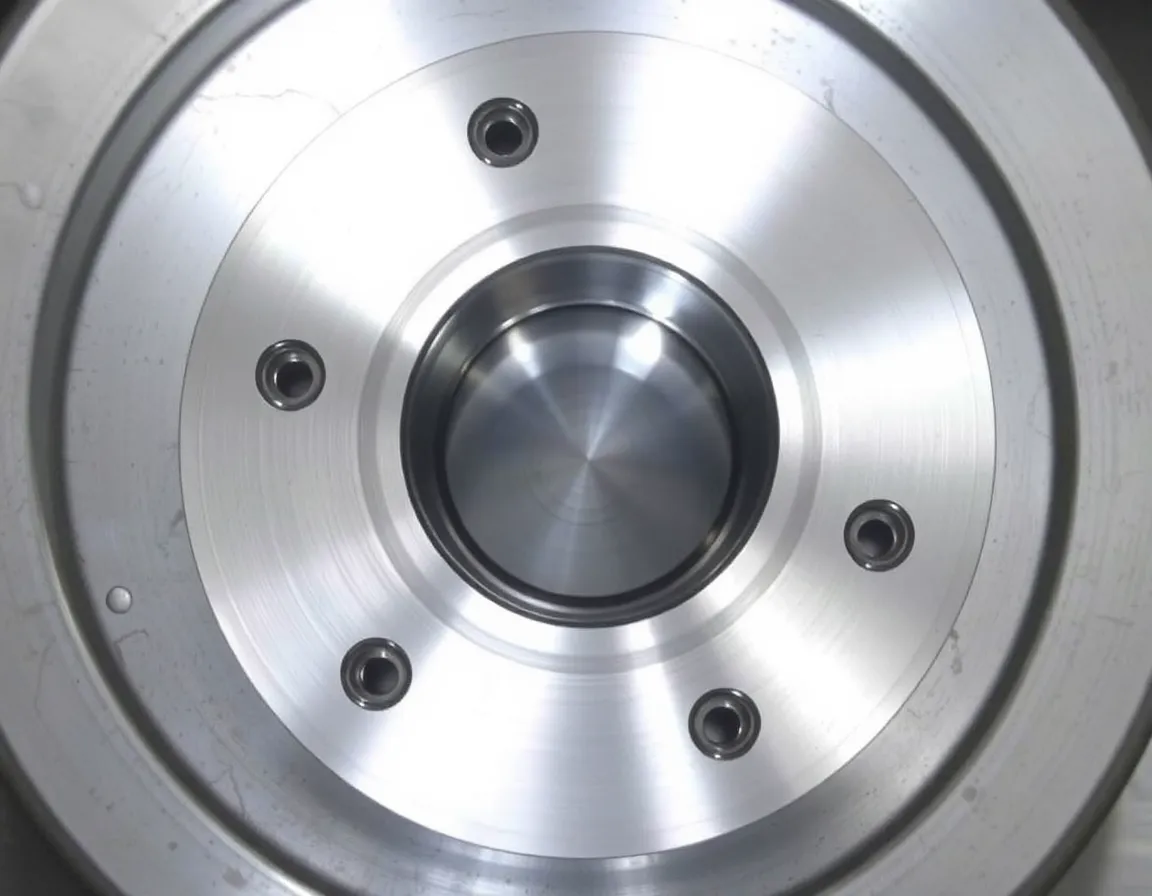

Introduction: Understanding Mill Turn Machining
In the competitive landscape of modern manufacturing, efficiency and precision are paramount. Traditional machining methods often require multiple setups, transferring a workpiece between a lathe for turning operations and a milling machine for prismatic features. This process, while effective, introduces significant downtime, potential for error, and increased handling costs. Enter mill turn machining, also known as multi-tasking or turn-mill machining. This advanced technology integrates both turning and milling capabilities into a single, highly automated machine tool. A mill turn machine typically features a rotating spindle (for turning) combined with live tooling (for milling, drilling, and tapping) and often includes multiple turrets, sub-spindles, and Y-axis capabilities. By consolidating operations, these machines transform complex part production, offering a host of benefits that directly impact the bottom line. This article explores the five most significant advantages of adopting mill turn machining for your manufacturing operations.
What is Mill Turn Machining and How Does It Work?
Before diving into the benefits, it is essential to understand the fundamental mechanics of mill turn technology. At its core, a mill turn machine is a hybrid that combines the rotational capabilities of a CNC lathe with the multi-axis machining capabilities of a milling center. Unlike a standard CNC lathe that only cuts with a stationary tool against a rotating workpiece, a mill turn machine allows the cutting tool itself to rotate independently. This is achieved through live tooling—powered tool holders that can spin drills, end mills, and taps.
The Core Components
A typical mill turn center includes several key components working in concert:
- Main Spindle: Holds and rotates the workpiece for turning operations. It can also index (stop at precise angles) for milling operations.
- Live Tooling Turret: Houses both stationary turning tools and rotating milling/drilling tools. The turret moves along X, Z, and often Y axes.
- Sub-Spindle (or Counter-Spindle): A secondary spindle that can grip the workpiece from the opposite end, allowing for complete machining of the backside of the part without manual re-fixturing.
- B-Axis (Optional): A tilting head that allows the tool to approach the workpiece at compound angles, enabling complex 5-axis simultaneous machining.
The Workflow in Action
The process begins with a bar of material fed through the main spindle. The machine performs initial turning operations to create the outer diameter. Once the front-facing features are complete, the machine can switch to milling operations—cutting flats, keyways, or cross-holes—without removing the part. The sub-spindle then moves in, picks up the partially finished part, and retracts. The main spindle can now load new material while the sub-spindle presents the back side of the part to the live tooling for secondary operations. This seamless workflow eliminates the need for human intervention between operations.
Benefit 1: Unmatched Reduction in Cycle Time and Setup
The most immediate and quantifiable benefit of mill turn machining is the dramatic reduction in total production time. This is achieved through two primary mechanisms: eliminating multiple setups and performing simultaneous operations.
Eliminating Multiple Setups
In conventional manufacturing, a complex part might require five or more separate setups: one on a lathe, another on a 3-axis mill, and perhaps a third on a drilling machine. Each setup involves manual labor to unload, transfer, and re-fixture the part, as well as re-probing and zero-setting the machine. Studies show that setup time can account for 50-70% of the total manufacturing lead time for complex parts. Mill turn machining collapses this entire process into a single setup. The part is loaded once, and all turning, milling, drilling, and tapping operations are completed in one cycle. This not only saves hours of manual labor but also drastically reduces the work-in-progress (WIP) inventory on the shop floor.
Simultaneous and Overlapping Operations
Advanced mill turn centers with dual spindles and multiple turrets can perform operations simultaneously. For example, while the main spindle is turning the front of the part, the sub-spindle can be machining the back of a previously completed part. Similarly, one turret can be roughing a profile while another turret is drilling a cross-hole. This overlapping machining effectively halves or even quarters the cycle time compared to sequential processing. For high-volume production runs, this time savings translates directly into increased throughput and lower cost per part.
Benefit 2: Superior Accuracy and Tighter Tolerances
Accuracy is the lifeblood of precision manufacturing, and mill turn machining excels in this area. The primary reason is the principle of single-setup datum consistency.
Eliminating Stack-Up Errors
Every time a part is moved from one machine to another, there is a risk of error. The part must be re-referenced to a new coordinate system, and the alignment between the lathe's centerline and the mill's spindle may introduce subtle angular or positional errors. These errors accumulate, or "stack up," across multiple operations. Mill turn machining eliminates this entirely. Because the part remains clamped in the same spindle or is transferred directly to a sub-spindle with high precision, all features are machined relative to the same datum. This ensures that a milled flat is perfectly concentric with a turned diameter, and that cross-holes are precisely located relative to the part's centerline. The result is a part that is geometrically superior, often achieving tolerances of ±0.0002 inches (5 microns) or better with consistency.
Reduced Handling and Fixture Error
Manual handling of parts not only introduces positional errors but also risks damaging delicate or finished surfaces. By keeping the part in the machine, mill turn technology eliminates the need for soft jaws, custom fixtures, and manual clamping for each operation. The machine's own hydraulic or pneumatic chuck provides a repeatable, rigid holding force. This is particularly critical for parts with tight concentricity requirements, such as hydraulic spools, medical implants, and aerospace components.
Benefit 3: Enhanced Design Freedom and Part Complexity
Mill turn machining is not just about doing the same work faster; it enables the production of geometries that are difficult or impossible to create with conventional methods. The combination of live tooling, Y-axis, and B-axis capabilities unlocks a new realm of design possibilities.
Complex Geometries in One Operation
Parts that were once designed as assemblies can now be manufactured as a single monolithic component. Consider a valve body that requires a turned outer profile, a cross-drilled hole at a compound angle, a milled slot on a face, and a threaded internal bore. With traditional methods, this would require multiple setups and specialized fixtures. A mill turn machine can accomplish all of this in one cycle. The B-axis allows the tool to tilt and cut features at any angle, creating complex contours, undercuts, and non-cylindrical features that were previously the domain of 5-axis machining centers.
Reducing Assembly Requirements
By consolidating multiple features into a single part, manufacturers can reduce or eliminate assembly operations. This not only saves time and labor but also improves the overall reliability of the final product. Fewer parts mean fewer potential points of failure, lower inventory costs, and a simpler supply chain. For example, a pump shaft with integrated splines, threads, and keyways can be produced in one operation, replacing a design that previously required a shaft, a separate spline, and a press-fit key.
Benefit 4: Significant Reduction in Labor and Automation Costs
In an era of skilled labor shortages, mill turn machining offers a powerful solution by reducing the need for manual intervention and enabling easier automation.
One Operator, One Machine
In a conventional shop, producing a complex part might require a lathe operator, a mill operator, and a setup technician. With a mill turn machine, a single skilled operator can manage the entire production process. The machine itself handles the complex choreography of tool changes, spindle transfers, and simultaneous cutting. This reduces labor costs per part and frees up skilled machinists to focus on programming, process improvement, or other high-value tasks. Furthermore, because the machine is unattended for longer periods (due to the elimination of manual setups), operators can run multiple machines simultaneously, further leveraging their skills.
Easier Integration with Automation
Mill turn centers are inherently designed for automation. They are easily integrated with bar feeders, gantry loaders, and robotic cells. A bar feeder can supply raw material for hours or even days of unattended operation. A gantry robot can load blanks and unload finished parts from the sub-spindle. Because the machine performs all operations in one cell, the automation system is simpler and less expensive than a system that must transfer parts between a lathe and a separate milling machine. This makes lights-out manufacturing a realistic and achievable goal, dramatically increasing machine utilization and reducing idle time.
Benefit 5: Lower Overall Production Costs and Improved ROI
While the initial capital investment for a mill turn machine is higher than that for a standard lathe or mill, the total cost of ownership (TCO) is often significantly lower. The savings come from multiple, compounding factors.
Reduced Tooling and Fixture Costs
Traditional manufacturing requires a unique set of fixtures, soft jaws, and specialized tooling for each operation and each machine. A mill turn machine uses a single chuck or collet system for the entire process. The need for expensive, custom-designed fixtures is virtually eliminated. Additionally, because the machine can perform multiple operations in one setup, there is less tooling variety required. A single live tooling station can perform drilling, milling, and tapping, further reducing inventory costs.
Lower Scrap and Rework Rates
As discussed, the superior accuracy and elimination of setup errors lead to a lower scrap rate. A part that is machined in one setup is far less likely to be scrapped due to misalignment or datum shift. Furthermore, if a tool breaks or a dimension drifts, the machine can be stopped immediately, and only one part is lost—not a batch of parts that have been processed across multiple machines. This reduction in scrap and rework directly improves the profitability of every job.
Faster Time to Market
For prototype and low-volume production, the speed of mill turn machining is invaluable. The ability to go from a CAD model to a finished part in a single setup drastically shortens the design-to-production cycle. Engineers can iterate on designs rapidly, testing complex features without waiting for new fixtures or multiple machine schedules. This faster time to market provides a significant competitive advantage, allowing companies to respond quicker to customer demands and industry trends.
Best Practices for Implementing Mill Turn Machining
To fully realize the benefits of mill turn technology, manufacturers must adopt specific best practices in programming, tooling, and process planning.
Invest in Advanced CAM Software
Manual programming is impractical for multi-tasking machines. You need a robust Computer-Aided Manufacturing (CAM) system that supports multi-axis, multi-spindle, and multi-turret synchronization. The software must simulate the entire machine environment, including collision detection for all moving components (spindles, turrets, tailstock). Look for features like "synchronous turning" and "process simulation" to optimize cycle times and prevent costly crashes.
Prioritize Tool Management
Mill turn machines have limited tool capacity. Efficient tool management is critical. Use standardized toolholders (e.g., HSK or Capto) for both static and live tools. Plan tool paths to minimize tool changes and use combination tools (e.g., a drill-mill) where possible. Implement a tool presetter to ensure all tools are set accurately before the cycle begins, reducing setup time.
Optimize Process Flow
Design your process with the machine's capabilities in mind. Consider which features should be machined on the main spindle versus the sub-spindle. Balance the cutting load between turrets to maximize simultaneous machining. Use the Y-axis for off-center milling rather than relying solely on C-axis interpolation. A well-planned process flow is the difference between a machine that runs efficiently and one that is constantly waiting for tool changes.
Train Your Workforce
Mill turn machining requires a different skill set than conventional machining. Operators and programmers must understand turning, milling, and the interaction between them. Invest in comprehensive training from the machine tool builder. Cross-train your team to handle programming, setup, and troubleshooting. A skilled team is the most critical factor in unlocking the full potential of your investment.
Conclusion: The Future of Efficient Manufacturing
Mill turn machining is not merely a technological upgrade; it is a fundamental shift in how complex parts are manufactured. By combining turning and milling into a single, synchronized process, it delivers five undeniable benefits: dramatically reduced cycle times, superior accuracy, enhanced design freedom, lower labor costs, and a compelling overall return on investment. While the initial cost and learning curve may seem daunting, the long-term gains in productivity, quality, and profitability make it an essential strategy for any manufacturer looking to compete in a demanding global market. As automation and digitalization continue to advance, the mill turn center will remain a cornerstone of the modern, efficient, and agile factory floor. Embracing this technology today is an investment in the manufacturing capabilities of tomorrow.
