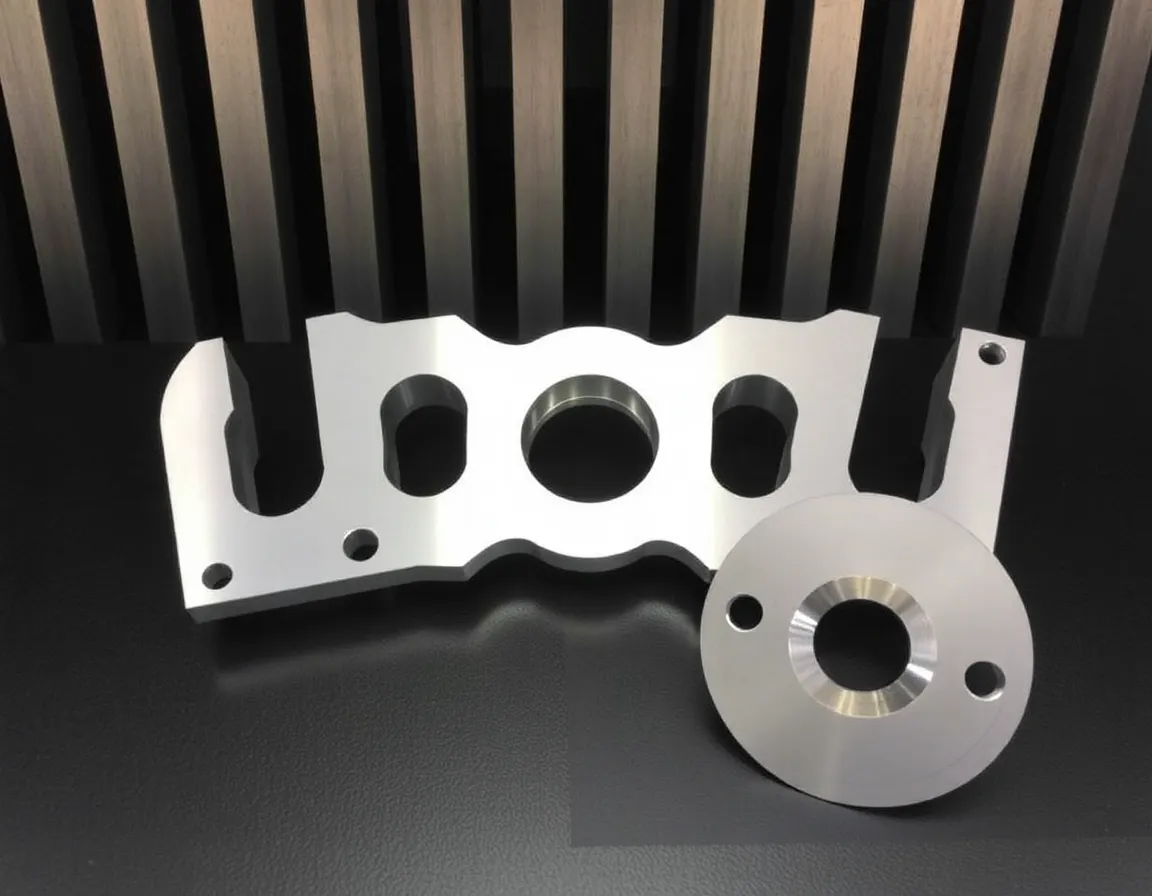

Introduction to Custom Titanium Machined Parts
In the world of precision engineering and advanced manufacturing, few materials command as much respect as titanium. When combined with the exacting capabilities of CNC machining, the result is a class of components known as custom titanium machined parts. These are components specifically designed and fabricated to meet unique dimensional, mechanical, and performance specifications for a wide range of industries, from aerospace and medical devices to motorsports and chemical processing.
Unlike off-the-shelf parts, custom titanium machining allows engineers and designers to optimize geometry, weight distribution, and surface finish for a singular application. The process typically involves computer numerical control (CNC) milling, turning, or electrical discharge machining (EDM) to shape titanium alloys such as Grade 5 (Ti-6Al-4V) or Grade 23 (Ti-6Al-4V ELI). The result is a component that is not only functional but often superior in strength-to-weight ratio and corrosion resistance compared to alternatives made from steel, aluminum, or plastics.
This article explores the five key benefits that make custom titanium machined parts an invaluable investment for demanding projects. Whether you are developing a new aerospace bracket, a surgical implant, or a high-performance automotive component, understanding these advantages will help you make informed decisions about material selection and manufacturing strategies.
1. Unmatched Strength-to-Weight Ratio
The most celebrated property of titanium is its exceptional strength-to-weight ratio. Titanium alloys are roughly 45% lighter than steel yet possess comparable tensile strength. This characteristic is not merely a convenience—it is often a critical design requirement.
Why Weight Reduction Matters
In aerospace, every gram saved translates directly into fuel efficiency and payload capacity. In motorsports, reduced unsprung mass improves handling and acceleration. For medical implants, lighter parts reduce stress on the patient's bone structure. Custom titanium machined parts allow engineers to achieve the precise geometry needed to minimize material while maximizing structural integrity.
Comparison to Other Metals
- vs. Steel: Titanium offers similar strength at roughly half the weight, making it ideal for structural components where mass is a penalty.
- vs. Aluminum: While aluminum is lighter, titanium is approximately twice as strong. For components that must endure high loads, titanium often wins the weight-strength trade-off.
- vs. Magnesium: Titanium is heavier than magnesium but far more durable and resistant to corrosion and fatigue.
Custom machining further enhances this benefit because material can be removed precisely where it is not needed, creating complex internal cavities, thin webs, and organic shapes that reduce weight without compromising strength. This is a level of optimization that standard stock shapes simply cannot provide.
2. Superior Corrosion Resistance and Biocompatibility
Titanium naturally forms a stable, adherent oxide layer (primarily TiO₂) on its surface. This passive film is remarkably resistant to attack from most acids, chlorides, seawater, and bodily fluids. For custom parts destined for harsh environments, this property is invaluable.
Industrial and Marine Applications
In chemical processing plants, heat exchangers, and offshore oil rigs, components made from titanium can outlast stainless steel by decades. Custom titanium machined parts are often specified for valve bodies, pump impellers, and fasteners that must resist pitting, crevice corrosion, and stress corrosion cracking. The ability to machine complex sealing surfaces and threaded features with tight tolerances ensures long-term reliability in aggressive media.
Medical Implants and Surgical Instruments
Perhaps no industry benefits more from this property than medical device manufacturing. Titanium is biocompatible, meaning it does not trigger adverse immune reactions or toxicity when implanted in the human body. Custom titanium machined parts are used for hip stems, spinal cages, bone screws, and dental implants. The machining process allows for porous surface textures that promote osseointegration—the direct structural and functional connection between living bone and the implant surface.
Long-Term Cost Savings
While titanium is more expensive upfront than many materials, its corrosion resistance drastically reduces maintenance, replacement, and downtime costs over the product lifecycle. For projects where failure is not an option—such as in undersea exploration or permanent medical implants—this benefit alone justifies the investment.
3. High-Temperature Performance and Thermal Stability
Titanium alloys retain their mechanical properties at elevated temperatures far better than aluminum or many polymers. This makes custom titanium machined parts indispensable for applications involving heat generation or exposure.
Operating Temperature Range
Most titanium alloys maintain useful strength up to approximately 600°F (315°C), with some specialized alloys like Ti-6Al-2Sn-4Zr-2Mo performing well beyond 1000°F (538°C). In contrast, aluminum alloys begin to soften significantly above 300°F (150°C). Custom machining allows engineers to design cooling channels, finned surfaces, or thermal barriers directly into the part geometry, optimizing heat dissipation without adding secondary components.
Real-World Applications
- Aerospace Turbine Components: Custom-machined titanium compressor blades and discs operate in the high-pressure, high-temperature sections of jet engines.
- Exhaust Systems: In motorsports and high-end automotive applications, custom titanium exhaust components resist thermal fatigue and reduce weight compared to stainless steel.
- Heat Exchangers: Custom-machined titanium plates and headers withstand aggressive thermal cycling in chemical and power generation industries.
Additionally, titanium's low coefficient of thermal expansion means that custom-machined parts maintain dimensional stability across temperature changes, which is critical for precision assemblies like optical mounts or valve guides.
4. Exceptional Fatigue Resistance and Durability
Fatigue failure—where a material cracks and breaks after repeated loading cycles—is a primary concern for any component subjected to dynamic stresses. Titanium exhibits outstanding fatigue strength, particularly in the high-cycle regime (millions of cycles).
How Custom Machining Enhances Fatigue Life
The fatigue performance of a titanium part is heavily influenced by its surface condition. CNC machining, when performed with sharp tools, appropriate feeds and speeds, and proper coolant, produces a fine surface finish with minimal residual tensile stress. Custom processes can also include:
- Shot peening: Introduces compressive residual stresses that inhibit crack initiation.
- Controlled radii: Eliminates sharp internal corners that act as stress risers.
- Surface polishing: Reduces micro-notches and improves crack propagation resistance.
These techniques are difficult or impossible to apply to standard stock parts. With custom titanium machined parts, every feature—from fillet radius to thread root geometry—can be optimized for the specific load profile of the application.
Industries That Depend on Fatigue Resistance
The aerospace industry is perhaps the most demanding. Landing gear components, wing hinges, and rotor hubs experience millions of load cycles. A single fatigue failure can be catastrophic. Similarly, in medical devices, spinal rods and hip stems must endure the cyclic loading of walking and running for decades. Custom machining ensures that these parts meet the rigorous standards of ASTM F136 or AMS 4928.
5. Design Freedom and Precision Tolerances
Perhaps the most compelling reason to choose custom titanium machined parts is the unparalleled design freedom they offer. Unlike casting, forging, or additive manufacturing, CNC machining starts with a solid billet and removes material with sub-micron precision. This allows for the creation of features that would be impossible or prohibitively expensive with other methods.
Complex Geometries Made Possible
- Deep internal cavities and undercuts: Achieved through 5-axis machining and specialized tooling.
- Threaded features in hard-to-reach locations: Essential for assembly in confined spaces.
- Thin walls and fine details: Down to 0.020 inches (0.5 mm) or less, depending on the alloy.
- Asymmetric and organic shapes: Ideal for ergonomic handles, prosthetic components, or aerodynamic surfaces.
Tolerance Capabilities
Modern CNC machining centers can hold tolerances of ±0.0002 inches (±0.005 mm) on titanium parts. This level of precision is critical for:
- Bearing fits and press-fits in rotating assemblies.
- Sealing surfaces in high-pressure valves.
- Alignment features in modular medical instruments.
- Interchangeable components that must mate perfectly across production runs.
Iterative Prototyping and Low-Volume Production
Because CNC machining does not require expensive molds or dies, custom titanium parts are highly economical for prototypes, small batches, and design iterations. Engineers can test a part, modify the CAD model, and have a revised version machined within days. This agility accelerates development cycles and reduces time-to-market for innovative products.
Best Practices for Designing Custom Titanium Machined Parts
To fully realize the benefits outlined above, designers and engineers should follow several best practices when specifying custom titanium machined parts:
Select the Right Alloy
Not all titanium alloys are created equal. Grade 5 (Ti-6Al-4V) is the workhorse for most structural applications. Grade 23 (ELI) offers improved fracture toughness for medical implants. Commercially pure titanium (Grades 1-4) is softer and more corrosion-resistant but lower in strength. Consult with your machining partner to match the alloy to your specific requirements.
Design for Machinability
Titanium is notoriously difficult to machine due to its low thermal conductivity and tendency to work-harden. Work with your machinist to:
- Avoid sharp internal corners (use radii of 0.030 inches or larger).
- Minimize deep, narrow slots that trap heat.
- Specify reasonable tolerances—tighter is not always better and drives up cost.
- Use standard tool sizes where possible to reduce custom tooling expenses.
Consider Surface Finishing
As-machined titanium has a characteristic satin finish. For improved wear resistance or aesthetics, additional processes can be specified:
- Anodizing: Produces a thicker oxide layer in various colors.
- Passivation: Removes free iron and enhances corrosion resistance.
- Bead blasting: Creates a uniform matte surface.
- Polishing: Achieves a mirror-like finish for medical or decorative parts.
Validate with Prototyping
Before committing to a production run, always machine a prototype. This allows you to verify fit, function, and manufacturability. Many CNC shops offer rapid prototyping services specifically for titanium parts, with lead times as short as one week.
Conclusion
Custom titanium machined parts represent a pinnacle of modern manufacturing, offering a unique combination of strength, lightness, corrosion resistance, thermal stability, and design flexibility. While the initial cost per part is higher than materials like aluminum or steel, the total cost of ownership—including reduced weight, extended service life, lower maintenance, and enhanced performance—often makes titanium the most economical choice for demanding applications.
Whether you are designing a critical flight component, a life-saving medical implant, or a high-performance racing part, the five benefits discussed in this article provide a compelling case for choosing custom titanium machining. By partnering with an experienced precision machining shop and following best design practices, you can unlock the full potential of this remarkable material and elevate your project to new levels of reliability and performance.
