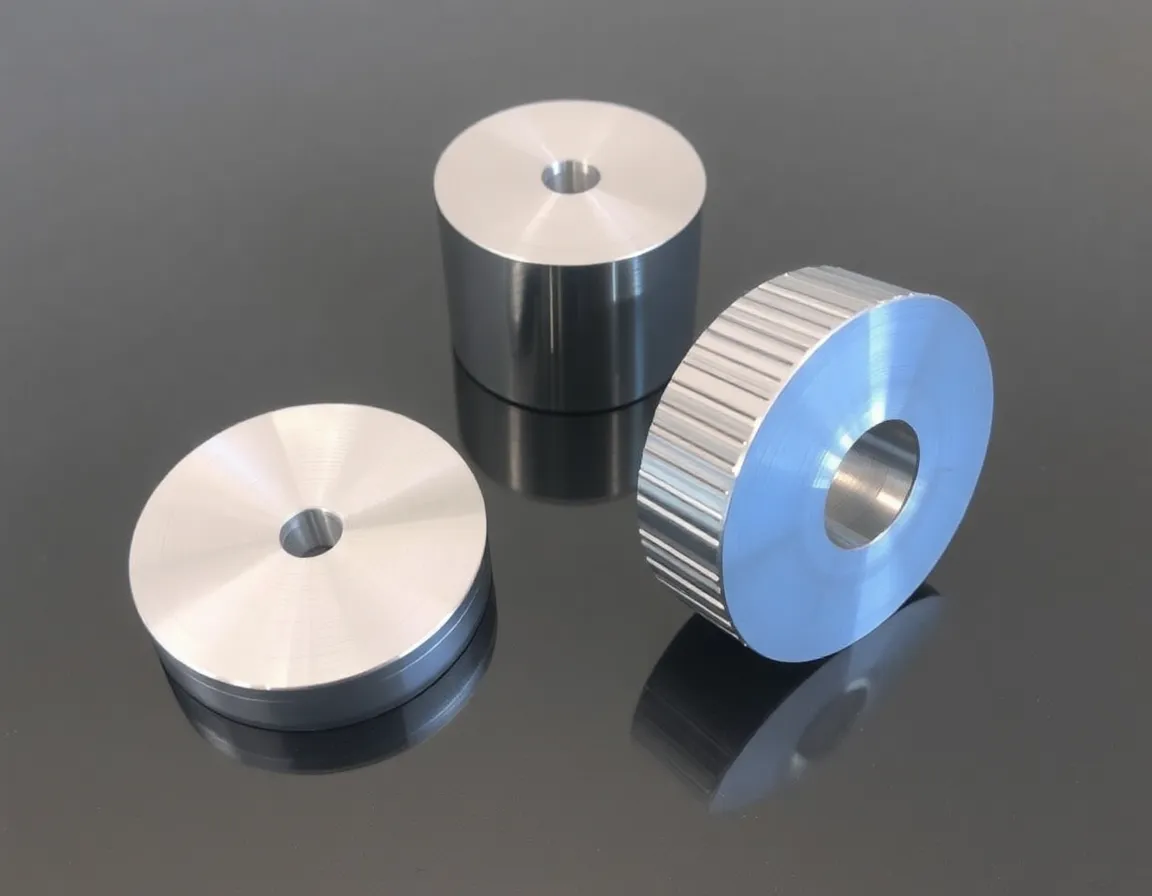

Introduction: The Precision Advantage of Custom Mechanical Parts
In the world of engineering and manufacturing, the difference between a good machine and a great machine often lies in the details. Off-the-shelf components are designed for general applications, offering a compromise between cost, availability, and performance. However, for industries ranging from aerospace to medical devices, this compromise is often unacceptable. This is where custom mechanical parts become a critical differentiator. By tailoring every dimension, material, and tolerance to a specific application, engineers can unlock levels of efficiency, durability, and precision that standardized parts simply cannot achieve. This article explores five distinct ways that investing in custom mechanical parts significantly boosts overall system performance.
1. Optimized Fit and Elimination of Tolerance Stack-Up
The most immediate benefit of custom mechanical parts is the perfect integration they offer. When using standard components, engineers often face the challenge of "tolerance stack-up," where the cumulative manufacturing variances of multiple parts lead to misalignment, binding, or excessive play. Custom parts eliminate this issue by being designed for a singular, specific assembly.
Precision Alignment for Reduced Wear
Consider a high-speed robotic arm. Using a standard bearing housing might require shims or adapters to fit the arm's unique geometry. These workarounds introduce potential failure points and reduce rigidity. A custom-machined housing, however, can be designed with exact bolt patterns, specific radial clearances, and integrated lubrication channels. This perfect fit ensures that loads are distributed evenly, reducing point stresses and dramatically slowing down the rate of mechanical wear. The result is a system that maintains its accuracy over thousands of operating hours.
Eliminating Unnecessary Mass
Standard parts are often overbuilt to fit a wide range of applications. A custom part, conversely, can be designed with topology optimization. Material is only placed where it is structurally needed. This leads to lighter components that reduce inertial forces in moving systems. For example, a custom connecting rod in a racing engine can be 30% lighter than a standard equivalent while retaining the same strength, directly translating to faster acceleration and reduced fuel consumption.
- Benefit: Zero modification required for installation.
- Benefit: Reduced vibration due to precise mass balancing.
- Benefit: Lower total cost of ownership through reduced downtime.
2. Superior Material Selection for Extreme Environments
Standard parts are typically made from common materials like 1018 steel, 6061 aluminum, or generic nylon. These materials are cost-effective for general use but fail under extreme conditions. Custom mechanical parts allow engineers to specify materials that are perfectly matched to the operating environment, a luxury that off-the-shelf components cannot provide.
High-Temperature and Corrosion Resistance
In chemical processing plants or deep-sea exploration equipment, corrosion is a primary failure mode. A custom part can be fabricated from Hastelloy, Inconel, or titanium alloys—materials that would be prohibitively expensive or unavailable in standard catalogs. Similarly, for applications involving high friction, custom parts can be made from advanced engineering plastics like PEEK (Polyether Ether Ketone) or Torlon, which offer self-lubricating properties and maintain their strength at temperatures exceeding 250°C (482°F).
Weight-to-Strength Optimization
In the aerospace and automotive sectors, every gram counts. Custom parts enable the use of carbon fiber composites or magnesium alloys for structural components. These materials offer an exceptional strength-to-weight ratio. A custom bracket for a drone, for instance, can be designed with complex lattice structures that are impossible to achieve with standard metal stock, providing the required stiffness while weighing a fraction of an aluminum alternative. This directly enhances flight time and payload capacity.
- Application: Medical implants using biocompatible titanium or PEEK.
- Application: Food processing equipment using FDA-approved, non-toxic polymers.
- Application: Semiconductor manufacturing using ceramic parts for electrical insulation.
3. Enhanced Durability and Extended Lifecycle
Performance is not just about initial output; it is about sustained output over time. Custom mechanical parts excel in this area because they can be engineered to resist the specific failure mechanisms present in a given application. This proactive approach to durability is a hallmark of high-performance engineering.
Controlled Surface Finishes and Coatings
Standard parts often come with a generic surface finish (e.g., 63 Ra or 125 Ra). A custom part can be specified with a mirror finish (8 Ra or lower) for sealing surfaces, or a rough finish for adhesive bonding. Furthermore, custom parts can receive targeted coatings. For example, a custom shaft in a hydraulic pump can be hard-chrome plated or treated with a diamond-like carbon (DLC) coating to reduce friction and prevent galling. These surface treatments are typically not available on standard parts but are critical for extending the lifecycle of high-stress components.
Geometric Features for Stress Relief
Sharp internal corners are a common source of fatigue cracks. When designing a custom part, engineers can incorporate generous fillet radii and stress-relief grooves at every change in cross-section. They can also specify post-processing treatments like shot peening or cryogenic stress relief to further enhance the part's resistance to cyclic loading. A custom gear, for instance, can have its tooth root geometry optimized to distribute bending stresses evenly, making it far more resistant to pitting and breakage than a standard gear of the same size.
- Technique: FEA (Finite Element Analysis) to identify stress concentration points before manufacturing.
- Technique: Heat treatment (e.g., case hardening, through-hardening) tailored to the part's function.
- Result: Mean Time Between Failure (MTBF) can increase by 200-500%.
4. Functional Integration and Simplified Assembly
One of the most powerful ways custom parts boost performance is through part consolidation. Instead of assembling a mechanism from 10 different standard components, a single custom part can be designed to perform multiple functions. This reduces complexity, weight, and potential failure points.
Multi-Functional Designs
Imagine a mounting bracket for a sensor. A standard solution might require a bracket, a separate clamp, and a wiring guide. A custom part can integrate all three functions into a single piece of machined aluminum. The part can have a precision bore for the sensor, a threaded hole for a set screw (eliminating the clamp), and a channel for routing wires. This integrated design not only speeds up assembly but also ensures that the sensor is always perfectly aligned, improving data accuracy.
Simplifying Maintenance and Repair
Custom parts can also be designed with serviceability in mind. Features like captive fasteners, color-coded alignment marks, or quick-release mechanisms can be machined directly into the component. This reduces the time and skill required for maintenance, minimizing machine downtime. For example, a custom pump impeller can include a threaded extraction point that allows it to be pulled easily without damaging the shaft, a feature absent from standard impellers.
- Benefit: Reduction in total part count by 40-60%.
- Benefit: Lower assembly labor costs.
- Benefit: Improved reliability through fewer joints and interfaces.
5. Performance Tuning for Specific Operational Parameters
Finally, custom mechanical parts allow engineers to fine-tune a system for peak performance within a narrow operational window. While standard parts are designed to be "good enough" across a wide range, custom parts can be optimized for a specific speed, load, temperature, or fluid flow condition.
Fluid Dynamics and Aerodynamics
In pumps, turbines, and compressors, the geometry of the impeller or rotor is critical. A custom impeller can be designed using Computational Fluid Dynamics (CFD) to have the exact blade angle, thickness, and curvature needed to maximize efficiency at a specific flow rate and pressure. This can result in a 10-20% increase in hydraulic efficiency compared to a standard impeller. Similarly, custom cooling fins on a heat sink can be shaped to optimize airflow from a specific fan, dramatically improving thermal performance.
Dynamic Response and Resonance Avoidance
Every mechanical system has natural frequencies. When operating near these frequencies, destructive resonance can occur. Custom parts can be designed to have a specific mass and stiffness distribution that shifts the natural frequency away from the operating range. This is achieved through strategic material removal (adding holes or slots) or by adding mass dampers. For example, a custom spindle in a CNC machine can be tuned to avoid resonance at the machine's typical cutting speeds, resulting in a better surface finish and longer tool life.
- Example: Custom camshaft profiles for optimized valve timing in engines.
- Example: Custom spring rates and damping characteristics in suspension systems.
- Example: Custom gearing ratios for precise torque and speed matching.
Best Practices for Designing Custom Mechanical Parts
To fully realize the performance benefits outlined above, a strategic approach to design and manufacturing is essential. The following best practices help ensure that your custom part delivers on its promise.
Design for Manufacturability (DFM)
Work closely with your manufacturing partner early in the design phase. While you can design any geometry you want, some shapes are significantly more expensive or difficult to produce. DFM principles help you balance performance with cost. For example, avoiding deep, narrow pockets reduces tooling costs, and specifying standard thread sizes ensures easy sourcing of fasteners.
Leverage Advanced Simulation Tools
Before cutting a single piece of metal, use FEA (Finite Element Analysis) and CFD (Computational Fluid Dynamics) to validate your design. These tools allow you to virtually test the part under real-world loads and conditions. This iterative process can identify weaknesses and optimize the design for maximum performance without the expense of physical prototyping.
Prototype and Validate
For critical applications, always create a prototype. Modern technologies like CNC machining and 3D printing (additive manufacturing) allow for rapid prototyping of custom parts. Test the prototype in the actual operating environment to confirm that it meets performance expectations. This step is crucial for verifying material selection, fit, and durability before committing to full-scale production.
Document Everything
Maintain a complete engineering file for every custom part. This includes the 3D CAD model, the 2D engineering drawing with all tolerances, the material specification, and the surface finish requirements. Proper documentation ensures that the part can be accurately reproduced in the future and serves as a reference for troubleshooting any performance issues.
Conclusion: The Strategic Investment in Customization
While the upfront cost of custom mechanical parts is often higher than their off-the-shelf counterparts, the return on investment is frequently substantial. By optimizing fit, selecting superior materials, enhancing durability, integrating functions, and tuning for specific operational parameters, custom parts deliver a level of system performance that is simply unattainable with standardized components. For any engineer or manufacturer seeking a competitive edge—whether through longer machine life, higher throughput, lower energy consumption, or superior product quality—the path to peak performance is paved with custom-designed mechanical solutions. The initial investment in precision engineering pays dividends in reliability, efficiency, and overall system excellence.
