Introduction to Custom Machined Components
In the world of modern manufacturing, precision is not merely a goal—it is a requirement. Whether you are developing a prototype for a medical device, assembling a high-performance automotive engine, or constructing complex aerospace instrumentation, the components that form the backbone of your project must meet exacting specifications. This is where custom machined components come into play. These are parts that are manufactured to unique designs, often through subtractive manufacturing processes such as CNC (Computer Numerical Control) milling, turning, drilling, and grinding. Unlike off-the-shelf parts, custom machined components are engineered to fit a specific application, ensuring optimal performance, durability, and reliability.
The demand for custom machining has grown exponentially as industries push the boundaries of innovation. From small startups requiring a single prototype to large corporations needing thousands of identical parts, the ability to create components with tolerances as tight as a few microns is invaluable. This article will explore the fundamentals of custom machined components, the processes behind their creation, their benefits, applications across various sectors, and best practices for working with a machining partner.
What Are Custom Machined Components?

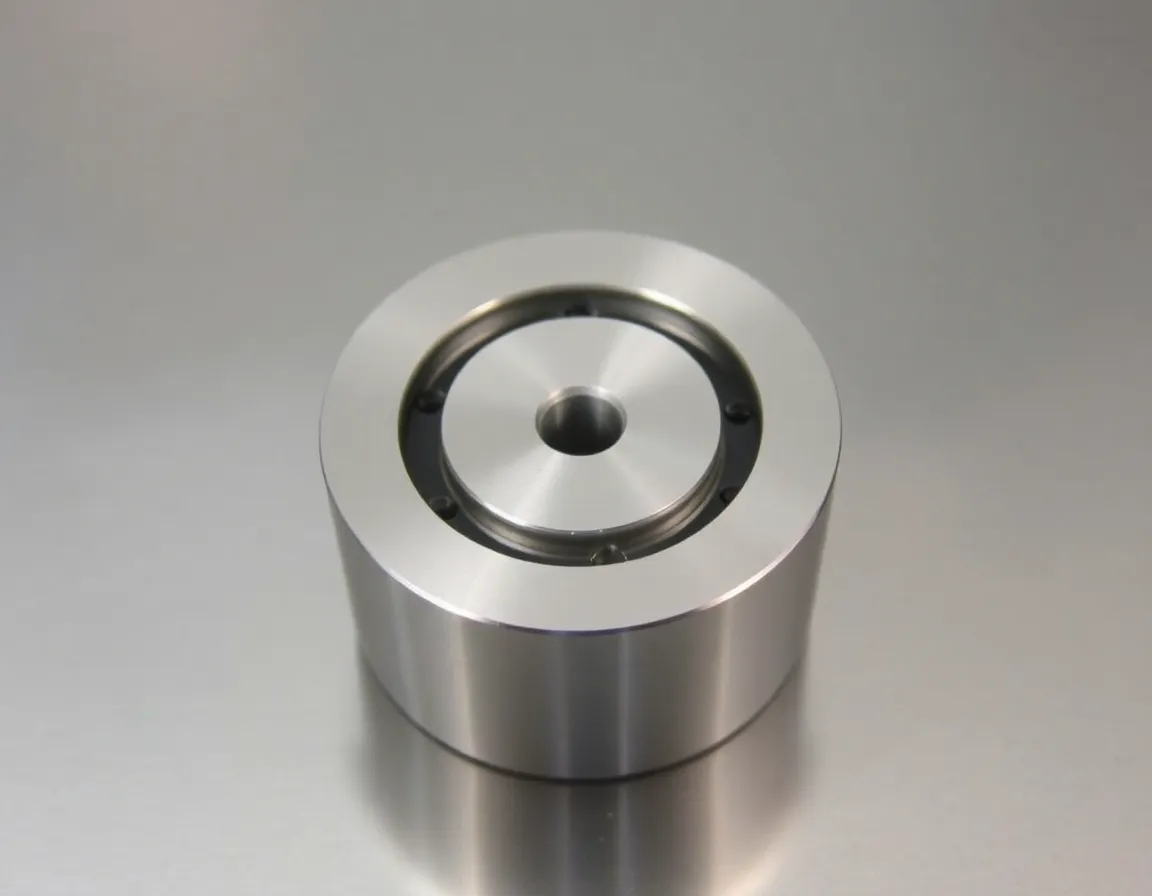

At its core, a custom machined component is any part that is produced by removing material from a solid block (or billet) of metal, plastic, or other materials to achieve a specific shape, size, and surface finish. The term "custom" signifies that the part is not mass-produced from a standard catalog but is instead designed and fabricated according to a client’s unique blueprint. This can range from simple brackets and shafts to highly complex geometries found in turbine blades or surgical instruments.
The Role of CNC Technology
Modern custom machining is almost synonymous with CNC (Computer Numerical Control) technology. CNC machines use pre-programmed software to control the movement of cutting tools with extreme accuracy. A designer creates a 3D CAD (Computer-Aided Design) model, which is then converted into a set of instructions (G-code) that the machine follows. This eliminates the risk of human error and allows for repeatable, high-speed production. Key CNC processes include:
- CNC Milling: Rotating cutting tools remove material from a stationary workpiece to create flat surfaces, slots, and complex 3D contours.
- CNC Turning: The workpiece rotates while a stationary cutting tool shapes it, ideal for cylindrical parts like rods, bushings, and pulleys.
- CNC Drilling and Tapping: Precision holes and threads are added to components for assembly purposes.
- EDM (Electrical Discharge Machining): Used for extremely hard materials or intricate shapes where traditional cutting tools cannot reach.
Materials Used in Custom Machining
The choice of material is critical to the component’s function. Common materials include:
- Metals: Aluminum (lightweight, corrosion-resistant), stainless steel (high strength, hygienic), titanium (biocompatible, aerospace-grade), and brass (excellent machinability).
- Plastics: Delrin (low friction, dimensional stability), Nylon (tough, wear-resistant), PTFE (chemical inertness), and PEEK (high-temperature capability).
- Exotics: Inconel (superalloy for extreme heat), tool steel (for dies and molds), and ceramics (for electrical insulation).
How Custom Machined Components Work: From Concept to Delivery
Understanding the lifecycle of a custom machined component helps project managers and engineers plan effectively. The process is a collaborative effort between the client and the machine shop, typically following these steps:
Step 1: Design and Engineering
The journey begins with a detailed technical drawing or 3D CAD model. The client provides dimensions, tolerances, surface finish requirements, and material specifications. Many machine shops offer design-for-manufacturability (DFM) feedback, suggesting modifications that reduce cost or improve performance without compromising the part’s function. For example, adding a fillet to a sharp internal corner can prevent tool breakage and speed up production.
Step 2: Programming and Setup
Once the design is finalized, a CNC programmer translates the model into machine code. This includes selecting cutting tools, calculating feed rates and spindle speeds, and defining the toolpath to minimize waste and cycle time. The machine is then set up with the appropriate workholding fixtures (vises, chucks, or custom jigs) to secure the raw material.
Step 3: Machining and Inspection
The machine executes the program, often in multiple passes to achieve the desired finish. During and after machining, quality control is paramount. Measurements are taken using precision instruments such as micrometers, calipers, CMM (Coordinate Measuring Machines), and optical comparators. Tolerances can be as tight as ±0.0005 inches (0.0127 mm) for high-precision parts. In some industries, like medical or aerospace, every part is inspected and documented with a certificate of conformance.
Step 4: Post-Processing and Finishing
After machining, components may require additional treatments. These include:
- Deburring: Removing sharp edges for safety and aesthetics.
- Surface Finishing: Anodizing (for aluminum), passivation (for stainless steel), powder coating, or plating.
- Heat Treatment: Hardening or stress-relieving to improve mechanical properties.
- Assembly: Some projects require the machined part to be integrated with other components before shipping.
Key Benefits of Using Custom Machined Components
Choosing custom machining over standard parts or alternative methods like 3D printing or casting offers distinct advantages. Below are the primary benefits that make this approach indispensable for critical applications.
Uncompromising Precision and Accuracy
Perhaps the most significant advantage is the ability to achieve extremely tight tolerances. In industries where a fraction of a millimeter can mean the difference between a functioning system and a catastrophic failure, custom CNC machining delivers consistency. For example, a piston in a hydraulic cylinder must fit perfectly within its bore; custom machining ensures this fit with repeatability across thousands of units.
Material Versatility
Unlike 3D printing, which is often limited to specific polymers or metals, custom machining can work with virtually any solid material. This includes high-strength alloys, hardened steels, and specialized plastics that cannot be easily cast or forged. The ability to choose the exact material for the environment (e.g., corrosion-resistant for marine use or heat-resistant for exhaust systems) is a critical advantage.
Superior Mechanical Properties
Because custom machined components are cut from solid bar stock or billet, they retain the inherent grain structure of the material. This results in parts that are stronger and more durable than those made by casting or additive manufacturing, which can introduce internal voids or weak layers. Machined parts also have excellent surface finishes, reducing friction and wear in moving assemblies.
Scalability and Lead Times
Custom machining is suitable for both low-volume prototypes and high-volume production. For a prototype, a single part can be machined in days. For production, once the program is optimized, the same part can be replicated quickly with minimal variation. This scalability makes it ideal for iterative design processes where changes are frequent.
Applications Across Industries
Custom machined components are the unsung heroes of modern technology. Their presence is felt in nearly every sector that relies on mechanical systems. Below are some of the most prominent applications.
Aerospace and Defense
In aerospace, safety and weight are critical. Custom components are used in engine mounts, landing gear parts, fuel system fittings, and avionics housings. Materials like titanium and aluminum are common, with tolerances often measured in microns. The defense industry relies on machined parts for weapon systems, communication devices, and vehicle drivetrains.
Medical and Dental
The medical field demands biocompatible, sterile, and precise components. Custom machining produces surgical instruments, orthopedic implants (hips, knees), dental abutments, and diagnostic equipment parts. Stainless steel and titanium are preferred for their compatibility with the human body, and the surface finish must be flawless to prevent bacterial growth.
Automotive and Motorsports
From high-performance racing engines to electric vehicle drivetrains, custom machined parts are essential. Examples include custom pistons, connecting rods, brake calipers, gearbox components, and intake manifolds. In motorsports, weight reduction and strength are optimized through complex machining of aluminum and billet steel.
Industrial Automation and Robotics
Robotic arms, conveyor systems, and packaging machinery rely on custom components for precise movement. Custom gears, bearing housings, sensor mounts, and actuator shafts are machined to ensure smooth motion and long service life. The use of hard-wearing materials like tool steel is common to withstand continuous operation.
Electronics and Semiconductor
In the electronics industry, custom machining creates heat sinks, connector housings, wafer-handling components, and test fixtures. These parts often require extremely fine tolerances and exotic materials like copper or ceramic to manage thermal and electrical properties.
Best Practices for Working with a Custom Machining Partner
To ensure your project succeeds, it is crucial to approach the custom machining process strategically. Whether you are an engineer, a procurement specialist, or a business owner, following these best practices will help you achieve the best results.
Provide Complete and Clear Specifications
Ambiguity is the enemy of precision. Always provide a detailed engineering drawing that includes all critical dimensions, tolerances, surface finish symbols (Ra value), and material grade. If possible, also supply a 3D CAD file (e.g., STEP or IGES format) to minimize interpretation errors. Clearly indicate which features are functional and which are cosmetic.
Communicate Your End-Use Environment
Share information about the operating conditions of the component. Is it exposed to high temperatures, corrosive chemicals, or heavy loads? Does it need to be lightweight? Does it require FDA or ISO certification for medical use? A skilled machinist can recommend material substitutions or coating options that you may not have considered.
Consider Design for Manufacturability (DFM)
Work with your machining partner early in the design phase. Simple changes, such as increasing an internal radius or standardizing hole sizes, can dramatically reduce cost and lead time. Avoid features that require multiple setups or specialized tools unless absolutely necessary. For instance, deep, narrow slots are difficult to machine and may require EDM instead of milling.
Balance Cost and Quality
Custom machining is an investment. While it is tempting to specify the tightest possible tolerances everywhere, this increases cost exponentially. Only apply tight tolerances to critical mating surfaces; allow standard tolerances (e.g., ±0.005 inches) for non-critical dimensions. Request a quote breakdown to understand where costs come from—material, setup, machining time, or finishing.
Verify Quality with First Article Inspection
Before committing to full production, request a First Article Inspection (FAI). This is a thorough check of the first machined part against your specifications. Many shops provide a detailed inspection report with measurements for each critical feature. Reviewing this report ensures that the process is correct and saves you from costly rework later.
Conclusion: Precision as a Competitive Advantage
Custom machined components are more than just pieces of metal or plastic; they are the physical embodiment of engineering intent. In a world where off-the-shelf solutions often fall short, the ability to design and manufacture parts that fit your exact requirements gives your project a distinct competitive edge. From the rigorous demands of aerospace to the life-saving applications in medicine, precision machining enables innovation.
As you embark on your next project, remember that success lies in collaboration. Choose a machining partner who values communication, quality, and craftsmanship. Invest time in clear specifications and DFM analysis. By doing so, you will not only receive components that perform flawlessly but also build a relationship that supports your long-term growth. The future of manufacturing is custom, and it begins with precision.
