Master CNC Milling Copper: Tips & Best Results

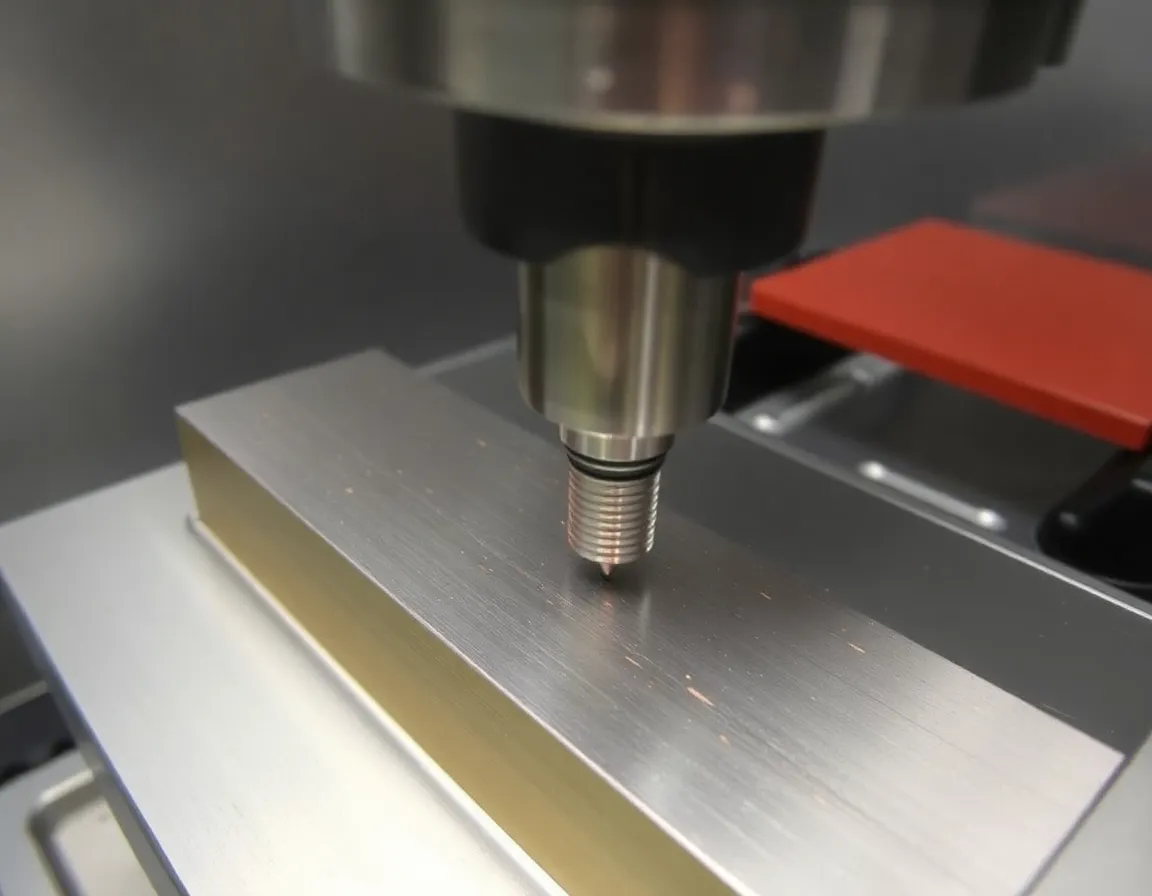

Understanding the Unique Challenges of CNC Milling Copper

Copper is one of the most versatile and widely used metals in manufacturing, prized for its exceptional electrical conductivity, thermal performance, and corrosion resistance. However, CNC milling copper presents a distinct set of challenges that separate it from machining aluminum, steel, or plastics. Unlike softer materials, copper is highly ductile and tends to "gum up" cutting tools due to its tendency to form long, stringy chips. This gummy behavior can lead to poor surface finishes, tool breakage, and excessive heat buildup if not managed correctly.

To achieve best results in CNC milling copper, machinists must understand the material's mechanical properties. Pure copper (C110 or C101) is soft and malleable, while copper alloys like beryllium copper or brass offer different hardness levels. The key to success lies in selecting the right tooling, optimizing speeds and feeds, and employing effective chip evacuation strategies. This article provides a comprehensive guide to mastering copper milling, from setup to finishing.

Essential Tooling and Equipment for Copper Milling

Choosing the Right Cutting Tools

The most critical factor in CNC milling copper is tool selection. Standard high-speed steel (HSS) tools dull quickly due to copper's abrasive nature—despite its softness, copper contains impurities that wear edges rapidly. Instead, opt for:

  • Carbide end mills: Solid carbide tools with sharp edges are ideal for copper. They maintain hardness at high temperatures and resist wear.
  • Polished or coated tools: Tools with a mirror-like finish (e.g., uncoated carbide) reduce friction and prevent material adhesion. Diamond-like carbon (DLC) coatings can also help reduce chip welding.
  • High-helix geometries: A helix angle of 35° to 45° promotes efficient chip evacuation and reduces cutting forces.
  • Single-flute or two-flute designs: Fewer flutes create larger chip spaces, which is crucial for copper's long, stringy chips.

Machine Rigidity and Spindle Selection

Copper milling requires a rigid machine setup. The material's ductility can cause vibrations that lead to chatter marks on the workpiece. Use a CNC mill with a sturdy frame, high-torque spindle (10,000–20,000 RPM recommended), and minimal runout. For best results, employ climb milling (down milling) to reduce heat generation and improve surface finish. Always secure the copper workpiece with strong vises or vacuum fixtures to prevent movement.

Optimizing Speeds, Feeds, and Depth of Cut

Calculating Parameters for Pure Copper

Getting the speeds and feeds right is the cornerstone of successful copper milling. Incorrect parameters cause tool breakage or poor finishes. Follow these guidelines for pure copper (C110):

  • Spindle speed: 800–1,200 SFM (surface feet per minute). For a 1/4-inch end mill, this translates to approximately 12,000–18,000 RPM.
  • Feed rate: 0.002–0.005 inches per tooth (IPT). Use the lower end for finishing and higher for roughing.
  • Depth of cut: For roughing, use 0.5–1.0 times the tool diameter. For finishing, use 0.005–0.020 inches.
  • Stepover: 30–40% of tool diameter for roughing; 5–10% for finishing.

For copper alloys like beryllium copper (C17200), reduce speeds by 10–20% due to increased hardness. Always start conservatively and adjust based on chip formation—ideal chips are short, curled, and not discolored (blue chips indicate excessive heat).

Coolant and Lubrication Strategies

Copper's thermal conductivity is high, meaning heat dissipates quickly, but this doesn't eliminate the need for coolant. Proper lubrication prevents chip welding and extends tool life:

  • Flood coolant: Use a water-soluble coolant (5–10% concentration) for general milling. It flushes chips and reduces friction.
  • Mist or air blast: For high-speed finishing, compressed air or mist coolant can prevent chip recutting without thermal shock.
  • Oil-based lubricants: For manual or low-volume work, apply a light cutting oil to the tool edge.

Avoid using chlorinated cutting fluids on copper, as they can cause staining or chemical reactions. Always clean the workpiece thoroughly after machining to prevent oxidation.

Techniques for Superior Surface Finish and Accuracy

Chip Control and Evacuation

Copper's gummy nature demands aggressive chip management. Long, stringy chips can wrap around the tool, scoring the workpiece or breaking the end mill. Implement these strategies:

  • Use chip breakers: End mills with chip-splitting geometries (e.g., serrated flutes) break chips into manageable pieces.
  • Peck milling: For deep pockets, use a pecking cycle (0.5–1.0x tool diameter per pass) to clear chips.
  • High-pressure coolant: Direct coolant at the cutting zone to flush chips away from the tool path.
  • Vacuum systems: For small parts, a shop vacuum near the spindle can remove chips in real time.

Finishing Passes and Tool Path Strategies

For mirror-like finishes on copper, follow these best practices:

  • Use a finishing pass: After roughing, leave 0.010–0.020 inches of material for a final pass. Use a sharp, new tool with a small stepover (0.005–0.010 inches).
  • Adaptive tool paths: Modern CAM software (e.g., Fusion 360, Mastercam) offers trochoidal or adaptive paths that maintain constant chip load, reducing heat and tool wear.
  • Reduce spindle speed: For finishing, lower RPM by 20% to minimize vibration and improve surface integrity.
  • Direction of cut: Always climb mill for finishing. Conventional milling can cause edge burrs and a rough finish on copper.

After milling, deburring is essential. Use a deburring tool or fine sandpaper (600–1000 grit) to remove sharp edges. For electrical components, ensure no burrs remain to prevent short circuits.

Common Applications of CNC Milled Copper

Electrical and Electronics Components

Copper's excellent electrical conductivity makes it a top choice for:

  • Bus bars and connectors for power distribution
  • Heat sinks and cold plates for thermal management
  • RF shielding enclosures and waveguides
  • PCB prototypes and custom contact terminals

In these applications, tight tolerances (±0.001 inches) and smooth surfaces are critical to ensure low resistance and reliable connections.

Industrial and Decorative Parts

Beyond electronics, copper milling serves:

  • Plumbing fixtures: Custom fittings and valve components
  • Architectural elements: Decorative panels, nameplates, and trim
  • Scientific instruments: Laboratory equipment requiring corrosion resistance
  • Jewelry and art: Intricate designs with high aesthetic value

For decorative parts, polishing after milling can achieve a mirror finish. Use a felt wheel with jeweler's rouge to enhance the copper's natural luster.

Troubleshooting Common Copper Milling Issues

Burr Formation and Edge Breakage

Burrs are a frequent problem in copper milling. To minimize them:

  • Use sharp tools and replace them at the first sign of wear.
  • Reduce feed rate during finishing passes.
  • Apply a light chamfer on tool edges to break sharp corners.
  • Use a specialized deburring tool or ultrasonic cleaning for small parts.

Tool Wear and Breakage

If tools wear prematurely, check for:

  • Incorrect feed rates: Too slow causes rubbing; too fast causes overload.
  • Insufficient coolant: Heat buildup accelerates wear.
  • Tool runout: Even 0.001 inches of runout can cause uneven loading.
  • Material purity: Recycled copper may contain abrasive impurities.

Replace tools when surface finish degrades or cutting forces increase noticeably.

Conclusion: Achieving Mastery in Copper Milling

CNC milling copper is both an art and a science. By understanding the material's unique behavior—its ductility, thermal properties, and chip formation—you can select the right tools, optimize cutting parameters, and implement effective chip control strategies. Whether you are producing precision electrical components or decorative art pieces, the principles outlined in this guide will help you achieve consistent, high-quality results.

Remember that practice and experimentation are key. Start with conservative speeds and feeds, monitor chip color and tool wear, and adjust accordingly. With the right approach, copper can be machined with the same reliability as aluminum or steel, yielding parts that are both functional and beautiful. Implement these tips in your workshop, and you will master the craft of CNC milling copper.

Frequently Asked Questions

What is CNC milling copper, and what makes it different from milling other metals?

+

CNC milling copper is a precision subtractive manufacturing process where computer-controlled cutting tools remove material from a solid copper workpiece to create a desired shape or part. Copper is distinct from metals like aluminum or steel due to its high ductility, excellent thermal and electrical conductivity, and tendency to gum up or stick to cutting tools if not managed correctly. Unlike harder metals, copper requires specialized cutting speeds, coolants, and tool geometries to prevent work-hardening or burr formation. Skilled machinists often use sharp carbide tools, high-pressure coolant systems, and optimized feed rates to achieve clean finishes. Because copper dissipates heat rapidly, tool wear is generally lower than with steel, but the material's softness demands careful chip evacuation to avoid re-cutting. This makes CNC milling copper ideal for components like electrical connectors, heat sinks, and plumbing fixtures, where accuracy and surface quality are critical.

How does the CNC milling process work for copper parts?

+

The CNC milling process for copper begins with a 3D CAD model of the part, which is converted into machine code (G-code) that guides the milling machine. A solid copper block or plate is securely clamped onto the machine bed. The CNC machine then uses rotating cutting tools—typically carbide end mills or drills—to remove material layer by layer along precise paths. Because copper is soft and gummy, machinists often use climb milling to reduce heat buildup and apply a mist or flood coolant to prevent adhesion. Multi-axis machines can create complex geometries, such as threaded holes, slots, or intricate contours, in a single setup. The process is automated, so once programmed, the machine runs with minimal human intervention. After milling, parts may undergo deburring or secondary finishing to remove sharp edges. This method ensures high repeatability, making it suitable for both prototyping and large-scale production of copper components.

What are the key benefits of using CNC milling for copper components?

+

CNC milling copper offers several critical advantages. First, it delivers exceptional precision, with tolerances as tight as ±0.005 inches, which is essential for parts like electrical contacts or heat exchanger plates where fit and function are paramount. Second, the process produces excellent surface finishes, often eliminating the need for secondary polishing. Third, CNC milling handles complex geometries—such as deep cavities, thin walls, or fine threads—that are difficult to achieve with other methods like casting or stamping. Fourth, because it is automated, CNC milling ensures high repeatability across batches, making it ideal for consistent quality in production runs. Additionally, copper’s natural antimicrobial properties and corrosion resistance are preserved, as milling does not introduce contaminants. For industries like electronics, aerospace, and medical devices, these benefits translate into reliable performance, reduced waste, and faster time-to-market for custom copper parts.

What are common concerns when CNC milling copper, such as tool wear and surface finish?

+

Common concerns when CNC milling copper include tool adhesion, burr formation, and heat management. Due to copper’s high ductility, chips can weld to the cutting tool, leading to built-up edge (BUE) that degrades surface finish and shortens tool life. To mitigate this, machinists use sharp carbide tools with polished flutes and apply high-pressure coolant to flush chips away. Another issue is burr creation along edges, which requires careful toolpath planning or post-milling deburring. Surface finish can also be affected by improper feed rates—too slow causes rubbing, while too fast creates chatter. Additionally, copper’s high thermal conductivity means heat dissipates quickly, which is generally beneficial but can cause thermal expansion if the workpiece isn’t properly clamped. Choosing the right coolant (oil-based for better lubrication) and optimizing spindle speeds (typically 8,000–15,000 RPM) are standard solutions. With expert programming and tool selection, these concerns are manageable, resulting in high-quality copper parts.

What is the typical pricing and process timeline for CNC milling copper parts?

+

Pricing for CNC milling copper parts depends on part complexity, size, quantity, and required tolerances. Simple 2D parts like flat plates may cost $50–$150 per piece for low volumes, while intricate 3D components with tight tolerances can range from $200 to $500+ per piece. Setup fees ($100–$300) are common for programming and fixturing. Material cost also factors in—copper is more expensive than aluminum but less than brass. The process timeline varies: for a prototype, expect 5–10 business days from CAD file submission to delivery, including programming, machining, and inspection. Production runs (50–500 parts) typically take 2–4 weeks. Rush services can shorten this to 1–3 days at a premium. Most providers offer free quotes based on your 3D model, and costs decrease per unit with higher quantities due to amortized setup. For accurate pricing, submit a detailed drawing specifying tolerances and surface finish requirements.
