The Ultimate Guide to Clear Anodize Finish for Aluminum Parts

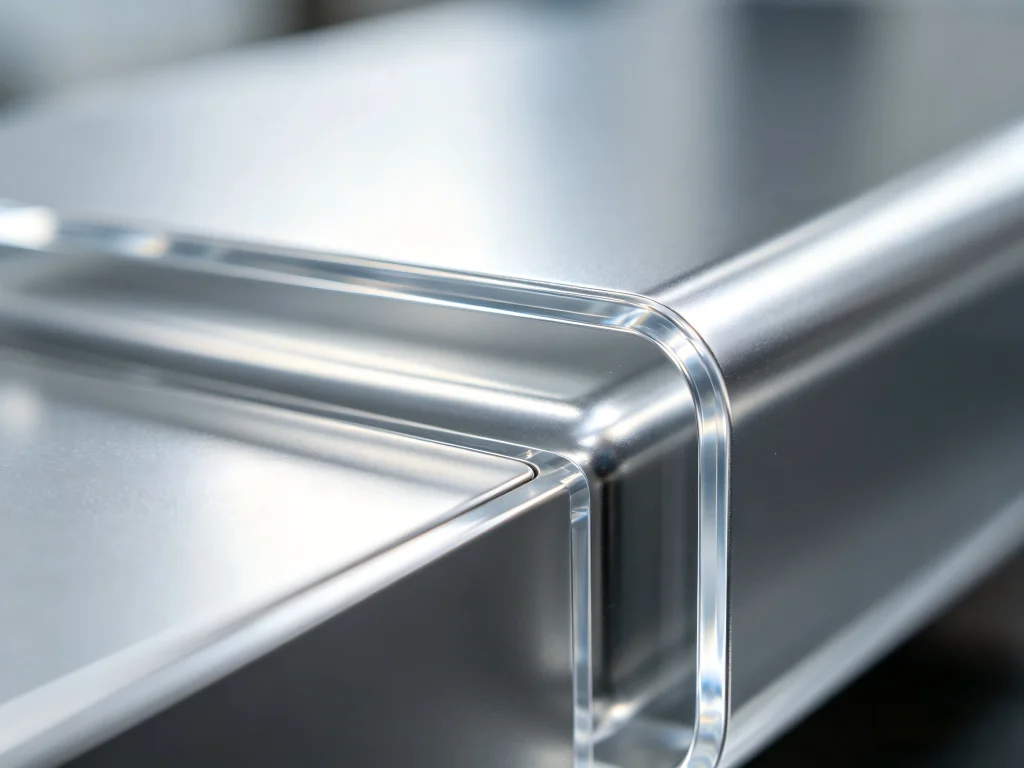

What Exactly Is a Clear Anodize Finish?

A clear anodize finish is an electrochemical conversion process that grows a transparent, durable oxide layer on the surface of aluminum. Unlike paint or plating, anodizing doesn’t apply a coating on top of the metal—it transforms the base aluminum itself. The result is a semi-transparent, hard ceramic-like film that preserves the metallic appearance of raw metal while significantly improving its resistance to wear, corrosion, and scratching. The word “clear” here refers to the lack of dyes or pigments; the natural aluminum oxide is intrinsically translucent, giving the part a slightly matte silver tone that many designers prefer for its high-tech, industrial aesthetic.

In terms of technical codes often seen on engineering drawings, you might see notations like clear anodized finish code referencing MIL-A-8625 Type II or Type III, or commercial designations such as #14 clear anodized finish and #17 clear anodized finish used by architectural aluminum suppliers like Kawneer. The Kawneer clear anodized finish is a specific brand-specified process often required in building projects where color consistency and corrosion resistance in outdoor environments are critical. Similarly, variations like clear satin anodized finish refer to the level of gloss or texture achieved through pre-anodizing surface preparation, usually with a light bead blast or acid etch prior to the anodizing bath.

The Science Behind Clear Anodizing

To understand why a clear anodised finish performs so well, you have to appreciate the electrochemical reaction at its core. An aluminum part acts as the anode in an electrolytic cell, typically submerged in a sulfuric acid bath. When current is applied, oxygen ions are released at the aluminum surface, reacting with the aluminum to form aluminum oxide (Al₂O₃). Unlike natural oxide films that are thin and irregular, the controlled process creates a highly ordered, columnar structure of hexagonal cells, each with a central pore. These pores extend almost the entire depth of the coating, which can range from a few microns for decorative applications up to 100 microns or more for hard anodizing. Because the coating grows partially into and partially out of the original metal surface, dimensional changes are predictable—often half the coating thickness is buildup above the original surface. After formation, the pores are sealed in a hot water or nickel acetate bath, swelling the oxide to close the pores and lock in the transparent finish permanently.

Type II vs. Type III Clear Anodize: A Practical Breakdown

For CNC machined components, you will nearly always specify either Type II (conventional) or Type III (hardcoat) clear anodizing. The differences matter enormously for fit, function, and cost.

• Type II (Sulfuric Acid Anodize): Coating thickness typically ranges from 1.8 μm to 25 μm (0.00007″ to 0.001″). It provides excellent corrosion resistance and good abrasion resistance while retaining a bright, clean look. This is the most common clear anodized finish aluminum specification for consumer electronics, medical devices, and general industrial parts. Dyeing can be added but for clear, it’s sealed without color. Surface hardness is around 200-400 HV, adequate for most non-sliding applications.
• Type III (Hard Anodize): Built in the same sulfuric acid bath but at near-freezing temperatures and higher current densities, Type III creates a denser, thicker oxide layer from 25 μm up to 150 μm (0.001″ to 0.006″). The coating is harder (up to 600-700 HV), often grayish or slightly dark due to its thickness, but still classified as a clear anodized finish when no dye is added. It’s the go-to choice for aerospace actuators, hydraulic cylinders, and firearm components where extreme wear resistance is needed. Be aware that the thicker layer will alter dimensional tolerances significantly.

Why Engineers Choose Clear Anodizing: Key Benefits

Across Reddit threads in r/engineering and r/CNC, one question keeps popping up: “Why not just leave it raw or powder coat?” The community’s consensus points to several distinct advantages of a clear anodized surface:

• Corrosion Resistance: Anodized aluminum can withstand hundreds of hours of salt spray testing (ASTM B117) without pitting. This is why marine and outdoor architectural applications almost universally demand aluinium clear anodized finish.
• Surface Hardness Without Brittleness: The oxide layer is harder than tool steel in many cases, yet the ductile aluminum core prevents catastrophic fracture. It resists scratching from handling and assembly.
• Electrical Insulation: The oxide is a non-conductive ceramic, making it useful for electrical enclosures and heat sinks where you need to isolate circuits from the chassis.
• Thermal Stability: Anodized finishes can withstand temperatures up to the melting point of aluminum (around 660°C or 1220°F) without degradation, unlike organic paints. This is critical for engine bay components or lighting fixtures.
• Aesthetic Consistency: A clear satin anodized finish provides a uniform, low-gloss surface that hides fingerprints and minor scratches better than bare metal or clear-coated paint, an attribute frequently praised in product design forums.

Common Applications of Clear Anodized Finish Across Industries

The versatility of this surface treatment makes it a staple in sectors ranging from consumer goods to heavy industry. Let’s explore where you’ll encounter clear anodized finish daily.

Architectural Aluminum Systems: The Kawneer Standard

Perhaps the most recognizable use is on window frames, curtain walls, and storefronts. Companies like Kawneer have built their reputation on consistent, long-lasting clear finishes. When you see a Kawneer clear anodized finish on a building’s exterior, you’re looking at decades of proven performance against UV radiation, acid rain, and thermal cycling. Specifiers often require clear anodized finish code like “#14 Clear” or “#17 Clear” corresponding to different etching/ brightening pretreatments. A #14 finish usually denotes a chemically etched, matte surface, while #17 refers to a brighter, polished appearance. Knowing these codes is vital when ordering replacement parts or matching existing building aesthetics.

Automotive and Motorsport Components

From fuel rails to suspension spacers, many custom CNC aluminum parts under the hood are clear anodized. The benefit here is twofold: the coating protects against road salt and coolant chemicals, and it provides an electrically non-conductive surface that prevents galvanic corrosion when in contact with steel fasteners. Enthusiasts on forums frequently discuss the need to mask threaded holes and bearing bores before anodizing to maintain dimensional accuracy—a detail a precision shop like Jucheng handles routinely through meticulous masking and engineering consultation.

Medical Devices and Laboratory Equipment

Clear anodizing is preferred for surgical instruments, diagnostic device frames, and lab automation platforms because the sealed oxide layer is chemically inert, easy to sterilize, and free of outgassing. The non-pigmented finish eliminates the risk of dye contamination, which could interfere with sensitive tests. Additionally, the slight reflectivity of a clear anodised finish assists in visual inspections and cleanliness checks, a topic often brought up on LinkedIn by quality engineers in the MedTech space.

Consumer Electronics and High-End Audio

Think of the sleek silver laptop chassis, high-end headphones, or custom keyboard cases. Apple popularized the aesthetic of bead-blasted and clear anodized aluminum, creating a surface that feels premium, resists fingerprints, and dissipates heat effectively. Audiophile groups on Reddit consistently recommend clear anodized CNC enclosures for DACs and amplifiers because the non-conductive coating prevents accidental short circuits while providing EMF shielding when combined with proper grounding.

Marine and Outdoor Sporting Goods

Saltwater environments are notoriously aggressive. Precision fishing reels, boat cleats, diving equipment, and bicycle components all rely on clear anodized finish aluminum to survive constant exposure. Users often share photos of their gear after years of use, crediting the anodizing with preventing pitting and maintaining the component’s structural integrity. The key, they note, is proper sealing and regular rinsing with fresh water to remove chloride deposits.

How to Choose the Right Clear Anodize Finish for Your Project

Selecting the correct clear anodizing process isn’t as simple as ticking a box. Your decision should weigh several factors that can significantly impact part performance, cost, and lead time. Drawing from conversations with procurement managers and CNC shops, here are the essential selection criteria.

When selecting a manufacturer for your anodized CNC parts, you should also evaluate their quality certifications and process control. On professional networks, buyers often stress that not all anodizing shops are equal. A shop that invests in automated process lines, chemical analysis, and thickness testing tools (like eddy current gauges) will deliver consistent color and coating depth batch after batch. At Jucheng, for example, every anodized order undergoes visual inspection and selective thickness verification, with full inspection reports available for demanding industries like aerospace and medical.

Clear Anodized Finish vs. Alternatives: A Comparison for Buyers

While clear anodizing is excellent, it isn’t always the best solution. Here’s how it stacks up against common alternative finishes to help you decide.

Clear Anodize vs. Powder Coat

Powder coating offers a thicker, organic polymer layer available in virtually any color, with excellent chip resistance. However, it can hide defects, is thicker (often 50-150 μm), and is less dimensionally controllable. For precision fits or heat dissipation, clear anodized finish is superior. In a Facebook group poll among CNC machinists, 68% preferred anodizing for parts with tolerances under 0.05mm, while powder coat was favored for aesthetic-only brackets.

Clear Anodize vs. Alodine (Chemical Conversion Coating)

Alodine (chromate or non-chromate conversion coating) provides corrosion resistance and electrical conductivity but almost no wear resistance. It’s often used as a touch-up for anodized parts or for electrical bonding. A Reddit user described Alodine as “a quick dip for protection while keeping it conductive,” whereas anodizing is “when you need that part to outlast the machine it’s in.”

Clear Anodize vs. Nickel Plating

Electroless nickel plating offers uniform thickness, conductivity, and superb corrosion resistance. However, it’s more expensive, adds weight, and can be problematic in high-temperature cycling due to different thermal expansion coefficients. Anodized aluminum maintains the substrate’s lightweight nature and thermal properties, making it the choice for aerospace weight-critical components.

Preparing Aluminum for Clear Anodize: Tips from the Shop Floor

Many quality issues in anodizing originate not in the anodizing tank but upstream during machining and handling. After interviewing several finishing technicians and recalling discussions on practicalmachinist.com, here are essential pre-anodizing steps.

• Alloy Selection and Homogeneity: Use wrought, heat-treatable alloys like 6061-T6. Ensure material is from a reputable mill to avoid inconsistent grain structure that leads to patchy anodizing. Ask your CNC supplier about material traceability.
• Machining Fluids and Cleaning: Residual coolant and lubricants must be thoroughly removed. A shop like Jucheng uses multistage ultrasonic cleaning and alkaline degreasing before parts ever touch the anodizing bath. Any silicone-based cutting fluid left on the part will repel the anodizing, causing “burning” or white spots.
• Surface Finish Pre-treatment: The final anodized appearance is a direct reflection of the surface before treatment. A polished surface yields a bright, reflective clear finish; a bead-blasted surface yields a clear satin anodized finish; a heavily machined surface might show tool paths. Specify “pre-anodize surface finish” in your PO. Grit size (e.g., 180 grit aluminum oxide blast) can be dialed in to match aesthetics.
• Racking and Electrical Contact: Parts must be securely attached to racks or fixtures with good electrical contact. Rack marks are a necessary evil but can be minimized by positioning them on non-cosmetic surfaces. Discuss rack mark locations with your anodizing partner.
• Masking for Precision Features: Threaded holes, press-fit bores, and bearing journals will grow in dimension if not masked. Specifying which features to plug is a collaborative effort. At Jucheng, engineering teams review customer CAD files and suggest masking strategies to save time and cost.

Installation and Maintenance of Clear Anodized Parts

Unlike some coatings that require delicate handling, clear anodized surfaces are robust, but a few maintenance practices will maximize their lifespan. Drawing from architectural maintenance manuals and user experiences shared on home improvement forums:

• Initial Handling: Despite its hardness, the anodized layer can be scratched by diamond or carbide tools. Use clean gloves when assembling parts to avoid fingerprint acids that can stain over time. If rack marks or light handling marks are visible, a quick rinse with isopropyl alcohol can clean without damaging the seal.
• Routine Cleaning: For architectural Kawneer clear anodized finish frames, the manufacturer often recommends a mild detergent (pH neutral, non-abrasive) and soft cloth every three to six months. Avoid alkaline cleaners (like diluted bleach or ammonia) that can attack the oxide seal, causing clouding. A discussion on a home restoration Facebook group noted that a simple mix of warm water and car wash soap kept 30-year-old anodized window frames looking nearly new.
• Repair of Scratches: Minor scratches can be touched up with clear anodizing touch-up pens that contain a mild acidic compound, though they rarely match perfectly. In most industrial applications, a scratched anodized part still provides corrosion protection because the surrounding oxide continues to shield the aluminum. Deep gouges into base metal require re-anodizing after resurfacing, a process many CNC shops like Jucheng can support as a refinishing service.
• Avoiding Galvanic Corrosion: When anodized aluminum contacts dissimilar metals in the presence of an electrolyte (like rainwater), galvanic corrosion can occur. The anodized layer acts as an insulator, but at cut edges or scratches, the bare aluminum is exposed. Using stainless steel fasteners with a nylon washer is a common preventative measure, often discussed in marine maintenance forums.

Case Study: Achieving Consistent Clear Anodized Finish on a Complex Medical Enclosure

To illustrate how specification and collaboration lead to success, consider a recent project handled by Jucheng for a medical device startup. The part was a 6061-T6 aluminum enclosure for a portable diagnostic unit, requiring a uniform clear satin anodized finish to meet aesthetic and hygiene standards. The original drawings called for generic “clear anodize” with no surface prep notes. Jucheng’s engineering team reviewed the CAD and identified several potential pitfalls: blind tapped holes that could trap acid and cause leaching, large flat surfaces that would highlight any tool mark, and the need for EMC grounding on specific pads. They proposed a bead-blast with #120 aluminum oxide to create the satin texture, and designed silicone plugs for all threaded holes with tapered fits to prevent acid seepage. After a sample run, the team noticed slight color variation on one batch due to rack density in the anodizing tank. By reducing rack load by 20% and adjusting the tank agitation, the next batch achieved perfect color uniformity across all enclosures. The result was a flawless, fingerprint-resistant enclosure that passed the customer’s 500-hour salt spray test and received praise on a MedTech LinkedIn group as “the best finish we’ve seen on an anodized aluminum part.” This case underscores the importance of choosing a precision-focused manufacturer that understands anodizing not as an afterthought but as a critical process integrated with CNC machining.

Frequently Asked Questions About Clear Anodize Finish

What is the difference between a #14 and a #17 clear anodized finish?

The numbers refer to mechanical and chemical pretreatments defined by architectural standards. #14 clear anodized finish is typically a matte, etched surface that hides scratches and fingerprints well, often used for building exteriors. #17 clear anodized finish undergoes a bright dip or chemical polishing step resulting in a shiny, reflective appearance, more common for interior decorative trim or storefronts. Both achieve the same corrosion protection but differ in gloss and texture.

Can you clear anodize all aluminum alloys?

Technically, yes, but the results vary. Wrought 5xxx, 6xxx, and 7xxx series anodize beautifully and provide a clear, silvery finish. High-copper alloys (2xxx) often turn yellowish or brownish due to intermetallic particles. Castings with high silicon (like A380) anodize to a dark gray, non-reflective coating that many would not call “clear.” Always consult your CNC shop to pick the right alloy.

How do you read a clear anodized finish code from a drawing?

Drawings may reference standards like “MIL-A-8625 Type II, Class 1” (clear anodize), or commercial codes such as “AA-C22-A21” or simply “clear anodized aluminum finish code per Kawneer spec.” It’s crucial to include the desired thickness range and seal class. If in doubt, Jucheng can interpret these codes and confirm before production, preventing costly mistakes.

Will clear anodize hide machining marks?

No, it will not hide them; in fact, it can make them more visible if severe. The anodized layer is transparent, so the underlying surface texture shows through. For a smooth, consistent look, pre-anodizing surface preparation like bead blasting, tumbling, or chemical etching is necessary. A clear satin anodized finish is specifically designed to diffuse light and minimize the appearance of tool paths.

Is clear anodize conductive?

No, the aluminum oxide layer is dielectric. You cannot rely on a clear anodized surface for electrical bonding or grounding unless you mask off a pad and either leave it bare or apply a conductive conversion coating. This is a frequent pitfall discussed in electrical engineering subreddits where anodized enclosures challenged EMC compliance.

How long does clear anodizing last?

Properly sealed and maintained clear anodize on aluminum can last several decades even in harsh outdoor environments. There are buildings with Kawneer clear anodized curtain walls still serving strong after 40+ years with minimal cleaning. Industrial parts in controlled indoor settings may last indefinitely. The key is correct thickness for the environment and regular cleaning to remove corrosive deposits.
