Introduction: The Foundation of Modern Manufacturing
In the world of precision engineering, the difference between a component that functions flawlessly and one that fails catastrophically often comes down to a few thousandths of a millimeter. This is the domain of precision ground parts, components that have been meticulously shaped and finished through abrasive machining processes to achieve exceptional dimensional accuracy, surface finish, and geometric consistency. From the gears in a high-speed turbine to the guide rails of a CNC machine tool, these parts form the silent backbone of countless industries. Understanding why accuracy matters in these components is not just a technical exercise; it is a fundamental requirement for reliability, safety, and performance in modern technology.
This article delves into the world of precision ground parts, exploring what they are, how they are manufactured, the critical benefits they offer, and the best practices that ensure their quality. Whether you are an engineer, a procurement specialist, or simply curious about the mechanics of the modern world, this comprehensive guide will illuminate the vital role that precision grinding plays in our daily lives.

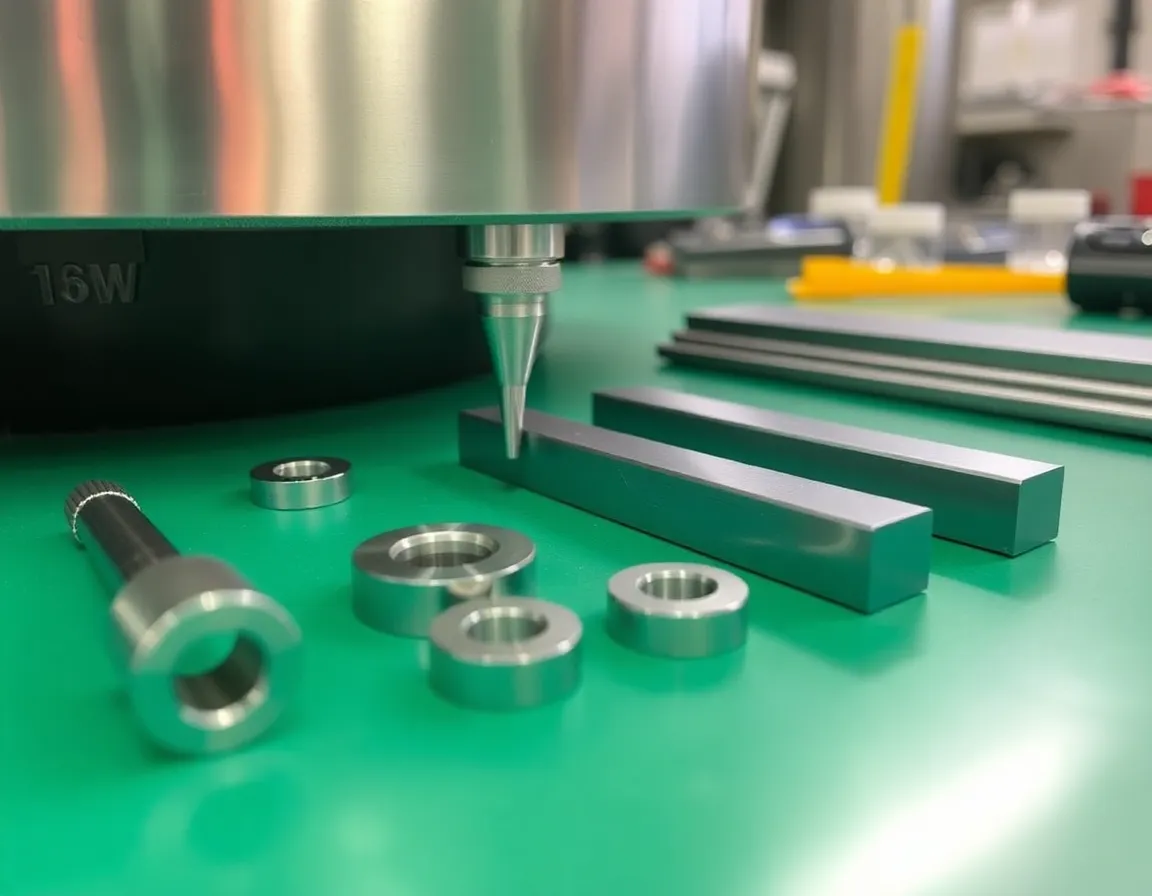

What Are Precision Ground Parts?
At its core, a precision ground part is a component that has undergone a secondary machining process called grinding. Unlike primary processes like casting, forging, or even milling and turning, grinding uses an abrasive wheel composed of hard, sharp grains bound together. This wheel rotates at high speeds and removes extremely small amounts of material from the workpiece, creating a surface that is both dimensionally accurate and exceptionally smooth.
The term "precision" in this context refers to the ability to hold tight tolerances, often measured in microns (one-millionth of a meter) or even sub-micron levels. For example, a precision ground shaft might have a diameter tolerance of ±0.002 mm, while its surface finish could be as low as 0.1 Ra (roughness average). These specifications are critical because they directly impact how the part will function within a larger assembly.
Key Characteristics of Precision Ground Parts
- Exceptional Dimensional Accuracy: Parts are manufactured to exacting tolerances, ensuring they fit perfectly with mating components.
- Superior Surface Finish: The grinding process produces a smooth, mirror-like surface that reduces friction, wear, and the risk of stress concentration.
- Geometric Consistency: Features such as roundness, flatness, and parallelism are maintained with high precision, eliminating distortions common in other machining methods.
- Improved Material Properties: The process can work-harden the surface layer, improving wear resistance and fatigue life.
- Versatility: Precision grinding can be applied to a wide range of materials, including hardened steels, ceramics, carbides, and exotic alloys.
How Precision Grinding Works: The Process in Detail
Understanding how precision ground parts are made is essential to appreciating their value. The process is far more complex than simply rubbing a part against a spinning wheel. It involves a careful orchestration of machine parameters, abrasive selection, and coolant application.
The Core Mechanism
Precision grinding is an abrasive machining process. The grinding wheel acts as a multi-point cutting tool. Each abrasive grain on the wheel's surface acts like a tiny cutting tooth, shearing off a minute chip of material from the workpiece. The key difference from other machining processes is the extremely small depth of cut (often less than 0.025 mm per pass) and the high number of cutting edges. This allows for the removal of material in a controlled, predictable manner, achieving the tight tolerances that define precision ground parts.
Types of Precision Grinding Operations
Different geometries require different grinding techniques. The most common types include:
- Surface Grinding: Used to create flat, parallel surfaces. The workpiece is held on a reciprocating table while the grinding wheel traverses across it. This is ideal for producing flat plates, machine tool bases, and die components.
- Cylindrical Grinding: Used for shaping the external or internal surfaces of cylindrical parts. The workpiece rotates between centers or in a chuck while the grinding wheel moves along its length. This is the standard process for shafts, spindles, and bearing journals.
- Centerless Grinding: A high-production method for cylindrical parts that do not require center holes. The workpiece is supported between a grinding wheel, a regulating wheel, and a work rest blade. It is exceptionally efficient for producing long, straight shafts and pins.
- Internal Grinding: Used to finish the inside diameter of holes, bores, and tubes. A small, high-speed grinding wheel is inserted into the workpiece to achieve precise internal dimensions.
- Form Grinding: Uses a shaped grinding wheel to create complex contours, such as gear teeth, splines, and thread forms. This is often done using a diamond dressing tool to "form" the wheel to the desired profile.
The Critical Role of Coolant and Wheel Dressing
Two elements are absolutely vital to the success of any precision grinding operation: coolant and wheel dressing. Coolant (usually a water-based emulsion or oil) serves multiple purposes: it lubricates the cutting zone to reduce friction, it removes heat generated by the abrasive action to prevent thermal damage to the workpiece, and it flushes away the tiny metal chips and worn abrasive grains. Without proper coolant, the part can suffer from "grinding burn," a thermal defect that alters the material's microstructure and reduces its strength.
Wheel dressing is the process of periodically rejuvenating the grinding wheel's surface. Over time, the abrasive grains become dull or clogged with metal particles (a condition called "loading"). A dressing tool, typically a diamond-tipped instrument, is passed across the wheel to remove the worn layer and expose sharp, new cutting grains. This ensures consistent cutting action and maintains the wheel's geometry, which is directly transferred to the workpiece.
Why Accuracy Matters: The Critical Benefits of Precision Ground Parts
The question is not simply "why does accuracy matter?" but rather "what happens when accuracy is compromised?" The answer can range from reduced efficiency to catastrophic failure. The benefits of precision ground parts are directly linked to the level of accuracy achieved.
Enhanced Performance and Efficiency
In any mechanical system, friction is the enemy of efficiency. Precision ground parts, with their superior surface finish and tight tolerances, dramatically reduce friction between moving components. For example, a precision ground shaft rotating within a bearing will experience significantly less resistance than a roughly machined one. This translates directly into lower energy consumption, reduced heat generation, and smoother operation. In high-speed applications like spindles for machine tools or turbines for jet engines, this efficiency gain is not just beneficial—it is essential for achieving the required rotational speeds and power outputs.
Extended Component Life and Reliability
Wear is a gradual process of material removal from surfaces in contact. The rougher the surface, the faster the wear. Precision ground parts, with their smooth, low-friction surfaces, dramatically extend the service life of both the part itself and its mating components. Furthermore, the elimination of surface irregularities reduces the risk of stress concentration, which is a primary cause of fatigue cracks and premature failure. In critical applications like automotive engine components (e.g., camshafts, crankshafts) or aerospace landing gear, this reliability is non-negotiable for safety.
Improved Fit and Assembly
Modern manufacturing relies on interchangeability. Parts must be able to be assembled without manual fitting or rework. Precision ground parts guarantee that a shaft from one production batch will fit perfectly into a bearing from another batch. This is achieved through strict adherence to tolerance specifications. When tolerances are held, assembly times decrease, scrap rates plummet, and the overall quality of the final product is consistent. This is particularly critical in high-volume industries like automotive and consumer electronics.
Superior Sealing and Fluid Control
In hydraulic and pneumatic systems, leakage is a major source of inefficiency and contamination. Precision ground parts, such as valve spools, piston rods, and cylinder bores, provide the extremely tight clearances required for effective sealing. A valve spool that is not perfectly cylindrical or has a poor surface finish will allow fluid to bypass, reducing system pressure and responsiveness. In medical devices like insulin pumps or drug delivery systems, this level of precision is literally a matter of life and death.
Applications: Where Precision Ground Parts Are Indispensable
The reach of precision ground parts extends into nearly every sector of advanced manufacturing. Their presence is often invisible, but their absence would be immediately felt.
Aerospace and Defense
The aerospace industry demands the highest levels of reliability and performance. Precision ground parts are found in:
- Jet engine turbine blades and discs (form grinding for airfoil profiles)
- Landing gear components (cylindrical grinding for shock absorber pistons)
- Fuel system components (surface grinding for metering plates and valves)
- Guidance system bearings (ultra-precision grinding for gyroscopes)
Automotive Manufacturing
From the engine to the transmission, precision ground parts are everywhere in modern vehicles:
- Engine crankshafts and camshafts (cylindrical grinding for bearing journals)
- Transmission gears and shafts (form grinding for gear teeth)
- Fuel injector components (internal grinding for precise fuel metering)
- Brake system pistons and calipers (surface grinding for flatness)
Medical Devices and Instrumentation
In medical technology, precision is a matter of patient safety:
- Surgical instruments (e.g., scalpels, forceps) require sharp, durable edges.
- Orthopedic implants (e.g., hip joints, knee replacements) need smooth surfaces to reduce wear and biological reaction.
- Diagnostic equipment (e.g., MRI scanners, CT scanners) uses precision ground components in their positioning systems.
Industrial Machinery and Tooling
The machines that make other machines rely on precision ground parts for their own accuracy:
- Machine tool guideways and slides (surface grinding for flatness and parallelism)
- Spindles and bearings for high-speed machining centers
- Die and mold components (form grinding for complex cavity shapes)
- Robotic joints and actuators (precision ground shafts and gears)
Best Practices for Achieving and Maintaining Precision
Producing precision ground parts is not a matter of luck. It requires a disciplined approach to every aspect of the manufacturing process. The following best practices are essential for achieving consistent, high-quality results.
Material Selection and Preparation
The material's hardness, grain structure, and heat treatment condition directly affect the grinding process. Precision ground parts are often made from materials that have been pre-hardened to improve wear resistance. However, the material must be free of internal stresses that could cause distortion during grinding. Proper stress relieving and annealing are critical preparatory steps. Furthermore, the material must be clean and free of scale or surface defects that could damage the grinding wheel.
Machine Selection and Maintenance
The grinding machine itself must be capable of holding the required tolerances. This means selecting a machine with rigid construction, high-precision spindles, and advanced control systems. Regular maintenance is non-negotiable. This includes checking spindle runout, table flatness, and coolant filtration. A machine that is out of alignment will produce parts that are out of tolerance, regardless of the operator's skill.
Process Control and Monitoring
Consistency is key. This requires strict control over grinding parameters such as wheel speed, workpiece speed, depth of cut, and feed rate. Real-time monitoring using sensors for force, power, and temperature can detect anomalies before they lead to scrap. In-process gauging, where a measuring probe checks the part's dimensions during the grinding cycle, allows for automatic compensation for wheel wear, ensuring that the final part meets specifications.
Operator Skill and Training
Despite advances in automation, the human element remains crucial. A skilled operator understands the complex interplay between the wheel, the workpiece, and the coolant. They can interpret the sound and feel of the grinding process to make subtle adjustments. Continuous training on new materials, wheel technologies, and machine controls is essential for maintaining a high level of craftsmanship.
Quality Assurance and Metrology
The final step is verifying that the part meets its specifications. This requires a robust quality assurance system using precision measurement instruments. Common tools include:
- Micrometers and calipers for basic dimensional checks.
- Surface profilometers for measuring surface finish (Ra, Rz, etc.).
- Coordinate measuring machines (CMMs) for complex geometric verification.
- Optical comparators for inspecting form-ground profiles.
Statistical process control (SPC) techniques should be employed to monitor trends and prevent the production of out-of-tolerance parts.
Conclusion: The Unseen Engine of Progress
Precision ground parts are the unsung heroes of the modern industrial world. They are the silent, accurate, and reliable components that enable everything from a smooth car ride to a life-saving medical procedure. The relentless pursuit of tighter tolerances and better surface finishes is not an academic exercise; it is a direct driver of performance, efficiency, safety, and innovation. As industries continue to push the boundaries of what is possible—from electric vehicles to quantum computing—the demand for ever more precise ground parts will only intensify. Understanding why accuracy matters is the first step in appreciating the incredible engineering that goes into the objects we depend on every day. In a world of complex systems, it is often the simplest thing—a perfectly ground shaft or a flawlessly flat surface—that makes all the difference.
