Introduction: The New Standard in Product Development
In the fast-paced world of product development, the bridge between a digital design and a physical object is often the most critical—and the most stressful—phase. Engineers and designers face a constant paradox: the need for speed to get to market first, versus the need for accuracy to ensure the part functions correctly. This is where precision CNC machining prototype services have revolutionized the industry. By combining computer numerical control (CNC) technology with advanced tooling and materials, manufacturers can now produce prototypes that are not only dimensionally exact but also functionally equivalent to production parts. This article explores how precision CNC prototyping achieves the perfect marriage of speed and accuracy, transforming how ideas become reality.

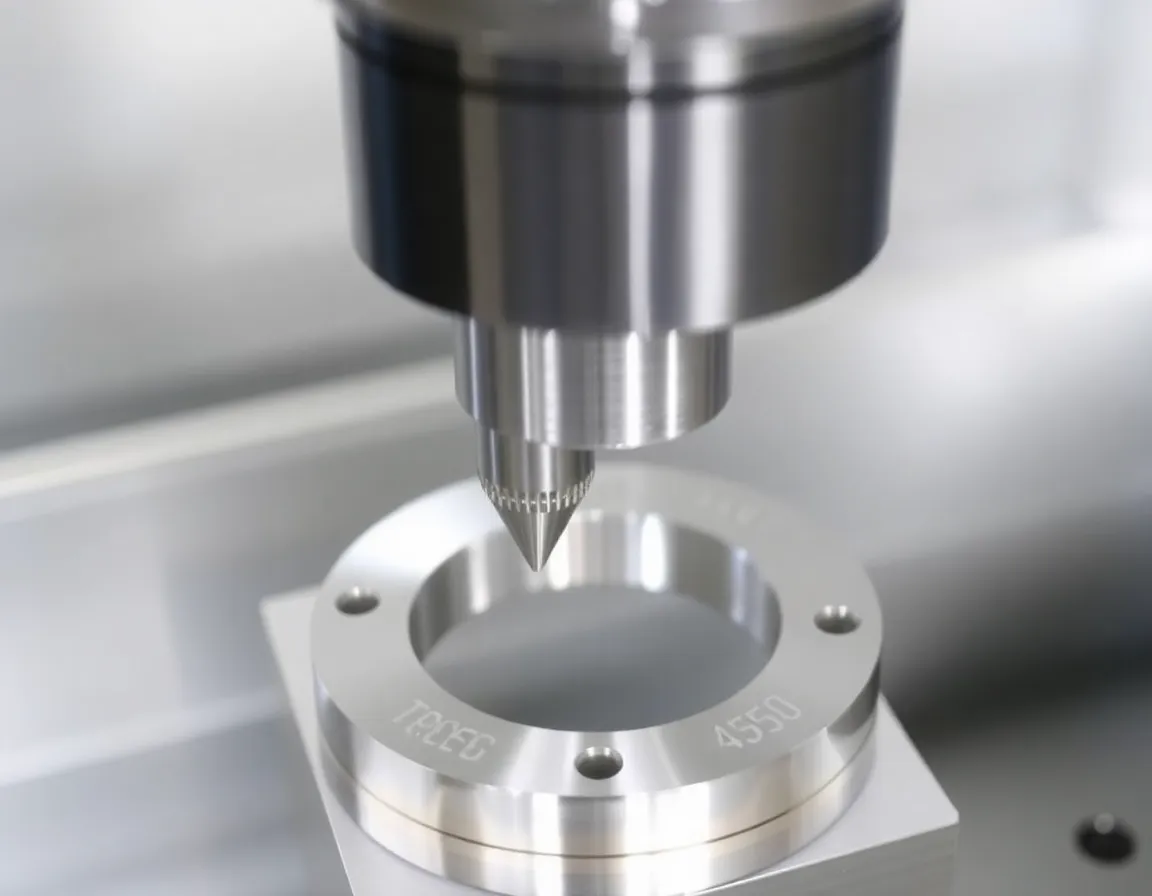

What is Precision CNC Prototyping?
Precision CNC prototyping is a subtractive manufacturing process where a solid block of material (metal, plastic, or composite) is precisely carved into a prototype using automated cutting tools. Unlike 3D printing, which builds layers, CNC machining removes material to achieve tight tolerances—often within ±0.005 inches or better. The term "precision" here refers to the ability to replicate the exact specifications of a CAD model, down to fine features like threads, undercuts, and complex geometries.
This process is distinct from traditional manual machining because it relies on computer-controlled movements. A digital file (typically STEP, IGES, or STP) is converted into G-code, which directs the machine’s spindle, axes, and tool changers. The result is a prototype that mirrors the intended production part in material, finish, and mechanical properties. For industries where failure is not an option—such as aerospace, medical devices, and automotive—precision CNC prototyping is the gold standard.
Key Components of Precision CNC Prototyping
- High-Speed Spindles: Capable of 15,000 to 30,000 RPM, allowing for fine finishing and rapid material removal.
- Multi-Axis Capability: 3-axis, 4-axis, and 5-axis machines enable complex geometries without multiple setups.
- Advanced CAM Software: Computer-Aided Manufacturing programs optimize tool paths to minimize cycle time while maintaining accuracy.
- Quality Inspection Tools: CMM (Coordinate Measuring Machines) and laser scanners verify dimensions against the CAD model.
How Precision CNC Machining Prototypes Achieve Speed
One of the most common misconceptions about CNC prototyping is that it is slow. In reality, modern CNC centers are designed for rapid turnaround. The speed advantage comes from several factors:
Automated Tool Changes
Modern CNC machines feature automatic tool changers (ATC) that swap between drills, end mills, and reamers in seconds. For a complex prototype requiring ten different tools, the machine can cycle through them without human intervention. This reduces setup time from hours to minutes, allowing a precision CNC machining prototype to be completed in 1-3 days—even for intricate parts.
High-Feed Milling Strategies
Advanced CAM software now uses trochoidal milling and adaptive clearing techniques. Instead of making deep, heavy cuts that risk tool deflection, the machine takes shallow, high-speed passes. This approach removes material up to 70% faster than conventional methods while protecting the tool and workpiece from heat damage. For prototype runs of one to ten parts, this is a game-changer.
Simultaneous Multi-Axis Machining
With 5-axis CNC machines, the cutting tool can approach the workpiece from any angle. This eliminates the need to flip the part manually, which can take hours for complex shapes. A single setup on a 5-axis machine can complete a precision CNC machining prototype in half the time of a 3-axis machine, while also improving surface finish.
Material Stock Availability
Precision CNC prototyping services typically stock a wide range of materials—aluminum 6061, stainless steel 304, PEEK, Delrin, and more. Because the process is subtractive, there is no need for material curing or sintering (as with additive manufacturing). Once the program is loaded, the machine can start cutting immediately. This "ready-to-cut" advantage means prototypes can be shipped in as little as 24 hours for simple geometries.
How Precision CNC Machining Prototypes Achieve Accuracy
Accuracy is the non-negotiable pillar of prototyping. A prototype that is 0.1 mm off can cause a mechanism to seize, a seal to leak, or an assembly to fail. Precision CNC machining delivers accuracy through several mechanisms:
Tight Tolerances and Repeatability
CNC machines are inherently precise due to their closed-loop servo systems. These systems use encoders to constantly compare the actual position of the axis against the commanded position, making micro-adjustments in real-time. A well-maintained machine can hold tolerances of ±0.002 inches (0.05 mm) for standard prototypes, and ±0.0005 inches for high-precision work. This repeatability means that if you order a second prototype, it will be virtually identical to the first.
Material Integrity
Unlike additive processes that can introduce internal voids or layer adhesion issues, CNC machining starts with a solid billet of material. The prototype’s mechanical properties—tensile strength, hardness, thermal resistance—are exactly the same as the final production part. This is critical for functional testing where the prototype must endure real-world stresses, such as in a brake caliper or a surgical instrument.
Surface Finish Control
Precision CNC prototyping allows for a wide range of surface finishes, from rough (125 Ra) to mirror-polished (8 Ra). By selecting the appropriate tool, feed rate, and step-over, machinists can achieve a finish that matches production specifications. This is vital for parts that require sealing surfaces, optical clarity, or aesthetic appeal. Additionally, secondary operations like anodizing, powder coating, or bead blasting can be applied directly to the prototype.
In-Process Inspection
Many modern CNC machines are equipped with probing systems. After a critical feature is machined, the machine can pause to touch-probe the surface and automatically adjust for any tool wear or thermal expansion. This closed-loop feedback ensures that even long-run prototypes stay within tolerance. Furthermore, post-machining inspection using CMM or optical comparators provides a detailed dimensional report, often included with the prototype shipment.
Benefits of Precision CNC Prototyping Over Alternatives
While 3D printing and vacuum casting have their places, precision CNC machining offers distinct advantages for specific scenarios:
- Superior Material Properties: CNC prototypes use the same metals and engineering plastics as production parts, allowing for realistic stress testing.
- No Size Limitations: Unlike 3D printers with build volumes of 12x12x12 inches, CNC machines can handle parts up to several feet in length.
- Better Surface Finish: Machined surfaces are smoother and more consistent than layer-based finishes, which often require post-processing.
- Threads and Inserts: CNC can cut internal threads directly into the prototype, which is difficult with additive methods.
- Cost-Effective for Small Batches: For 1-50 prototypes, CNC machining is often faster and cheaper than injection molding, which requires expensive tooling.
Applications Across Industries
Aerospace and Defense
In aerospace, a precision CNC machining prototype is used for bracket assemblies, sensor housings, and engine components. These parts must withstand extreme temperatures and vibration. CNC machining from aluminum or titanium ensures the prototype can be tested in wind tunnels or on test stands without risk of failure.
Medical Devices
From surgical robots to implantable devices, medical prototypes require biocompatibility and exacting tolerances. CNC machining of stainless steel, titanium, or PEEK allows for prototypes that can undergo sterilization and functional testing. For example, a hip implant prototype must match the patient’s anatomy within 0.1 mm—a task well-suited to precision CNC.
Automotive
Automotive engineers use CNC prototypes for intake manifolds, gearbox components, and custom brackets. These parts are often tested on dynamometers or in prototype vehicles. The ability to iterate quickly—producing a revised prototype in 48 hours—accelerates the development cycle significantly.
Consumer Electronics
Smartphones, laptops, and wearables require prototypes that are both functional and aesthetic. CNC machining of aluminum or magnesium provides a realistic weight, feel, and thermal performance. Companies like Apple rely on CNC prototypes for design validation before committing to mass production.
Best Practices for a Successful Precision CNC Machining Prototype
To maximize the speed and accuracy of your project, follow these best practices:
Design for Machinability (DFM)
While CNC machines are versatile, certain features are easier to machine than others. Avoid sharp internal corners (use a radius of at least 0.5 mm), deep narrow slots, and thin walls (under 0.5 mm for metal). Use standard thread sizes and avoid unnecessary undercuts. A quick DFM review can reduce machining time by 30%.
Provide a Clear Technical Drawing
Alongside the 3D CAD file, supply a 2D drawing with critical dimensions, tolerances, and surface finish requirements. This helps the machinist understand which features are critical-to-function and which have wider tolerances. It also prevents misinterpretation of the model.
Choose the Right Material
Select a material that matches the intended production material. If the final part will be injection-molded ABS, prototype in ABS or a machinable alternative like Delrin. If the final part is aluminum 6061, use the same alloy for the prototype. This ensures that thermal expansion, weight, and strength are representative.
Plan for Secondary Operations
If the prototype requires anodizing, plating, or painting, inform the CNC shop early. Some finishes require specific surface roughness or material preparation. For example, anodizing requires a clean, oil-free surface, so the machining process should avoid using sulfur-based cutting fluids.
Communicate Lead Time Needs
Precision CNC prototyping services often offer tiered lead times: standard (5-7 days), expedited (2-3 days), and rush (24 hours). Be upfront about your deadline. Rushing a prototype may require the shop to use overtime or prioritize your job, which can increase cost but is often worth it for critical milestones.
Conclusion: The Future of Rapid, Accurate Prototyping
Precision CNC machining prototypes have become the backbone of modern product development. By combining the speed of automated toolpaths with the accuracy of closed-loop servo systems, engineers can validate designs faster than ever before. Whether you are developing a medical implant, an aerospace bracket, or a consumer gadget, the ability to hold tight tolerances in real materials—within days—is invaluable.
As technology advances, we are seeing the integration of CNC with automation and AI-driven toolpath optimization. Future machines will be able to self-diagnose tool wear, adjust feeds in real-time, and even run lights-out (unattended) overnight. This will only increase the speed and reduce the cost of precision CNC prototyping. For now, the key takeaway is clear: when you need a prototype that is both fast and accurate, CNC machining remains the most reliable and versatile solution in the manufacturing toolkit.
