Introduction: The Precision Revolution in Automotive Manufacturing
The automotive industry is undergoing a profound transformation. With the rise of electric vehicles (EVs), autonomous driving systems, and increasingly stringent emissions regulations, the demand for components that are lighter, stronger, and more efficient has never been higher. At the heart of this evolution lies precision automotive machining—a sophisticated manufacturing process that creates parts with tolerances measured in microns. Unlike traditional machining, which prioritizes speed over exactness, precision machining focuses on repeatability and accuracy to the thousandth of an inch. This article explores how precision machining is not just a manufacturing method but the very foundation of the future of auto parts, covering its core principles, operational mechanics, key benefits, critical applications, and industry best practices.
What Is Precision Automotive Machining?
Precision automotive machining is a subtractive manufacturing process where computer-controlled machine tools remove material from a solid workpiece to create a finished component that meets extremely tight dimensional specifications. In the context of the automotive sector, this process is used to produce everything from engine blocks and transmission gears to brake calipers and suspension knuckles. The term "precision" is defined by the tolerance—the allowable variation in a part's dimensions. While general machining might allow for tolerances of ±0.01 inches, precision automotive machining often requires tolerances of ±0.0005 inches or tighter. This level of accuracy ensures that every moving part fits perfectly with its counterparts, reducing friction, wear, and energy loss.
The Role of CNC Technology
Central to modern precision machining is Computer Numerical Control (CNC). CNC machines use pre-programmed software to dictate the movement of cutting tools and machinery. A single CNC machine can perform multiple operations—milling, turning, drilling, and tapping—without manual intervention. For automotive applications, multi-axis CNC machines (5-axis or more) are particularly valuable. They allow the cutting tool to approach the workpiece from virtually any angle, enabling the creation of complex geometries found in modern engine cylinders, turbocharger housings, and intake manifolds. This automation eliminates human error and ensures that every part produced from the same program is identical, a critical requirement for mass production.
Materials Shaped by Precision
The materials used in precision automotive machining are as diverse as the parts themselves. Common choices include:
- Aluminum alloys (e.g., 6061, 7075) for lightweight components like cylinder heads and control arms.
- Steel alloys (e.g., 4140, 4340) for high-strength parts such as crankshafts and gear shafts.
- Titanium for high-performance valves and connecting rods in racing engines.
- Stainless steel for exhaust components and fuel system fittings.
- Engineering plastics (e.g., PEEK, Nylon) for bushings and electrical insulators.
Each material presents unique challenges in terms of hardness, thermal expansion, and chip formation. Precision machining processes are tailored to these material properties, using specialized cutting fluids and tooling to maintain accuracy and surface finish.
How Precision Machining Works: From CAD to Finished Part
The journey from a digital design to a physical auto part is a multi-step process that demands expertise in both software and hardware. Understanding this workflow is essential to appreciating the value of precision machining.
Step 1: Design and Simulation
Everything begins with a 3D CAD model (Computer-Aided Design) created by automotive engineers. This model defines every dimension, hole, and contour of the part. The CAD file is then imported into CAM (Computer-Aided Manufacturing) software, which converts the model into a series of toolpaths. Modern CAM software includes simulation capabilities, allowing machinists to visualize the cutting process, detect potential collisions, and optimize tool paths for speed and finish before any metal is cut. This digital prototyping phase saves significant time and material costs.
Step 2: Machine Setup and Fixturing
Once the program is ready, the workpiece must be securely held in place. Fixturing is a critical element of precision machining. If a part moves even slightly during machining, the final dimensions will be out of tolerance. For automotive parts, custom-designed fixtures or modular clamping systems are used to ensure rigidity. The machine is then zeroed—meaning the cutting tool's position is calibrated to a known reference point on the workpiece. This step establishes the coordinate system for all subsequent operations.
Step 3: Cutting Operations and In-Process Inspection
The CNC machine executes the programmed toolpaths, removing material in a series of roughing and finishing passes. Roughing removes the bulk of the material quickly, while finishing passes take lighter cuts to achieve the final surface finish and tolerance. A key feature of precision machining is in-process inspection. Many modern CNC machines are equipped with probes that can measure the part during the cycle. For example, after drilling a hole, the machine can automatically check its diameter and depth. If the measurement is outside the tolerance, the machine can adjust the next operation or alert the operator. This closed-loop feedback system ensures that errors are caught immediately, not after the part is finished.
Step 4: Post-Machining and Quality Control
After machining, parts often require secondary processes such as deburring (removing sharp edges), heat treatment (to relieve stresses or increase hardness), and surface finishing (e.g., anodizing, coating). The final step is rigorous quality control. This typically involves using Coordinate Measuring Machines (CMMs), which use a touch probe to measure hundreds of points on the part and compare them to the CAD model. For high-volume automotive production, statistical process control (SPC) is employed to monitor trends and ensure that the manufacturing process remains stable over time.
Key Benefits of Precision Machining for Auto Parts
The adoption of precision machining in the automotive industry is driven by tangible advantages that directly impact vehicle performance, safety, and manufacturing economics.
Superior Performance and Efficiency
Precision-machined parts have better fits and tighter clearances. For example, a precision-machined piston and cylinder assembly will have reduced blow-by (gas leakage), leading to higher combustion efficiency and lower emissions. Similarly, precision gears mesh with less backlash, reducing noise and power loss in the drivetrain. In electric vehicles, precision machining of motor housings and rotors minimizes air gaps and magnetic losses, directly improving range and torque. The result is a vehicle that runs smoother, lasts longer, and uses energy more effectively.
Enhanced Safety and Reliability
Automotive safety systems depend on components that perform predictably under extreme stress. Brake calipers, steering knuckles, and suspension components must withstand high loads without failure. Precision machining ensures that these parts have consistent material properties and dimensional accuracy, eliminating weak points caused by variations in thickness or geometry. For instance, a brake disc that is not perfectly flat can cause vibration and uneven wear, reducing stopping power. Precision machining guarantees flatness and parallelism, contributing to reliable braking performance. In safety-critical applications like airbag deployment mechanisms, the reliability afforded by precision machining is non-negotiable.
Cost Reduction Through Waste Minimization
While precision machining may have higher upfront setup costs, it significantly reduces waste over the long term. Because parts are machined to exact specifications the first time, the scrap rate is drastically lower than with manual or less precise methods. This is particularly important when working with expensive materials like titanium or high-grade aluminum. Additionally, precise parts require less rework and fewer adjustments during assembly, speeding up production lines. In a high-volume environment, even a 1% reduction in scrap can translate to millions of dollars in savings annually.
Design Freedom and Complexity
Modern automotive design increasingly relies on complex shapes that are impossible to produce with conventional casting or forging alone. Precision machining allows engineers to create parts with intricate internal cooling passages, thin walls for weight reduction, and complex 3D contours for aerodynamic optimization. For example, a modern turbocharger compressor wheel features dozens of precisely curved blades that must be machined from a single billet of aluminum. This level of geometric freedom enables innovation in engine design, thermal management, and lightweighting—all critical for meeting future regulatory and performance targets.
Applications: Where Precision Machining Drives the Future
Precision machining is not limited to a single subsystem; it permeates every critical area of modern vehicles. Below are some of the most impactful applications.
Powertrain Components

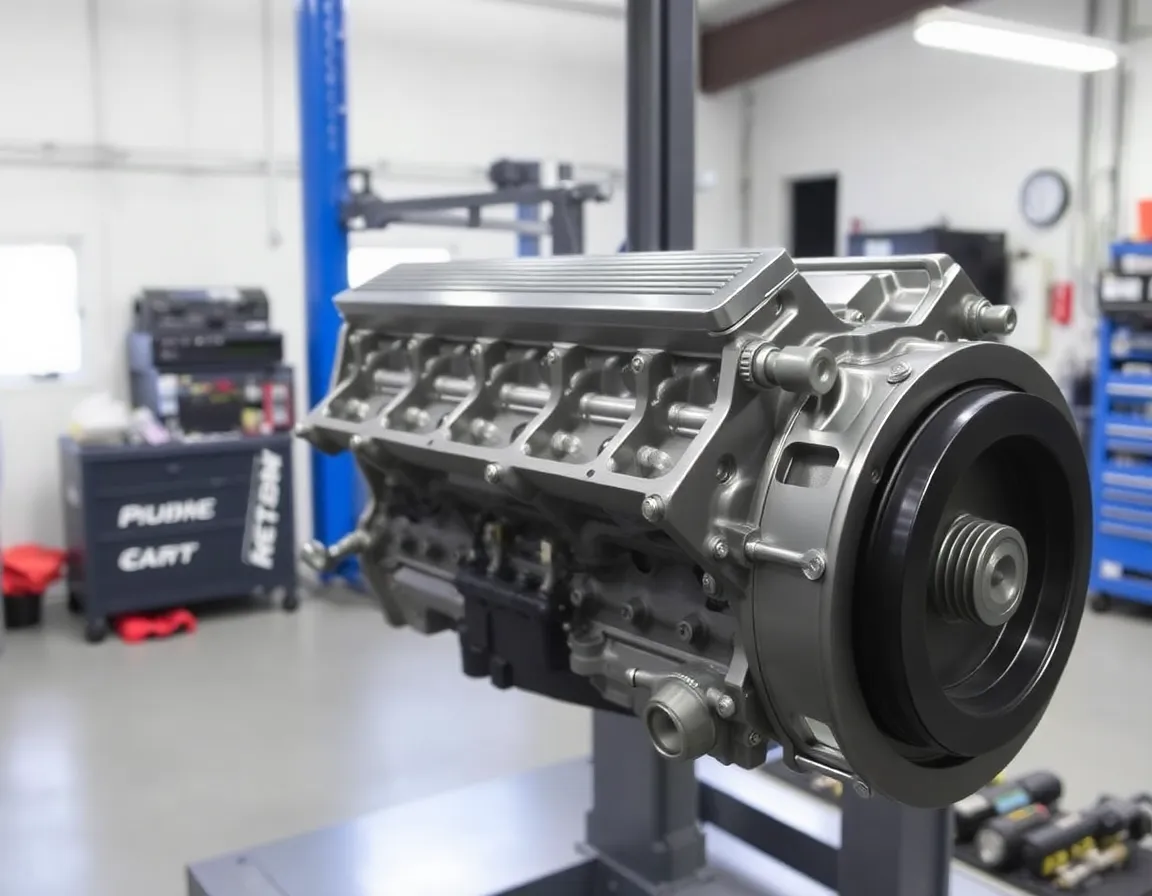

The engine and transmission remain the heart of a vehicle, and precision machining is essential for their operation. Engine blocks and cylinder heads are machined to create perfectly flat mating surfaces for head gaskets. Crankshaft journals are ground to mirror-like finishes to reduce bearing friction. Transmission valve bodies require precisely drilled oil passages to control hydraulic pressure for gear shifts. In hybrid and electric vehicles, precision machining is used for the stator and rotor laminations of electric motors, as well as the intricate gears of reduction drives.
Braking and Suspension Systems
Safety and handling components demand the highest levels of precision. Brake calipers are machined from aluminum billets to create rigid, lightweight housings that resist flex under pressure. Brake rotors are turned and ground to ensure runout (wobble) is measured in thousandths of an inch. Suspension components like control arms and steering knuckles are machined to provide precise mounting points for bushings and ball joints, ensuring accurate wheel alignment and responsive steering. Any deviation in these parts can lead to premature tire wear or unpredictable vehicle behavior.
Fuel and Exhaust Systems
Fuel injectors, high-pressure fuel pumps, and exhaust manifolds all benefit from precision machining. Injector nozzles require holes so small and precisely shaped that they are often created using electrical discharge machining (EDM) or laser drilling, both of which fall under the precision machining umbrella. Exhaust manifolds, particularly for turbocharged engines, need smooth internal surfaces and accurate flanges to prevent exhaust leaks and maintain backpressure. Precision machining ensures that these components meet the tight tolerances required for modern emissions control systems.
Best Practices for Precision Automotive Machining
To consistently achieve the high standards required in automotive manufacturing, machinists and engineers must adhere to a set of established best practices. These guidelines apply to both small job shops and large-scale production facilities.
Invest in High-Quality Tooling
The cutting tool is the point of contact between the machine and the workpiece. Using premium carbide, diamond, or ceramic tooling is essential for maintaining edge sharpness and dimensional stability over long production runs. Dull or worn tools cause chatter, surface defects, and tolerance drift. Many precision shops implement tool life management systems that track the number of parts produced per tool and schedule replacements proactively.
Prioritize Thermal Management
Heat is the enemy of precision. As a workpiece heats up during cutting, it expands, causing dimensions to change. In automotive machining, where tolerances are tight, this thermal expansion can push a part out of spec. Best practices include using high-pressure coolant systems to evacuate heat and chips, allowing the workpiece to "soak" to ambient temperature between operations, and machining in temperature-controlled environments. For critical operations, some shops use coolant chillers to maintain a consistent fluid temperature.
Implement Rigorous Metrology
Measurement is not an afterthought; it is an integral part of the process. Best-in-class facilities use a combination of in-machine probing, portable CMMs, and optical scanners. They also employ gage R&R studies (Repeatability and Reproducibility) to ensure that their measurement systems are accurate. Regular calibration of all measuring equipment against national standards is mandatory. Furthermore, first-article inspection (FAI) should be performed on the first part of every new production run to validate the entire process before scaling up.
Embrace Automation and Data Analytics
The future of precision machining is digital. Robotic part loading and unloading systems reduce cycle times and eliminate human handling errors. Machine monitoring software collects real-time data on spindle load, vibration, and temperature. This data can be analyzed to predict tool wear, detect anomalies, and optimize cutting parameters. Industry 4.0 principles—where machines communicate with each other and with central control systems—are becoming standard in high-volume automotive machining facilities. This level of connectivity enables predictive maintenance, reducing unplanned downtime.
Conclusion: Driving Innovation Through Precision
Precision automotive machining is far more than a technical process; it is a strategic enabler for the vehicles of tomorrow. As the industry shifts toward electrification, autonomy, and sustainability, the demand for components that are lighter, more efficient, and more reliable will only intensify. Precision machining meets this demand by offering unmatched accuracy, repeatability, and design flexibility. From the engine bay to the braking system, every critical part benefits from the micron-level control that only modern CNC machining can provide. For manufacturers, investing in precision machining capabilities—through advanced tooling, thermal management, and data-driven quality control—is not an option but a necessity to remain competitive. The future of auto parts is being machined right now, one precise cut at a time.
